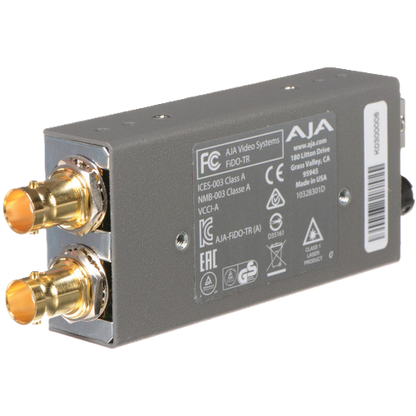

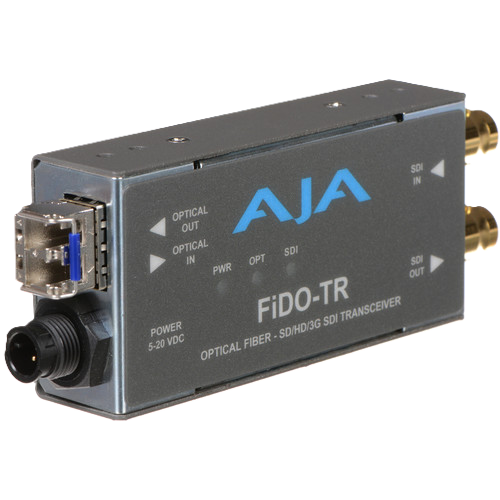

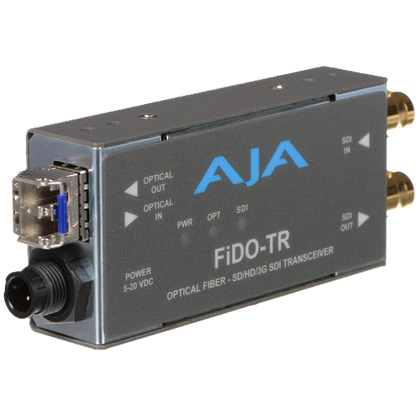

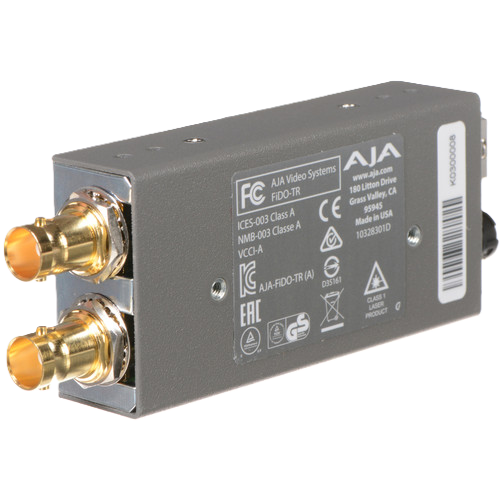

AJA FiDO-TR Single-Channel 3G-SDI / LC Fiber Transceiver

AJA FiDO-TR Single-Channel 3G-SDI / LC Fiber Transceiver

The AJA FiDO-TR is a compact 1-channel 3G-SDI to single-mode LC fiber transceiver designed for bidirectional SDI-to-fiber conversion and long-distance video signal transport. It supports 3G-SDI, HD-SDI, and SD-SDI signals and provides up to 10 km (32,808 ft) of transmission over standard single-mode fiber.

The FiDO-TR also provides electrical isolation between the SDI and fiber connections, which can help eliminate ground loop problems in professional video systems. Its compact Mini-Converter design makes it well suited for broadcast facilities, live production, mobile trucks, studios, and camera rigs.

Key Features

• 1-channel 3G-SDI to single-mode LC fiber transceiver
• Bidirectional SDI-to-fiber and fiber-to-SDI conversion
• Supports 3G-SDI, HD-SDI, and SD-SDI
• Duplex single-mode fiber connection using LC connectors
• Up to 10 km (32,808 ft) transmission distance
• Provides electrical isolation to help eliminate ground loop problems
• Supports SDI metadata pass-through, including HDR
• 5-20VDC power input
• Universal power supply included
• Compact, low-profile Mini-Converter design
• Five-year warranty

Bidirectional 3G-SDI and Fiber Conversion

The AJA FiDO-TR provides flexible two-way SDI and fiber conversion in a compact Mini-Converter. It can convert a 3G-SDI signal to single-mode fiber or convert a fiber signal back to SDI.

The unit supports 3G-SDI, HD-SDI, and SD-SDI, making it suitable for a variety of professional video workflows. Its bidirectional, dual-channel fiber architecture provides flexible signal transport between SDI equipment and fiber-based infrastructure.

10 km Single-Mode Fiber Transmission

The FiDO-TR supports SDI signal transmission over standard single-mode fiber cable for distances up to 10 km (32,808 ft). This allows video signals to travel significantly farther than traditional copper SDI connections.

The duplex LC fiber connection is suitable for professional broadcast, live event, studio, mobile production, and long-distance video applications.

Electrical Isolation for Ground Loop Protection

One of the key benefits of the FiDO-TR is electrical isolation between the SDI and fiber connections. This isolation can help eliminate ground loop problems that may occur when video equipment is connected across different electrical systems or locations.

This makes fiber conversion particularly useful in professional production environments where equipment may be distributed throughout a facility or venue.

HDR Metadata Pass-Through

The FiDO-TR supports SDI metadata pass-through, including HDR metadata, helping preserve important signal information during SDI-to-fiber and fiber-to-SDI conversion.

High Dynamic Range (HDR) provides a wider range of brightness and color than Standard Dynamic Range (SDR), allowing compatible production systems to maintain brighter highlights, deeper blacks, and richer color detail.

Compact AJA Mini-Converter Design

The FiDO-TR features AJA's compact Mini-Converter enclosure, making it easy to install in locations where space is limited. The low-profile design can fit behind monitors, inside equipment racks, in mobile production trucks, or directly on camera rigs.

A locking power connector helps prevent accidental power disconnection. An optional P-TAP power cable can also provide battery-powered operation for remote production applications.

Universal Power Supply

The FiDO-TR operates on 5-20VDC power and includes a universal power supply with international plug connections. A spare universal power supply can also be used with AJA Mini-Converters for additional flexibility in professional production environments.

Professional AJA Support and Warranty

AJA provides technical support for Mini-Converter installation, configuration, operation, and troubleshooting. The FiDO-TR is covered by a five-year warranty, providing long-term support for professional video production systems.

AJA FiDO-TR Applications

The AJA FiDO-TR is designed for professional video environments requiring long-distance SDI transport, bidirectional fiber conversion, or electrical isolation, including:

• Broadcast facilities
• Live event video production
• Mobile production trucks
• Television and production studios
• Long-distance SDI signal transport
• SDI-to-fiber conversion
• Fiber-to-SDI conversion
• Remote camera systems
• Professional AV installations
• Systems requiring electrical isolation
• Workflows where ground loop problems need to be eliminated

• Video Formats: 150 Mbps - 3 Gbps, format agnostic
• Video Input Digital
  • 1-channel independent 3G-SDI BNC Input, SMPTE-259/292/424
  • 1-channel Single Mode LC Fiber Input, SMPTE-297
  • Nominal Wavelength: 1260-1620 nm
  • Optical Sensitivity: -18dBm (Max)
  • Overload Power: -3dBm (Min)
• Video Output Digital
  • 1-channel independent 3G-SDI BNC Output, SMPTE-259/292/424
  • 1-channel Single Mode LC Fiber Output, SMPTE-297
  • Nominal Wavelength: 1310 nm
  • Optical Power: -5dBm (Min), 0dBm (Max)
  • Extinction Ratio: 7.5dB (Typ)
• Reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked
• Size (w x d x h): 4.6" x 1.71" x 0.85" (117.0 x 43.5 x 21.6mm)
• Weight: 0.4 lb (0.2 kg)
• Power
  • 3 watts, max
  • Uses 5-20VDC power, universal power supply included
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• AJA FiDO Single-Channel 3G-SDI / LC Fiber Transceiver
• Warranty: Limited 5-Year Manufacturer Warranty
