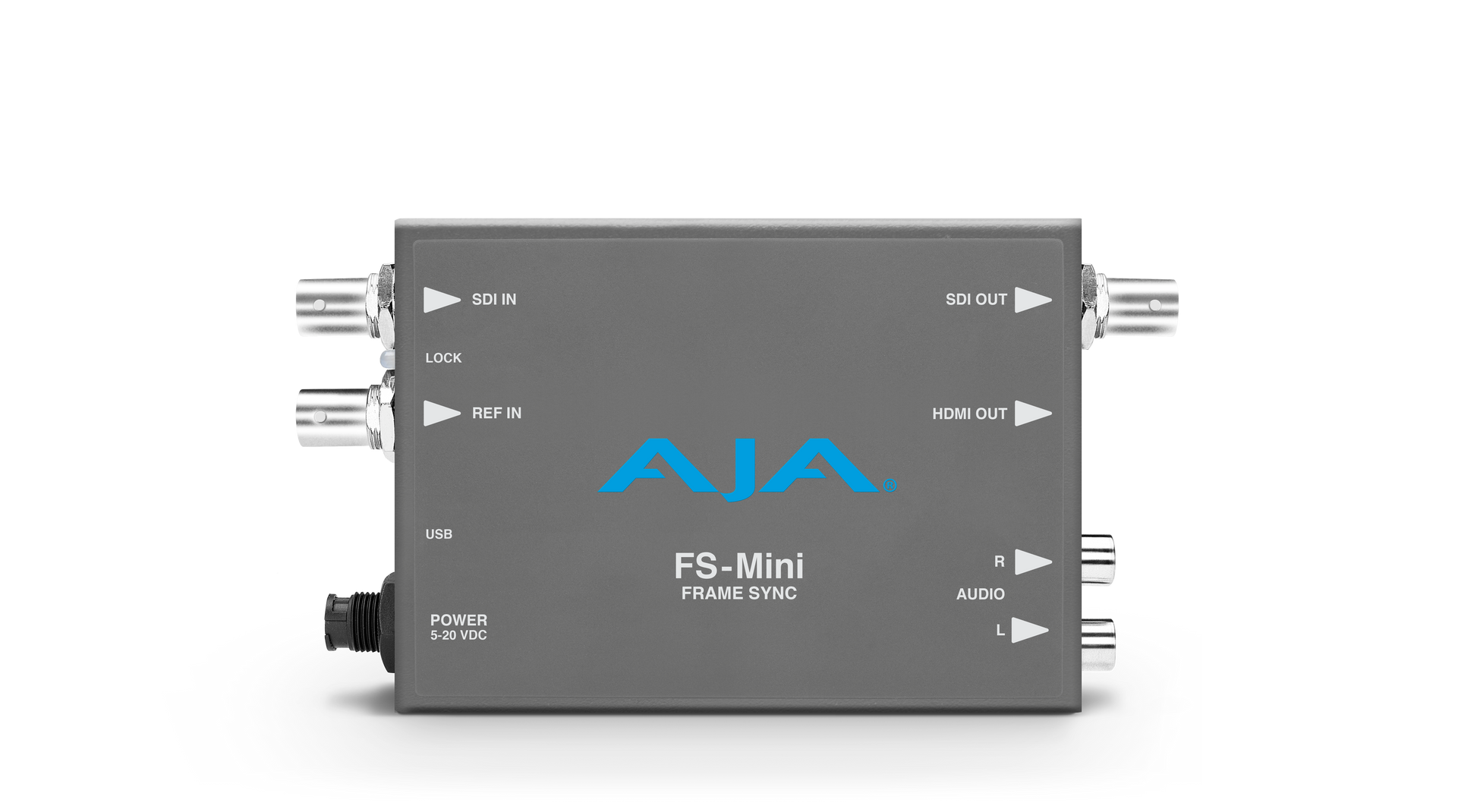

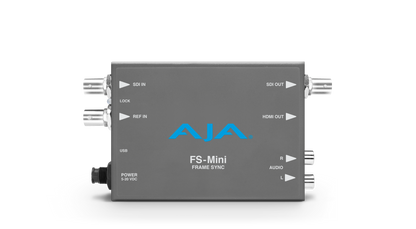

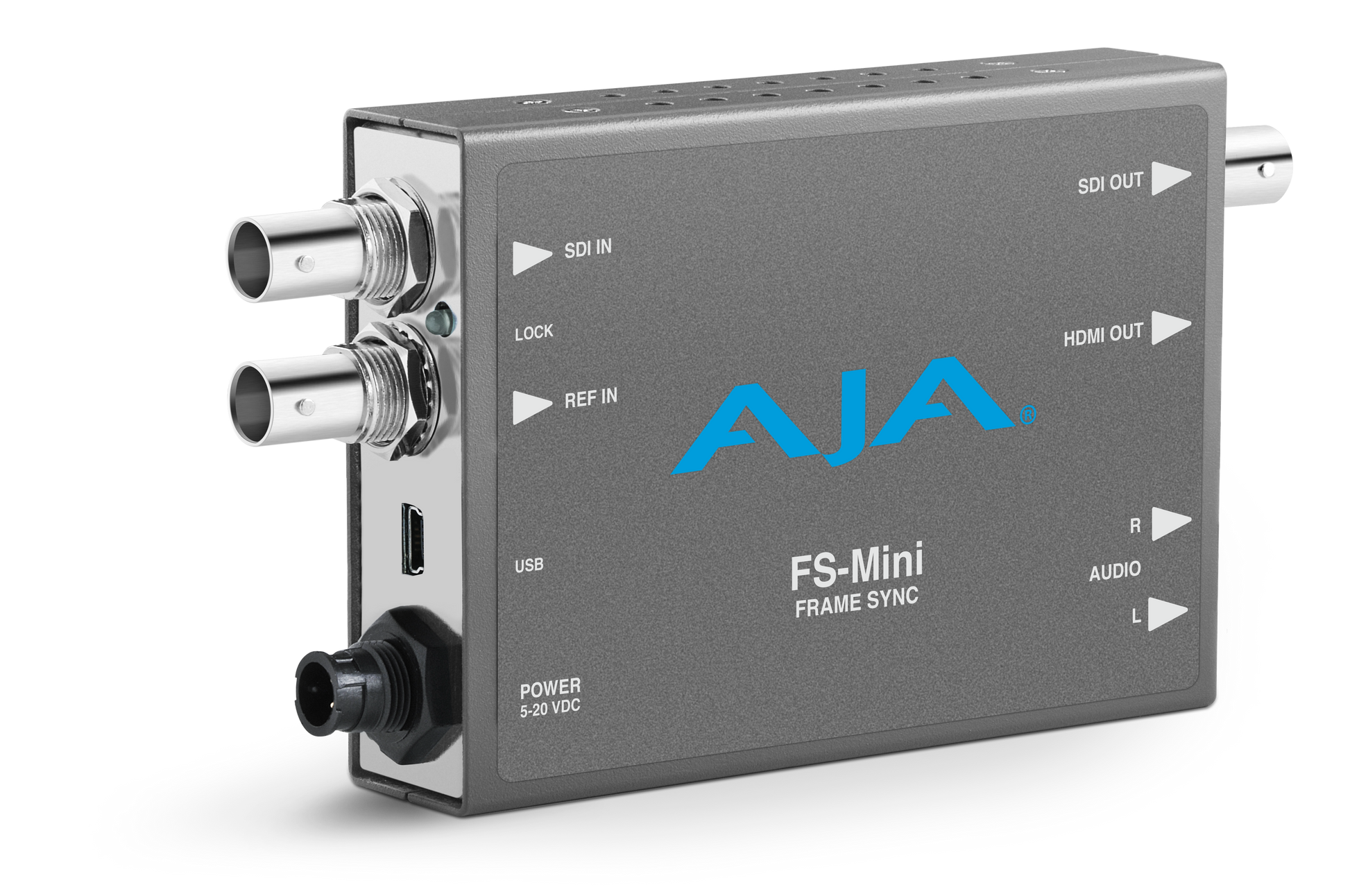

AJA FS-Mini Frame Synchronizer

Regular price$879.00
/
Free Shipping & Tech Support.

MFR Part # (MPN): FS-MINI-R0
Videoguys Part # (SKU): FSMINI

Short Description:
  • Free Shipping & Tech Support

Infrastructure Converters Overview

  • AJA Mini-Converters provide a wide range of options for common infrastructure and point of use needs.
  • Explore your options for frame synchronization, distribution amplification, audio embedding/disembedding, digital to analog and analog to digital video and audio conversion, multi-plexing and sync generation with support for blackburst, bi-level, tri-level and equalization.

AJA 12G Solutions

  • The 12GDA and 12GM AJA’s Infrastructure Mini-Converters offer the latest support for 12G-SDI Distribution Amplification and Multiplexing.
  • 12G-SDI offers multiple advantages. 12G-SDI offers eight times the bandwidth of normal HD-SDI with the simplicity of single cable connectivity. 12G-SDI has the ability to handle high frame rate and deep color 4K/UltraHD signals, including up to 100/120fps. This has major benefits for live events, broadcast studios, on set and live venues when it comes to cable complexity, weight, and troubleshooting.

USB and Mini-Config Support

  • AJA’s free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Universal Power Supply

  • All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

AJA Mini-Matrix

  • Mini-Matrix offers information on the complete line of AJA Mini-Converters as a convenient search tool, available online. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are. Please click here to use Mini-Matrix to help find the AJA Mini-Converter you need.

Industry Leading Support

  • AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.
  • Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself

Utility Frame Sync

  • Aligns and times input video to reference


Video Formats

  • (HD) 1920 x 1080p
  • (HD) 1920 x 1080PsF
  • (HD) 1920 x 1080i
  • (HD) 1280 x 720p
  • (SD) 625i
  • (SD) 525i
  • CbCr, 4:2:2, 10-bit

Video Input Digital

  • 1x 3G-SDI input, 1x BNC
  • 3G/HD/SD, SMPTE-259/292/424
  • Single Link 3G-SDI Level A, SMPTE-425-1
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94


Video Output Digital

  • 1x 3G-SDI outputs, 1x BNC
  • 3G/HD/SD, SMPTE-259/292/424
  • Single Link 3G-SDI Level A, SMPTE-425-1
  • (HD) 1080p 23.98 (for 23.98 video inputs)
  • (HD) 1080p 24 (for 24 video inputs)
  • (HD) 1080p 25 (for 50 video inputs)
  • (HD) 1080p 29.97 (for 59.94 video inputs)
  • (HD) 1080p 30 (for 60 video inputs)
  • (HD) 1080p 50 (for 50 video inputs)
  • (HD) 1080p 59.94 (for 23.98, 59.94 video inputs)
  • (HD) 1080p 60 (for 24, 30 or 60 video inputs)
  • (HD) 1080PsF 23.98 (for 23.98 video inputs)
  • (HD) 1080PsF 24 (for 24 video inputs)
  • (HD) 1080PsF 25 (for 50 video inputs)
  • (HD) 1080PsF 29.97 (for 59.94 video inputs)
  • (HD) 1080Psf 30 (for 30 or 60 video inputs)
  • (HD) 1080i 59.94 (for 23.98, or 59.94 video inputs)
  • (HD) 1080i 60 (for 24, 30, or 60 video inputs)
  • (HD) 1080i 50 (for 25 or 50 video inputs)
  • (HD) 720p 50 (for 50 video inputs)
  • (HD) 720p 59.94 (for 23.98, 59.94 video inputs)
  • (HD) 720p 60 (for 24, 30, or 60 video inputs)
  • (SD) 625i 50 (for 25 or 50 fps video inputs)
  • (SD) 525i 59.94 (for 23.98 or 59.94 video inputs)

Monitor Output Digital

  • 1x HDMI standard type A connector
  • HD/SD
  • Color space, YCbCr or RGB
  • Bit depth, 8 or 10
  • RGB Range, SMPTE or Full Range


Video Processing

  • Frame rate conversion/film cadence removal/insertion (3:2)
  • Loss of input management: Freeze, Black, or Mute
  • AFD input detection, down-convert control
  • Nominal video delay HD/SD, 1 frame

Up-Conversion

  • Hardware 10-bit
  • 4x3 Pillar: results in a 4x3 image at center screen with black sidebars
  • 14x9 Pillar: results in a 4x3 image zoomed slightly to fill a 14x9 image with black side bars
  • Full Screen: results in a 4x3 image stretched horizontally to fill in a 16x9 screen
  • Letterbox to Full: results in image zoomed to fill fullscreen
  • Wide Zoom: results in a combination of zoom and horizontal stretch to fill a 16x9 screen; this setting will introduce a small aspect ratio change

Down-Conversion

  • Hardware 10-bit
  • Crop: image is cropped to fit new screen size
  • Anamorphic: HD image is converted to full-screen SD with a 16x9 aspect ratio
  • 14x9: image is reduced slightly with aspect ratio preserved, black is added top and bottom, and the left and right sides are cropped
  • Auto AFD: automatically selects the best down-convert mode based on the input video's Active Format Description (AFD) code
  • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
  • Cross-Conversion
  • Hardware 10-bit
  • 1080i to 720p
  • 720p to 1080i
  • 720p to 1080PsF

Aspect Ratio Conversion for SD to SD

  • Letterbox: transforms SD anamorphic material to a letterboxed image
  • H Crop: produces a horizontally stretched effect on the image; transforms anamorphic SD to full frame
  • SD Pillarbox: produces an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
  • V Crop: transforms SD letterbox material to an anamorphic image
  • 14x9: anamorphic to 14x9 conversion

Audio Input Digital

  • 48 kHz sample rate
  • 1x SDI embedded input
  • 16-channels, 24-bit (20-bit SD), SMPTE-272/299

Audio Output Digital

  • 48 kHz sample rate
  • 1x SDI embedded output
  • 16-channels, 24-bit (20-bit SD), SMPTE-272/299

Audio I/O

  • 16-channel embedded SDI audio input
  • 16-channel embedded SDI audio output
  • 2 or 8-channel HDMI audio output
  • 2x RCA style analog outputs at -10 dBu (nominal)

Ancillary Data

  • Supports pass-through of PCM embedded audio
  • Supports pass-through of non-PCM audio when source is in time with the selected ref (SDI In or Ext Ref).  Non-PCM audio is not supported during frame sync operation.
  • All other ANC data is not passed

Reference Input

  • External, 1x BNC
  • Blackburst or tri-level sync75-ohms terminating
    Genloc
  •
  • Lock to External Reference
  • Lock to SDI input
  • Free run
  • HDCP
  • The FS-Mini does not encode the HDMI output with HDCP encryption. By definition, HD-SDI inputs to the FS-Mini are unencrypted. The HDMI specification requires HDMI
  • monitors to support unencrypted inputs.
  • User Interface
  • USB port used with supplied cable and Mini-Config software application to configure device via PC or Mac
  • External DIP switches

Size (w x d x h)

  • 5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)

Weight

  • 0.7 lb (0.3 kg)

Power

  • +5VDC Regulated, 7.0 Watts, Power Supply Required (included with purchase)
  • Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
