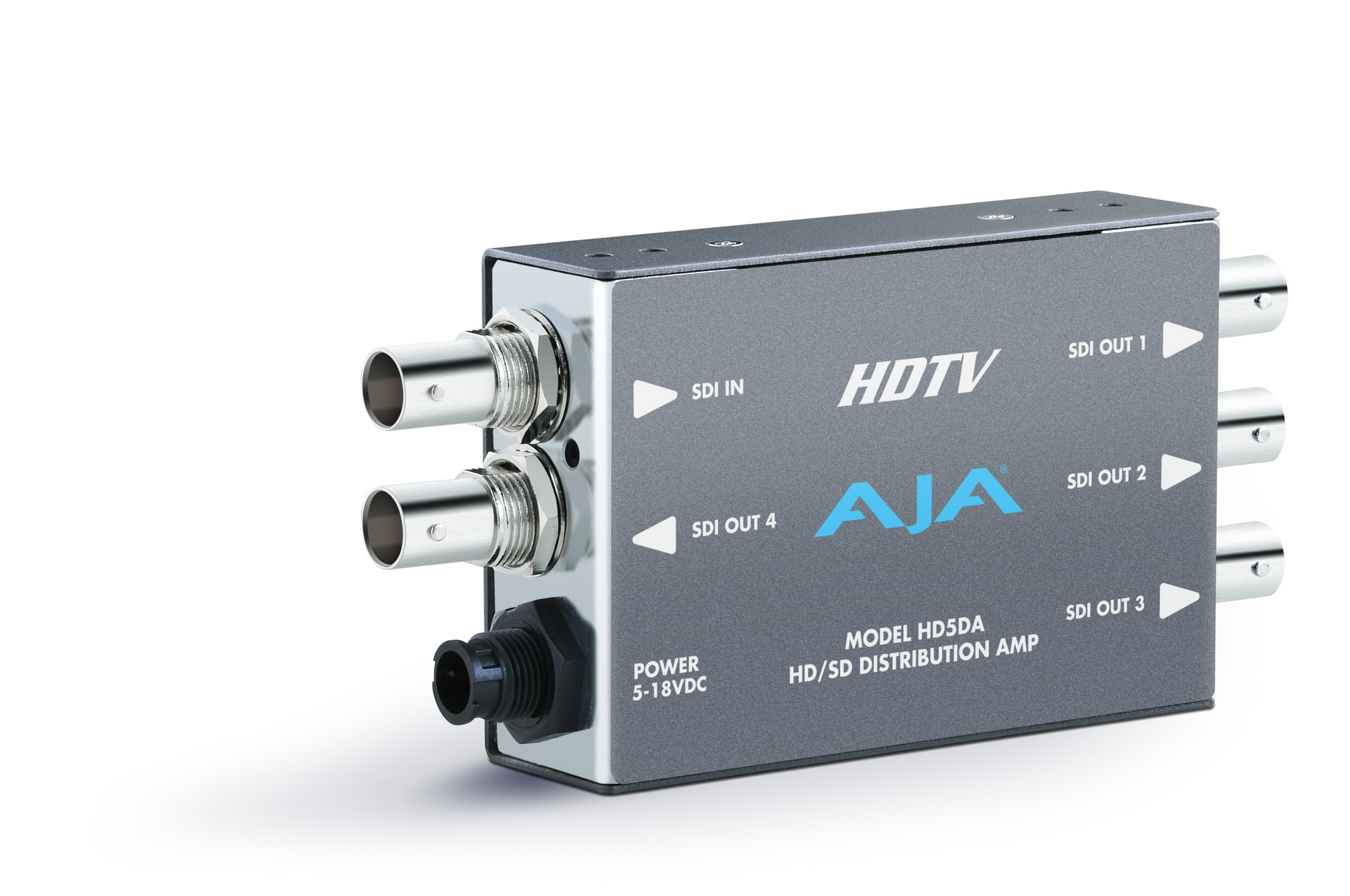

AJA HD/SD SDI Distribution Amplifier/Repeater

The AJA HD/SD SDI Amplifier/Repeater is a miniature, low cost, 1x4 HD-SDI/SDI distribution amplifier/repeater. Featuring four separately buffered HD-SDI/SDI outputs, the AJA HD/SD SDI Amplifier/Repeater provides automatic input cable equalization to 100 meters and automatically adapts to 143, 177, 270, 360 Mb, and 1.5 Gb.

Features

• Compact HD-SDI/SDI Distribution
• Four Separately Buffered Serial HD-SDI/SDI Outputs
• Auto Equalization
• Acts as a Low Cost Repeater
• Automatic multi-standard
• Miniature Size

Universal Power Supply
Customers can purchase a spare universal power supply for use with any of their Mini-Converters. This universal power supply includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix
Information on the complete line of AJA converters, routers, frame synchronizers, and openGear cards are available in Mini-Matrix. AJA products are extensive and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Formats

• 1.5 Gb, 143, 177, 270, 360 Mb, Auto Select

Inputs

• 1 HD-SDI, SDI (SMPTE 292/296), 1x BNC

Outputs

• 4 HD-SDI, SDI, 4x BNC
• Equalizing

Return Loss

• >15dB - 270 Mhz (Input and Output)

Size (w x d x h)

• 5.8" x 2.4" x 1.0" (131 x 61 x 25mm)

Power

• 5-18 VDC Regulated, 2.5 watts, power supply required, included
• with purchase

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

1 X HD/SD SDI Distribution Amplifier/Repeater

Industry Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue,  AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
