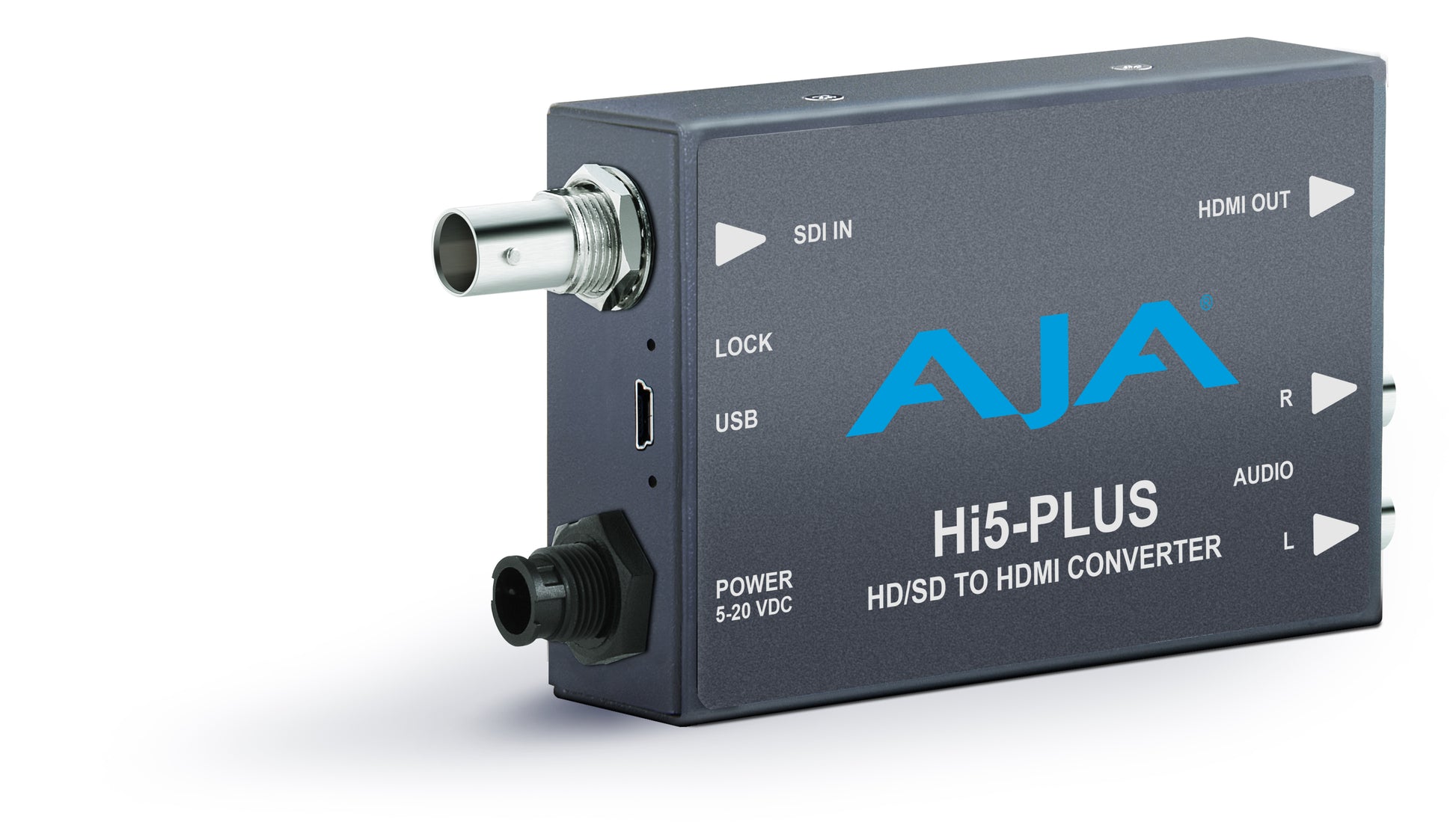

AJA HI 5 Plus Angled View

AJA HI5-Plus 3G-SDI to HDMI Converter

Regular price$505.00
/
Free Shipping & Tech Support.

MFR Part # (MPN): HI5-PLUS-R1
Videoguys Part # (SKU): HI5PLUS

Short Description:
  • Free Shipping & Tech Support

3G-SDI to HDMI Mini-Converter
Hi5-Plus is AJA’s next generation SDI-to-HDMI Mini-Converter for integrating HDMI monitors into professional SDI workflows


Deep Color HDMI
When used with a compatible HDMI monitor, Hi5-Plus outputs a 30-bit Deep Color RGB signal that allows for incredible color representation.


3G-SDI Support
The 3G-SDI input on Hi5-Plus allows extremely high-quality signal representation through to the HDMI output for use with RGB workflows where image quality is critical.


Audio Integration
Up to 16-channels of embedded SDI audio are supported on input and can be passed to 8-channel of embedded HDMI audio on the output with the ability to delay the audio from 0 to 7 frames for proper synchronization with the output video. Two channels of analog audio output allow direct external monitoring without the need to disembed the audio separately.


PsF to Progressive conversion
HDMI monitors do not natively support PsF signals. However, many professional productions still work with PsF formats. Hi5-Plus converts incoming 1080PsF signals to 1080p. This progressive signal is compatible with HDMI monitors.


Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.


Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.


AJA Mini-Matrix
Information on the complete line of AJA Converters is available in Mini-Matrix. AJA products are extensive and this resource helps you find the right Converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.


Industry Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

Video Formats

  • (2K) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 1080PsF* 23.98, 24, 25, 29.97, 30
  • (HD) 1080i 50, 59.94, 60
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1080PsF* 23.98, 24, 25, 29.97, 30
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i
  • (SD) 525i

  • *Converts to progressive

Video Input

  • 3G-SDI with embedded audio

Video Outputs

  • HDMI with embedded audio up to 8-channels
  •  (selectable by Mini-Config)8-bit RGB 4:4:4
    10-bit YCbCr 4:2:2
  • 12-bit

Audio Input

  • SDI embedded audio, select from 16-channels

Audio Output

  • 2-channel RCA style (-10dBu nominal)
  • Size (w x d x h)
  • 4.6” × 2.4” × 1.0” (117 × 61 × 25mm)
  • Weight
  • 0.3 lb (0.2 kg)

Power

  • Universal power supply included100-240V, 50/60 Hz universal input
  • +5V DC regulated, 7.5 watt capacity

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)\
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
