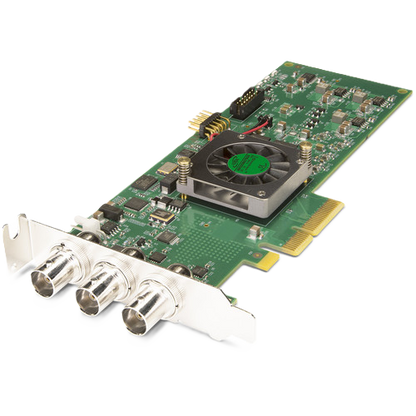

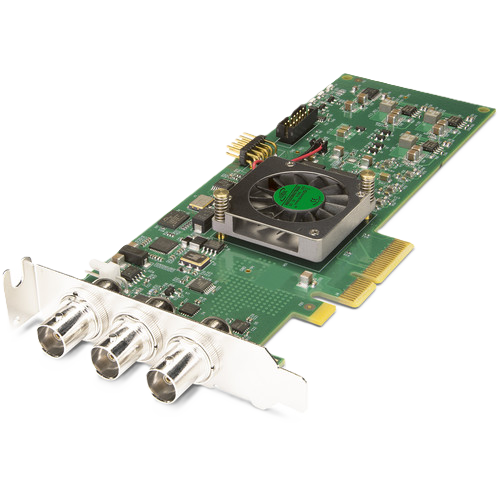

AJA KONA 1-S 3G-SDI 2K/HD Capture and Playback Card

AJA KONA 1-S 3G-SDI 2K/HD Capture and Playback Card

The AJA KONA 1-S is a single-channel 3G-SDI capture and playback card designed for professional video workflows and OEM developers. Its short, low-profile design supports installations where space is limited and allows an internal connection for an optional external RS-422 9-pin connector. Capture and play back 2K and HD video at up to 60p, with support for Mac, Windows, and Linux systems.

Key Features

• 3G-SDI Capture and Playback: Supports single-channel 2K and HD video up to 60p.
• Short, Low-Profile Design: Designed for OEM developers and space-constrained system builds.
• RS-422 Connectivity Option: Provides an internal connection for an optional external 9-pin RS-422 connector.
• Reference and LTC Input: Selectable HD/SD reference or LTC input.
• Mac, Windows, and Linux Compatibility: Uses a 2-lane PCIe 2.0 interface.

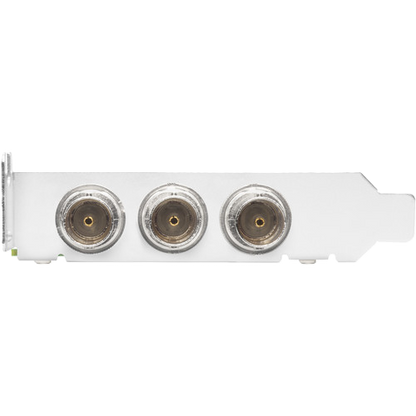

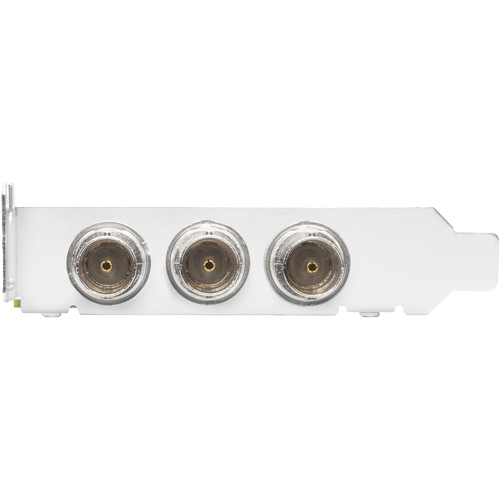

• Full-Size BNC Ports: Provides professional SDI connectivity.
• 16-Channel Embedded SDI Audio: Supports 24-bit, 48 kHz audio input and output.
• Simultaneous Monitoring: Monitor video during capture.
• ANC Capture and Processing: Supports ancillary data capture and processing.
• Flexible Frame Buffer Formats: Supports 8-bit and 10-bit YCbCr and RGB formats.

Low-Profile 3G-SDI Capture and Playback for OEM Systems

The AJA KONA 1-S brings professional video I/O to custom-built workstations, OEM systems, and production environments that need reliable 2K and HD capture and playback. Its single-channel 3G-SDI workflow supports video up to 60p, while embedded audio and ancillary data capabilities help accommodate professional production requirements.

The card's selectable HD/SD reference or LTC input supports synchronization needs, and simultaneous monitoring during capture helps operators keep an eye on video as it is recorded.

Designed for Custom Hardware Integration

The KONA 1-S is the short, low-profile version of the KONA 1. Unlike the taller version with an integrated 9-pin connector, the KONA 1-S allows OEM developers to make an internal connection for an optional external RS-422 9-pin connector. This makes it a useful option for system builders designing custom video solutions.

Compatibility: Mac, Windows, and Linux systems with a compatible 2-lane PCIe 2.0 slot. External RS-422 connectivity requires the appropriate optional connector.

• Video Formats
  • 2048 x 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 2048 x 1080PsF at 23.98, 24, 25
  • 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1080i at 50, 59.94, 60
  • 1080PsF at 23.98, 24, 25, 29.97, 30
  • 720p at 50, 59.94, 60
  • 625i at 50
  • 525i at 59.94
• Video Inputs: 1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz synchronous embedded audio
• Output: 1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz synchronous embedded audio
• Reference/LTC Input: 1 x 3G-SDI on BNC, analog color black or HD tri-level sync, LTC
• Interface: 2-lane PCIe 2.0
• Operating Temperature: 32 to 104°F / 0 to 40°C
• Storage Temperature: -40 to 140°F / -40 to 60°C
• Relative Humidity: 10-90% non-condensing
• Operating Altitude: < 9850' / < 3000 m
• Dimensions: 0.75 x 7.25 x 3.1" / 1.9 x 18.4 x 7.9 cm
• Weight: Approx. 0.3 lb / 135 g

• AJA KONA 1-S Short 3G-SDI 2K Capture & Playback Card
• Warranty: Limited 3-Year Manufacturer Warranty
