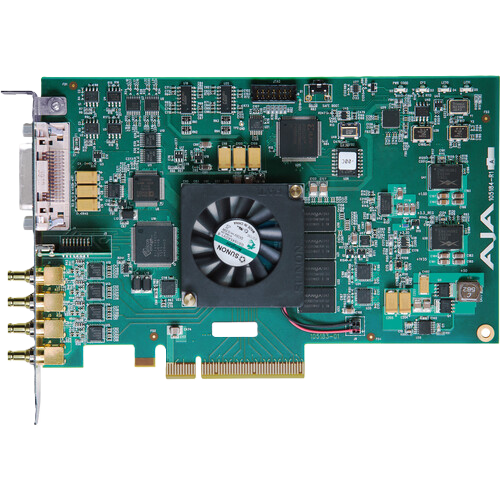

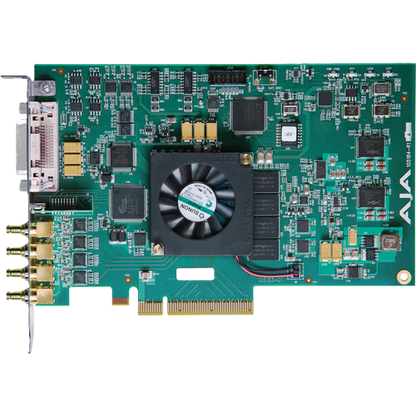

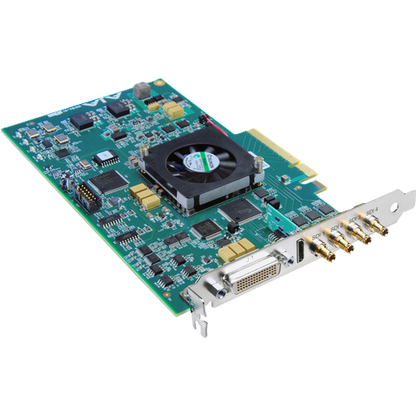

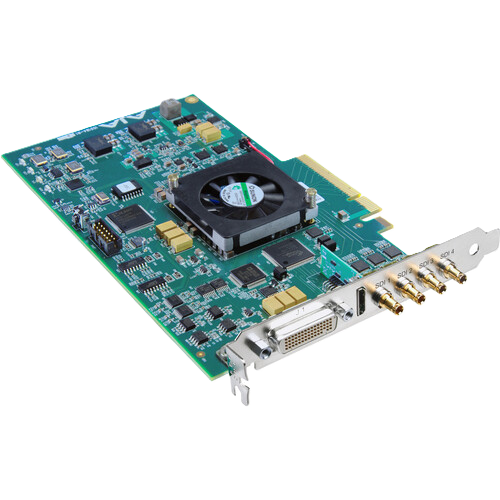

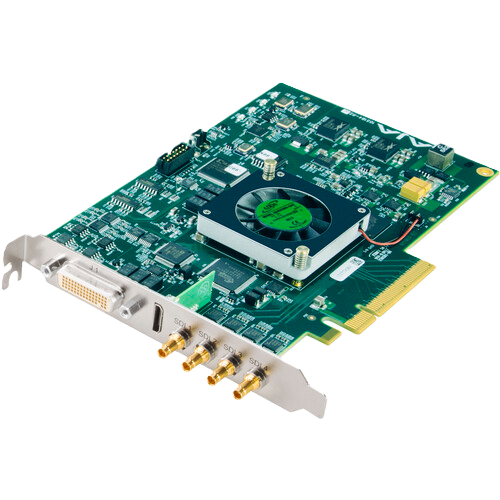

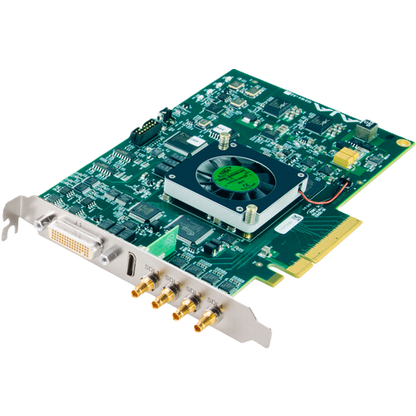

AJA KONA 4 PCIe Video I/O Card for 4K SDI and HDMI Workflows (HDMI 1.4a Output, Bracket, No Cables)

AJA KONA 4 PCIe Video I/O Card for 4K SDI and HDMI Workflows

The AJA KONA 4 PCIe Video I/O Card is a professional video capture and playback solution designed for 4K and HD production workflows. Supporting 4K video at up to 60 fps, the KONA 4 provides SDI and HDMI connectivity, real-time hardware conversion, and downstream keying for broadcast, post-production, and video system development.

This version includes an installation bracket and does not include breakout cables.

Key Features

• 4K video I/O up to 60 fps for high-frame-rate production workflows
• 4K connectivity via SDI or HDMI 1.4a output
• Uncompressed 1080p video I/O with 4:4:4 or 4:2:2 color sampling
• Simultaneous video input and output for flexible production workflows
• Real-time hardware up-, down-, and cross-conversion to match different video formats
• Built-in downstream keyer for overlaying graphics and images on video
• PCIe interface for installation in compatible computer-based video systems
• Includes installation bracket; breakout cables are sold separately

4K Capture and Playback up to 60p

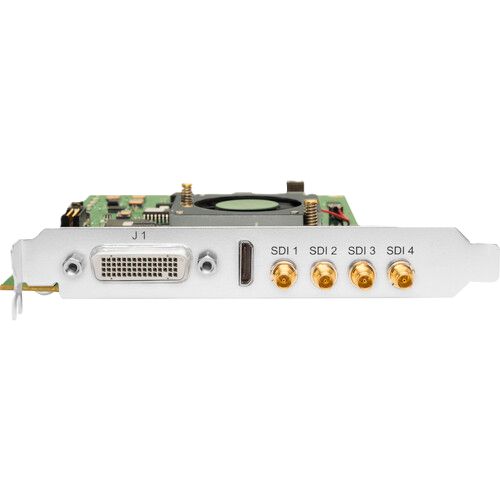

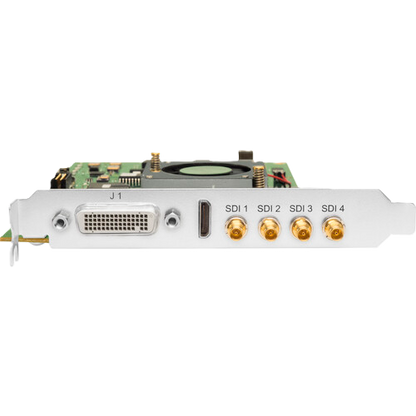

The AJA KONA 4 supports 4K video input and output at up to 50p and 60p. Use its four BNC SDI connections with compatible professional video equipment or connect a 4K display through the HDMI output.

For HD workflows, the card supports uncompressed 1080p video with 4:4:4 or 4:2:2 color sampling. Its ability to handle video input and output simultaneously makes it suitable for demanding capture, playback, monitoring, and post-production applications.

Real-Time Hardware Video Conversion

The KONA 4 includes hardware processing for up-conversion, down-conversion, and cross-conversion. Convert video between supported formats in real time without first rendering the footage in software.

For example, standard-definition footage can be up-converted for an HD project. Depending on the source aspect ratio and workflow requirements, conversion options can include letterboxing or stretching to fit the target frame.

Built-In Hardware Downstream Keyer

The integrated downstream keyer lets you overlay graphics and images onto incoming video. By handling keying in hardware, the KONA 4 helps reduce reliance on additional software processing for supported overlay workflows.

Expandable Connectivity for Professional Workflows

For additional connections, an optional 60-pin breakout cable provides access to supported AES/EBU digital audio, LTC, reference, analog component video, and RS-422 machine control connections.

The optional AJA K3G Breakout Box provides a rackmount connectivity option in a standard 19-inch rack space. Breakout accessories are not included with this card, so confirm the required connections and accessories before purchasing.

System Compatibility

The AJA KONA 4 is designed for compatible Windows and Linux computer-based video systems. Check AJA's current driver and operating system documentation to confirm compatibility with your workstation, software, and intended video formats before installation.

What's Included

• AJA KONA 4 PCIe Video I/O Card
• Installation bracket
• Breakout cables are not included

Applications

The AJA KONA 4 is suited to professional video capture and playback, 4K monitoring, broadcast production, post-production, and computer-based video systems that require SDI connectivity, HDMI output, and hardware video processing.

Choose the AJA KONA 4 when your workflow requires 4K video I/O, real-time format conversion, and hardware-based graphics keying in a PCIe card.

INPUTS/OUTPUTS

• System Connection: PCIe 2.0 x8
• Inputs/Outputs
  • 4x BNC (3G-SDI)
  • 1x HDMI (1.4)
• Other I/O
  • 1x DE-9/DB-9 RS-422 Input
  • 1x BNC Genlock Input/Output
• Simultaneous Multi-Input Support: Yes

FORMAT SUPPORT

• Input Video Format
  • SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
  • DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
  • UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
  • DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
  • DCI 2KPsF at 23.98/24/25 fps
  • 1080i at 50/59.94/60 fps
  • 1080PsF at 23.98/24/25/29.97/30 fps
  • 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
  • 720p at 23.98/24/25/29.97/30/50/59.94/60 fps
  • 576i / 625 lines at 50 fps
  • 480i / 525 lines at 23.98/59.94 fps
• Input Audio Format: S/PDIF: 48 kHz / 24-Bit
• Output Video Format
  • HDMI / SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
  • DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
  • UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
  • DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
  • DCI 2KPsF at 23.98/24/25 fps
  • 1080i at 50/59.94/60 fps
  • 1080PsF at 23.98/24/25/29.97/30 fps
  • 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
  • 720p at 23.98/24/25/29.97/30/50/59.94/60 fps
  • 576i / 625 lines at 50 fps
  • 480i / 525 lines at 23.98/59.94 fps
• Embedded Audio
  • SDI: 16-Channel
  • HDMI: 8-Channel

STANDARDS

• Video Standard Compliance: SMPTE 259M-C/292M/425M
• HDR Support: Yes: HDR10/Hybrid Log Gamma

ENVIRONMENTAL

• Power Consumption: Device: 24 W
• Operating Temperature: 32 to 104°F / 0 to 40°C
• Storage Temperature: -40 to 140°F / -40 to 60°C
• Operating Humidity: 10 to 90%
• Dimensions: 6.9 x 5 x 0.8" / 17.5 x 12.7 x 2 cm
• Weight: 0.9 lb / 0.4 kg

• AJA KONA 4 PCI-E Video I/O Card (HDMI 1.4a Output, Bracket, No Cables)
• Bracket
• Warranty: Limited 3-Year Manufacturer Warranty
