AJA KONA 5 8K/4K PCIe Video I/O Card – ATX Power, No Cable

AJA KONA 5 8K/4K PCIe Video I/O Card – ATX Power, No Cable

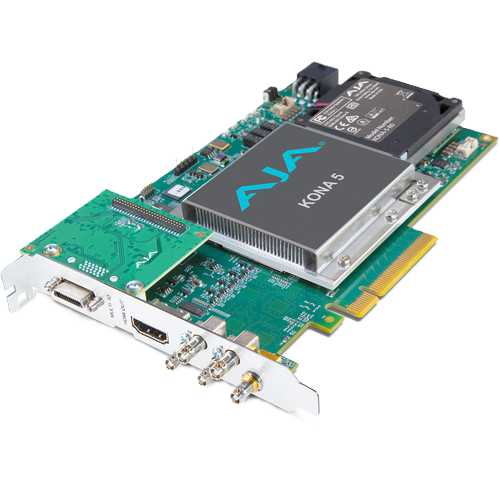

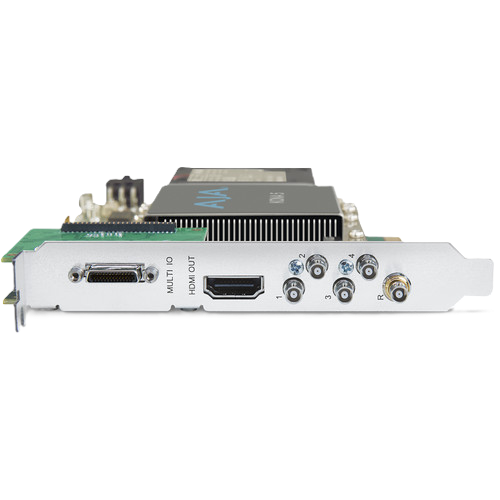

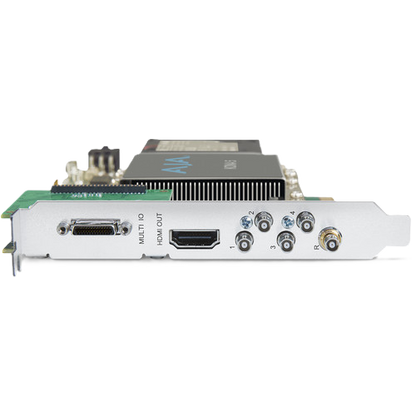

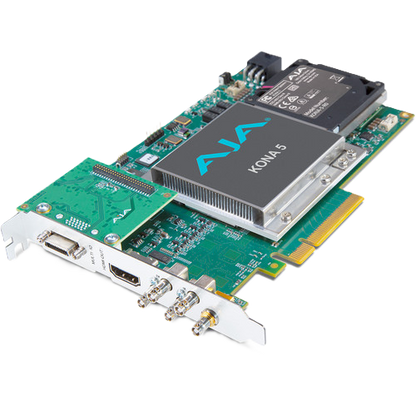

The AJA KONA 5 is a high-performance, 8-lane PCIe 3.0 video and audio I/O card designed for demanding broadcast, post-production, live production, and 8K workflows. Supporting video formats from SD and HD through 4K, UltraHD, 8K, and UltraHD2, KONA 5 delivers flexible connectivity with four bidirectional 12G-SDI connections and HDMI 2.0 output.

This version uses ATX power and does not include a power cable. It supports high-frame-rate (HFR) video, deep color, and advanced HDR workflows, making it a versatile solution for professional video capture, monitoring, and output.

Key Features

• 8-lane PCIe 3.0 video I/O card for demanding professional workflows
• Supports 8K, UltraHD2, 4K, UltraHD, 2K, HD, and SD formats up to 50/60p
• Four bidirectional 12G-SDI connections with 16-channel embedded audio
• Full-size HDMI 2.0 output with HDR, deep color, and high-frame-rate support
• Supports 10-bit YCbCr 4:2:2 and 12-bit RGB 4:4:4 workflows
• HDR support includes HDR10, HLG, PQ, and Dolby Vision, depending on the application
• Dynamic FPGA firmware reconfiguration for faster switching between supported workflows
• Compatible with leading production and post-production applications, including Adobe Premiere Pro, Apple Final Cut Pro, Avid Media Composer, OBS Studio, and vMix
• Supports macOS, Windows, and Linux, with software support for Apple silicon
• Includes reference input and a breakout cable for AES/EBU audio, RS-422 machine control, and LTC
• Three-year warranty

Professional 12G-SDI and HDMI 2.0 Connectivity

KONA 5 provides four bidirectional 12G-SDI connections for flexible video capture, output, and pass-through configurations. The connections support a range of professional formats, including 8K/UltraHD2 using four 12G-SDI connections and 4K/UltraHD workflows using supported SDI configurations.

The full-size HDMI 2.0 connection supports monitoring and output with HDR, deep color, and high-frame-rate capabilities. These connections make KONA 5 suitable for broadcast facilities, video post-production, live compositing, graphics, and virtual production environments.

Advanced HDR and Deep Color Workflows

KONA 5 supports professional HDR workflows using HDR10, HLG, PQ, and Dolby Vision, depending on the application and configuration. It supports 10-bit YCbCr 4:2:2 and 12-bit RGB 4:4:4 workflows, helping professionals maintain image quality throughout capture, monitoring, and output.

With AJA Control Room and AJA Control Panel, users can access HDR tools, including metadata capture and playback detection for supported workflows.

8K Capture, Playback, and Production

Designed for high-resolution production, KONA 5 enables 8K capture and playback workflows on compatible Windows, macOS, and Linux systems. It supports 8K workflows in applications such as Adobe Premiere Pro, Apple Final Cut Pro, and Avid Media Composer, subject to current software, driver, and system compatibility.

Dynamic FPGA firmware reconfiguration allows users to switch between supported 8K and 4K-and-below operating modes without a full system reboot.

Broad Software and System Compatibility

KONA 5 works with AJA Desktop Software, including AJA Control Room and AJA Control Panel, and supports a broad range of professional video applications. Compatible workflows include editing, live production, multi-channel capture, streaming, and custom OEM applications using the AJA SDK.

Check AJA's current software release notes and compatibility resources to confirm support for your operating system, application version, and intended workflow.

Included Connectivity and Power Requirements

This ATX-powered version of the AJA KONA 5 is supplied without a power cable. Confirm your host system's power requirements and obtain a compatible cable separately if needed.

KONA 5 also includes a breakout cable for supported auxiliary connections, including:

• 8-channel AES/EBU audio input and output
• RS-422 machine control
• LTC input and output

The card also provides a reference input for external synchronization using analog black burst or tri-level sync.

What's Included

• AJA KONA 5 PCIe video and audio I/O card
• Breakout cable for supported auxiliary connectivity
• Power cable not included

Choose the AJA KONA 5 for high-performance 8K, 4K, HDR, and high-frame-rate video workflows that require flexible SDI and HDMI connectivity. This ATX-powered version is designed for compatible host systems and is supplied without a power cable.

• Video Formats
  • (8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (2K) 2048 x 1080PsF 23.98, 24, 25
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1080i 50, 59.94, 60
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
  • Note: High Frame Rate and 8K/UltraHD2 capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates and raster sizes.
• Video Inputs Digital
  • 12G-SDI, SMPTE-2082, 12-bit*, 10-bit
  • 6G-SDI, SMPTE-2081, 10-bit
  • 3G-SDI, SMPTE 425
  • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
  • 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
  • *Bit depth support is application dependent. Check with your software manufacturer for compatibility.
  • Note: KONA 5 SDI connectors are HD BNC
• Video Outputs Digital
  • 12G-SDI*, SMPTE-2082, 12-bit*, 10-bit
  • 6G-SDI*, SMPTE-2081, 10-bit
  • 3G-SDI, SMPTE 425
  • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
  • 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
  • HDMI v2.0
  • 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
  • 4K, UltraHD, 2K, HD, and SD with HFR support up to 60p (4:2:2), 10-bit
  • *Bit depth support is application dependent. Check with your software manufacturer for compatibility.
  • Note: KONA 5 SDI connectors are HD BNC
• HDR
  • SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance
  • HDMI: HDR10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
  • HDMI: HLG Support - compatible with HDMI 2.0b/CTA-861-G
  • Note: HDR support is application dependent. Check with your software manufacturer for compatibility
• SDI I/O
  • SDI connections are bidirectional
  • 2K/HD, capture and monitoring is simultaneous
  • 4K/UltraHD with 12G-SDI, capture and monitoring is simultaneous.
  • 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output.
  • 8K/UltraHD2 with 12G-SDI, connections must be used for either Input or Output.
  • Note: When connections are configured for 12G-SDI or 6G-SDI, only UltraHD/4K/UltraHD2/8K formats are supported.
• Audio Inputs Digital
  • 16-channel, 24 and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous
  • 8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)
• Audio Outputs Digital
  • 16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
  • 8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
  • 8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)
• Downstream Keyer: Supports graphics up to 2K/HD with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte
• Reference
  • Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) (via 1x HD-BNC at PCIe bracket)
  • Reference input is terminated into 75 ohms when Genlock is set to Ref In
• Timecode
  • LTC timecode input and output (via 2x BNC on breakout cable)
  • LTC timecode input (via 2-pin header on PCIe card)
  • LTC timecode input (via HD-BNC at PCIe bracket)
• Electrical Interface: 8-lane PCIe 3.0
• Machine Control
  • RS-422, Sony 9-pin protocol (via breakout cable)
  • 9-pin D-connector pinout is as follows:
  • 1: GND
  • 2: RX-
  • 3: TX+
  • 4: GND
  • 5: No Connection
  • 6: GND
  • 7: RX+
  • 8: TX-
  • 9: GND
  • Shell: GND
• Noise: <50dBA (A-weighted at 1m in free air)
• Size (w x d x h): 0.75" x 6.9" x 5.0" (19.05 x 175.26 x 127.00 mm)
• Weight
  • PCIe Card:  0.6 lbs (0.3 kg)
  • Cables (all combined): 1.3 lbs (0.6 kg)
• Power
  • 28W typical, 35W maximum via ATX power.
  • PC Internal ATX Power Connector (Molex p/n 45559-0002)
  • Note: Unlike other KONA cards, KONA 5 uses PCIe power from a 6 pin ATX connector, rather than the PCIe slot.
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• AJA KONA 5 8K/4K PCIe Video I/O Card – ATX Power, No Cable
• Warranty: Limited 3-Year Manufacturer Warranty
