AJA KONA LHe Plus HD/SD Video I/O Card Bundle with KL-BOX-LH-R0 Breakout Box

AJA KONA LHe Plus HD/SD Video I/O Card Bundle with KL-BOX-LH-R0

The AJA KONA LHe Plus Bundle with KL-BOX-LH-R0 combines a professional HD/SD video I/O card with an external breakout box for convenient access to video, audio, reference, and machine-control connections. Designed for broadcast, post-production, professional AV, and OEM systems, this bundle supports both digital and analog video workflows.

The KONA LHe Plus provides SDI capture, playback, and monitoring, while the KL-BOX-LH-R0 breakout box makes connections easier to access in rack-based production environments. This combination is well suited to facilities that need flexible HD/SD connectivity and professional audio I/O.

Key Features

• Includes AJA KONA LHe Plus HD/SD PCIe video I/O card
• Includes KL-BOX-LH-R0 external breakout box
• Supports HD-SDI and SD-SDI up to 1080 30p and 720 60p
• Three 1.5G-SDI connections: one input and two outputs
• Up to eight channels of embedded SDI audio
• Supports 10-bit YCbCr 4:2:2 video workflows
• Real-time, hardware-based HD-to-SD down-conversion
• Analog component, composite, and S-Video connectivity
• AES/EBU digital audio and balanced analog audio I/O
• BNC digital AES/EBU connections and RCA audio monitoring jacks on the breakout box
• RS-422 machine control and reference connectivity
• Compatible with leading professional creative applications
• Three-year manufacturer warranty

Professional HD/SD Video I/O

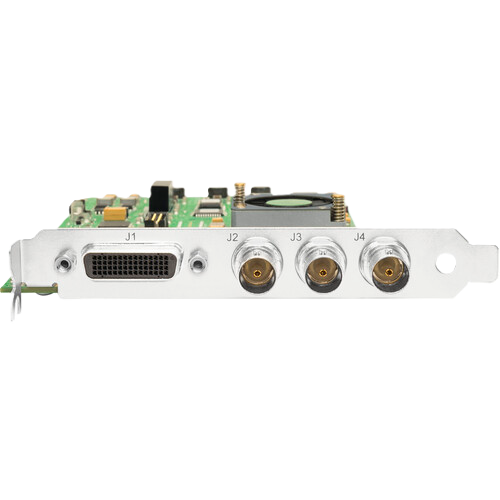

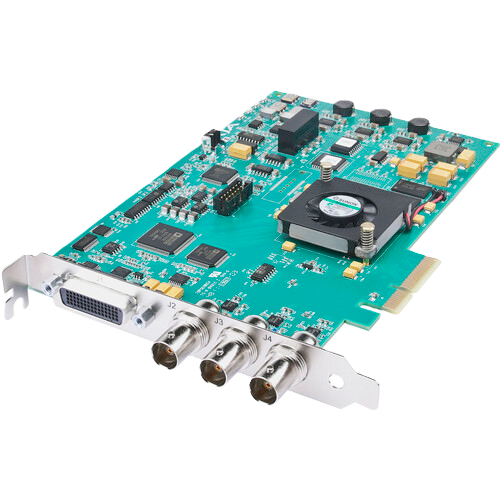

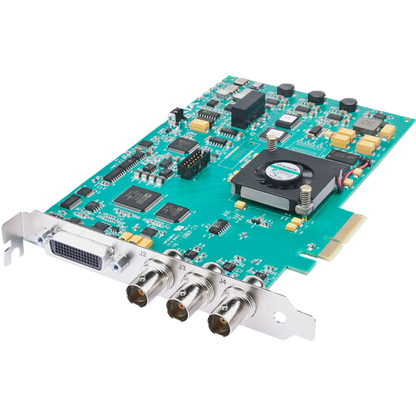

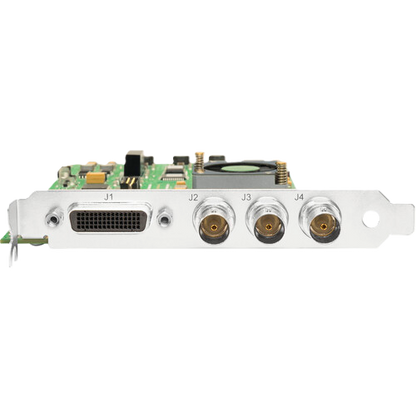

The KONA LHe Plus supports professional video capture, playback, and monitoring for broadcast and post-production workflows. Its SDI input and dual outputs support HD and SD video, with embedded audio for streamlined signal routing.

The card also supports analog video connections, allowing production systems to work with compatible legacy equipment alongside digital SDI sources and destinations.

Convenient Rackmount Connectivity with KL-BOX-LH-R0

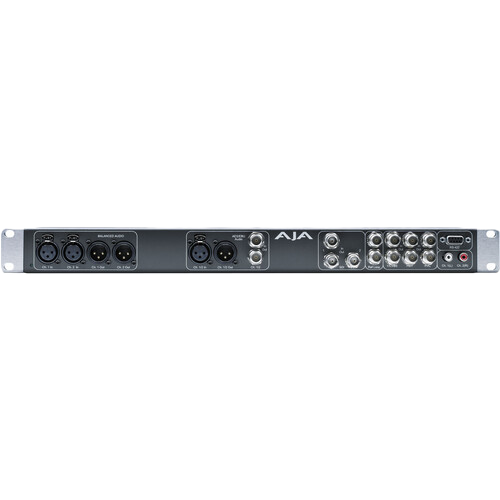

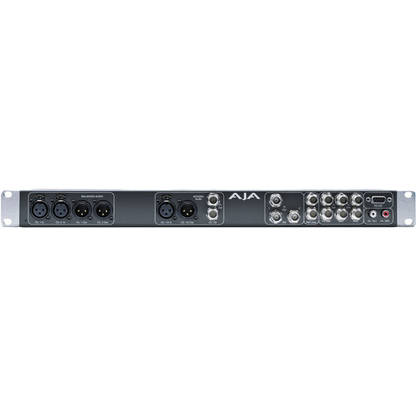

The included KL-BOX-LH-R0 breakout box extends access to the KONA LHe Plus connections, making it easier to integrate the card into rack-based production environments.

The breakout box provides convenient access to video and audio connections, including BNC digital AES/EBU connectors and RCA audio monitoring jacks. It also supports compatible reference and RS-422 machine-control connections, helping simplify equipment setup and operation.

Real-Time HD-to-SD Conversion

Integrated hardware conversion enables real-time, 10-bit HD-to-SD down-conversion during capture or playback. This is useful for workflows that require standard-definition output while working with HD video, including monitoring and multi-format delivery.

The KONA LHe Plus also supports 10-bit YCbCr 4:2:2 workflows and 10-bit LUTs using .cube files.

Flexible Audio and Video Workflows

The KONA LHe Plus supports embedded SDI audio, two-channel AES/EBU digital audio, and two-channel balanced analog audio I/O through the appropriate connections. Analog video support includes component, composite, and S-Video formats.

Reference input and RS-422 machine control provide additional flexibility for professional production, ingest, and playback systems.

Applications

• Broadcast and television production
• Video editing and post-production
• Professional AV and rack-based video systems
• HD/SD capture, playback, and monitoring
• Analog-to-digital video workflows
• Video ingest and archive systems
• OEM video system development

• Video Formats
  • (HD) 1080i 50, 59.94, 60
  • (HD) 1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
• Video Input Digital
  • 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
• Video Output Digital
  • 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
• Video Input Analog
  • Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter)
  • NTSC, NTSCJ, PAL
  • Component (3x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit A/D, 8x oversampling
  • +/- .2 dB to 5.0 MHz Y Frequency Response
  • +/- .2 dB to 1 MHz C Frequency Response
  • .5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • <1 ns Y/C delay inequity
• Video Output Analog
  • Composite/S-Video (Y/C) (1 x BNC/2x BNC+Adapter)
  • NTSC, NTSCJ, PAL
  • Component (3 x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit D/A, 8x oversampling
  • +/- .2 dB to 5.0 MHz Y Frequency Response
  • +/- .2 dB to 1 MHz C Frequency Response
  • .5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • <1 ns Y/C delay inequity
• Audio Input Digital
  • 8-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • 2-channel, 16 and 24-bit AES/EBU audio, 48 kHz or 96 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)
• Audio Input Analog
  • 2-channel, 16 and 24-bit A/D analog audio, 48 kHz sample rate, balanced (via 2 x XLR on breakout cable or optional KL-Box)
  • +24 dBu full scale digital
  • +/- 0.2 dB 20 Hz to 20 kHz frequency response
• Audio Output Digital
  • 8-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • 2-channel, 16 and 24-bit AES/EBU audio, 48 kHz or 96 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)
• Audio Output Analog
  • 2-channel, 16 and 24-bit D/A analog audio, 48 kHz sample rate, balanced (via 2x XLR on breakout cable or optional KL-Box)
  • +24 dBu full scale digital (0 dBFS)
  • +/- 0.2 dB 20 Hz to 20 kHz frequency response
  • 2-Channel unbalanced output (via 2x RCA jacks on optional KL-Box)
• Down-Conversion
  • Hardware 10-bit
  • Anamorphic: fullscreen
  • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
  • Crop: image is cropped to fit new screen size
• Reference Input
  • Analog Color Black (1V) or Composite Sync (2 or 4V)
  • Looping
  • 75 ohms on optional KL-Box, terminated on supplied breakout cable
• Electrical Interface: 4-lane PCIe 1.0
• Machine Control
  • RS-422, Sony 9-pin protocol (via breakout cable or optional KL-BOX)
  • 9-pin D-connector pinout is as follows:
  • 1: GND
  • 2: RX-
  • 3: TX+
  • 4: GND
  • 5: No Connection
  • 6: GND
  • 7: RX+
  • 8: TX-
  • 9: GND
  • Shell: GND
• Size (w x d x h): 0.75" x 8.25" x 5.0" (19.05 x 209.55 x 127.00 mm)
• Weight: 0.7 lb (0.4 kg)
• Power: 13W typical, 15W maximum
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• AJA KONA LHe Plus HD/SD PCIe Card
• Limited 3-Year Manufacturer Warranty
• AJA 1 RU External Breakout Box for KONA LHe Plus
• Limited 3-Year Manufacturer Warranty
