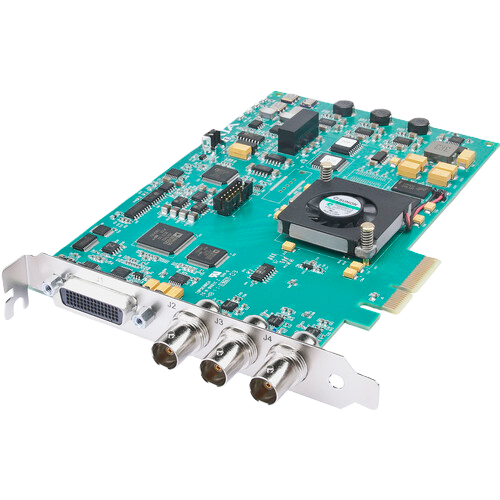

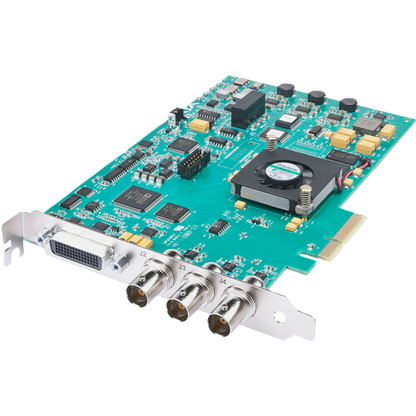

AJA KONA LHe Plus HD/SD Video I/O Card – No Cables, with Bracket

AJA KONA LHe Plus HD/SD Video I/O Card – No Cables, with Bracket

The AJA KONA LHe Plus is a professional HD/SD video and audio I/O card designed for broadcast, post-production, ProAV, and OEM workflows. Supporting HD-SDI and SD-SDI video up to 1080 30p and 720 60p, it combines digital SDI connectivity with analog video and audio I/O, AES/EBU audio, reference input, and RS-422 machine control.

This version of the KONA LHe Plus includes a bracket but does not include cables. It offers 10-bit video processing and hardware-based HD-to-SD down-conversion for flexible capture, monitoring, playback, and delivery in professional video environments.

Key Features

• HD-SDI and SD-SDI support up to 1080 30p and 720 60p

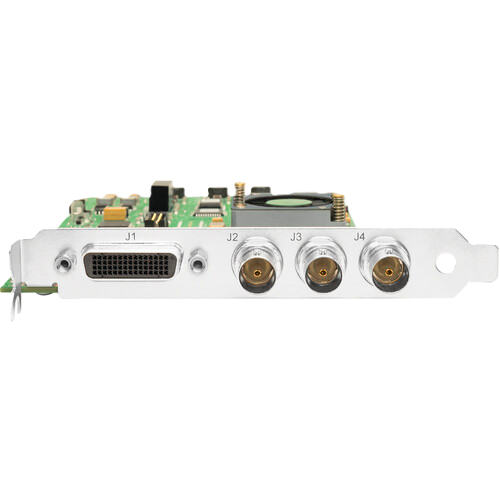

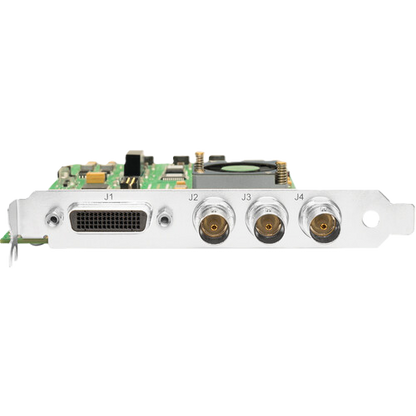

• Three 1.5G-SDI connections: one input and two outputs
• Eight-channel embedded SDI audio
• Supports 10-bit YCbCr 4:2:2 video workflows
• 10-bit LUT support (.cube)
• Real-time, motion-adaptive HD-to-SD down-conversion
• Analog HD/SD component, composite, and S-video connectivity
• Two-channel AES/EBU digital audio and balanced analog audio I/O
• Reference input for synchronization and RS-422 machine control
• Compatible with supported AJA, Adobe, Avid, Apple, and Telestream applications
• Apple silicon support through compatible AJA Desktop Software
• Bracket included; cables not included
• Three-year warranty

Flexible HD/SD Video and Audio Connectivity

KONA LHe Plus combines digital SDI I/O with analog video and audio connections, allowing professionals to connect compatible production and post-production equipment. Its three SDI connections provide one input and two outputs, configurable for supported HD or SD workflows.

Additional connectivity includes analog component HD/SD, composite video, S-video, two-channel AES/EBU digital audio, and balanced analog audio. This combination makes the card useful for facilities working with both digital production systems and legacy analog equipment.

High-Quality HD-to-SD Down-Conversion

The built-in hardware down-converter provides real-time, motion-adaptive HD-to-SD conversion with 10-bit processing. Users can monitor or output an SD version while continuing to work with HD footage in their application.

This capability helps with SD deliverable creation, framing and color checks, and connection to compatible standard-definition equipment without interrupting the primary HD workflow.

Analog Video and Legacy Equipment Support

KONA LHe Plus supports analog HD component input and output, as well as SD component, composite, and S-video connections. This enables workflows involving compatible analog video recorders, playback devices, and other equipment with analog outputs.

By combining analog and digital capabilities on one card, KONA LHe Plus helps simplify signal routing in broadcast, editing, and video conversion environments.

Audio, Reference, and Machine Control

KONA LHe Plus supports embedded SDI audio, AES/EBU digital audio, and balanced analog audio I/O. Reference input supports synchronization with larger production systems, while RS-422 machine control enables frame-accurate operation with compatible external equipment.

This version is supplied without cables, so the appropriate breakout and connection cables must be sourced separately for the intended setup.

Software Compatibility

KONA LHe Plus supports compatible professional video applications from AJA, Adobe, Avid, Apple, Telestream, and other developers. AJA Desktop Software includes tools such as AJA Control Room and AJA Control Panel, while supported application plug-ins enable capture, monitoring, and playback workflows.

The card also supports the AJA SDK for developers creating custom video applications. Check AJA's current software release notes and compatibility resources to confirm support for your operating system, application version, and workflow.

What's Included

• AJA KONA LHe Plus video and audio I/O card
• Bracket
• Cables not included

Choose the AJA KONA LHe Plus for professional HD/SD capture, playback, monitoring, analog video workflows, and hardware-based HD-to-SD conversion. This version is supplied with a bracket and without cables, making it important to confirm your required connections before installation.

• Video Formats
  • (HD) 1080i 50, 59.94, 60
  • (HD) 1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
• Video Input Digital
  • 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
• Video Output Digital
  • 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
• Video Input Analog
  • Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter)
  • NTSC, NTSCJ, PAL
  • Component (3x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit A/D, 8x oversampling
  • +/- .2 dB to 5.0 MHz Y Frequency Response
  • +/- .2 dB to 1 MHz C Frequency Response
  • .5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • <1 ns Y/C delay inequity
• Video Output Analog
  • Composite/S-Video (Y/C) (1 x BNC/2x BNC+Adapter)
  • NTSC, NTSCJ, PAL
  • Component (3 x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit D/A, 8x oversampling
  • +/- .2 dB to 5.0 MHz Y Frequency Response
  • +/- .2 dB to 1 MHz C Frequency Response
  • .5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • <1 ns Y/C delay inequity
• Audio Input Digital
  • 8-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • 2-channel, 16 and 24-bit AES/EBU audio, 48 kHz or 96 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)
• Audio Input Analog
  • 2-channel, 16 and 24-bit A/D analog audio, 48 kHz sample rate, balanced (via 2 x XLR on breakout cable or optional KL-Box)
  • +24 dBu full scale digital
  • +/- 0.2 dB 20 Hz to 20 kHz frequency response
• Audio Output Digital
  • 8-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • 2-channel, 16 and 24-bit AES/EBU audio, 48 kHz or 96 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)
• Audio Output Analog
  • 2-channel, 16 and 24-bit D/A analog audio, 48 kHz sample rate, balanced (via 2x XLR on breakout cable or optional KL-Box)
  • +24 dBu full scale digital (0 dBFS)
  • +/- 0.2 dB 20 Hz to 20 kHz frequency response
  • 2-Channel unbalanced output (via 2x RCA jacks on optional KL-Box)
• Down-Conversion
  • Hardware 10-bit
  • Anamorphic: fullscreen
  • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
  • Crop: image is cropped to fit new screen size
• Reference Input
  • Analog Color Black (1V) or Composite Sync (2 or 4V)
  • Looping
  • 75 ohms on optional KL-Box, terminated on supplied breakout cable
• Electrical Interface: 4-lane PCIe 1.0
• Machine Control
  • RS-422, Sony 9-pin protocol (via breakout cable or optional KL-BOX)
  • 9-pin D-connector pinout is as follows:
  • 1: GND
  • 2: RX-
  • 3: TX+
  • 4: GND
  • 5: No Connection
  • 6: GND
  • 7: RX+
  • 8: TX-
  • 9: GND
  • Shell: GND
• Size (w x d x h): 0.75" x 8.25" x 5.0" (19.05 x 209.55 x 127.00 mm)
• Weight: 0.7 lb (0.4 kg)
• Power: 13W typical, 15W maximum
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• AJA KONA LHe Plus HD/SD PCIe Card
• Bracket
• Limited 3-Year Manufacturer Warranty
