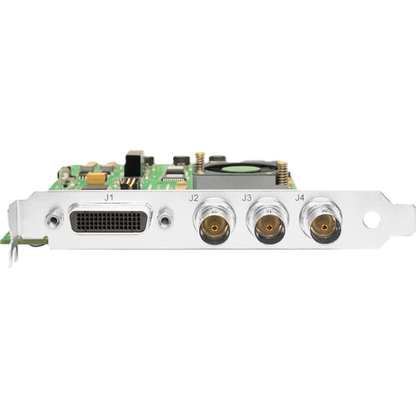

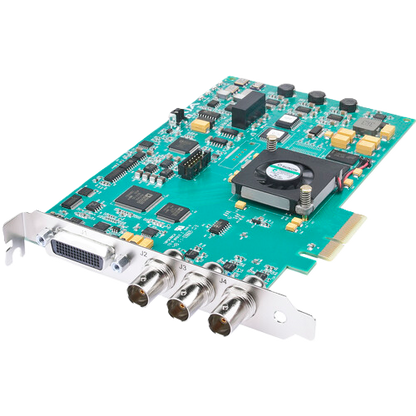

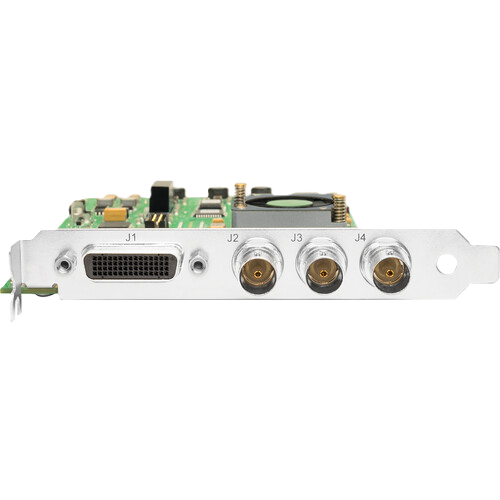

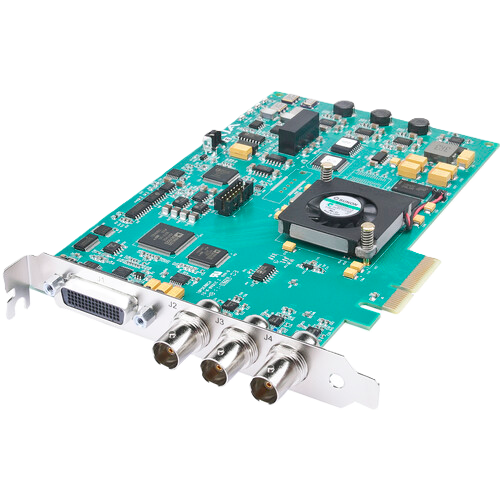

AJA KONA LHe Plus HD/SD Video I/O Card – No PCI Bracket or Cable

AJA KONA LHe Plus HD/SD Video I/O Card – No PCI Bracket or Cable

The AJA KONA LHe Plus is a professional HD/SD video and audio I/O card designed for broadcast, post-production, ProAV, and OEM applications. It supports SDI and analog video connections, embedded and external audio, and real-time HD-to-SD down-conversion for flexible video capture, playback, and monitoring workflows.

This board-only configuration does not include a PCI bracket or breakout cable, making it suitable for OEM installations and specialized system builds where these components are sourced separately.

Key Features

• HD-SDI and SD-SDI support up to 1080 30p and 720 60p
• Three 1.5G-SDI connections: one input and two outputs
• Up to 8 channels of embedded SDI audio
• 10-bit YCbCr 4:2:2 video processing
• 10-bit LUT support using .cube files
• Real-time hardware HD-to-SD down-conversion
• Analog component, composite, and S-Video support
• AES/EBU digital audio and balanced analog audio I/O
• RS-422 machine control and reference/LTC connectivity
• PCIe interface for professional video systems
• No PCI bracket or breakout cable included

Professional HD/SD Video Capture and Playback

The KONA LHe Plus provides dependable video I/O for professional production and post-production systems. Capture HD or SD video through SDI or supported analog connections, output video to monitors and other equipment, and use pass-through monitoring during capture.

Its combination of digital and analog connectivity helps support workflows involving modern production equipment and legacy video sources.

Flexible Digital and Analog Connectivity

With one SDI input and two SDI outputs, the KONA LHe Plus supports video capture, playback, and monitoring. Embedded SDI audio provides up to eight channels, while separate AES/EBU and balanced analog audio connections support additional professional audio workflows when used with the appropriate breakout hardware.

Analog video connections support component, composite, and S-Video configurations. Reference/LTC and RS-422 connectivity help accommodate synchronization and machine-control requirements.

Real-Time HD-to-SD Conversion

Integrated hardware conversion enables real-time HD-to-SD down-conversion, helping simplify workflows that require both HD and standard-definition output. The card also supports 10-bit YCbCr 4:2:2 video and 10-bit LUTs for professional image processing.

OEM Board-Only Configuration

This version is supplied without a PCI bracket or breakout cable. Confirm that your chassis, mounting requirements, and cabling are compatible before ordering. Additional hardware may be required to access the card's external video, audio, reference, and control connections.

Applications

• Broadcast and television production
• Video editing and post-production
• Professional AV systems
• Video capture, playback, and monitoring
• OEM video system development
• Workflows combining HD/SD-SDI and analog video equipment

• Video Formats
  • (HD) 1080i 50, 59.94, 60
  • (HD) 1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
• Video Input Digital
  • 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
• Video Output Digital
  • 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
• Video Input Analog
  • Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter)
  • NTSC, NTSCJ, PAL
  • Component (3x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit A/D, 8x oversampling
  • +/- .2 dB to 5.0 MHz Y Frequency Response
  • +/- .2 dB to 1 MHz C Frequency Response
  • .5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • <1 ns Y/C delay inequity
• Video Output Analog
  • Composite/S-Video (Y/C) (1 x BNC/2x BNC+Adapter)
  • NTSC, NTSCJ, PAL
  • Component (3 x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit D/A, 8x oversampling
  • +/- .2 dB to 5.0 MHz Y Frequency Response
  • +/- .2 dB to 1 MHz C Frequency Response
  • .5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • <1 ns Y/C delay inequity
• Audio Input Digital
  • 8-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • 2-channel, 16 and 24-bit AES/EBU audio, 48 kHz or 96 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)
• Audio Input Analog
  • 2-channel, 16 and 24-bit A/D analog audio, 48 kHz sample rate, balanced (via 2 x XLR on breakout cable or optional KL-Box)
  • +24 dBu full scale digital
  • +/- 0.2 dB 20 Hz to 20 kHz frequency response
• Audio Output Digital
  • 8-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • 2-channel, 16 and 24-bit AES/EBU audio, 48 kHz or 96 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)
• Audio Output Analog
  • 2-channel, 16 and 24-bit D/A analog audio, 48 kHz sample rate, balanced (via 2x XLR on breakout cable or optional KL-Box)
  • +24 dBu full scale digital (0 dBFS)
  • +/- 0.2 dB 20 Hz to 20 kHz frequency response
  • 2-Channel unbalanced output (via 2x RCA jacks on optional KL-Box)
• Down-Conversion
  • Hardware 10-bit
  • Anamorphic: fullscreen
  • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
  • Crop: image is cropped to fit new screen size
• Reference Input
  • Analog Color Black (1V) or Composite Sync (2 or 4V)
  • Looping
  • 75 ohms on optional KL-Box, terminated on supplied breakout cable
• Electrical Interface: 4-lane PCIe 1.0
• Machine Control
  • RS-422, Sony 9-pin protocol (via breakout cable or optional KL-BOX)
  • 9-pin D-connector pinout is as follows:
  • 1: GND
  • 2: RX-
  • 3: TX+
  • 4: GND
  • 5: No Connection
  • 6: GND
  • 7: RX+
  • 8: TX-
  • 9: GND
  • Shell: GND
• Size (w x d x h): 0.75" x 8.25" x 5.0" (19.05 x 209.55 x 127.00 mm)
• Weight: 0.7 lb (0.4 kg)
• Power: 13W typical, 15W maximum
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• AJA KONA LHe Plus HD/SD PCIe Card
• Limited 3-Year Manufacturer Warranty
