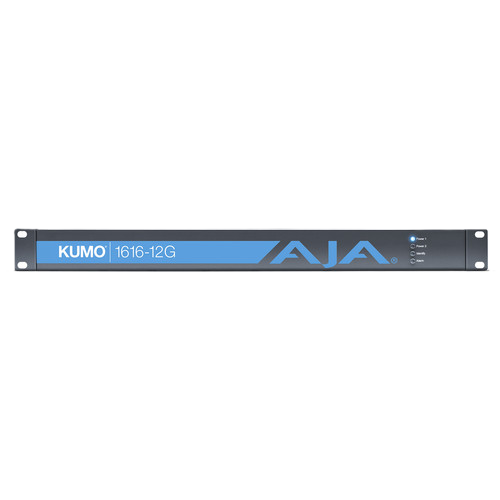

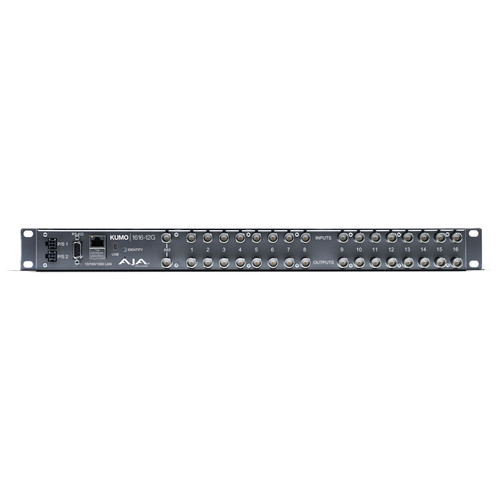

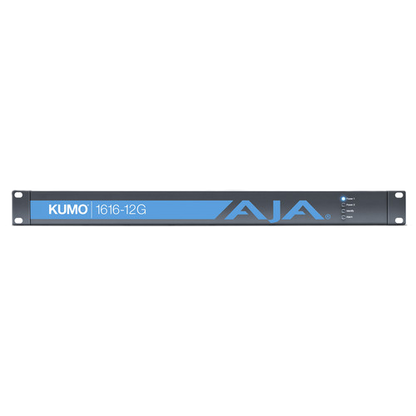

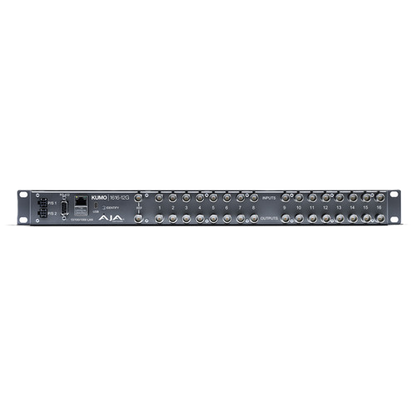

AJA KUMO 1616-12G 16x16 12G-SDI Video Router

AJA KUMO 1616-12G 16x16 12G-SDI Video Router

Compact 16x16 12G-SDI Routing

The AJA KUMO 1616-12G is a compact 16x16 12G-SDI router designed for professional broadcast, production, post-production, mobile truck, and live event environments. With 16 12G-SDI inputs and 16 12G-SDI outputs, KUMO 1616-12G provides flexible signal routing for cameras, monitors, editing systems, tape decks, file-based recorders, and other SDI equipment. It supports 12G-SDI, 6G-SDI, 3G-SDI, and 1.5G-SDI signals in a space-saving 1RU chassis.

Key Features

• 16x 12G-SDI inputs and 16x 12G-SDI outputs
• Supports 12G-SDI, 6G-SDI, 3G-SDI, and 1.5G-SDI
• Supports 4K/UltraHD and 8K/UltraHD2 workflows
• Single-cable 4K/UltraHD routing
• Ganged dual-link and quad-link routing for 4K and 8K
• Compact 1RU form factor
• Crosspoint matrix routes any input to any number of outputs
• Embedded web server for remote control and monitoring
• Optional redundant power supply
• Up to eight salvos
• USB configuration with AJA eMini-Setup
• Compatible with optional AJA KUMO CP and KUMO CP2 control panels
• Five-year warranty

Powerful 12G-SDI Signal Routing

KUMO 1616-12G provides a flexible crosspoint routing matrix that allows any input to be routed to any number of outputs without requiring additional patch panels or distribution amplifiers. A single SDI input can also be routed to all outputs, allowing the KUMO 1616-12G to function as a distribution amplifier for multiple destinations.

The router supports single-link 12G-SDI for 4K/UltraHD, while ganged dual-link and quad-link configurations enable routing for higher-resolution workflows including 8K/UltraHD2.

Compact 1RU SDI Router

Designed for installations where space and capacity matter, the KUMO 1616-12G combines 16x16 SDI routing with a compact 1RU chassis. Its small form factor makes it suitable for broadcast facilities, mobile production trucks, post-production facilities, edit suites, corporate video installations, and live event systems.

KUMO routers support full broadcast specifications across 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI, providing flexible connectivity as production systems evolve.

4K and 8K Routing

KUMO 1616-12G is designed for modern high-resolution video workflows. Its 12G-SDI connectivity provides single-cable 4K/UltraHD routing, reducing cable requirements compared with lower-bandwidth SDI configurations.

For larger-format workflows, users can configure ganged dual-link or quad-link routing to group multiple inputs and outputs for 8K/UltraHD2 signal transport throughout a production environment.

Remote Network Control

KUMO 1616-12G includes an embedded web server for network-based control and monitoring. Once connected to a network, operators can access the router through a web browser to configure sources and destinations, select crosspoints, execute salvos, and manage router settings.

The router also supports Grass Valley Native Protocol over RS-422 or Ethernet for integration with existing control infrastructure.

KUMO Presets and Salvos

KUMO 1616-12G can store configurations in up to 20 preset slots, allowing operators to save and recall router settings. Presets can include switching modes, crosspoint maps, source and destination button settings, and salvo configurations.

Salvos allow operators to recall predefined groups of routes at the push of a button. Up to eight salvos can be stored and recalled through the KUMO web interface, GVG Native Protocol over Ethernet, RS-422, or an optional KUMO CP2 control panel.

Easy Installation and Configuration

KUMO 1616-12G runs embedded Linux and provides network-based HTTP control through a standard web browser without requiring additional software. Its USB port supports IP configuration through the supplied AJA eMini-Setup software for Mac and PC.

Network configuration can also use Bonjour/Zeroconf auto-detection, allowing the router to configure automatically when connected to a compatible network or computer.

Optional KUMO CP2 and KUMO CP Control Panels

The optional AJA KUMO CP and KUMO CP2 control panels provide dedicated hardware control of KUMO routers over Ethernet. A single control panel can control up to four KUMO routers, while a single router can be controlled by up to 32 control panels.

This provides flexible control options for production facilities where operators need dedicated physical access to SDI routing without relying exclusively on a computer.

Reliable Broadcast Signal Management

KUMO routers are designed for critical broadcast, production, and post-production environments. The KUMO 1616-12G provides professional signal routing in a compact chassis while supporting high-resolution SDI workflows.

An optional redundant power supply provides failover protection in the event of a power supply failure, helping maintain continuous operation for critical routing applications.

Ideal Applications

The AJA KUMO 1616-12G is well suited for:

• Broadcast facilities
• Live production
• Mobile production trucks
• Post-production facilities
• Edit suites
• 4K/UltraHD video systems
• 8K/UltraHD2 workflows
• Corporate video installations
• Live event and theatrical A/V systems
• SDI signal distribution and routing

• Video Formats
  • 270 Mbps, 1.5 Gbps, 3 Gbps, 6 Gbps, 12 Gbps SDI
  • 270 Mbps DVB-ASI
• Video Input Digital
  • 12G-SDI Inputs
  • 16x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
• Video Output Digital
  • 12G-SDI Outputs
  • 16x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • Noninverting
• Ancillary Data: Passes all SDI embedded ancillary data including audio
• Salvo: Up to 8 Salvos can be configured and saved in each KUMO router
• Cable Equalization
  • (Belden 1694A)
  • 12 Gbps, up to 50m
  • 6 Gbps, up to 90m
  • 3 Gbps, up to 140m
  • 1.5 Gbps, up to 200m
  • 270 Mbps, up to 390m
  • Automatic operation
• Reclocking: 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
• Switching Modes
  • Single/Normal, Dual, and Quad Link modes
  • Switches in vertical blanking per SMPTE RP-168
• Control Panel Compatibility
  • AJA KUMO CP – 1RU X-Y Ethernet control panel
  • AJA KUMO CP2 – 2RU X-Y Ethernet control panel
• Reference Input
  • External, 2x BNC
  • Looping, nonterminating
  • Blackburst or tri-level sync
• Network Interface
  • 1x RJ-45, 10/100/1000 Ethernet
  • Supports AJA KUMO Ethernet control panels, direct connect or networked
  • Basic support for Grass Valley Native Protocol
  • Embedded web server for remote control
• USB Interface: 1x Mini-USB for IP configuration using AJA eMini-Setup
• Serial Interface
  • 1x DB-9 Female, RS-422
  • Basic support for Grass Valley Native Protocol
  • 9-pin D-connector pinout is as follows:
  • 1: GND
  • 2: TX-
  • 3: RX+
  • 4: GND
  • 5: No Connection
  • 6: GND
  • 7: TX+
  • 8: RX-
  • 9: GND
  • Shell: GND
• Size (w x d x h): 1RU - 17.4" x 1.54" x 1.75" (441.96 x 39.12 x 44.45 mm)
• Weight: 1.4 lb (0.7 kg)
• Power
  • External power supply required
  • Enclosure: Dual, redundant, 10-14VDC regulated, 4-pin Molex, 16W typical, 18W max.
  • AC adapter, included: 100-240VAC, 50/60 Hz, universal input, 60W
  • Optional redundant AC adapter sold separately, KUMO-PWR
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• AJA KUMO 1616 Compact 12G-SDI Router (1 RU)
• AC Adapter
• AC Power Cord
• Warranty: Limited 5-Year Manufacturer Warranty
