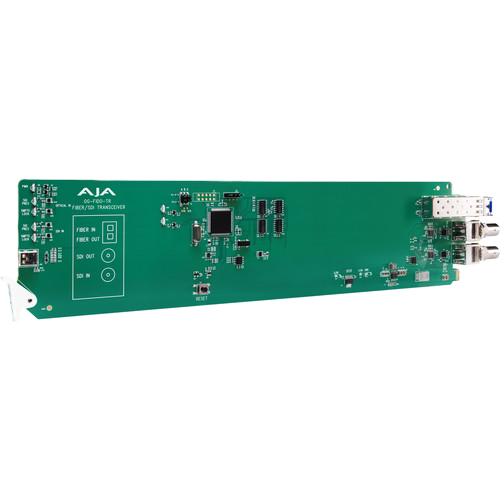

AJA OG-FiDO-TR 3G-SDI LC Fiber Transceiver for openGear

AJA OG-FiDO-TR 3G-SDI LC Fiber Transceiver for openGear

The AJA OG-FiDO-TR is a 1-channel 3G-SDI to single-mode LC fiber transceiver designed for professional openGear video systems. It supports both 3G-SDI-to-fiber and fiber-to-3G-SDI conversion, providing flexible bidirectional signal transport over single-mode fiber.

The OG-FiDO-TR supports SDI and fiber transmission distances of up to 10 km (32,808 ft) and handles video data rates from 150 Mbps to 3 Gbps. It features automatic signal detection and reclocking, HDR metadata pass-through, and remote configuration and monitoring through Ross DashBoard software.

Designed for high-density openGear 2RU frames, the OG-FiDO-TR is compatible with AJA OG-X-FR, OG-3-FR, and DFR-8321 frames, making it suitable for broadcast facilities, production studios, mobile production, and other professional video environments.

Key Features

• 1-channel 3G-SDI to single-mode LC fiber transceiver
• Supports bidirectional SDI-to-fiber and fiber-to-SDI conversion
• Supports video data rates from 150 Mbps to 3 Gbps
• Up to 10 km (32,808 ft) transmission over single-mode fiber
• 1 x 3G-SDI BNC input and output
• 1 x single-mode LC fiber input and output
• Independent SDI and fiber signal paths
• Automatic signal detection and reclocking
• Supports SDI metadata pass-through, including HDR
• Remote monitoring and configuration through Ross DashBoard
• Input Present and Input SMPTE Lock LEDs
• Hot-swap capable
• 2.5W power consumption
• Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames

Bidirectional 3G-SDI and Fiber Conversion

The OG-FiDO-TR provides flexible two-way 3G-SDI and fiber conversion in a single openGear card. It can convert a 3G-SDI signal to single-mode fiber or convert a fiber signal back to 3G-SDI, depending on the production workflow.

Both signal paths operate independently and can support different data rates. The card supports common SDI rates including 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, and 2.970 Gbps, with automatic rate selection.

The result is a flexible solution for professional SDI fiber transport where space, signal reliability, and centralized system management are important.

10 km Single-Mode Fiber Transmission

The AJA OG-FiDO-TR supports transmission distances of up to 10 km (32,808 ft) using standard single-mode fiber. This makes it useful for connecting video equipment across broadcast facilities, production studios, venues, mobile production environments, and other locations where long-distance SDI transport is required.

The card supports a single-mode LC fiber connection and provides both fiber input and output for flexible signal routing.

Automatic Detection and Reclocking

The OG-FiDO-TR provides automatic signal detection and reclocking for both SDI and fiber paths. Its input design provides strong input jitter tolerance to help maintain signal integrity throughout professional video workflows.

Supported 3G-SDI rates include 270 Mbps, 1.5 Gbps, and 3 Gbps, allowing the card to accommodate a range of SDI production formats.

HDR Metadata Pass-Through

The OG-FiDO-TR supports SDI metadata pass-through, including HDR metadata, helping preserve important signal information during SDI and fiber conversion.

High Dynamic Range (HDR) provides a wider range of brightness and color than Standard Dynamic Range (SDR), allowing compatible production systems to maintain brighter highlights, deeper blacks, and richer color detail.

openGear Compatibility

The OG-FiDO-TR is designed for the openGear modular infrastructure platform, allowing it to be installed in compatible high-density openGear frames.

The card is compatible with:

• AJA OG-X-FR
• AJA OG-3-FR
• DFR-8321 openGear frames

The openGear platform allows compatible cards from different certified manufacturers to be combined in a common rackframe environment, providing flexible system design and centralized infrastructure.

DashBoard Monitoring and Control

The OG-FiDO-TR can be monitored and configured through Ross DashBoard software. DashBoard provides a convenient interface for managing compatible openGear cards from Windows, macOS, and Linux computers.

A standard Ethernet connection provides frame-level communication, while optional per-card Ethernet access can provide additional communication capabilities for compatible openGear cards.

Flexible I/O and Hot-Swap Design

The OG-FiDO-TR provides flexible I/O through its modular openGear card design. The card features 1 x 3G-SDI BNC input, 1 x 3G-SDI BNC output, 1 x single-mode LC fiber input, and 1 x single-mode LC fiber output.

The card is also hot-swap capable, allowing compatible openGear systems to support convenient card installation and replacement without requiring the entire frame to be removed from service.

Redundant Power Options

Compatible openGear frames can provide optional redundant power for additional system reliability. A secondary power source can help maintain operation in the event of a primary power supply failure.

AJA OG-FiDO-TR Applications

The OG-FiDO-TR is designed for professional video and broadcast environments, including:

• Broadcast facilities
• Live event production
• Mobile production trucks
• Television studios
• Professional video infrastructure
• Long-distance SDI signal transport
• SDI-to-fiber conversion
• Fiber-to-SDI conversion
• Centralized openGear video systems
• HDR video workflows
• High-density rack-based production systems

• Video Formats: 150 Mbps - 3 Gbps, format agnostic
  • Video Input Digital
  • 1-channel independent 3G-SDI BNC Input, SMPTE-259/292/424
  • 1-channel Single Mode LC Fiber Input, SMPTE-297
  • Nominal Wavelength: 1260-1620 nm
  • Optical Sensitivity: -18dBm (Max)
  • Overload Power: -3dBm (Min)
• Video Output Digital
  • 1-channel independent 3G-SDI BNC Output, SMPTE-259/292/424
  • 1-channel Single Mode LC Fiber Output, SMPTE-297
  • Nominal Wavelength: 1310 nm
  • Optical Power: -5dBm (Min), 0dBm (Max)
  • Extinction Ratio: 7.5dB (Typ)
• Reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked
• User Interface: openGear DashBoard network control software via Windows, macOS, or Linux
• Size
  • openGear standard form factor, front slot and rear card
  • Two slots required for each card
• Weight: 0.5 lb (0.3 kg)
• Power: openGear frame compatible, 2.5 watts max per card
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• AJA OG-FiDO-TR 3G-SDI LC Fiber Transceiver for openGear
• Warranty: 5-Years
