AJA OG-GEN10 openGear HD/SD and AES-11 Sync Generator

AJA OG-GEN10 openGear HD/SD and AES-11 Sync Generator

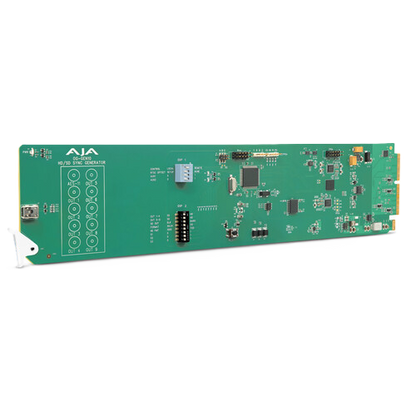

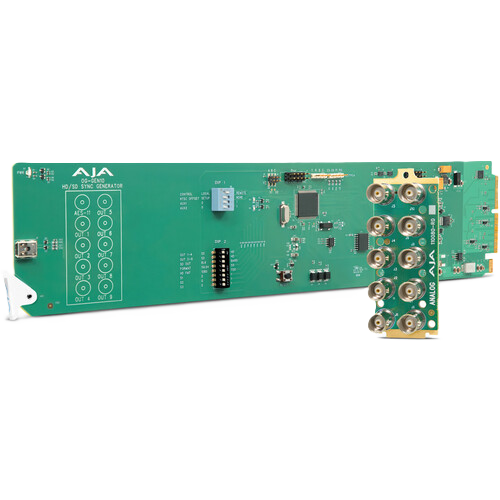

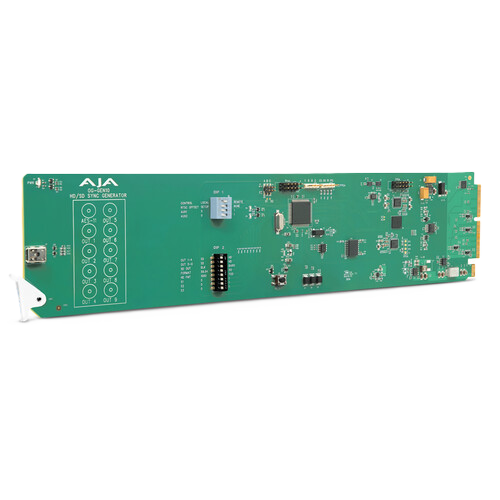

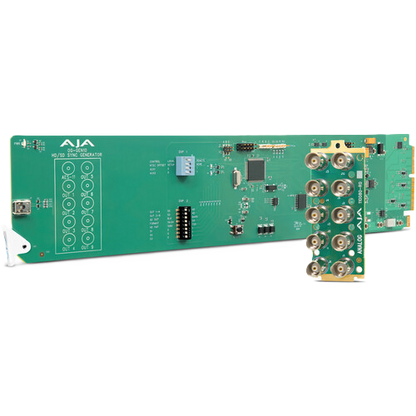

The OG-GEN10 is a cost effective and flexible SD/HD/AES-11 sync generator. The OG-GEN10 features 10 total outputs comprised of 2 groups of independently controlled SD/HD sync outputs and 1 AES-11 output. The SD outputs can be switched between Color Black or Color Bars. HD tri-level sync can be switched between 19 different HD formats including all that are in use today. The AES-11 output can be switched between Silence and Tone. All outputs are in sync with each other and are sourced from an accurate master time base.

Features

• HD Tri-level sync generation
• SD Color Black or Color Bars
• 9x synchronized reference outputs
• Group 1 (1-4)
• Group 2 (5-9)
• Two groups of independently switchable outputs allow simultaneous HD and SD sync generation
• AES-11 output switchable between silence and tone
• Multiple outputs can synchronize entire systems without requiring a Sync DA
• External dip switch configuration
• Remote control via the Ross DashBoard software
• Optional Redundant power via the openGear frame
• Hot swappable
• Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
• Power: 6.75 watts max per card
• Five-year warranty

openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

Industry Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation, or encounter any technical issues, AJA Support will work with you to get up and running. openGear products are covered by a generous five year warranty.  Please see the individual Product Manual for additional specifics regarding warranty conditions for the product itself.

• Formats:
  • 1080i 50, 59.94, 60
  • 1080PsF 23.98, 24, 25, 29.97, 30
  • 1080p 23.98, 24, 25, 29.97, 30
  • 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 625i, 525i
• HD Sync: Tri-level
• SD Sync: Color Black, 75% Color Bars
• AES: AES-11, 48 kHz, silent or 1 KHz tone (-20 or -18 dBFS)
• Output:
  • 9x BNC, Analog SD/HD Sync
  • 1x BNC, AES-11
• Accuracy: 3 ppm
• User Interface:
  • openGear DashBoard network control software via Windows, macOS, or Linux
  • Local/Remote Control
  • External dipswitch
• Size (w x d x h):
  • openGear standard form factor, front slot and rear card
  • Two slots required for each card
• Weight: 0.5 lb (0.3 kg)
• Power: openGear frame compatible, 6.75 watts max per card
• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• AJA OG-GEN10 openGear HD/SD and AES-11 Sync Generator
• Warranty: 5-Year Warranty
