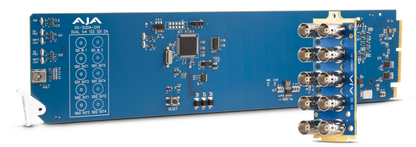

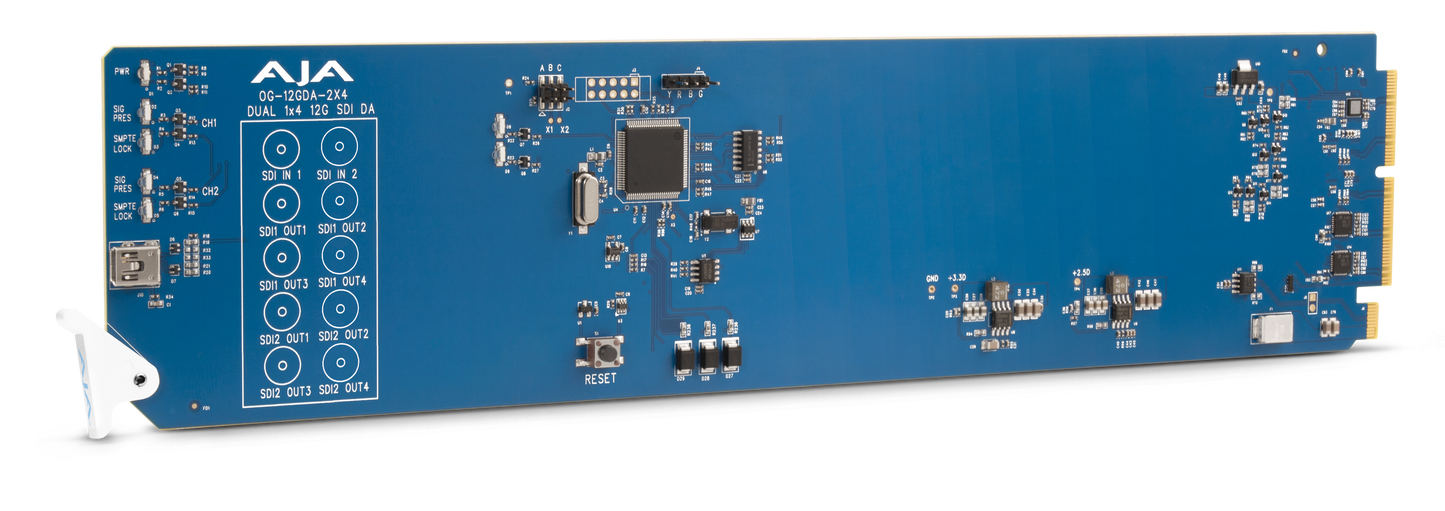

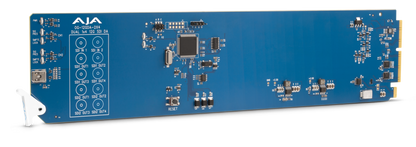

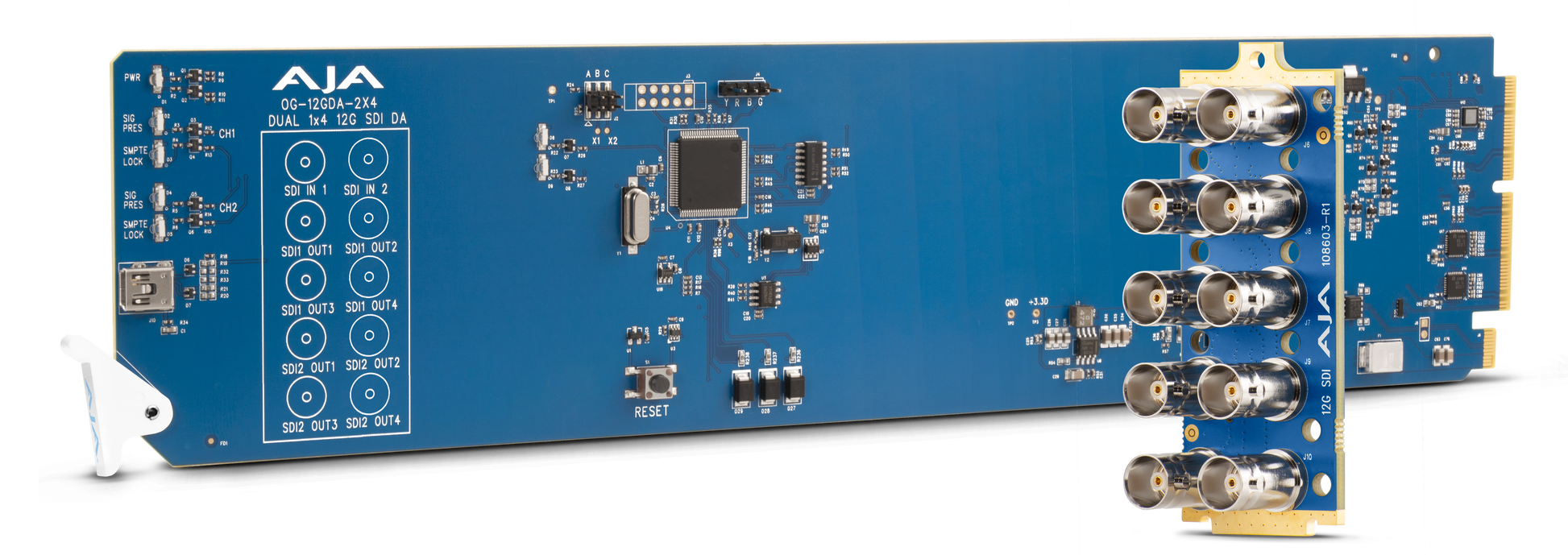

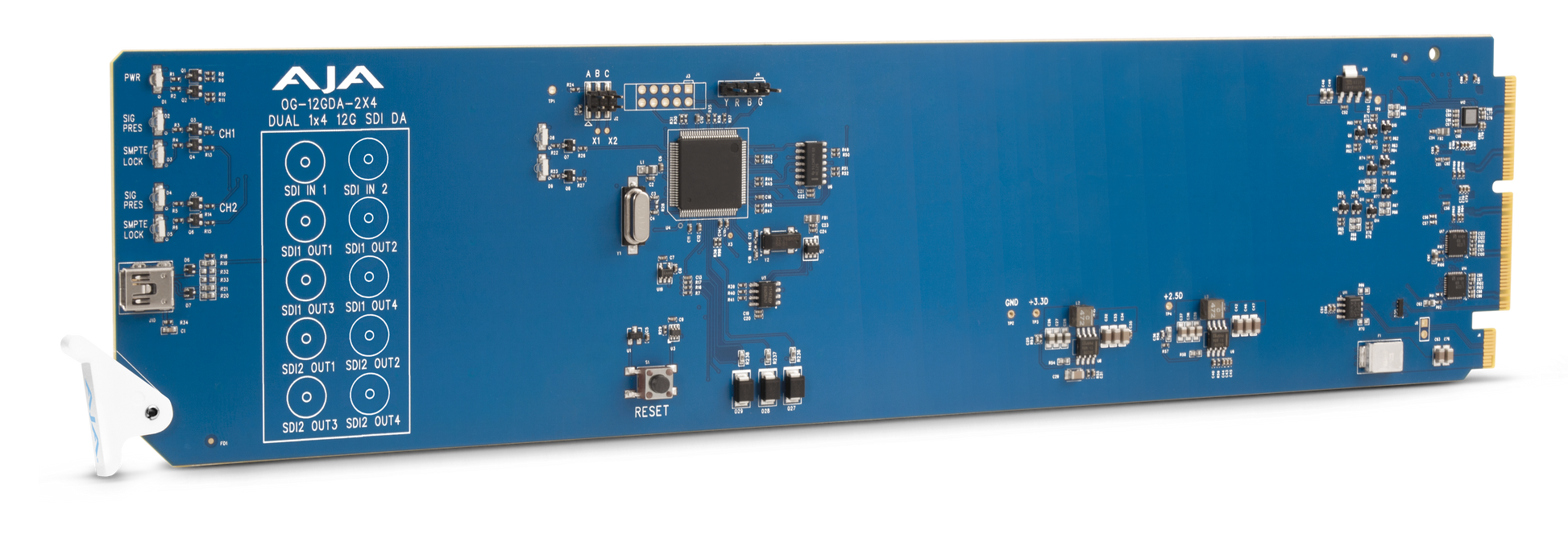

AJA openGear Dual 1x4 12G-SDI Distribution Amplifier

AJA's Dual 1x4 12G-SDI Distribution Amplifier is an openGear compatible, state of the art 12G-SDI distribution amplifier. The incoming 12G-SDI signals on the dual input channels are automatically equalized and the outputs are automatically reclocked to four 12G-SDI outputs each.  This dual input capability allows double the number of DAs in limited frame space. A 10x BNC rear connector module is included.

Designed for use in high density openGear 2RU frames including AJA's Dual 1x4 12G-SDI Distribution Amplifier frame, new DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.

Connectivity
The 12G-SDI inputs are automatically equalized and the outputs are automatically reclocked with best in class input jitter tolerance. SDI rates of 270Mb, 1.5Gb, 3Gb, 6Gb and 12Gb are supported. Two SDIs inputs and eight SDI outputs are provided. A 10x BNC rear openGear connector module is included.

openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

DashBoard Software
Ross DashBoard software offers quick and convenient configuration of openGear cards on macOS, Windows, and Linux.

AJA Mini-Matrix
Information on the complete line of AJA openGear frames and cards is now available in the Mini-Matrix. AJA products are extensive, and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Industry Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation, or encounter any technical issues, AJA Support will work with you to get up and running.

openGear products are covered by a generous five year warranty.  Please see the individual Product Manual for additional specifics regarding warranty conditions for the product itself.
