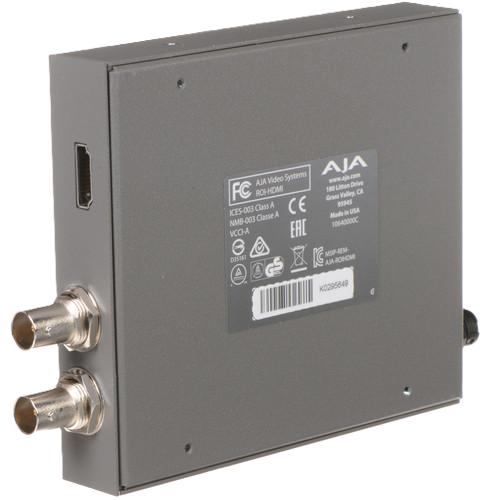

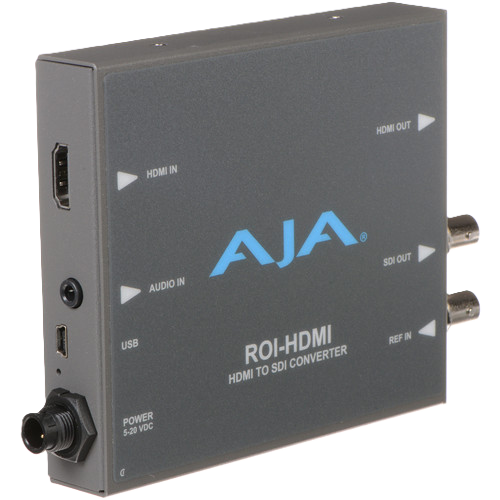

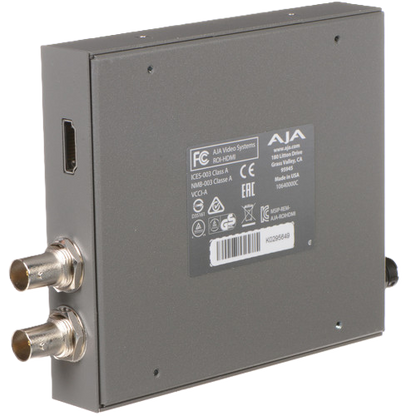

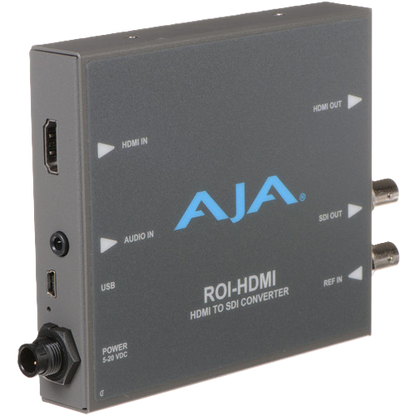

AJA ROI-HDMI HDMI to 3G-SDI Scan Converter with ROI Scaling

AJA ROI-HDMI HDMI to 3G-SDI Scan Converter with ROI Scaling

The AJA ROI-HDMI is an HDMI to 3G-SDI scan converter designed to integrate computer and HDMI sources into professional SDI video workflows. It combines high-quality scaling, aspect ratio conversion, frame rate conversion, and Region of Interest (ROI) scaling in a compact Mini-Converter.

ROI-HDMI supports SD, HD, and 3G-SDI formats, provides HDMI loop-through, and accepts DVI computer signals up to 1920 x 1200 at 60 Hz. It also supports embedded HDMI audio and balanced analog audio, allowing computer and presentation audio to be embedded directly into the SDI output.

Key Features

• HDMI to 3G-SDI scan conversion
• HDMI loop-through for simultaneous external monitoring
• Region of Interest (ROI) scaling
• Supports SD, HD, and 3G-SDI formats
• Up, down, and cross-conversion
• Aspect ratio and frame rate conversion
• Image horizontal/vertical flip and 90° rotation
• Deinterlaced and progressive signal conversion
• EDID emulation
• Accepts DVI formats up to 1920 x 1200 at 60 Hz
• Supports up to 8 channels of embedded HDMI audio
• Supports 2-channel balanced analog audio input
• Genlock via reference input, HDMI input, or free run
• USB configuration with AJA Mini-Config software
• 5-20VDC power
• Universal power supply included
• Five-year warranty

HDMI to 3G-SDI Scan Conversion

The AJA ROI-HDMI converts computer and HDMI sources into professional 3G-SDI video, making it easier to incorporate presentation systems, computers, graphics, and other HDMI sources into SDI production environments.

The converter supports SD, HD, and 3G formats and provides up, down, and cross-conversion for flexible integration with different video systems.

An HDMI loop-through connection allows the original HDMI signal to continue to an external display while the ROI-HDMI converts the source to SDI.

Region of Interest Scaling

The defining feature of ROI-HDMI is its Region of Interest scaling. Instead of converting an entire computer screen, users can select a specific portion of the incoming image and scale that area to the desired SDI output resolution.

Using AJA Mini-Config software, users can interactively select the Region of Interest and control how it is scaled. This makes it possible to remove unwanted interface elements, menu bars, or other portions of a computer display while maintaining high image quality.

ROI scaling is useful for presentations, digital signage, live events, broadcast graphics, video walls, and other applications where only a specific portion of a computer or HDMI source needs to be displayed.

Video Wall and Multi-Display Applications

ROI-HDMI can be used to create synchronized multi-display and video wall systems. Multiple ROI-HDMI Mini-Converters can each extract a different Region of Interest from the same source and output the selected area over SDI.

For example, multiple ROI-HDMI units can be used to divide a source across several portrait-oriented displays or create larger synchronized video walls. A single HD source can be distributed through a compatible router to multiple ROI-HDMI converters, with each converter providing a different portion of the source image to its connected display.

Aspect Ratio and Frame Rate Conversion

ROI-HDMI provides extensive control over aspect ratio and frame rate conversion. AJA Mini-Config software provides on-screen controls that show the source and output formats, helping users configure the desired conversion.

The converter supports up, down, and cross-conversion as well as conversion between interlaced and progressive video signals.

Users can also flip the image horizontally or vertically and rotate the image 90 degrees, providing additional flexibility for display and production applications.

HDMI Loop-Through and Genlock

ROI-HDMI uses direct HDMI loop-through, allowing the converter to be placed inline while maintaining a connection to an external HDMI display.

A reference input provides genlock capability, allowing the SDI output to be synchronized for use within a professional production or facility environment. ROI-HDMI can also use the HDMI input or operate in free-run mode for timing.

Audio Embedding

ROI-HDMI supports multiple audio input options. It can accept two channels of balanced analog audio through its analog input or up to eight channels of embedded HDMI audio.

Audio source selection and routing are configured through AJA Mini-Config software. The selected audio is embedded into the SDI output, allowing computer or presentation audio to remain synchronized with the converted video signal.

EDID Emulation

EDID emulation helps ROI-HDMI communicate supported display characteristics to an HDMI or computer source. This can help ensure that the connected computer outputs an appropriate resolution and format for the video conversion workflow.

Mini-Config Software

ROI-HDMI connects to a computer through USB for configuration using AJA Mini-Config software on PC or Mac.

Mini-Config provides control over video conversion, Region of Interest selection, scaling, aspect ratio, frame rate, audio routing, and other configuration settings.

Compact and Portable Mini-Converter

The ROI-HDMI uses AJA's compact Mini-Converter design, making it suitable for installations where space is limited. It can fit behind a monitor, inside a rack, in a mobile production truck, or directly on a production setup.

A locking power connector helps prevent accidental disconnection, while an optional P-TAP power cable can provide battery power for remote applications.

Universal Power Supply

ROI-HDMI operates on 5-20VDC power and includes a universal power supply with international plug connections. Spare universal power supplies are also available for AJA Mini-Converters.

AJA ROI-HDMI Applications

The AJA ROI-HDMI is suited for professional video workflows that need to convert computer or HDMI sources to SDI, including:

• Broadcast production
• Live event production
• Presentation systems
• Computer-to-SDI conversion
• Digital signage
• Video walls
• Multi-display installations
• Broadcast graphics
• Corporate AV
• Education and lecture capture
• Mobile production
• Professional video routing

• Video Input Formats
  • Computer Signals:
  • WUXGA (1920 x 1200) 60 Hz max
  • VGA (640 x 480) minimum
  • Video Signals:
  • (HD) 1920 x 1080i 50, 59.94
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
  • (SD) 625i, 525i
  • (SD) 580p, 480p
  • Note: Frame rates limited by the 166 mHz max pixel rate of the HDMI receiver.
• Video Output Formats
  • (HD) 1920 x 1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2 10-bit YCbCr)
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
  • (SD) 625i 25
  • (SD) 525i 29.97
• Color Range
  • Full
  • SMPTE
• Reference Source
  • Free Run
  • Ext Ref
• Reference Input
  • Supported reference video inputs include:
  • 1080i tri-level sync
  • 1080p tri-level sync
  • 720p tri-level sync
  • 625i Color Black
  • 525i Color Black
  • 75 ohm terminating
• Video Input: 1x HDMI input connector (with embedded audio, up to 8 channels)
• Video Outputs
  • HDMI: 1x HDMI loop through connector (with embedded audio, up to 8 channels)
  • SDI: 3G-SDI, SMPTE-259/292/424, 1x BNC
• HDCP
  • ROI-HDMI does not encode the HDMI output with HDCP encryption
  • ROI-HDMI does not accept HDCP input
• Audio Inputs
  • 1x Analog 3.5mm TRS, 2-channel
  • HDMI embedded audio, 24-bit, 8 channel
• Audio Output: SDI embedded audio, 24-bit, 2-channel or 8 channel
• User Interface: USB port used with supplied cable and Mini-Config software application to configure device via Mac or Windows
• Size (w x d x h): 5.77" x 4.02" x 0.90" (146.56 x 102.11 x 22.86 mm)
• Weight: 0.6 lb (0.3 kg)
• Power
  • Universal power supply included
  • 100-240V, 50/60 Hz Universal inpu
  • +5 to 20V DC regulated, 8 watts max
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• AJA ROI HDMI to SDI Mini Converter
• Power Supply
• USB Cable
• Warranty: Limited 5-Year Manufacturer Warranty
