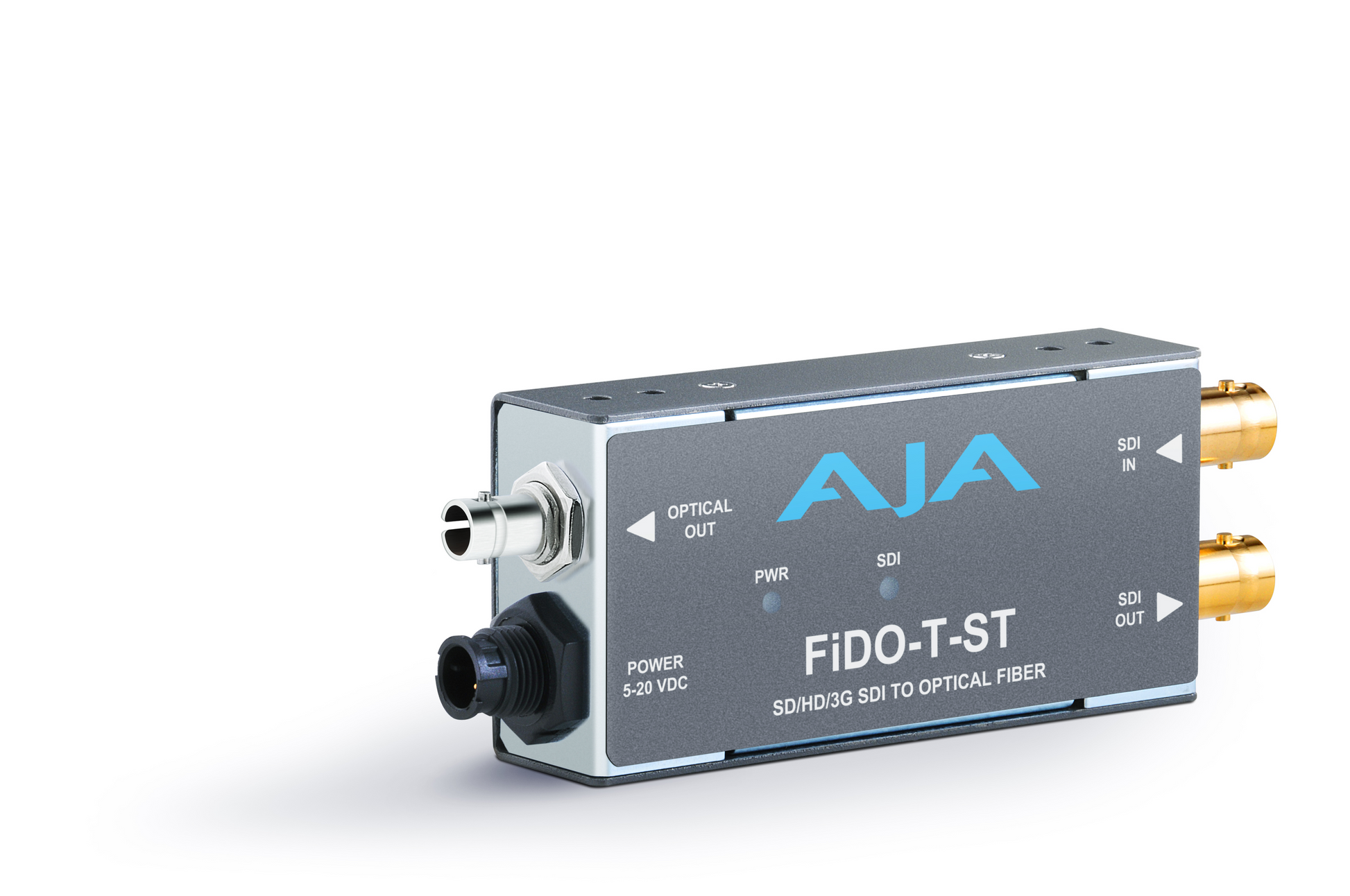

AJA Single channel SDI to ST Fiber converter, with looping SDI output

AJA Single channel SDI to ST Fiber converters offer unmatched flexibility and cost efficiency for SDI-Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) with electrical isolation - useful for eliminating ground loop problems. The AJA Single channel SDI to ST Fiber converter uses a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Features

• 1-Channel 3G-SDI to Single Mode ST Fiber Transmitter, with SDI loop out
• Simplex connection (ST connector)
• 3G/HD/SD-SDI input
• Looping SDI output
• Uses 5-20VDC power (Universal power supply included)
• Five year warranty
• Universal Power Supply
• Customers can purchase a spare universal power supply for use with any of their Mini-Converters. This universal power supply includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix
Information on the complete line of AJA converters, routers, frame synchronizers, and openGear cards are available in Mini-Matrix. AJA products are extensive and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Industry Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue,  AJA Support will work with you to get up and running. Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

• Formats: 3Gb, 1.5Gb, 270Mb, Auto Select
• Video Inputs and Outputs
  • SDI (SMPTE 259/292/296/424), 2x BNC
  • 1x Single mode optical fiber, LC connector (FiDO-R, FiDO-T)
  • 1x Single mode optical fiber, ST connector (FiDO-T-ST, FiDO-R-ST)
  • 1x Single mode optical fiber, SC connector (FiDO-T-SC, FiDO-R-SC)
  • 2x Single mode optical fiber, LC connectors (FiDO-2R, FiDO-2T, FiDO-TR)
• Cable Equalization (BNC Inputs, 1694 coax)
  • 270mb, 400m
  • 1.5Gb, 200m
  • 3Gb, 140m
• Input/Output Return Loss (BNC): >15db, 270Mb - 3Gb
• Optical Outputs
  • Wavelength: 13 10 nm
  • Output Power: -2dBm typical
• Size: 4.6” x 1.71 " x.85" (117 x 43.5 x 21.6mm)
• Power
  • +5-20 VDC
  • 1.5 watts (FiDO-T, FiDO-R, FiDO-T-ST, FiDO-R-ST, FiDO-T-SC, and FiDO-R-SC)
  • 2.5 watts (FiDO-2R, FiDO-2T, FiDO-TR)
  • Requires Power Supply (AJA power supply model DWP-U-R1 included)

• AJA FiDO Single-Channel 3G-SDI to ST Fiber Mini Converter
• AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
• Warranty: Limited 5-Year Manufacturer Warranty
