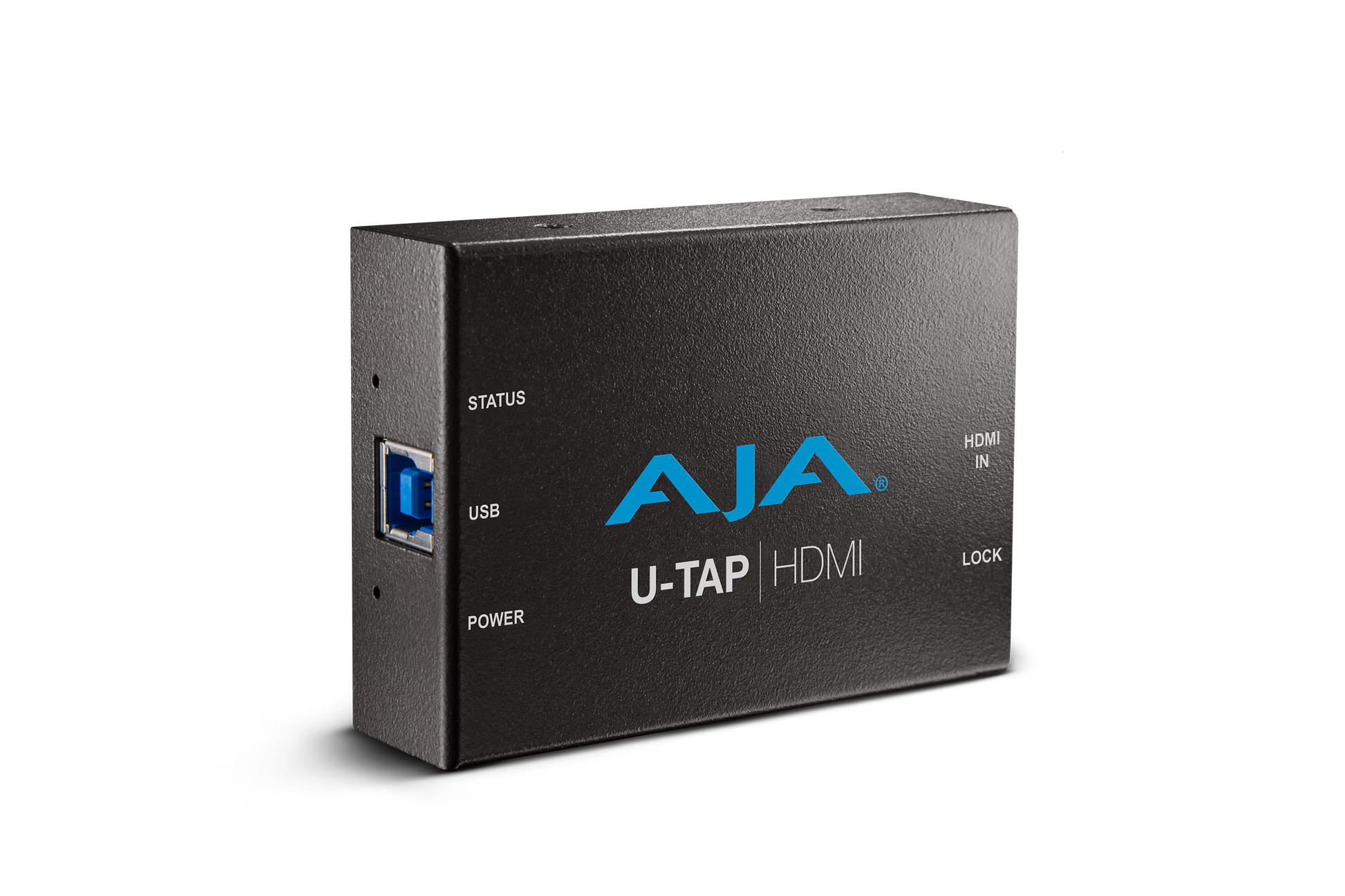

AJA U-TAP HDMI USB Angled View

AJA U-TAP HDMI USB 3.0 Powered HDMI Capture

Regular price$439.00
/
Free Shipping & Tech Support.

MFR Part # (MPN): U-TAP-HDMI-R0
Videoguys Part # (SKU): UTAPHDMI

Short Description:
  • Free Shipping & Tech Support

The AJA U-TAP HDMI USB 3.0 (USB 3.2, Gen 1) capture devices brings professional connectivity and high quality video capture to your laptop or workstation. AJA U-TAP HDMI USB 3.0 is bus powered with the ability to simply and easily bring in video across HDMI for use within a wide range of software without any drivers to install, as it’s supported directly in macOS®, Windows® and Linux®.

  • HD/SD Capture up to 1080 60p over USB
  • 1x HDMI 1.4a with 2-channel embedded audio
  • 1x USB 3.0 (USB 3.2, Gen 1) connector
  • YCbCr 4:2:2 10-bit workflows supported
  • RGB 4:4:4 / YCbCr 4:4:4 10/12-bit (raster / frame rate dependent)
  • HD/SD and scaled (USB) raster support
  • Configurable behavior upon loss of input signal
  • UVC/UAC capture, no third-party driver required
  • Compact, silent and pocketable
  • Bus-powered, no power adapter required
  • Supports macOS, Windows, and Linux Ubuntu / Rocky
  • Universal application compatibility
  • Three year warranty

Video Formats

Video (HDMI)

  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
  • (SD) 625p 25
  • (SD) 625i 50
  • (SD) 525p 29.97
  • (SD) 525i 59.94
  • YCbCr 4:2:2 10-bit*
  • YCbCr 4:4:4 8/10/12-bit*
  • RGB 4:4:4 8/10/12-bit*

Computer (HDMI), up to 60 Hz max for all formats

  • 1920x1080p
  • 1680x1050p
  • 1600x1200p
  • 1600x1024p
  • 1280x1024p
  • 1280x960p
  • 1280x768p
  • 1024x768p
  • 800x600p
  • 640x480p

Scaled (USB), frame rates for all formats: 7.5, 15, 25, 29.97, 30, 50, 59.94, 60

  • 1920x1080p
  • 1440x1080p
  • 1280x720p
  • 1024x576p
  • 960x540p
  • 856x480p
  • 800x600p
  • 768x576p
  • 720x576p
  • 720x480p
  • 640x480p
  • 640x360p
  • 432x240p
  • 352x288p
  • 320x240p
  • 176x144p

*Raster and Frame Rate dependent
Note: Host system specifications/performance will govern what video formats are possible.

Video Input Digital
HDMI v1.4a, 24, 30 or 36-bits/pixel, RGB or YUV

Audio Input Digital
2-channel, 24-bit HDMI embedded audio, 48 kHz sample rate

Capture Video
16-bits/pixel, YUV (input video will be truncated as required)

Capture Audio
2-channel, 16-bit, 48 kHz sample rate (input audio will be truncated as required)

U-TAP Device Interface
USB 3.0 (USB 3.2, Gen 1) UVC/UAC compliant

Compatible Host Interfaces

  • USB 3.0 (USB 3.2, Gen 1) “SuperSpeed USB 5Gbps”
  • USB 3.1 (USB 3.2, Gen 2) “SuperSpeed USB 10Gbps”
  • USB 3.2 (USB 3.2, Gen 2x2) “SuperSpeed USB 20Gbps”
  • USB 2.0


Notes:
For best performance USB 3.0 (USB 3.2, Gen 1) or better is required on the host computer.
USB 2.0, and/or USB connections via Hubs may not always deliver sufficient power for U-TAP.

Size (w x d x h)
3.3" x 2.4" x 1.0" (83.82 x 60.96 x 25.4 mm)

Weight
0.3 lb (0.2 kg)

Power
5V USB bus powered; 3.5W max

Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
