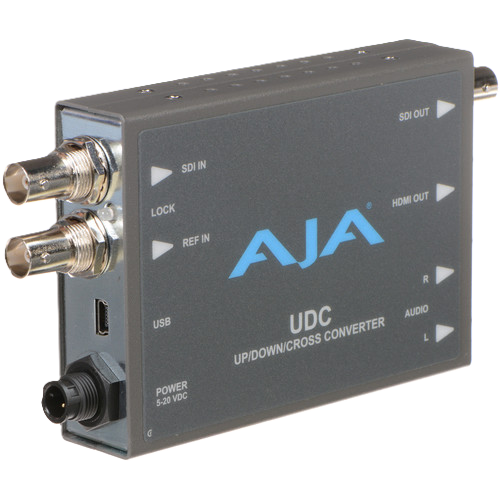

AJA UDC Up/Down/Cross Mini-Converter

AJA UDC Up/Down/Cross Converter

The AJA UDC Up/Down/Cross Mini-Converter is a broadcast-quality video format converter that converts between 3G-SDI, HD-SDI, and SD-SDI formats. It features SDI input and output, an HDMI output, and two RCA-style analog audio outputs, making it useful for broadcast facilities, live production, post-production, and professional AV workflows.

Using AJA's high-quality conversion technology, the UDC provides flexible video format conversion in a compact design. It supports simultaneous SDI and HDMI outputs, embedded SDI audio, HDMI audio, and reference locking for integration into compatible video systems.

Key Features

• Up, down, and cross conversion between 3G, HD, and SD video formats
• 3G-SDI, HD-SDI, and SD-SDI input and output
• Simultaneous SDI and HDMI outputs
• 16-channel embedded SDI audio input and output
• 8-channel HDMI audio output
• Two RCA-style analog audio outputs at -10 dBV nominal
• Genlock options: Reference input, SDI input, or free run
• Input-loss handling: Freeze, black, or mute
• USB configuration using AJA Mini-Config software for PC and Mac

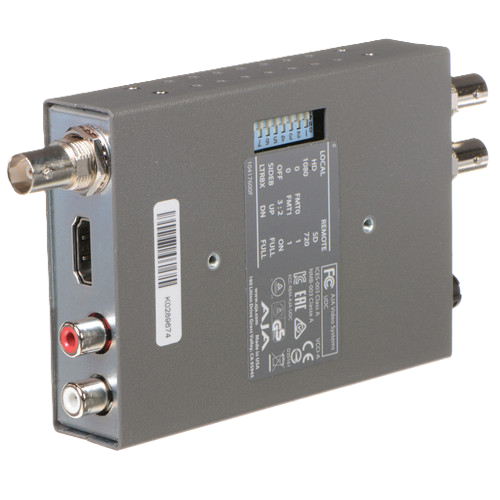

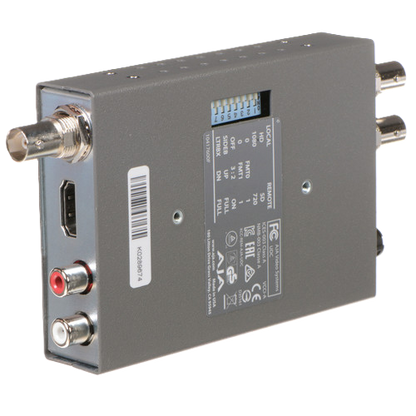

• Local DIP switch control for basic configuration
• 5–20 VDC power input with universal power supply included
• Five-year warranty

Convert Between 3G-SDI, HD-SDI, and SD-SDI Formats

The AJA UDC converts video signals between supported 3G, HD, and SD formats, helping connect equipment that operates at different video resolutions or standards. It is suited to broadcast and production environments that need reliable format conversion in a compact Mini-Converter.

Simultaneous SDI and HDMI Outputs

The UDC provides SDI and HDMI outputs simultaneously, allowing compatible video equipment to receive signals through both interfaces. This is useful in workflows involving professional SDI equipment and HDMI displays or other HDMI-compatible devices.

The converter also supports 16-channel embedded SDI audio input and output, 8-channel HDMI audio output, and two RCA-style analog audio outputs.

Genlock and Input-Loss Management

For timing flexibility, the UDC can lock to an external reference input or SDI input, or operate in free-run mode. Input-loss management options allow the output to be set to freeze, black, or mute when the input signal is lost.

Important SDI compatibility note: The UDC supports 3G-SDI Level A only; 3G-SDI Level B is not supported. It passes through embedded audio ancillary data only, not other types of embedded ancillary data.

Configure with AJA Mini-Config Software

The UDC can be configured using local DIP switches or through its USB port with AJA's Mini-Config software for PC and Mac. The software provides a graphical interface for viewing input and output formats, adjusting supported converter parameters, and applying firmware updates.

Compact Design for Production and AV Installations

As an AJA Mini-Converter, the UDC is designed for use in space-conscious installations, including behind monitors, in equipment racks, and on camera rigs. Its locking power connector helps prevent accidental disconnection, and an optional P-TAP power cable can support battery-powered setups in suitable applications.

Power Supply Included

The AJA UDC accepts 5–20 VDC power and includes a universal power supply. A compatible spare universal power supply is also available separately for installations that require a replacement or additional unit.

• Video Formats
  • (HD) 1920 x 1080p
  • (HD) 1920 x 1080PsF
  • (HD) 1920 x 1080i
  • (HD) 1280 x 720p
  • (SD) 720 x 625i
  • (SD) 720 x 576i
  • (SD) 720 x 525i
  • (SD) 720 x 480i
• Video Input Digital
  • 1x 3G-SDI BNC, SMPTE-259/292/372/424
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
• Video Output Digital
  • 1x 3G-SDI BNC, SMPTE-259/292/372/424
  • (HD) 1080p 23.98 (for 23.98 video inputs)
  • (HD) 1080p 24 (for 24 video inputs)
  • (HD) 1080p 25 (for 50 video inputs)
  • (HD) 1080p 29.97 (for 59.94 video inputs)
  • (HD) 1080p 30 (for 60 video inputs)
  • (HD) 1080p 50 (for 50 video inputs)
  • (HD) 1080p 59.94 (for 23.98, 59.94 video inputs)
  • (HD) 1080p 60 (for 24, 30 or 60 video inputs)
  • (HD) 1080PsF 23.98 (for 23.98 video inputs)
  • (HD) 1080PsF 24 (for 24 video inputs)
  • (HD) 1080PsF 25 (for 50 video inputs)
  • (HD) 1080PsF 29.97 (for 59.94 video inputs)
  • (HD) 1080PsF 30 (for 30 or 60 video inputs)
  • (HD) 1080i 59.94 (for 23.98, or 59.94 video inputs)
  • (HD) 1080i 60 (for 24, 30, or 60 video inputs)
  • (HD) 1080i 50 (for 25 or 50 video inputs)
  • (HD) 720p 50 (for 50 video inputs)
  • (HD) 720p 59.94 (for 23.98, 59.94 video inputs)
  • (HD) 720p 60 (for 24, 30, or 60 video inputs)
  • (SD) 625i 50 (for 25 or 50 fps video inputs)
  • (SD) 525i 59.94 (for 23.98 or 59.94 video inputs)
• Reference Source
  • Free Run
  • Ext Ref
• Reference Input
  • Supported reference video inputs include
  • 1080i tri-level sync
  • 1080p tri-level sync
  • 720p tri-level sync
  • 625i Color Black
  • 525i Color Black
  • 75-ohm terminating
• HDMI Output: 10-bit HDMI v1.4a
• Audio I/O
  • 16-channel embedded SDI audio input
  • 16-channel embedded SDI audio output
  • 8-channel HDMI audio output
  • 2x RCA style analog outputs at -10 dBu (nominal)
• Ancillary Data
  • Supports pass-through of PCM embedded audio
  • Supports pass-through of non-PCM audio when source is in time with the selected ref (SDI In or Ext Ref).  Non-PCM audio is not supported during frame sync operation.
  • All other ANC data is stripped
• HDCP: The UDC does not encode the HDMI output with HDCP encryption. By definition, HD-SDI inputs to the UDC are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs.
• User Interface: USB port used with supplied cable and Mini-Config software application to configure device via PC or Mac
• Size (w x d x h): 5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)
• Power: +5VDC Regulated, 7.0 Watts, Power Supply Required (included with purchase)
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• AJA UDC Up/Down/Cross Converter
• AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
• Warranty: Limited 5-Year Manufacturer Warranty
