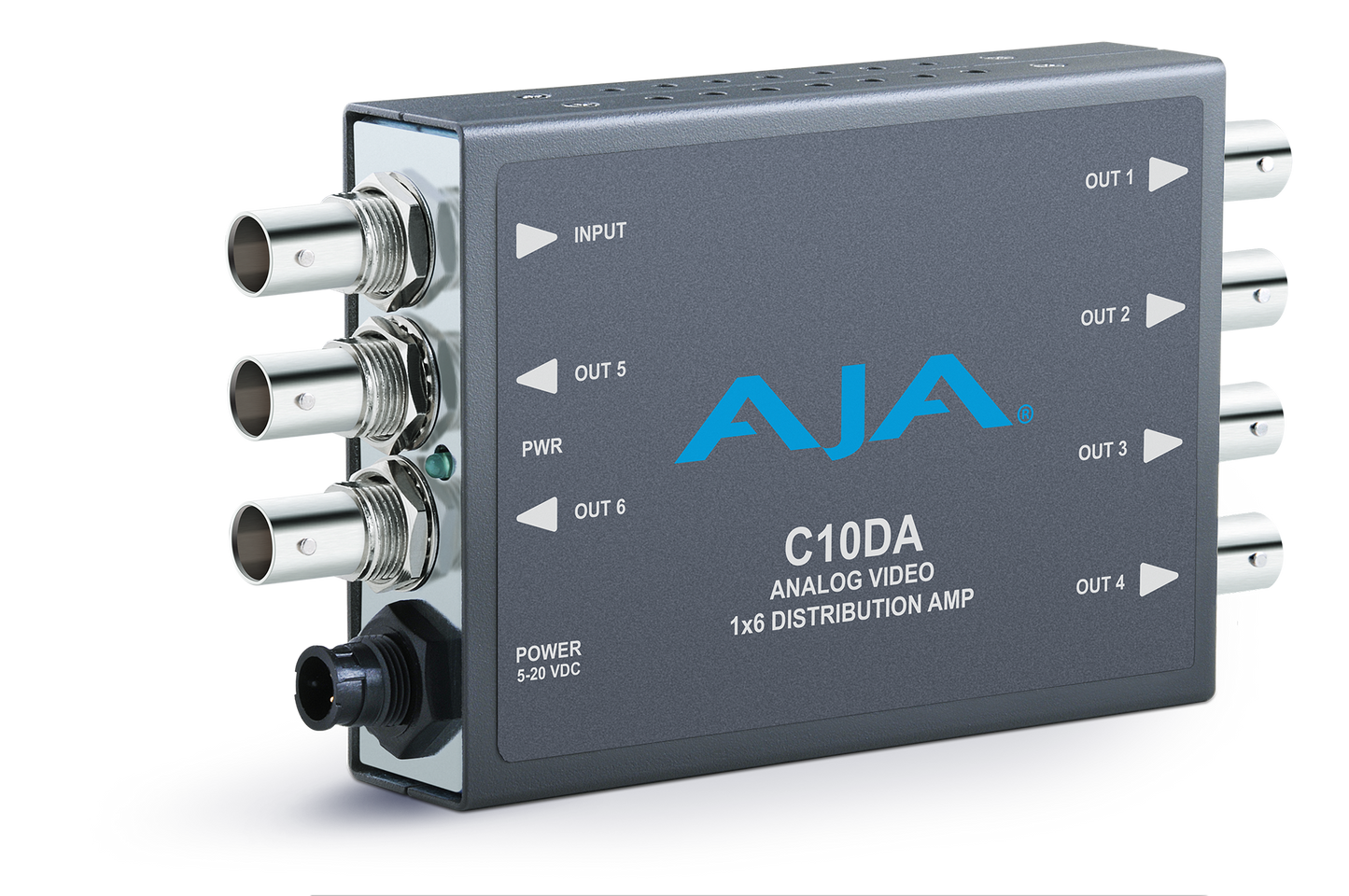

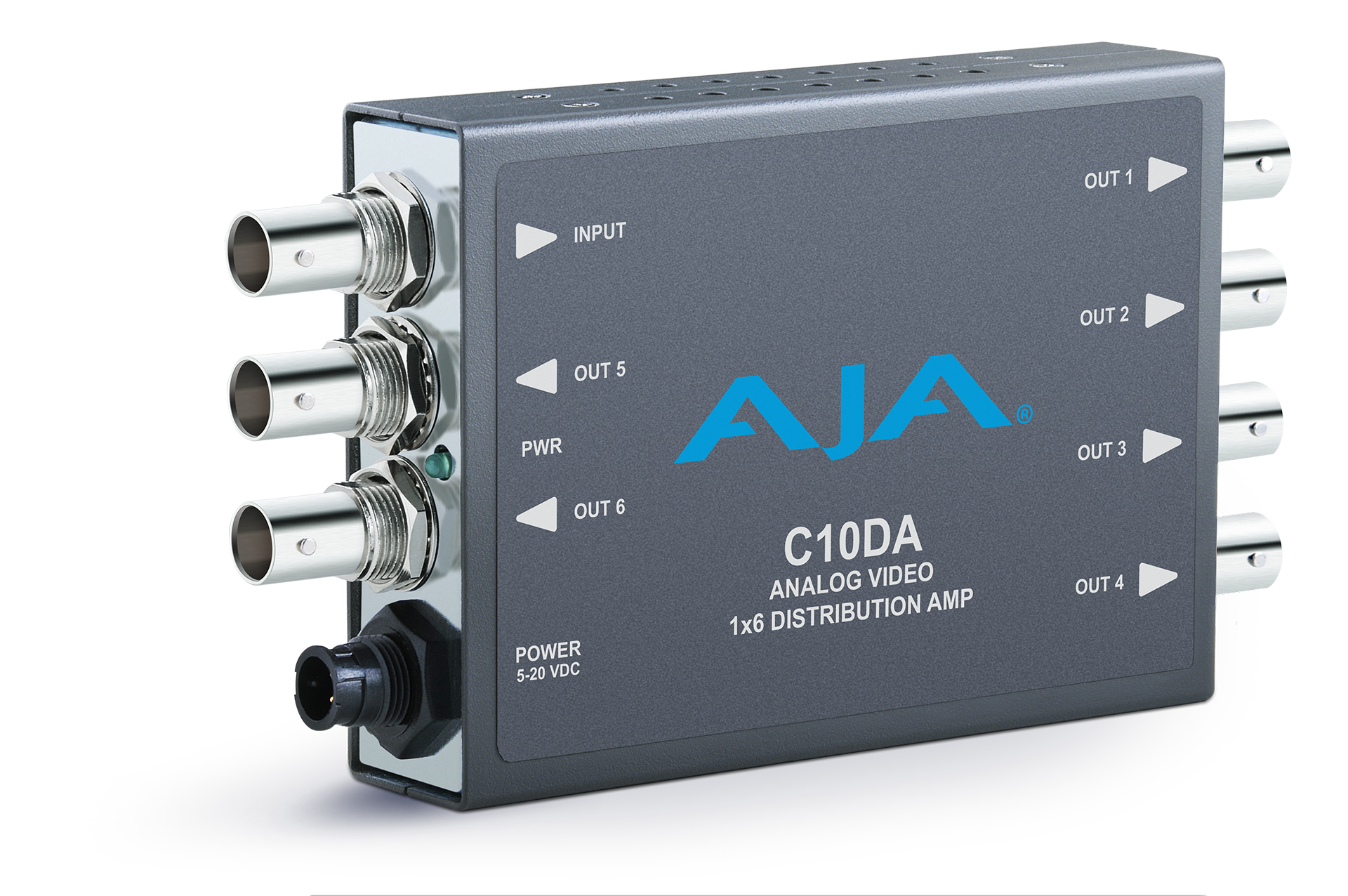

AJA Analog Video 1x6 Distribution Amplifier

Overview

The AJA Analog Video 1x6 Distribution Amplifier is a 1x6 analog distribution amplifier with support for NTSC and PAL offering the ability to distribute multiple copies of the incoming signal or extend content of composite video with gain adjustment to compensate for long cable runs where needed.

The AJA Analog Video 1x6 Distribution Amplifier can also be used to DA Tri-Level sync in an HD facility when a sync signal is fed externally into the Video Input.

Features
Compact 1x6 analog distribution amplifier
NTSC
PAL
May be used to distribute tri-level sync when a sync signal is fed into the Video Input for HD workflows
Low cost
Five year warranty

Universal Power Supply
Customers can purchase a spare universal power supply for use with any of their Mini-Converters. This universal power supply includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix
Information on the complete line of AJA converters, routers, frame synchronizers, and openGear cards are available in Mini-Matrix. AJA products are extensive and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Industry Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue,  AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

Formats
• NTSC
• PAL
• Bi-level Reference
• Tri-level Reference
• AES3-id
• LTC

Inputs
• 1 Analog, Differential, 1 x BNC

Outputs
• 6 Analog, 6 x BNC

Termination
• 75 Ohms or nonterminated

Video Bandwidth
• 0 – 6 MHz +/- 0.1dB

Gain
• -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB, +/- 0.3dB

Diff Gain
• 0.15%, not load dependent

Diff Phase
• 0.1 degree, not load dependent

H/V Tilt
• < 0.1%

Response Variation
• < 0.1dB 1 to 6 loads

Coupling
• DC

Max Common Mode Signal
• 10Vp-p

Return Loss
• > 35dB to 6 MHz all inputs and outputs

Output Isolation
• >40dB

User Controls
• External Dipswitch
• Termination
• Gain

Size (w x d x h)
• 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)

Weight
• 0.8 lb (0.3 kg)

Power
• 5VDC Regulated, 2 Watts, power supply required, included with purchase

Environment
• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
