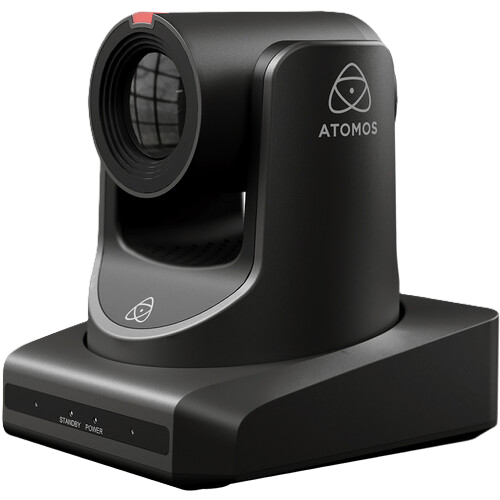

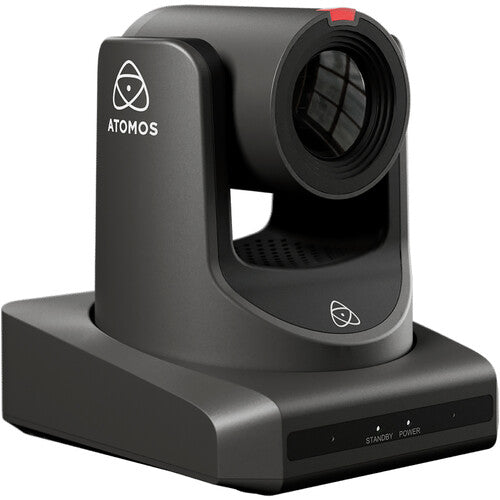

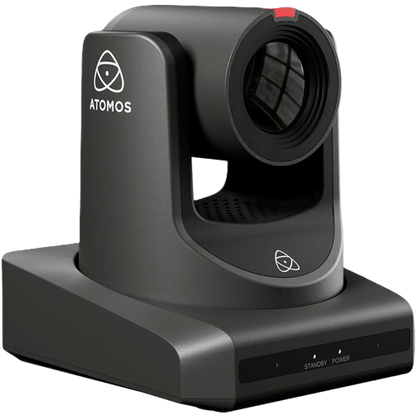

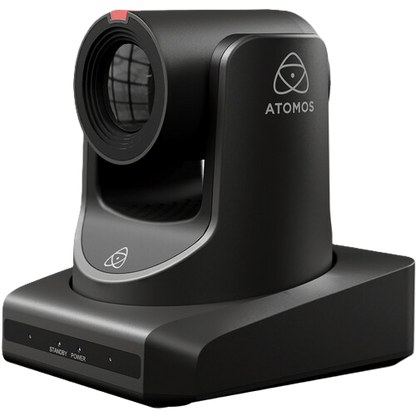

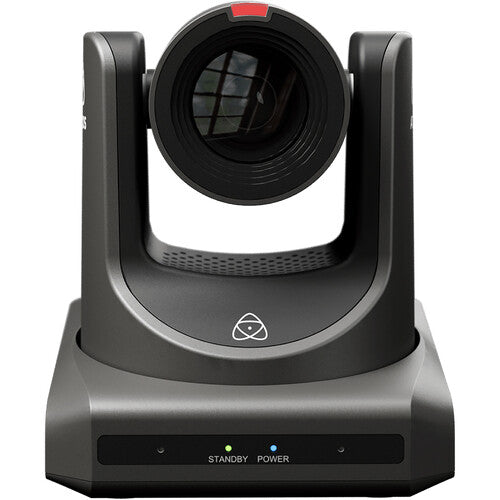

Atomos A-Eye 4K-12X PTZ Camera

Atomos A-Eye 4K-12X
The A-Eye HD-12X PTZ Camera is a compact, versatile solution designed to deliver professional-quality video in almost any environment. Featuring a powerful 1/2.5-inch UHD CMOS sensor and 12x optical zoom, this camera ensures sharp, detailed images whether you’re capturing a lecture, presenting in a boardroom, or streaming creative content.

Powerful 4K Optics with 12x Zoom
Get closer to the action without losing quality. Perfect for classrooms, meeting spaces, or creative projects where you need both wide shots and close-ups.

NDI® | HX3 and IP-Based Production
With built-in support for NDI®|HX3, the A-EYE delivers high-efficiency, low-latency video over standard Ethernet networks. Additional protocols like RTMP, RTSP, SRT, and VISCA-over-IP ensure broad compatibility with IP production environments, whether local or remote.

Effortless Control and Deployment
The A-EYE can be operated via VISCA or IP-based control systems and integrates with third-party hardware and software controllers. Power over Ethernet++ (PoE++) simplifies installation by delivering power, video, and control over a single cable , ideal for studios, event spaces, churches, and corporate environments.

Who is it for?
The A-EYE 4K 12x PTZ Camera is designed for creators and professionals who need high-quality remote video capture without complexity. From livestreamed performances and church services to multi-camera conferences and hybrid broadcasts, A-EYE delivers exceptional performance in a compact, cloud-ready package.

Key Features:

• 1/2.5 UHD CMOS sensor delivers crisp, professional-quality 4K video
• Supports UHD 4K60 & 1080p60 output for flexible streaming and recording
• 12× optical zoom + 16× digital zoom for wide shots and close-ups without losing detail
• AI auto-tracking keeps the subject centered and in focus automatically
• Multiple outputs — HDMI, 3G-SDI, USB-A 3.0, and IP/NDI|HX3 streaming
• Local recording via USB drive for direct, hassle-free capture
• Flexible remote control through UVC, VISCA over IP, RS-232, or RS-485
• Smooth motion range with 340° pan and –30° to +90° tilt, adjustable speeds
• Audio options: 3.5 mm stereo line in/out plus embedded audio via HDMI, SDI, and IP
• Dual power options — 12 VDC or PoE+ (Power over Ethernet) for streamlined cabling
• Compact, versatile design ideal for classrooms, corporate environments, worship services, and content creation

Physical

• Dimensions (W x H x D mm): 146mm x 169mm x 168mm
• Weight: About 1.6Kg

Environmental

• Ambient operating temperature: Up to 40 degrees Celsius

Construction

• Body: ABS

Power

• Input voltage: DC 12V/PoE+ (802.3at)
• Operating power: Max 18W
• Power on indicator: Yes

Video

• Sensor: 1/2.5 inch, CMOS
• Effective pixels: 8.51M
• Lens: 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
• Scanning mode: Progressive
• Resolutions supported
  • HDMI: 4KP60, 4KP50, 4KP30, 4KP25, 4KP59.94, 4KP29.97, 1080P60, 1080P50, 1080P59.94, 1080P30, 1080P29.97, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94
  • 3G-SDI: 1080P60, 1080P50, 1080P30, 1080P29.97, 1080P59.94, 1080P25, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94
• Color system / compression: YUY2/H.264/MJPEG/H.265
• Video format: YUY2: max to 1080P@5fps H.264; AVC: max to 2160P@30fps; H.265 HEVC: max to 2160P@30fps; MJPEG: max to 2160P@30fps
• Digital zoom: 16x
• Minimum Illumination: 0.5 Lux @ (F1.8, AGC ON)
• Shutter: 1/30s ~ 1/10000s
• Image flip: Supported
• Image freeze: Supported
• White balance: Auto, VAR, Manual, One Push, Indoor, Outdoor
• Backlight compensation: Support
• Digital noise reduction: 2D & 3D Digital Noise Reduction
• SNR: ≥55dB

Mechanical

• Horizontal FOV: 71° ~ 8.2°
• Vertical FOV: 42.7° ~ 4.5°
• Pan angle: ±170°
• Tilt angle: -30° ~ +90°
• Pan speed: 1.7° ~ 100°/s
• Tilt speed: 1.7° ~ 69.9°/s
• Preset position: 255
• Preset accuracy: 0.1°

USB

• Operating system: Windows 7/8/10, Mac OS X, Linux, Android, iOS, iPadOS
• USB audio: Supported
• USB video protocol: UVC 1.1/UVC 1.5
• USB PTZ control: Supported

Network

• Video compression: H.264/H.265/MJPEG
• Video stream: First Stream, Second Stream
• First stream resolution: 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360
• Second stream resolution: 720x480, 720x408, 640x480, 640x360, 480x320, 320x240
• Video bit rate: First Stream: 32kbps~51200kbps; Second Stream: 32kbps~20480kbps
• Bit rate control: CBR, VBR
• Frame rate: 50Hz: 1fps ~ 50fps; 60Hz: 1fps ~ 60fps
• Audio compression: AAC
• Audio bit rate: 96Kbps, 128Kbps, 256Kbps
• Protocols: NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast

Audio

• Microphone: No built-in mic
• Audio input: Line In
• Audio output: Line Out, HDMI, USB

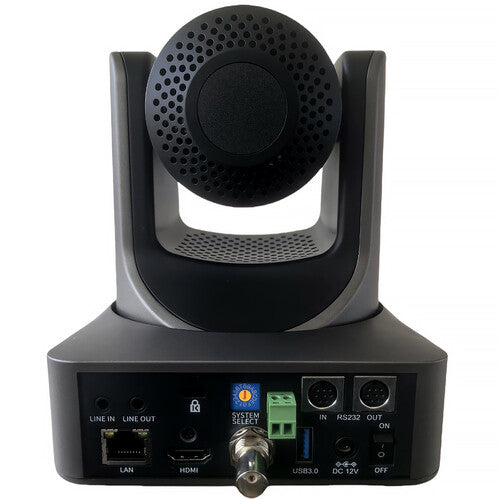

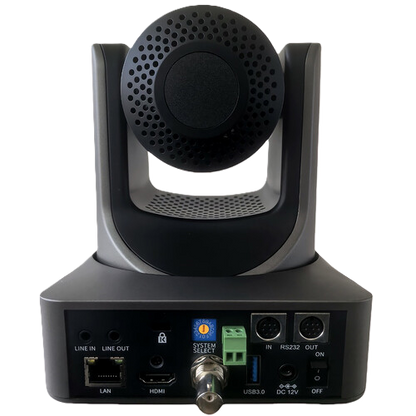

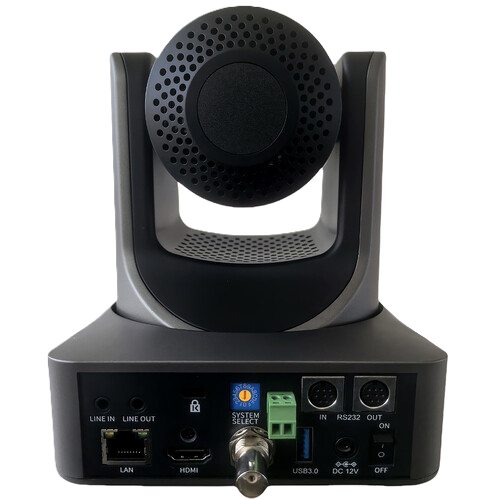

Input/Output Interfaces

• Line In: 3.5mm audio interface
• Line Out: 3.5mm audio interface
• RS-485: 2-pin phoenix port; max distance: 1200m; protocol: VISCA/Pelco-D/Pelco-P
• RS-232 IN: 8-pin Mini DIN; max distance: 30m; protocol: VISCA/Pelco-D/Pelco-P
• RS-232 OUT: 8-pin Mini DIN; max distance: 30m; protocol: VISCA network use only
• Network: 10M/100M Adaptive Ethernet Port
• USB; USB 2.0: Type A
• SDI: 3G-SDI: BNC type, 800mVp-p, 75Ω. To SMPTE 424M standard
• HDMI: HDMI version 1.3
• Power jack: JEITA type (DC IN 12V)
• Tally indicator: Yes

• A-Eye 4K-12X PTZ camera
• RS-232 serial cable (2m),
• USB 3.0 A-A cable (1.5m)
• Lens cover
• Remote controller
• Accessory tray
• Wall mount rack
• Screw pack
• Power adaptor with 4 plugs
• Quick Start Guide
• Warranty: Standard 1-year or 2-years with product registration
