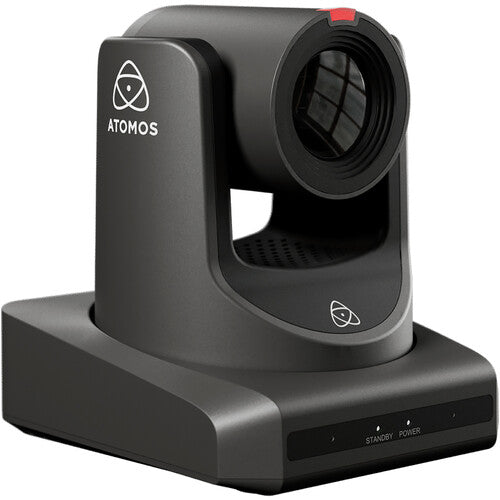

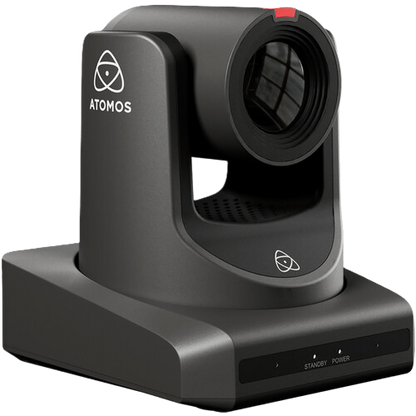

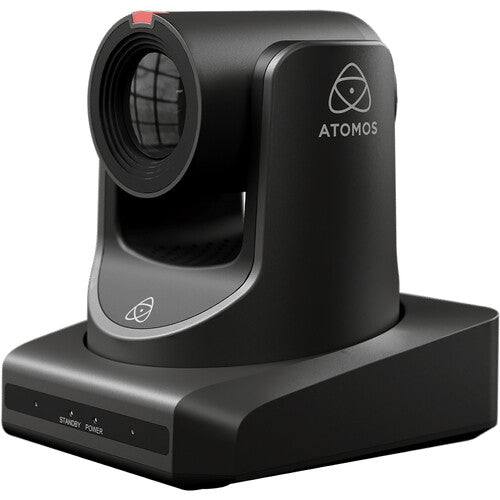

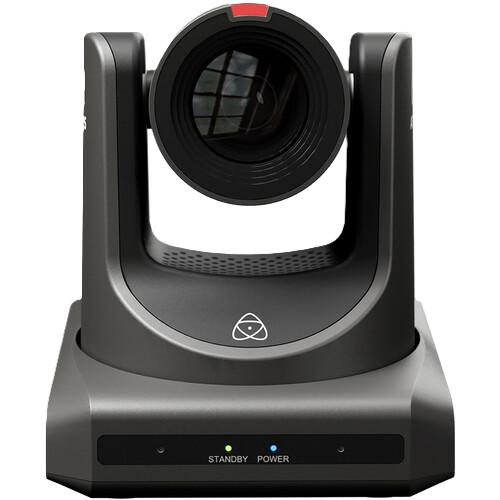

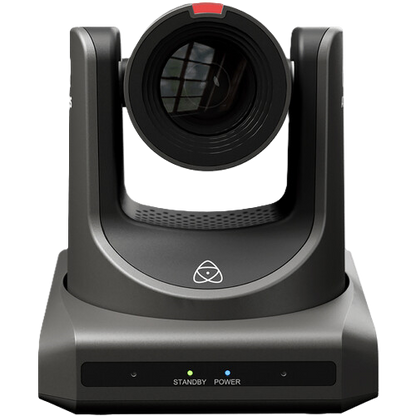

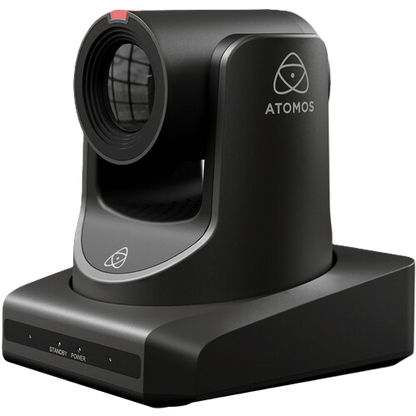

Atomos A-Eye 4K-20X PTZ Camera

Precision optics. Seamless IP streaming. Built for the cloud.
The Atomos A-EYE 4K 20x PTZ Camera redefines live production with broadcast-quality imaging, smooth movement, and built-in IP workflows. It’s the intelligent choice for modern streaming, hybrid productions, and remote collaboration.

Powerful 4K Optics with 20x Zoom
Equipped with a 1/2.8 CMOS sensor, the A-EYE captures detailed 4K Ultra HD video at up to 60 frames per second. The 20x optical zoom delivers smooth, responsive transitions from wide shots to tight close-ups, giving creators full framing flexibility without compromising clarity.

NDI® | HX3 and IP-Based Production
With built-in support for NDI®|HX3, the A-EYE delivers high-efficiency, low-latency video over standard Ethernet networks. Additional protocols like RTMP, RTSP, SRT, and VISCA-over-IP ensure broad compatibility with IP production environments, whether local or remote.

Effortless Control and Deployment
The A-EYE can be operated via VISCA or IP-based control systems and integrates with third-party hardware and software controllers. Power over Ethernet++ (PoE++) simplifies installation by delivering power, video, and control over a single cable , ideal for studios, event spaces, churches, and corporate environments.

Who is it for?
The A-EYE 4K 20x PTZ Camera is designed for creators and professionals who need high-quality remote video capture without complexity. From livestreamed performances and church services to multi-camera conferences and hybrid broadcasts, A-EYE delivers exceptional performance in a compact, cloud-ready package.

Key Features

• 1/2.8 CMOS sensor with 4K Ultra HD (3840 x 2160) resolution
• 20x optical zoom lens with precise pan/tilt motion
• NDI®|HX3, RTMP, RTSP, SRT, and VISCA-over-IP support
• PoE++ for single-cable setup
• Low-latency IP transmission and remote control capability
• Ideal for live events, worship services, education, and corporate AV

Physical

• Dimensions (W x H x D mm): 146mm x 169mm x 168mm
• Weight: About 1.6Kg

Environmental

• Ambient operating temperature: Up to 40 degrees Celsius

Construction

• Body: ABS

Power

• Input voltage: DC 12V/PoE+ (802.3at)
• Operating power: Max 18W
• Power on indicator: Yes

Video

• Sensor: 1/1.8 inch, CMOS
• Effective pixels: 8.42M
• Lens: 20x, f=6.25mm~125mm, F1.58~F3.95
• Scanning mode: Progressive
• Resolutions supported
  • HDMI: 4KP60, 4KP50, 4KP30, 4KP25, 4KP59.94, 4KP29.97, 1080P60, 1080P50, 1080P59.94, 1080P30, 1080P29.97, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94
  • 3G-SDI: 1080P60, 1080P50, 1080P30, 1080P29.97, 1080P59.94, 1080P25, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94
• Color system / compression: YUY2/H.264/MJPEG/H.265
• Video format: YUY2: max to 1080P@5fps H.264; AVC: max to 2160P@30fps; H.265 HEVC: max to 2160P@30fps; MJPEG: max to 2160P@30fps
• Digital zoom: 16x
• Minimum Illumination: 0.5 Lux @ (F1.8, AGC ON)
• Shutter: 1/30s ~ 1/10000s
• Image flip: Supported
• Image freeze: Supported
• White balance: Auto, VAR, Manual, One Push, Indoor, Outdoor
• Backlight compensation: Support
• Digital noise reduction: 2D & 3D Digital Noise Reduction
• SNR: ≥55dB

Mechanical

• Horizontal FOV: 60°~3.5°
• Vertical FOV: 35.7°~2.0°
• Pan angle: ±170°
• Tilt angle; -30° ~ +90°
• Pan speed: 1.7° ~ 100°/s
• Tilt speed: 1.7° ~ 69.9°/s
• Preset position: 255
• Preset accuracy: 0.1°

USB

• Operating system: Windows 7/8/10, Mac OS X, Linux, Android, iOS, iPadOS
• USB audio: Supported
• USB video protocol: UVC 1.1/UVC 1.5
• USB PTZ control: Supported

Network

• Video compression: H.264/H.265/MJPEG
• Video stream: First Stream, Second Stream
• First stream resolution: 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360
• Second stream resolution: 720x480, 720x408, 640x480, 640x360, 480x320, 320x240
• Video bit rate: First Stream: 32kbps~51200kbps; Second Stream: 32kbps~20480kbps
• Bit rate control: CBR, VBR
• Frame rate: 50Hz: 1fps ~ 50fps; 60Hz: 1fps ~ 60fps
• Audio compression: AAC
• Audio bit rate: 96Kbps, 128Kbps, 256Kbps
• Protocols: NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast

Audio

• Microphone: No built-in mic
• Audio input: Line In
• Audio output: Line Out, HDMI, USB

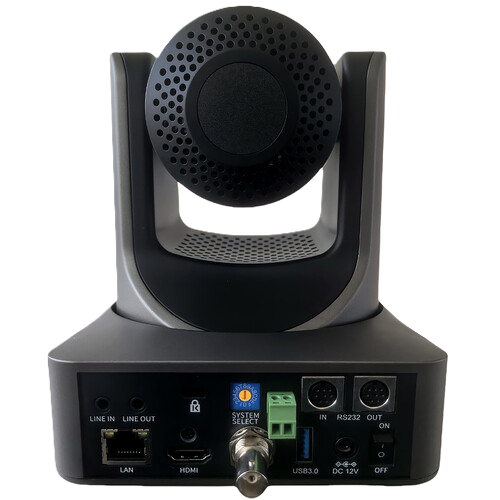

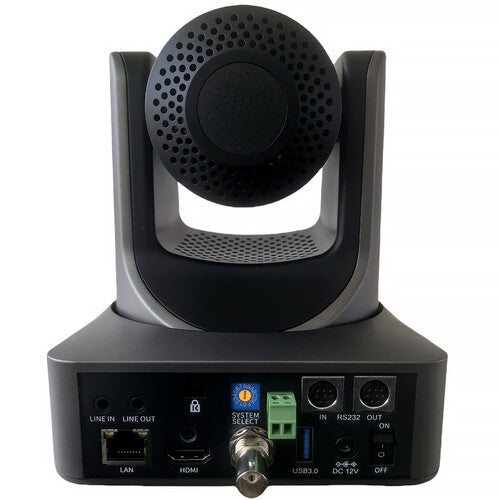

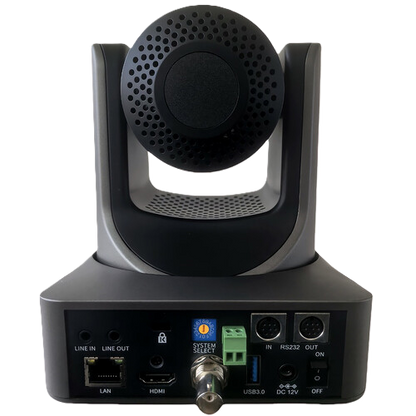

Input/Output Interfaces

• Line In: 3.5mm audio interface
• Line Out: 3.5mm audio interface
• RS-485: 2-pin phoenix port; max distance: 1200m; protocol: VISCA/Pelco-D/Pelco-P
• RS-232 IN: 8-pin Mini DIN; max distance: 30m; protocol: VISCA/Pelco-D/Pelco-P
• RS-232 OUT: 8-pin Mini DIN; max distance: 30m; protocol: VISCA network use only
• Network: 10M/100M Adaptive Ethernet Port
• USB: USB 2.0: Type A
• SDI: 3G-SDI: BNC type, 800mVp-p, 75Ω. To SMPTE 424M standard
• HDMI: HDMI version 1.3
• Power jack: JEITA type (DC IN 12V)
• Tally indicator: Yes

• A-EYE 4K-20X PTZ camera
• RS-232 serial cable (2m)
• USB 3.0 A-A cable (1.5m)
• Lens cover
• Remote controller
• Accessory tray
• Wall mount rack
• Screw pack
• Power adaptor with 4 international plugs
• Quick Start Guide
• Warranty: Standard 1-year or 2-years with product registration
