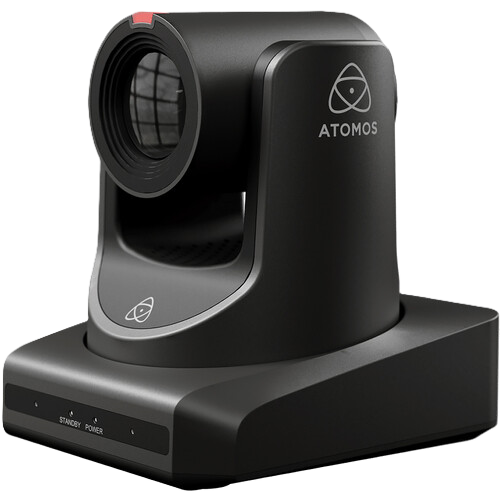

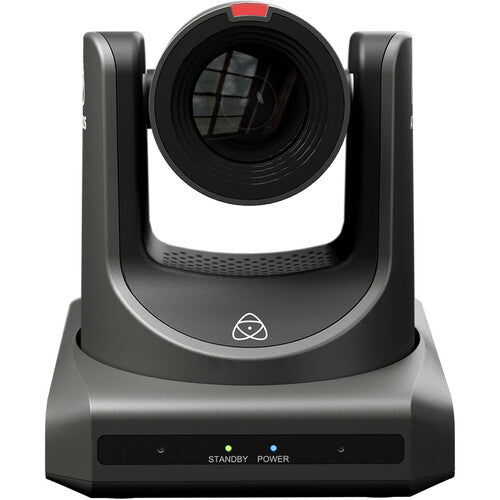

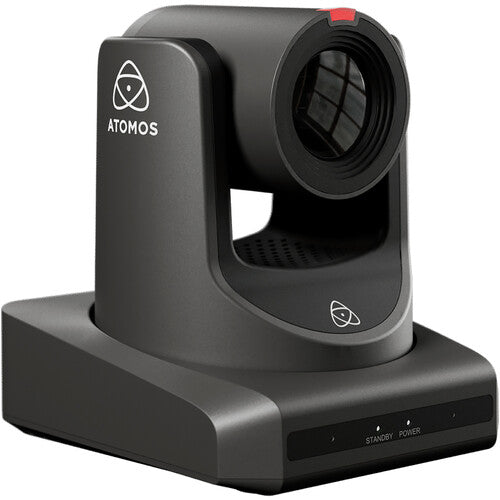

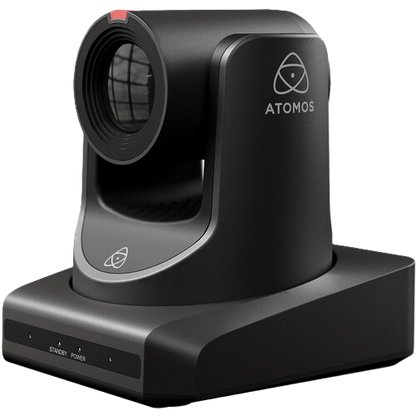

Atomos A-Eye HD-20X PTZ Camera

Atomos A-Eye HD 20X PTZ Camera
The Atomos A-Eye HD 20X PTZ Camera brings professional pan-tilt-zoom performance to live productions, corporate broadcasts, education, and streaming setups. Designed for seamless integration into multi-camera environments, it delivers sharp Full HD video with smooth robotic control and flexible connectivity.

Key Features

• 1/2.8-inch HD CMOS sensor
• 20x optical zoom
• 2.07M effective pixels
• AI-powered tracking
• ±170° pan and -30° to +90° tilt range
• For education, houses of worship, and budget-friendly production

Full HD Video with 20x Optical Zoom
Capture crystal-clear 1080p60 video using a precision 1/2.8 CMOS sensor and advanced image processing. With 20x optical zoom and low-light sensitivity, the A-Eye HD 20X is ideal for wide shots, close-ups, and everything in between—even in variable lighting conditions.

Smooth, Quiet PTZ Movement
The camera’s responsive pan, tilt, and zoom motors ensure fluid, near-silent movement that’s perfect for live broadcast environments. Whether controlled via joystick, software, or remote presets, A-Eye delivers consistent framing without distracting mechanical noise.

Flexible IP and Streaming Connectivity
Stream directly via RTMP, RTSP, or NDI|HX* over Ethernet, or connect via HDMI and 3G-SDI for traditional AV workflows. Integrated PoE+ simplifies setup by delivering both power and network over a single cable—ideal for permanent installations or rapid deployment. *NDI|HX license activation may be required

Camera Control and Presets
Control A-Eye HD 20X using the optional A-Eye Control Remote, supported joystick controllers, or software via RS-232, RS-422, or IP protocols. Store and recall preset positions for fast scene switching in live production scenarios.

Built for Production Versatility
From houses of worship to corporate studios, event spaces to classrooms, the A-Eye HD 20X is ready to deliver professional-grade results in any production environment. The compact design and wall-mount compatibility make it easy to integrate into new or existing setups.

Who is it for?
The A-Eye HD 20X is ideal for broadcast teams, educators, livestream producers, and corporate AV departments looking for a dependable HD PTZ solution. Whether in a multi-cam setup or as a standalone camera, it provides pro-level control, image quality, and flexibility.

Physical

• Dimensions (W x H x D mm): 139.2mm x 176.5mm x 165.8mm
• Weight: About 1.5Kg

Environmental

• Ambient operating temperature: Up to 40 degrees Celsius
• Construction
• Body: ABS

Power

• Input voltage: DC 12V/PoE+ (802.3at)
• Operating power: Max 15W
• Power on indicator: Yes

Video

• Sensor: 1/2.8 inch, CMOS
• Effective pixels: 2.07M
• Lens: 20x, f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8
• Scanning mode: Progressive
• Resolutions supported: 1080P60, 1080P59.94, 1080P50, 1080I60, 1080I59.94, 1080I50, 1080P30, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50
• Color system / compression: YUY2/MJPEG/H.264
• Video format: YUY2: max to 1080P@5fps, H.264 AVC: max to 1080P@30fps
• Digital zoom: 16x
• Minimum Illumination: 0.5 Lux @ (F1.8, AGC ON)
• Shutter; 1/30s ~ 1/10000s
• Image flip: Supported
• Image freeze: Supported
• White balance: Auto, VAR, Manual, One Push, Indoor, Outdoor
• Backlight compensation: Support
• Digital noise reduction: 2D & 3D Digital Noise Reduction
• SNR: ≥55dB

Mechanical

• Horizontal FOV: 60.7° ~ 3.36°
• Vertical FOV: 34.1° ~ 1.89°
• Pan angle: ±170°
• Tilt angle: -30° ~ +90°
• Pan speed: 1.7° ~ 100°/s
• Tilt speed: 1.7° ~ 69.9°/s
• Preset position: 255
• Preset accuracy: 0.1°

USB

• Operating system: Windows 7/8/10, Mac OS X, Linux, Android, iOS, iPadOS
• USB audio: Supported
• USB video protocol: UVC 1.1/UVC 1.5
• USB PTZ control: Supported

Network

• Video compression: H.264/H.265
• Video stream: First Stream, Second Stream
• First stream resolution: 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360
• Second stream resolution: 1280x720, 1024x576, 720x480, 640x360, 480x272, 320x240, 320x180
• Video bit rate: 32Kbps ~ 20480Kbps
• Bit rate control: CBR, VBR
• Frame rate: 1fps ~ 60fps
• Audio compression: AAC
• Audio bit rate: 96Kbps, 128Kbps, 256Kbps
• Protocols: NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast

Audio

• Microphone: Built-in dual microphone, 100Hz to 16KHz frequency response
• Audio input: Line In
• Audio output: Line Out, HDMI, USB

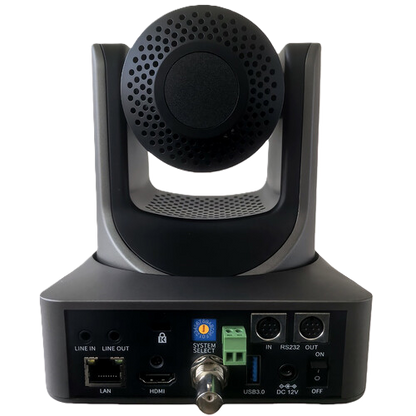

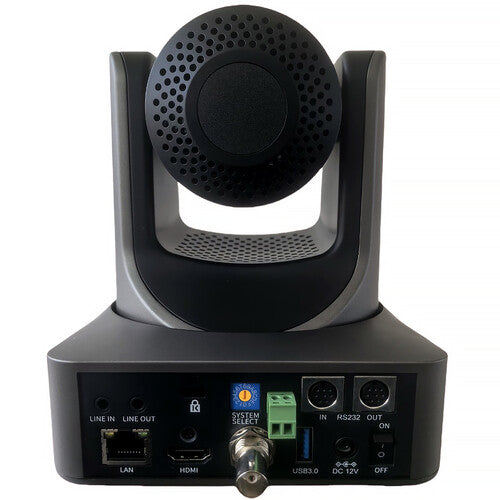

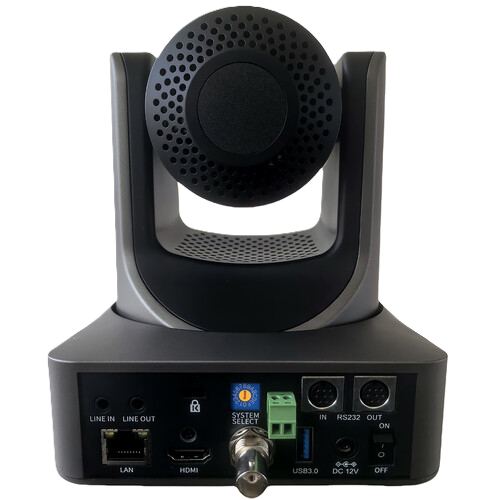

Input/Output Interfaces

• Line In: 3.5mm audio interface
• Line Out: 3.5mm audio interface
• RS-485: 2-pin phoenix port; max distance: 1200m; protocol: VISCA/Pelco-D/Pelco-P
• RS-232 IN: 8-pin Mini DIN; max distance: 30m; protocol: VISCA/Pelco-D/Pelco-P
• RS-232 OUT: 8-pin Mini DIN; max distance: 30m; protocol: VISCA network use only
• Network: 10M/100M Adaptive Ethernet Port
• USB: USB 2.0: Type A
• SDI: 3G-SDI: BNC type, 800mVp-p, 75Ω. To SMPTE 424M standard
• HDMI: HDMI version 1.3
• Power jack: JEITA type (DC IN 12V)
• Tally indicator: Yes

• A-Eye HD-20X PTZ camera
• RS-232 serial cable (2m)
• USB 3.0 A-A cable (1.5m)
• Lens cover
• Remote controller
• Accessory tray
• Wall mount rack
• Screw pack
• Power adaptor with 4 plugs
• Quick Start Guide
• Warranty: Standard 1-year or 2-years with product registration
