Atomos AtomX CAST 4 x HDMI Switching & Streaming Dock for Ninja V/V+
$399.00$399.00
92
VideoGuys Part # (SKU): ATOMXCAST
MFR Part # (MPN): ATOMXCST01
Simply Connect, Switch and Stream

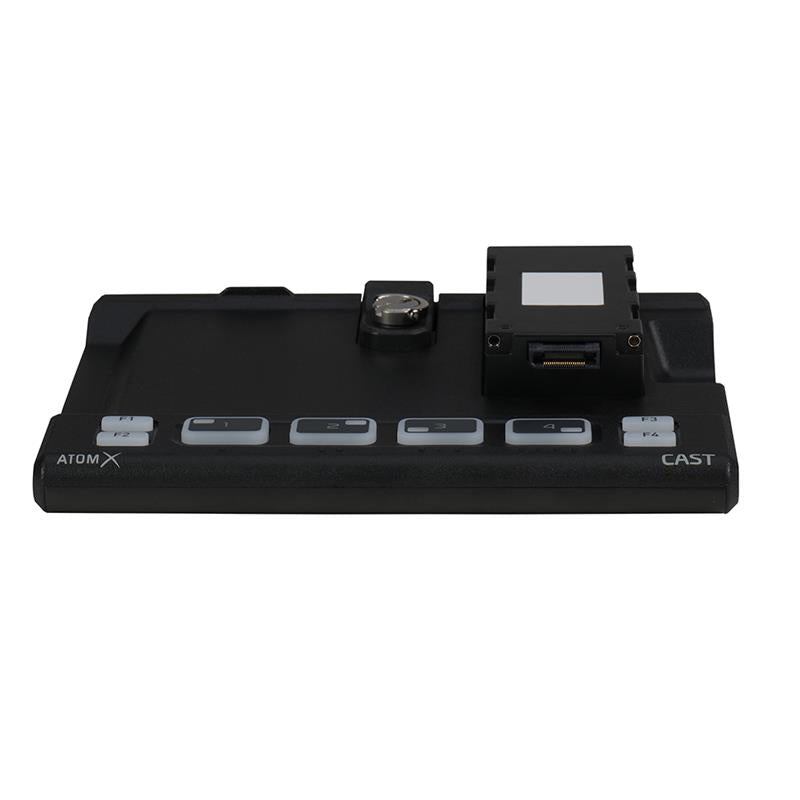

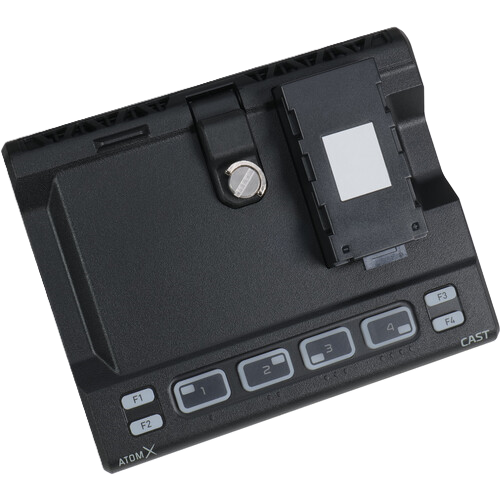

FOR NINJA V / V+ AtomX CAST

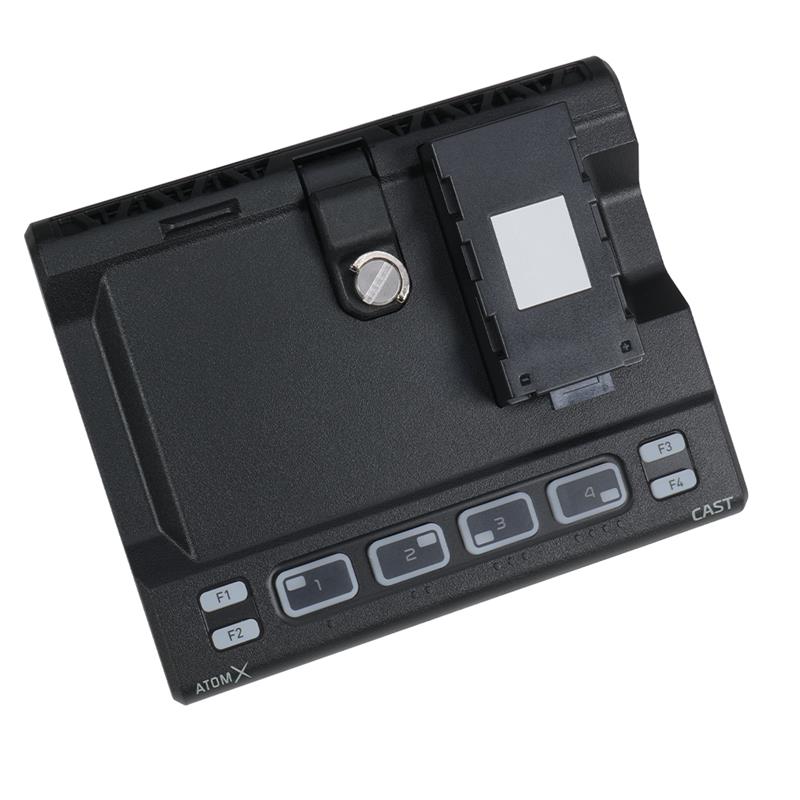

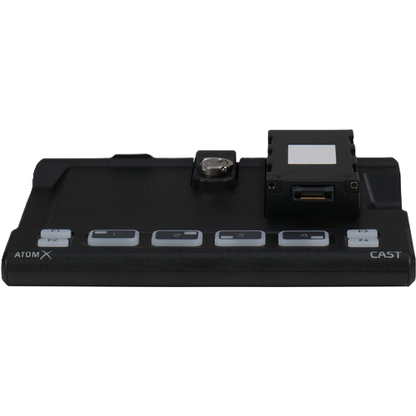

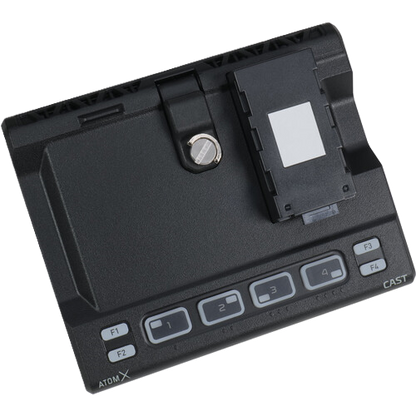

AtomX CAST is a modular companion for the Atomos Ninja V or Ninja V+ monitor-recorder that uses the AtomX expansion port on the Ninja V/V+ to transform it into an advanced multi-input switcher. The combination of the Ninja V and AtomX CAST becomes the Ninja CAST, a fully functional stand-alone switcher, multiview monitor and broadcast quality recorder that does not require a computer to function. With a high quality 5” HDR touchscreen monitor, 4 x HDMI inputs and physical buttons, the Ninja CAST is the ultimate portable live switching and streaming solution.

AtomX CAST is for video creators and anybody who wants to make broadcast quality multi-camera programs simply and quickly from anywhere. It is also for anyone that wants to add professional broadcast quality features to their online meetings, presentations, remote learning/training, virtual conferences, demonstrations or engaging corporate videos. Best of all, CAST is simple and easy to ease — you don’t need to be a video professional to achieve great looking results.


Simple Switching

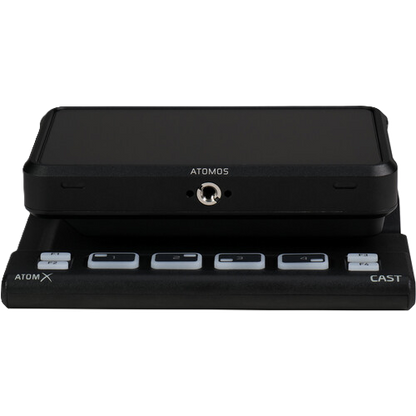

The flexible control options allow you to use either the touchscreen or the physical buttons to ‘switch’ between sources when deciding what should be on screen at any one time for broadcast. The illuminated buttons for each input and coloured LED lighting for Program and Preview status allow you to operate the CAST in dimly lit environments.



Connect any full HD video source

Connect mirrorless or DSLR cameras, video cameras, computers, consoles or even pre-recorded content via HDMI. There’s no need to worry about synchronization, as you can mix and match frame rates up to 60p, as well as interlaced and progressive HD sources automatically.

Integrates seamlessly

With the Ninja V/V+ docked in, the AtomX CAST connects via USB-C to your computer and appears as a high-quality webcam. Plug and play allows it to work immediately with all your video applications like Zoom, Teams and Skype without the need to install drivers on the computer first. Add up to 4 camera inputs to bring your presentation or meeting to the next level.

Recording and Codec options

With professional 10-bit 4:2:2 inputs, you get broadcast quality switching, as well as the ability to record in broadcast quality codecs like Apple ProRes or Avid DNx.

Built in versatility

AtomX CAST can deliver to a worldwide audience by sending a stream to your favourite streaming host, output a broadcast quality video signal to a local display, digital signage or video wall, and record with high quality edit-ready video codecs.




Learn more about the Atomos AtomX CAST

  • Full Description
  • Specifications
  • What's Included
  • Demo Videos
  • Reviews



Integrated Monitor

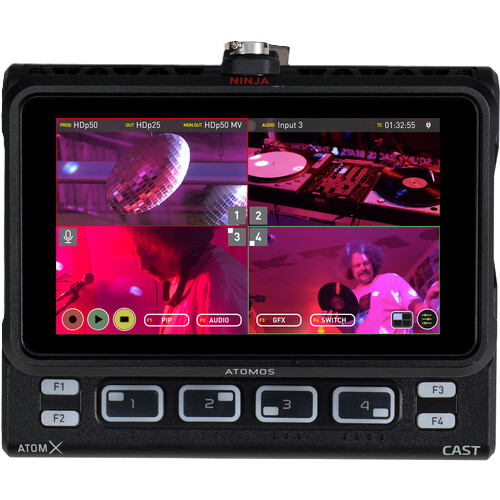

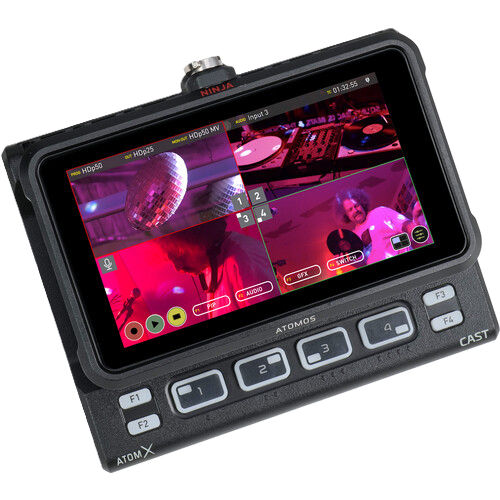

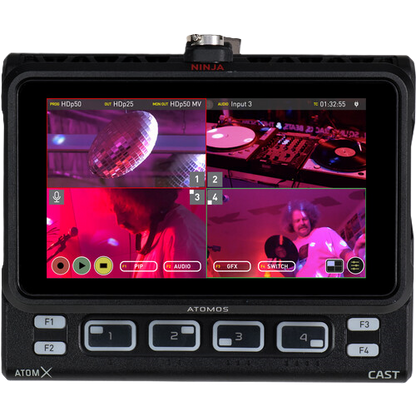

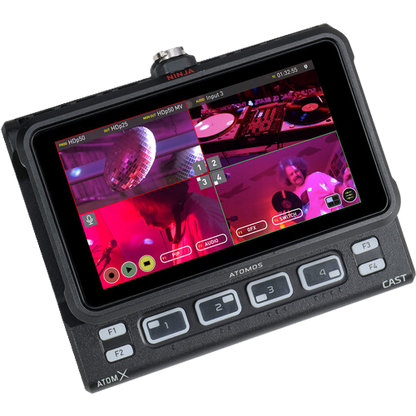

Having an integrated monitor allows you to see the incoming signals as a multiview display, without having to connect an additional monitor. With the Ninja V/V+ docked into the AtomX CAST you can utilize its high quality 5” touchscreen for setup and the monitor-assist tools for exposure, focus and image analysis for optimising your shots. Then switch to multiview to see all four inputs at once, complete with audio level monitoring. Ninja CAST also offers all the same essential features available from your Ninja to allow you to nail exposure and focus on individual inputs.

Enhance your brand,your video and your reach
Sophisticated features like logos, mast head graphics and lower third titles will make your productions look incredible, and the dedicated controls for these functions make them easy to use. Add custom graphics for branding your content, with support for transparency, sponsors’ logos and other on-screen information to your production and configure the layout on the Ninja touchscreen.

Picture-in-Picture
One of the benefits of using CAST with a multi-camera setup, is that you can use the Picture-in-Picture function to display two inputs at the same time. Any of the four HDMI inputs can be used for a Picture-in-Picture effect over any other input with controls for size and location of the overlayed image. You can display a close-up of a product on your desk and display your face as a picture in picture at the same time, whilst you talk about the product.

Configurable and adaptable

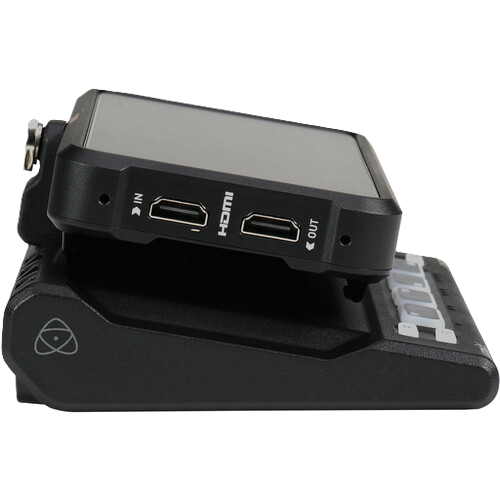

Since AtomX CAST is so compact and versatile, users can easily work alone or with a team to enhance their productions. Solo operators can transport the Ninja CAST in a small backpack and then use it discretely with compact mirrorless cameras for productions of any size. For larger setups, the Ninja V/V+ HDMI output can be used as a secondary output that can be set up as a duplicate program out, preview monitoring for the crew or talent, or to connect to a larger multiview display.

Ready for Advanced Workflows
AtomX CAST connected to a Ninja V/V+ is a fully functional stand-alone switcher, but you can also use it with a computer for more advanced video work. In this mode, AtomX CAST and Ninja V/V+ does the heavy lifting, taking the load off your computer and reducing the likelihood of software crashes with dedicated external video processing.
Simply add AtomX CAST as a media source in OBS, X-Split and VMix to make use of the software application’s additional graphics and scene configuration while using the CAST for video input switching.

Stand out from the crowd
Using Ninja CAST with a decent camera and almost any suitable lens gives you a professional broadcasting solution with incredible picture quality. You can set a shallow depth of field and create a cinematic look that is dramatically different from the image you get from your average webcam. Pay attention to lighting, camera angles and sound, and you will soon be making professional quality video productions. Even an older HD camcorder can output great looking video through its HDMI port, which means that you probably already have cameras for a multi-camera production.

    Physical Specifications

    • Dimensions (W x H x D mm): 129 x 49 x 160 (with out Ninja V/V+)
    • Weight: 485g / 1.06lbs
    • Mount points: Anti rotational 1/4" 20 / 3/8 on base of unit

    Construction & Control

    • Body: ABS plastic with locking arm for Ninja V/V+
    • Cooling: Passive
    • Tally light: Record tally Via Ninja V/V+, Program and Preview illumantaion on CAST buttons

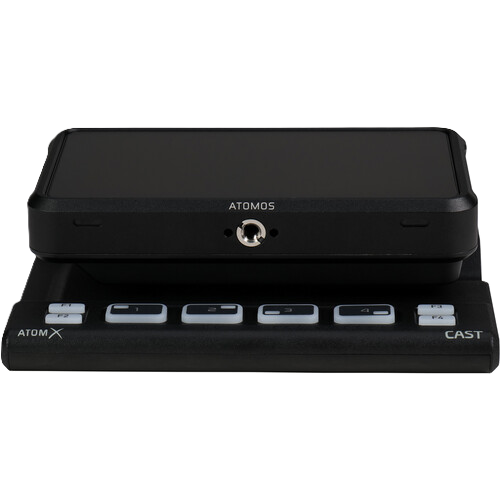

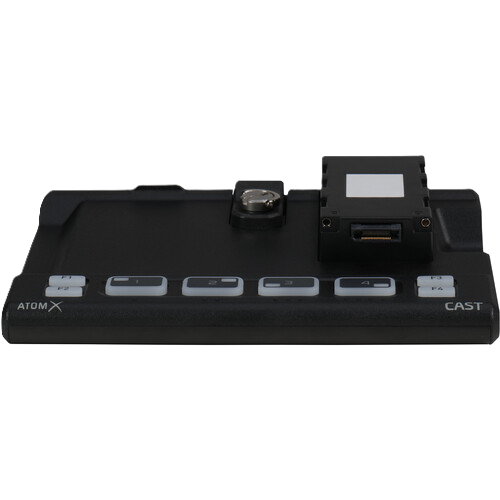

    • Control Buttons: 4 x Switching, 4 x Function
    • AtomXpansion slot: To connect to Ninja V/V+ (no moduell pass through)

    Power

    • Input voltage: 6.2V to 16.8V
    • DC in connector: Lock DC connector from Ninja V/V+ DC power supply
    • Battery: Via optional Atomos DC to DTAP cable

    Display - Via Ninja V/V+

    • Touchscreen: Via Ninja V/V+ SuperAtom IPS panel (capacitive touch)
    • Size: 5.2"
    • Resolution: 1920 x 1080
    • Brightness (cdm2 / Nits): 1000
    • Aspect ratio: 16:09
    • Color Gamut: Rec.709

    Video Input

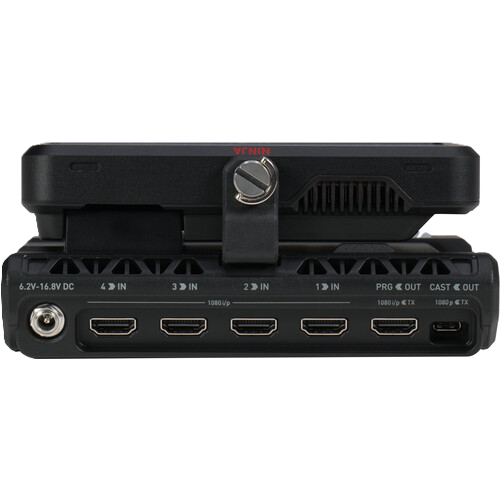

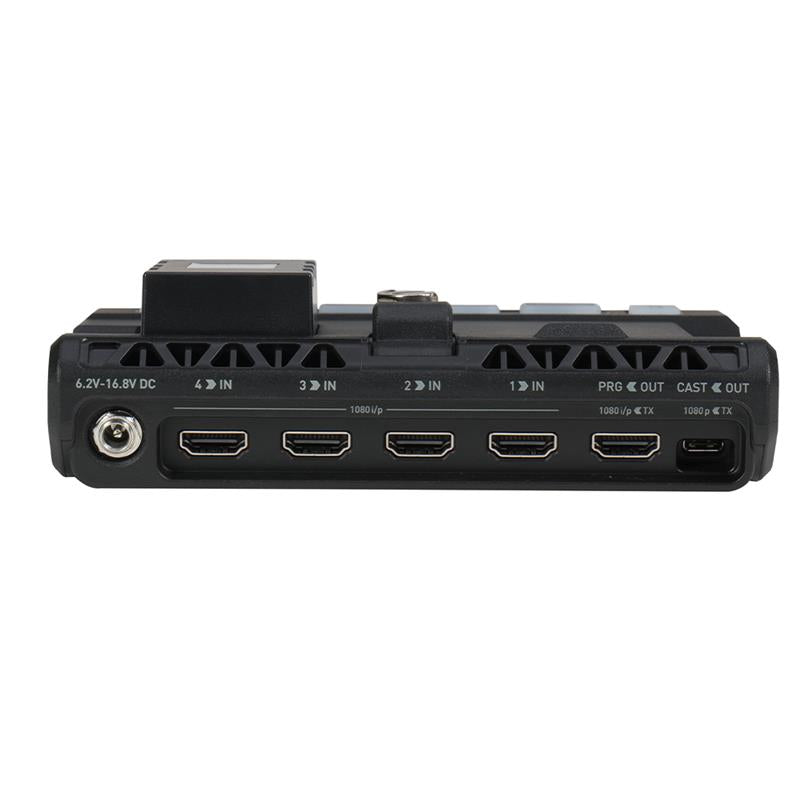

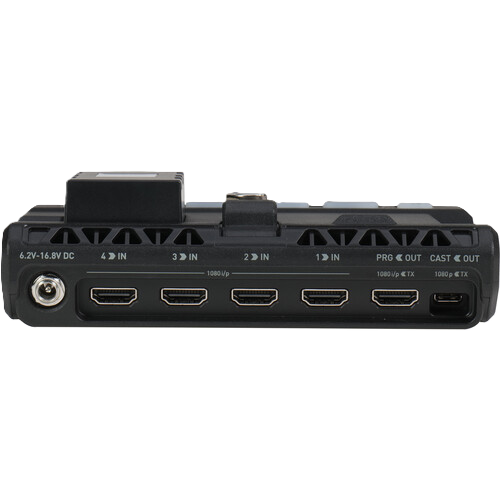

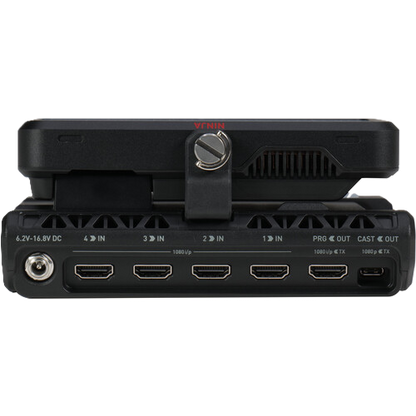

    • HDMI: 4 x HDMI 1.4b up to 1080p60
    • Bit Depth: 10bit
    • Video Chroma Subsampling: 4 2 2
    • HDCP copy protection: No


    Video Output

    • HDMI: CAST -  HDMI 1.4b up to 1080p60 - Program ONLY
    • HDMI Loup out: Ninja V/V+  - Multi functions out - Program, Preview, Multiview
    • Multiview: Yes, via Ninja V/V+
    • OS overlays: Optional via Ninja V/V+ HDMI out
    • Video Chroma Subsampling: 4 2 2
    • Bit Depth: 10bit


    Web Streaming

    • USB UVC: USB-C up to 1080p30


    Audio In/Out

    • Audio Quality: 24/48kHz
    • Audio Codec: PCM
    • HDMI: 2ch 24Bit, input dependent per input

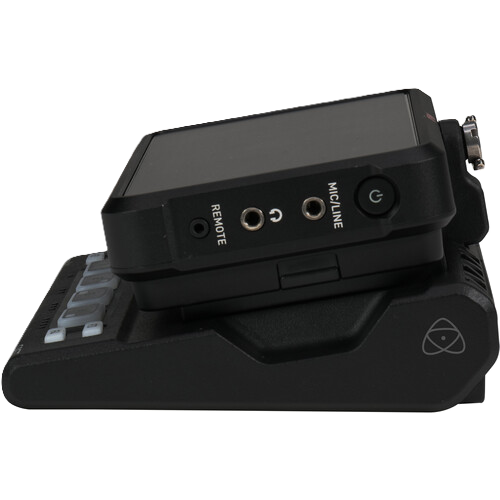

    • Analogue Audio in: 3.5mm via Ninja V/V+
    • Analogue Audio Out:3.5mm via Ninja V/V+
    • Headphone out: 3.5mm via Ninja V/V+


    Timecode / Sync

    • Embedded: HDMI


    Resolution & Frame Rates

    • Supported base resolution & FPS
      FHD 1920 x 1080 Progressive: 23.98/24/25/29.9/30/50/59.94/60
      FHD 1920 x 1080 PsF: No
      FHD 1920 x 1080 Interlaced: 50/59.94/60
      1280 x 720p: No
      SD PAL / NTSC: No


    Program Recording CODEC via Ninja V/V+

    • Apple ProRes: LT, 422, 422HQ
    • Avid DNxHD: DNxHD 220x,220,145,36 (Free activation key via visit my.Atomos.com)


    Playback via Ninja V/V+

    • Apple ProRes: Yes, with Linear PCM audio
    • Avid DNx: Yes, with Linear PCM audio


    Recording functions

    • Switched Program Record: Yes via Ninja V/V+


    Multi Input / Switching

    • Multiple HDMI input: up to 4 x HDMI up to 1080p60
    • Multiview Display: Quad input display on Ninja V/V+ Display
    • Multiview Ouput: Via Ninja V/V+ HDMI out - Set to Program, Preview or Multiview
    • Picture in Picture (PIP): Any input over Any input, 4 postions in small or large size PIP
    • Graphic overlays: Selelect lay out for Stored Graphics in Ninja V/V+ and save configured scene presets
    • Media pool storage: Upload and Store Graphics in Ninja V/V+
    • Input transitions: Fade from/to Black / White
    • Input Processing: Interlaced to Progressive
    • Input Frame rate processing: Yes


    Supported media

    • Master Caddy II: Yes
    • SSDmini: Yes, requires the included AtomX SSD mini handle adaptor
    • File System: ExFat


    Onboard Signal Processing

    • Pulldown removal: Interlaced to Progressive on Input and USB stream


    Compatible with

    • List product: Requires Ninja V / V+



    Warranty

    • Standard: 1 Year

    Included

    • AtomX CAST
    • USB-C cable and SSDmini Handle Adaptor

    Option extras

    • USB Dock
