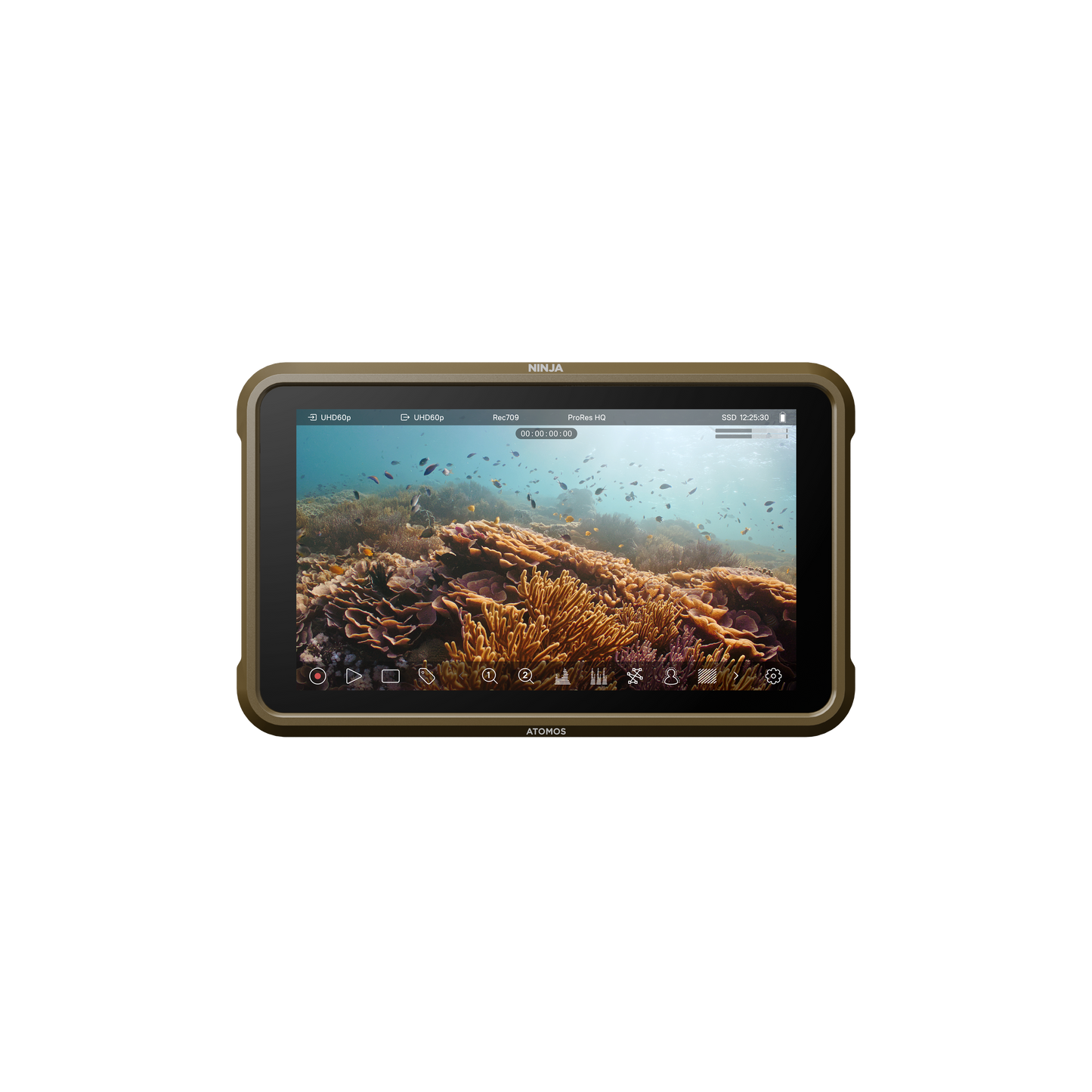

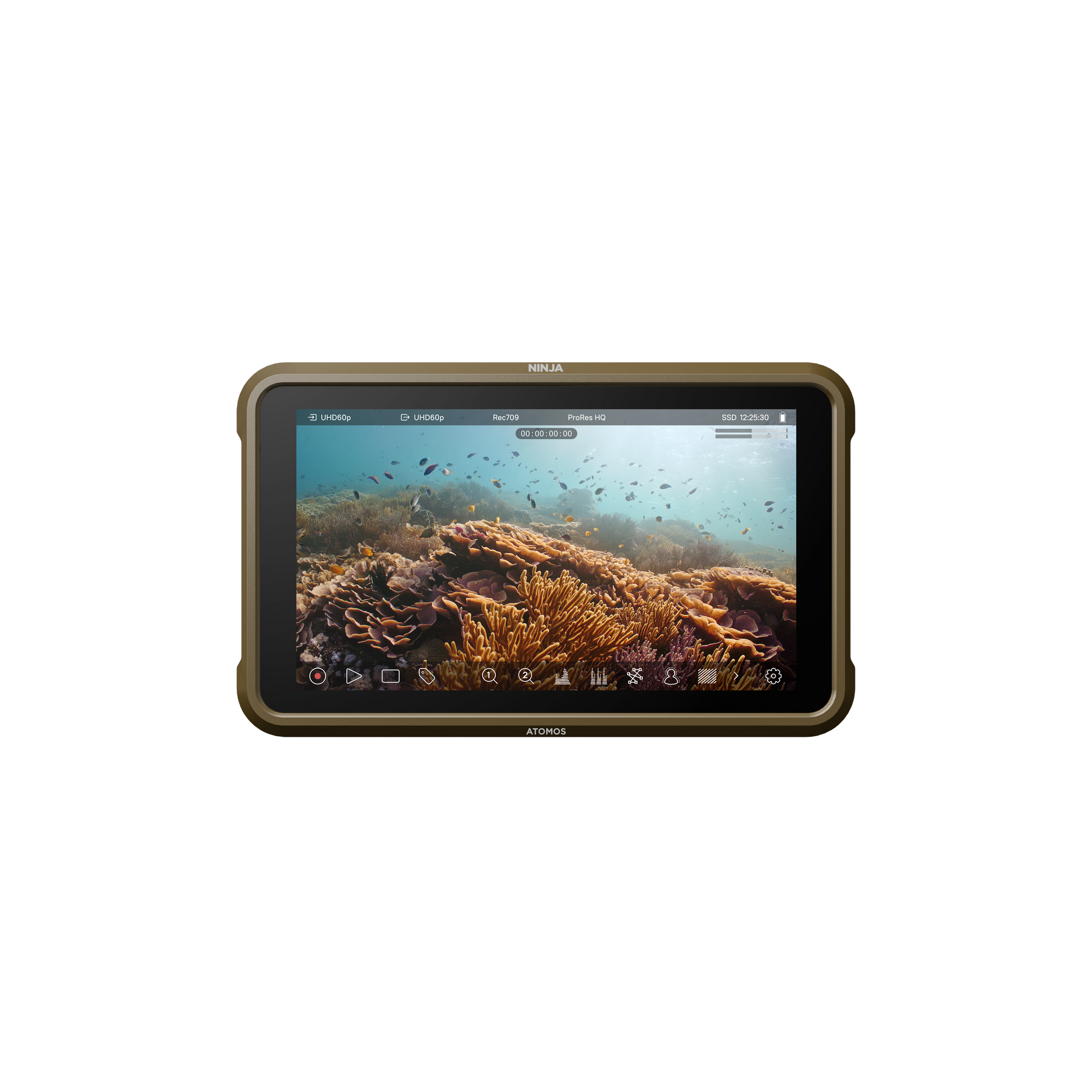

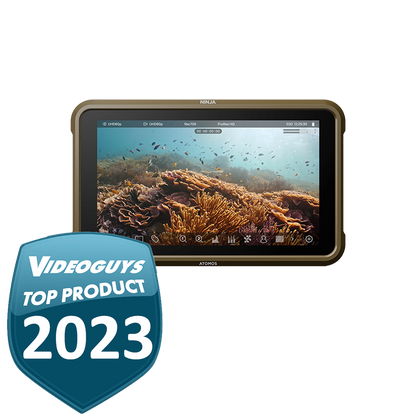

Atomos Ninja 5-inch, 1000nit HDR Monitor-Recorder for DSLR and Mirrorless Cameras

Atomos Ninja Overview
The Atomos Ninja 5.2″ 4K HDMI Recording Monitor combines monitoring and recording in a compact, 5.2″ on-camera unit designed for filmmakers and creators. It supports DCI 4K over HDMI and can capture ProRes RAW up to 6K when paired with compatible cameras. Maintaining the same body style as earlier models, it works seamlessly with most existing Atomos accessories, making it easy to integrate into your setup.

Key Features

• Record up to 6Kp30 in Apple ProRes, ProRes RAW, Avid DNx or H.265 to SSD
• Comprehensive monitoring tools for focus, framing and exposure
• Compatible with a huge range of HDMI cameras
• Combine with Atomos Connect to enable Network, Wi-Fi, Bluetooth connectivity

AtomOS 11 Operating System
The Ninja runs on the updated AtomOS 11 platform, designed with a refreshed interface for quicker, more intuitive control. Tools like Focus Peaking, Zoom, False Color from both Atomos and ARRI, EL Zone exposure, Safe Areas, RecordAssist, PlayBackAssist, SegmentPro, and Cine Guides give you the flexibility to monitor with confidence. AtomHDR processing provides instant Log-to-PQ/HLG conversion for accurate HDR previewing.

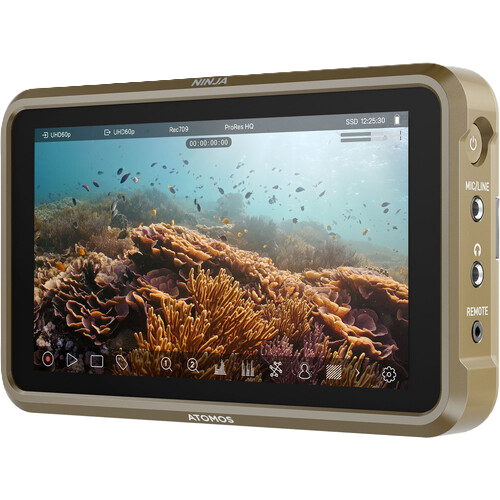

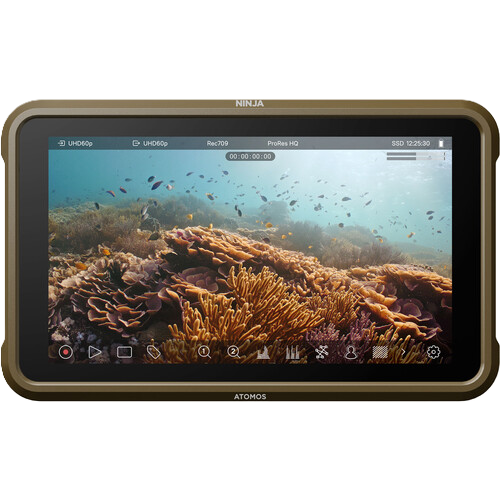

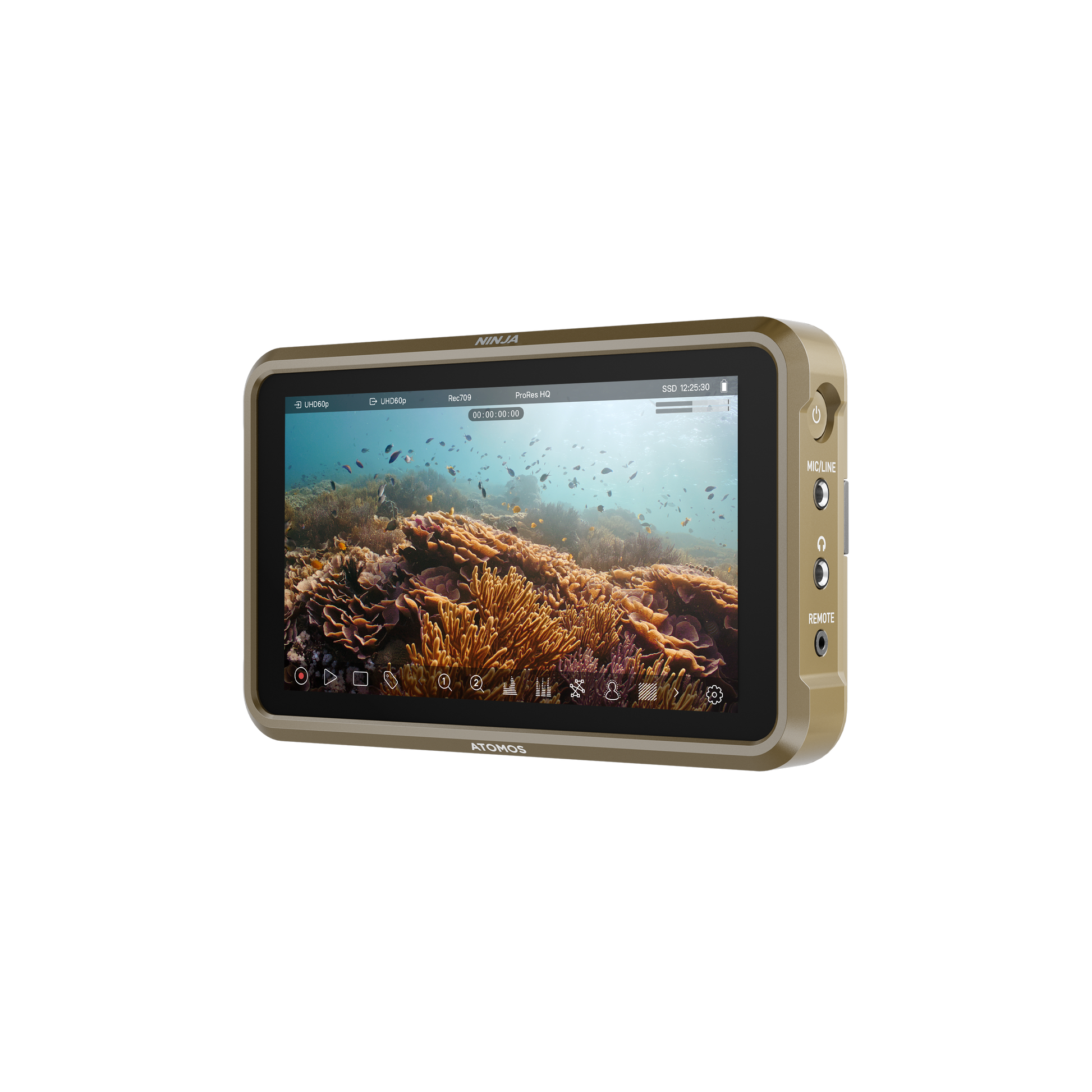

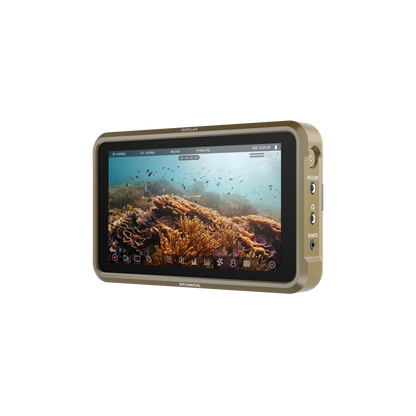

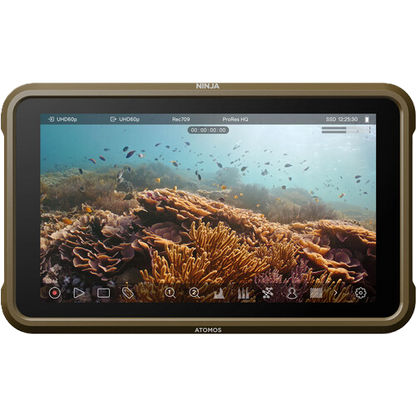

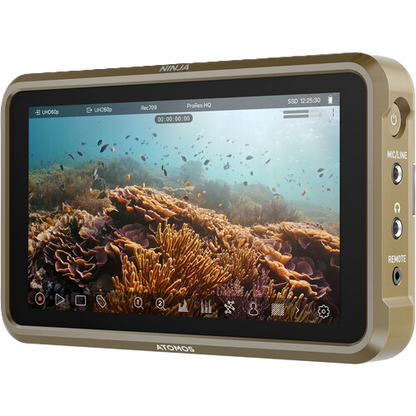

5.2″ Touchscreen Display
The 5.2″ IPS panel features a 1920 x 1080 resolution and 1000 cd/m² brightness, delivering reliable visibility even in daylight conditions. With 10-bit processing, Rec.709 coverage, and support for Calibrite ColorChecker calibration, you can trust your colors to be consistent and precise during monitoring.

Comprehensive Color
The Ninja is compatible with popular log formats from Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon. You can also load your own 3D LUTs and output HDR in Log, HLG, PQ, or Dolby Vision to match your workflow.

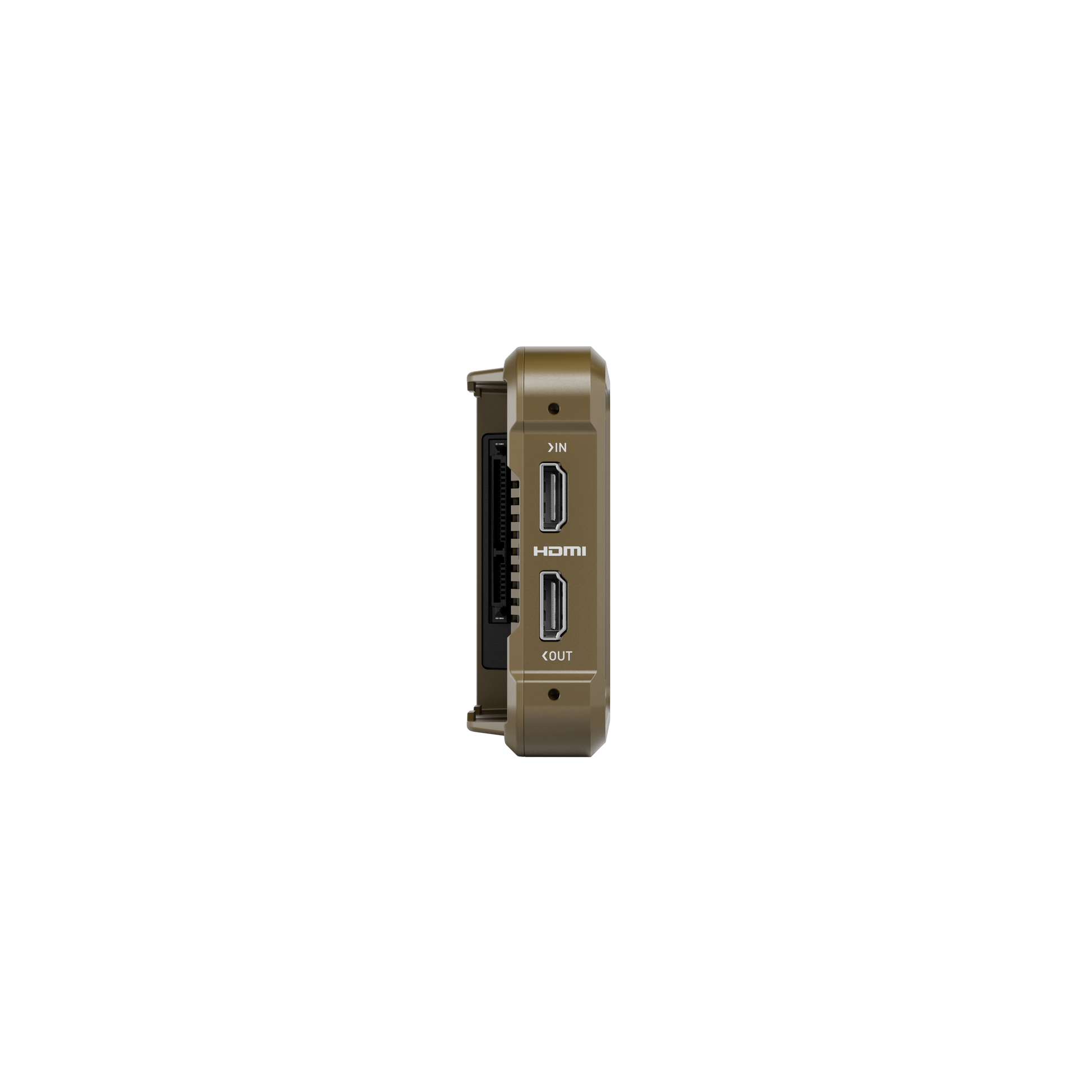

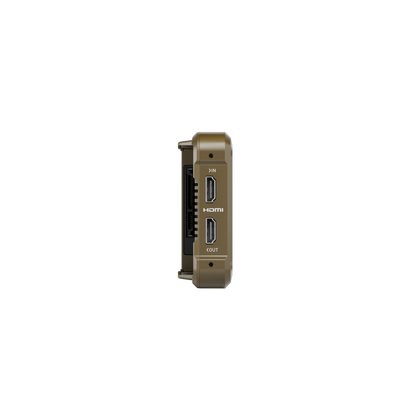

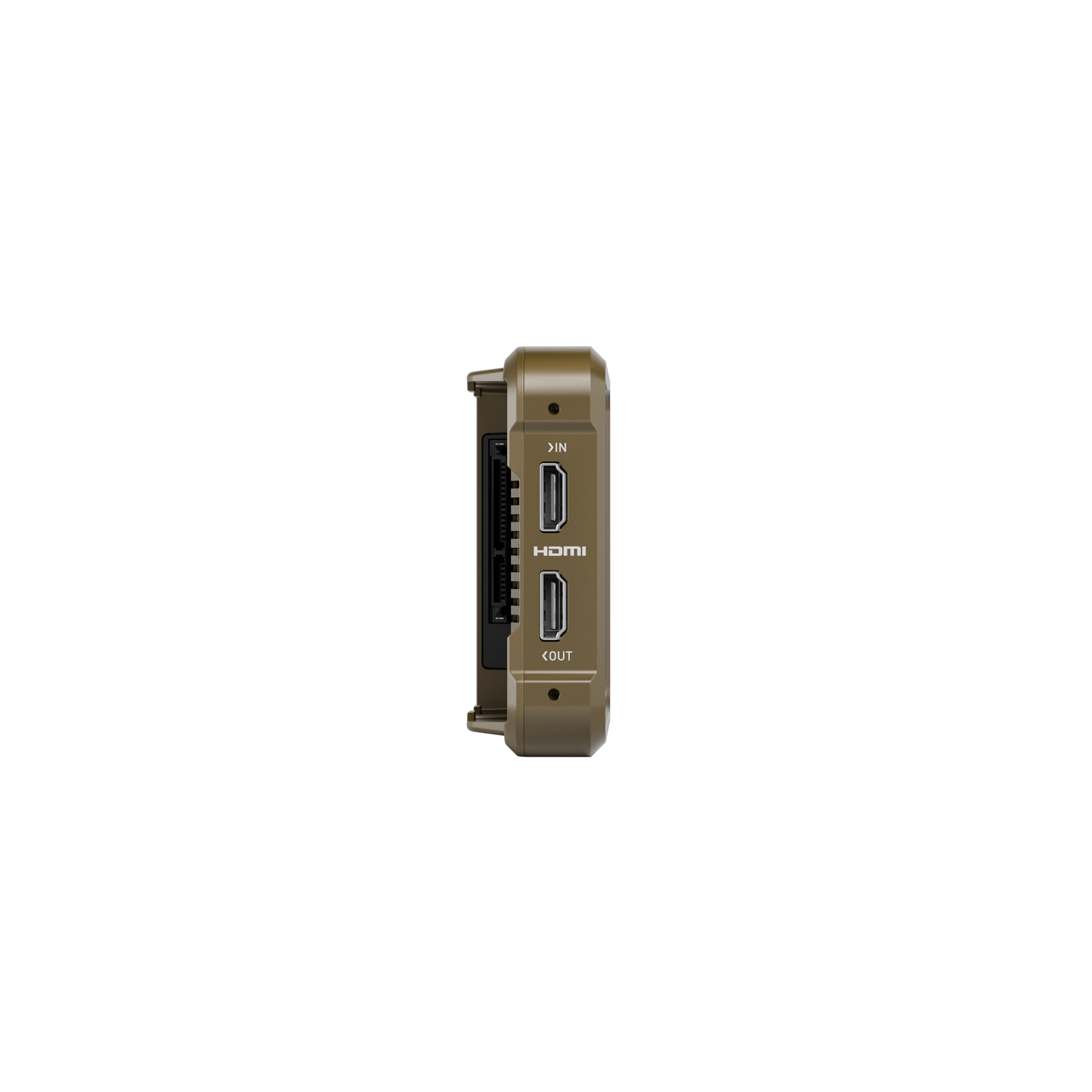

HDMI Interface, ProRes RAW Recording

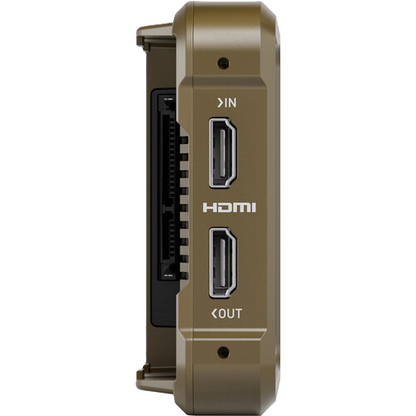

Featuring HDMI input and output, the Ninja handles up to DCI 4K video at 60 fps for monitoring, recording, and playback. With certain cameras, it supports 3.5K RAW at 60 fps, and more than 55 models can record RAW over HDMI up to 6K at 30 fps.

Record 4K HDR Gaming
Gamers can use the Ninja as a standalone device for capturing UHD 4K HDR footage at high frame rates. Record, monitor, and review gameplay with ease for quick sharing to YouTube and other platforms.

Optional Atomos CONNECT Module
Pairing the Ninja with the Atomos CONNECT module unlocks cloud-based workflows like C2C, Atomos Edit, and RemoteView via Atomos Cloud Studio. The module also brings 12G-SDI input/output, AirGlu wireless sync, Wi-Fi 6, and GigE Ethernet. With these added tools you can live stream to NDI or RTMP/S destinations and convert between HDMI and SDI signals.

AtomX Cast
Adding the AtomX CAST turns the Ninja into a compact switching system. It enables live switching between four HDMI sources in 1080p, overlay graphics, and USB UVC webcam output for professional streaming and conferencing.

SSD Recording
The Ninja records directly to Atomos Master Caddy II or III drives. It also supports AtomX SSDmini media and CFAST II cards when using an optional adapter, giving you a variety of reliable recording options.

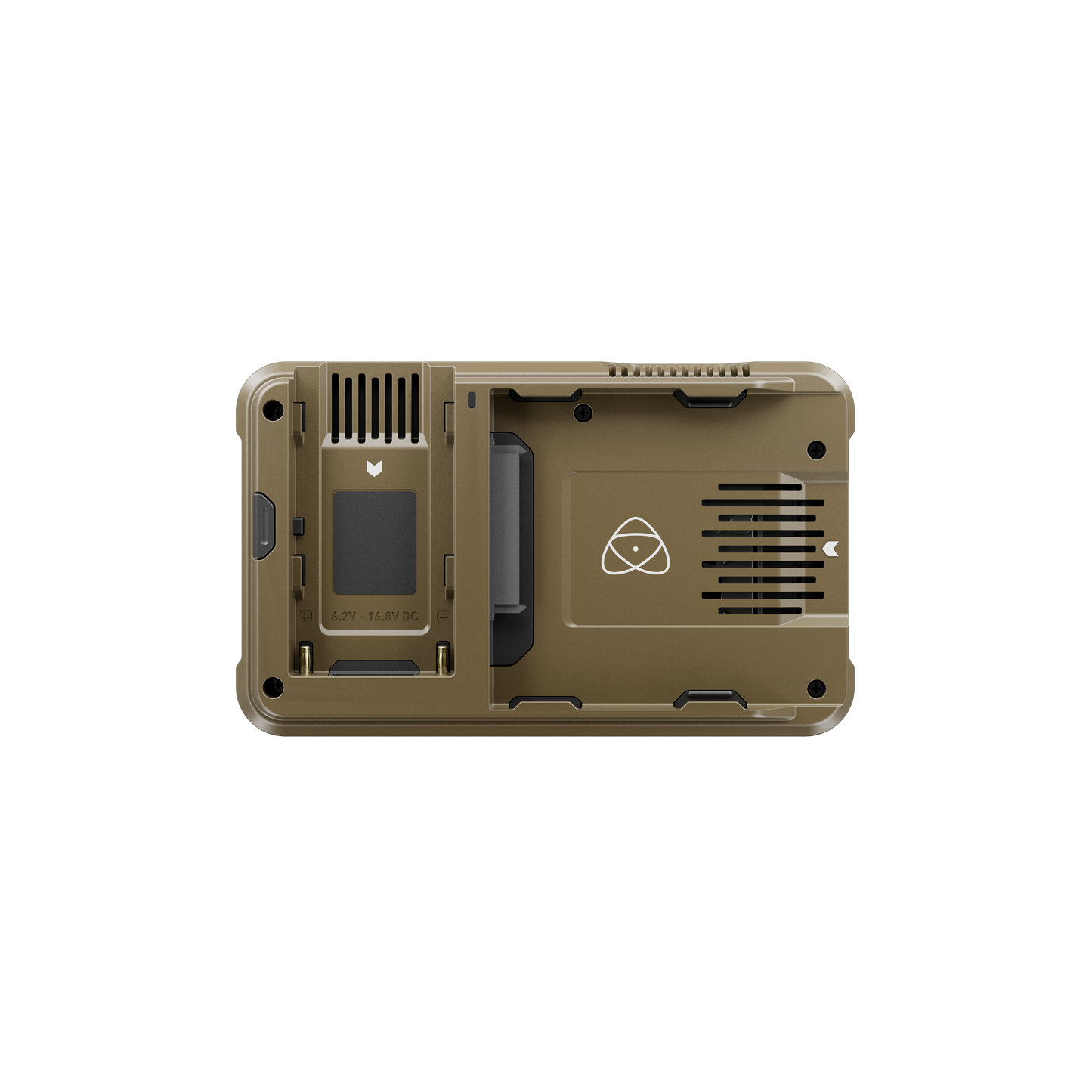

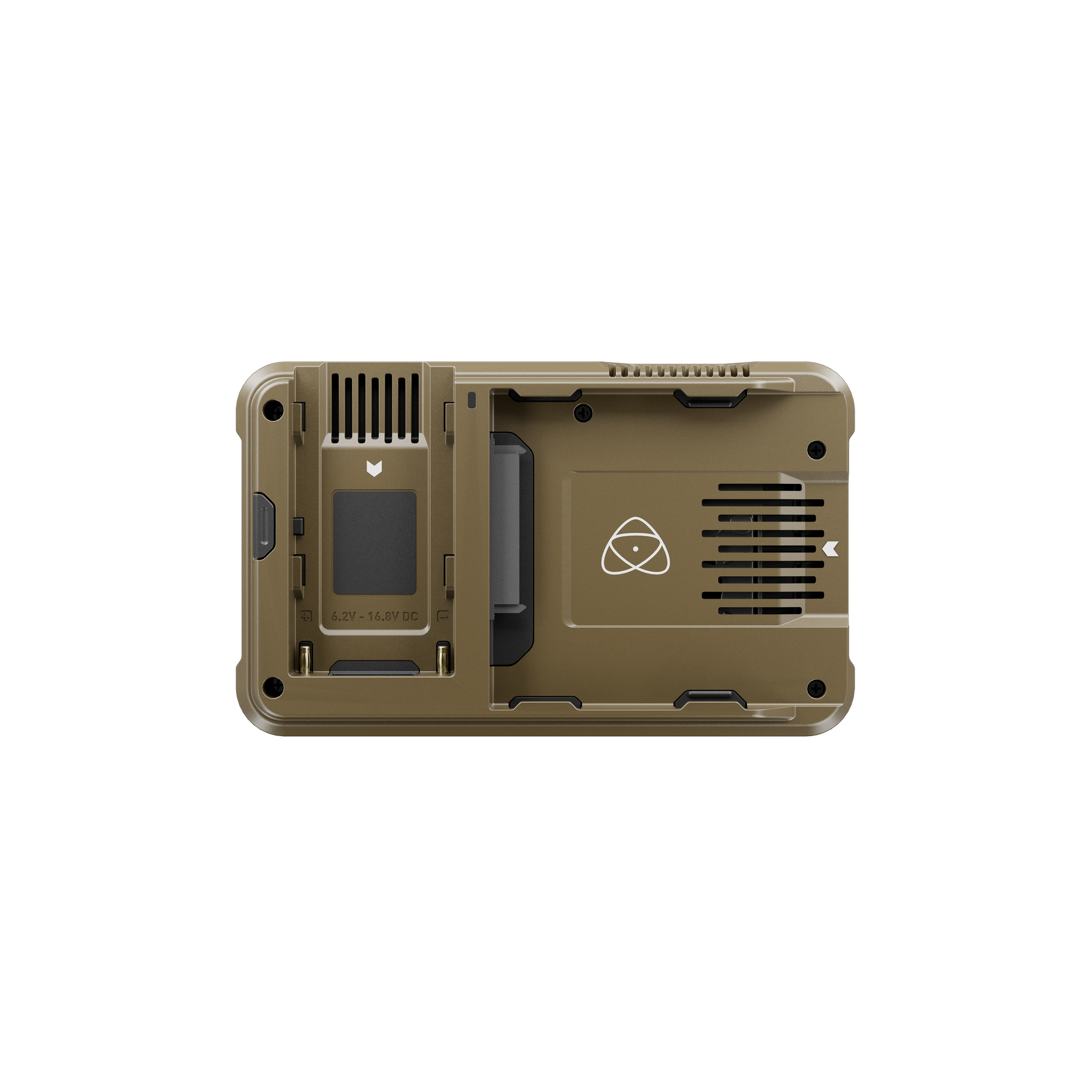

Power Options

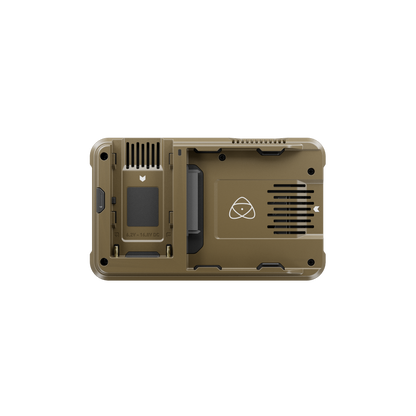

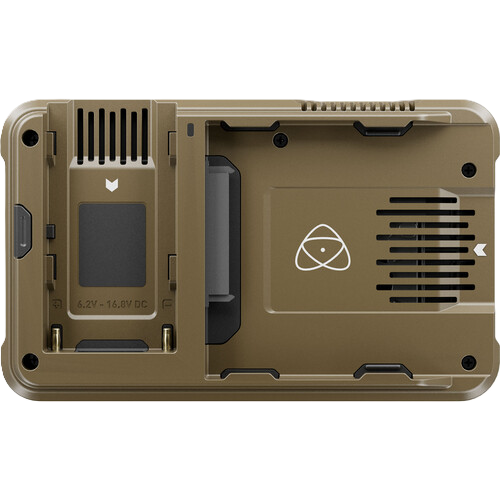

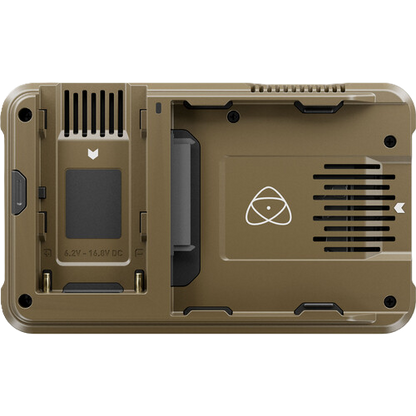

A rear L-series battery plate powers the Ninja with NP-F batteries, while the USB-C port supports 30W PD input. The included dummy battery adapter allows you to connect to DC power for longer sessions.

Control Options
Control is straightforward with touchscreen navigation and multifunction buttons. Auto HDMI camera triggers are supported with Canon and Sony models. Remote control via Bluetooth or RF becomes available when the CONNECT module is attached, and additional LANC control is possible with a USB-C to serial cable.

Physical

• Dimensions (W x H x D mm): 151mm x 91.5mm x 31 mm / 5.95" x 3.6" x 1.2"
• Weight: 360g / 12.7oz

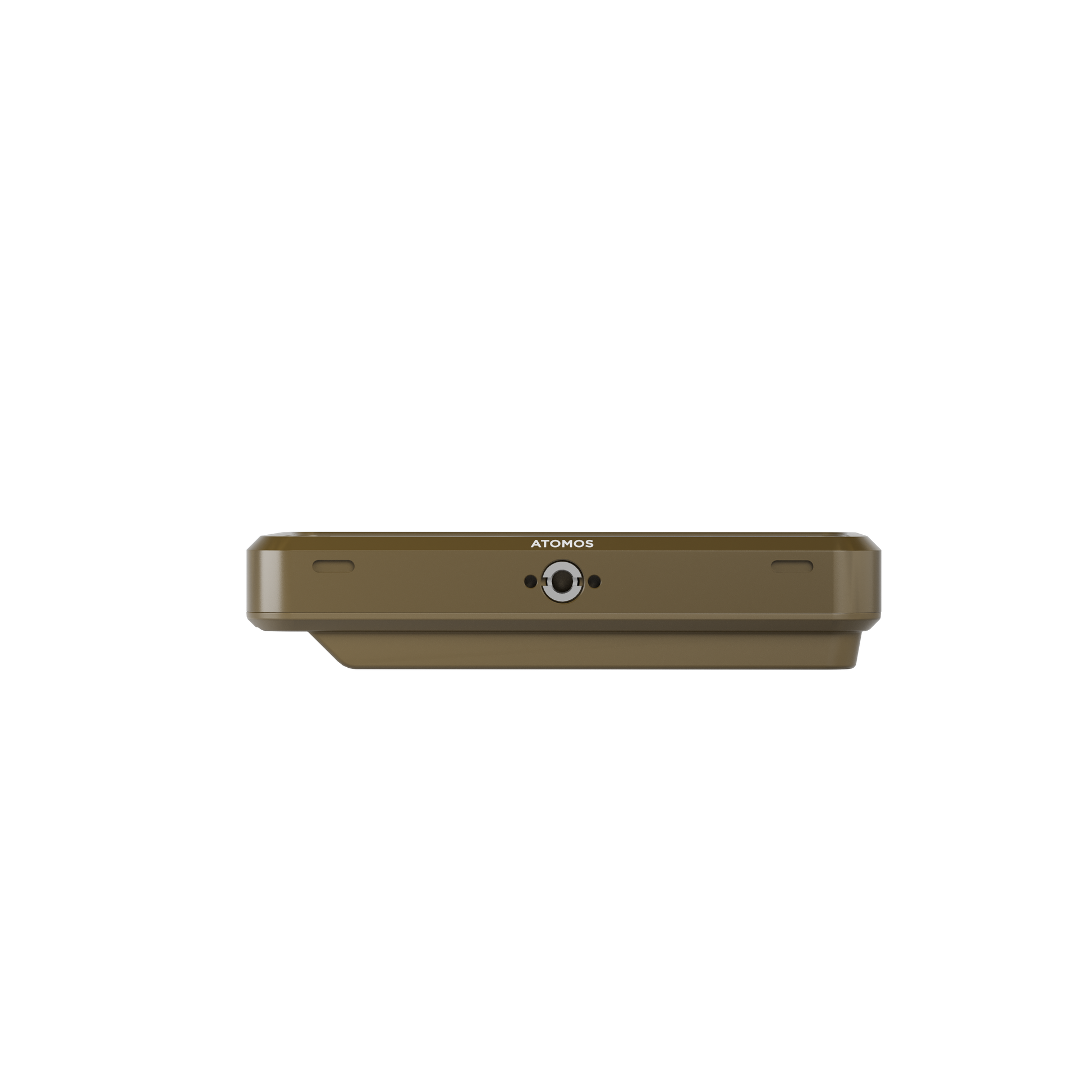

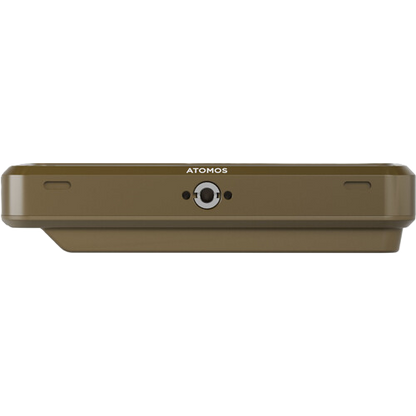

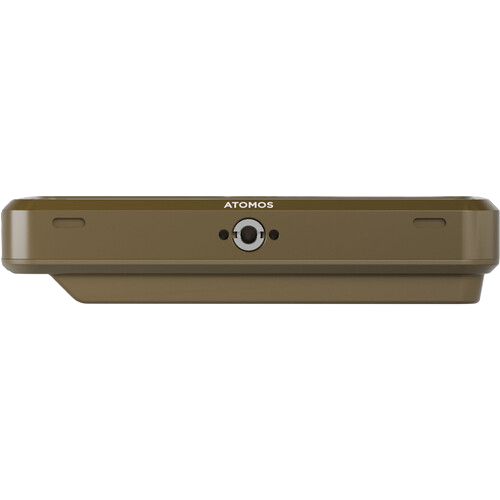

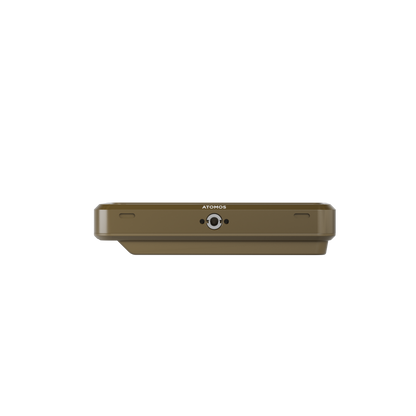

• Mounting Points: Top: 1 x 1/4"20 or 3/8" with anti rotational points, Bottom: 1 x 1/4"20 or 3/8" with anti rotational points

Environmental

• Ambient Operating Temperature: Up to 40 Degrees Celsius

Construction

• Body: Aluminium Alloy Chassis with ABS Polycarbonate Rear Enclosure
• Cooling: Heat Sink + Actively controlled Fan
• Tally Light: LED on the Rear of the Device
• Multi-Function Button: Power / Lock Screen
• AtomXpansion Slot: Integrated into Battery Slot
• Touch Screen: Capacitive Touch

Power

• Input Voltage: 6.2V to 16.8V
• Operating Power: 10 - 22W
• Compatible Batteries: 1 x NP-F / L-Series
• Battery Runtime (Record): 5200mAh: Up to 2 Hours – 7800mAh: up to 3 Hours
• DC-in Connector: Via locking DC Jack (5.5mm OD & 2.1mm ID) on Battery Eliminator
• D-Tap: Via Battery Eliminator and optional D-Tap to DC-Barrel Cable
• Fan Control: Low, Medium, Auto / Turbo Cool / Dim Display

Display

• Display Panel: SuperAtom IPS Panel (Capacitive Touch)
• Size: 5.2"
• Resolution: 1920 x 1080
• Viewing Angle: 178 + H & V
• PPI: 423
• Bit Depth: 10-Bit (8+2 FRC)
• Backlight Type: Edge-Lit
• Brightness (cd/m² / nits): 1000
• Aspect Ratio: 16:9
• Color Gamut: Rec.709
• Calibration Support: ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus

Color Pipeline

• Gamma: Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Arri LogC4, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log, Z CAM Z-Log2, Olympus OM-Log400 / Flat, Leica L-Log
• Gamut: BT2020, DCI P3, PDCI P3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
• 3D LUT Display: .Cube Format (17 & 33 points supported)
• 3D LUT Output: Loop out
• 3D LUT 50/50 Split: Via Compare Option in LUT Menu
• Monitoring Modes: Native / HLG / PQ / 3D LUT
• HDR Output Conversion: Camera Log to HLG / PQ

Color Management

• Calibration: ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
• Display Controls: Backlight, Lift, Gamma, Gain
• AtomHDR: Built-in Technical Log to HDR EOTF
• 3D LUTs: Load .Cube files from SSD into 8 LUT Slots On-Device – Use for Monitoring, bake into Recordings (optional), or apply to HDMI / SDI Output Signals
• Legalize: Full to Legal Range Conversion available via Input Menu

Video Input

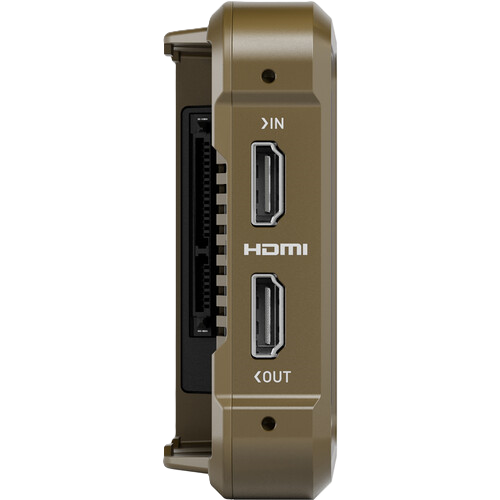

• HDMI: 1 x HDMI (2.0)
• SDI: 1 x 12G SDI (optional Atomos Connect Accessory required)
• Bit Depth: 8/10-Bit for Video / up to 12-Bit for RAW
• Video Chroma Subsampling: YCbCr 4:2:0 & 4:2:2
• HDR: HDMI Auto Detection

Metadata

• HDMI: RAW – White Balance, Exposure Index, Shutter Speed/Angle, Iris/F-Stop, ISO, Gamma, Gamut
• SDI: File Name – Arri, Canon, RED, Sony. RAW – White Balance, Exposure Index, Shutter Speed/Angle, Iris/F-Stop, ISO, Gamma, Gamut (optional Atomos Connect Accessory required)

File Naming

• Standard: Scene/Shot/Take & Rolling Scene/Shot/Take

Video Output

• HDMI: 1 x HDMI 2.0
• Video Chroma Subsampling: 4:2:2
• Bit Depth: 10-bit Video

Video Signal Conversion

• SDI to HDMI: Supported (optional Atomos Connect Accessory required)

Audio In/Out

• Audio Quality: 24-Bit / 48kHz
• Audio Codec: PCM
• HDMI: 8ch 24-Bit, Input dependent
• SDI: 12ch 24-Bit, Input dependent

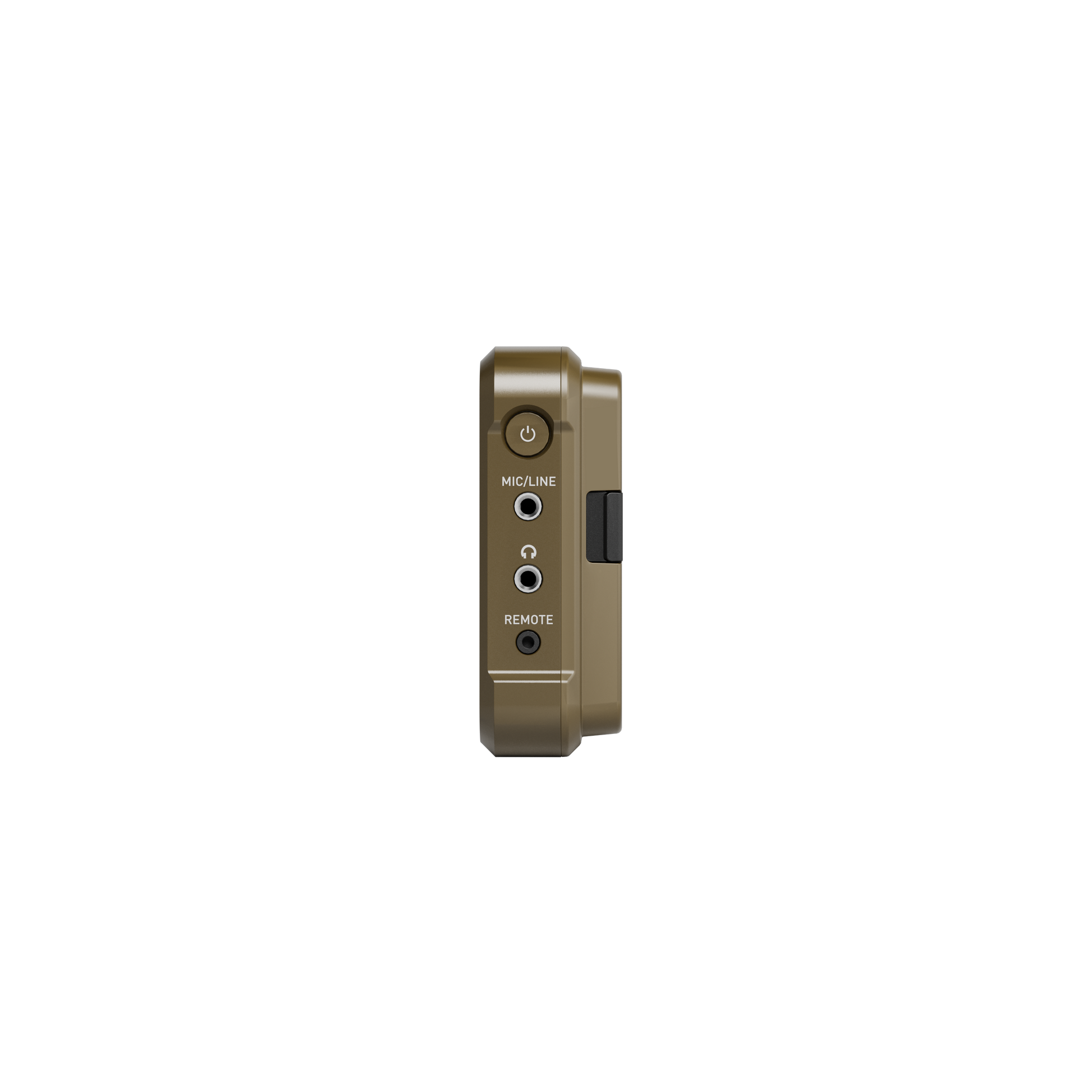

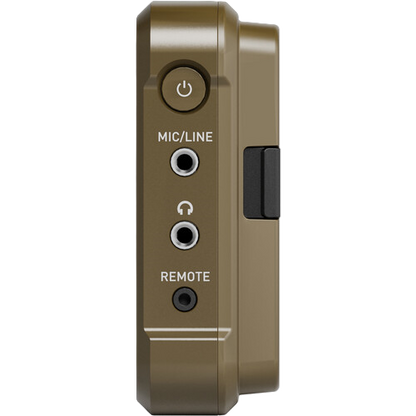

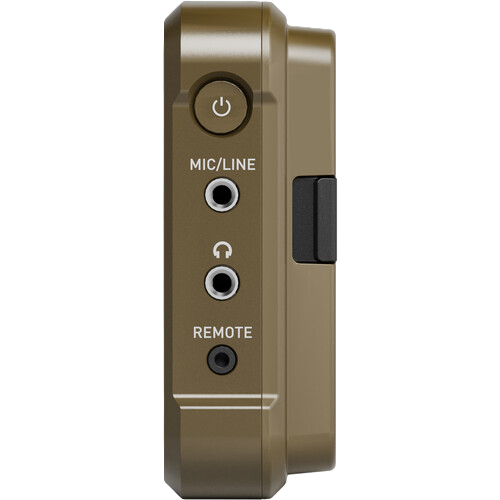

• Analog Audio In: 3.5mm Jack
• Analog Audio Out / Headphone Jack: 3.5mm Jack
• Audio Input Delay: Frame Delay on Analog Input + Automatic Offset Calibration via AtomOS

Timecode / Sync

• HDMI Embedded: Supported
• SDI Embedded: Supported (optional Atomos Connect Accessory required)
• Time of Day: Supported
• Wireless SYNC: AirGlu™ SYNC Timecode Network (optional Atomos Connect Accessory required)
• RF Network Range: 300m (optional Atomos Connect Accessory required)
• RF Frequency: Region dependent (optional Atomos Connect Accessory required)
• Number of RF Channels: 12 RF Channels per Region (optional Atomos Connect Accessory required)
• Number of RF Clients: Region dependent (optional Atomos Connect Accessory required)
• Bluetooth Network Range: 10-15m (line of sight) (optional Atomos Connect Accessory required)
• Number of BT Clients: 2 Clients (optional Atomos Connect Accessory required)

Resolution and Frame Rates (Record, Monitor & Playback)

• 6K RAW: up to 6Kp30 via HDMI & 6Kp30 via SDI (optional Atomos Connect Accessory required for SDI)
• 4K RAW: up to 4Kp60 via HDMI / SDI (optional Atomos Connect Accessory required for SDI)
• 3.5K Anamorphic RAW: up to 3.5Kp60 via HDMI
• 2K RAW: up to 2Kp240 (optional Atomos Connect Accessory required for SDI)
• 4K DCI: up to 4Kp60
• 4K UHD: up to UHDp60
• 2K DCI 2048 x 1080: up to 2Kp60 (optional Atomos Connect Accessory required for SDI)
• FHD 1920 x 1080 Progressive: up to 1080p120
• FHD 1920 x 1080 PsF: Only via Pulldown to Progressive
• FHD 1920 x 1080 Interlaced: 1080i50 / 1080i60
• 1280 x 720p: up to 720p60

Recording Codecs

• Apple ProRes RAW: ProRes RAW & RAW HQ
• Apple ProRes: HQ, 422, LT
• Avid DNxHD: 220x, 220, 145, 36 (.MOV Wrapper – .MXF Support coming soon)
• Avid DNxHR: HQX, HQ, SQ, LB (.MOV Wrapper – .MXF Support coming soon)
• H.265: XQ, HQ, MQ, LQ (.MOV Wrapper)

Recording Functions

• Camera to Cloud: H.265 uploaded to Atomos Edit, Adobe Frame.io, Sony CI Media (optional Atomos Connect Accessory required)
• Simultaneous Proxy Recording: ProRes RAW / ProRes / DNx + H.265 Proxy in C2C Mode (optional Atomos Connect Accessory required)
• Pre-roll Recording: 8s HD / 2s 4K – ProRes & DNx only
• Timelapse: Supported
• Gang Control: Via AirGlu™ SYNC Timecode Network (optional Atomos Connect Accessory required)
• Scheduled Recording: At specified Time of Day or after a specified Time has elapsed

Playback

• Playlist: Selected Clips, Favorites, or Combined
• Loop: Supported, with user-customizable In / Out Markers
• Apple ProRes Raw: Yes, Recorded clips only
• Apple ProRes: HQ, 422, LT (Linear PCM Audio only)
• Avid DNx: DNxHD: 220x, 220, 145, 36 – DNxHR HQX, HQ, SQ, LB (Linear PCM Audio only)
• H.265: Recorded clips only
• Scheduled Playback: At specified Time of Day or after a specified Time has elapsed

Multi Input / Switching

• Multiple HDMI Inputs: Supported (optional AtomX CAST Switching Dock required)
• Multiview Display: Supported (optional AtomX CAST Switching Dock required)
• Multiview Output: Supported (optional AtomX CAST Switching Dock required)
• Picture in Picture (PiP): Supported (optional AtomX CAST Switching Dock required)
• Graphic Overlays: Supported (optional AtomX CAST Switching Dock required)
• Media Pool Storage: 8 PNG Overlays (optional AtomX CAST Switching Dock required)
• Input Transitions: Fade to White or Black (optional AtomX CAST Switching Dock required)

Supported Media

• Master Caddy I: Not Supported
• Master Caddy II: Supported – Not supported with AtomX CAST or Atomos Connect Accessories attached
• Master Caddy III: Supported
• SSDmini: Supported
• CFast 2.0: Supported via optional AtomX CFast 2.0 Adapter
• Network: Capture to Cloud via Atomos Cloud Studio (optional Atomos Connect Accessory required)
• File System: exFAT
• Interface: SATA 3.0

On-Screen Tools

• Waveforms: 3 Sizes – Adjustable Opacity & Brightness
• RGB Parade: 3 Sizes – Adjustable Opacity & Brightness
• Vector Scope: 2 Sizes – Adjustable Opacity & Brightness
• 1 x Zoom: Tap to Zoom
• 2 x Zoom: Tap to Zoom
• Focus Peaking: 3 Modes (Color, Black & White, Outline) with adjustable Outline Color & Peaking Intensity
• Zebra: Adjustable Threshold (50% to 105%)
• Isolate Color Channel: Blue Only
• Cine Frame Guides: 6 Presets & Custom Frame Guide Calculator
• Social Frame Guides: 4 Presets & Custom Frame Guide Calculator
• Safe Areas: SMPTE Safe Title Area – 93% & 90%
• Grid Markers: 9 Grid
• Anamorphic Desqueeze: 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x
• Display Flip: Vertical
• Colorized Exposure: Atomos False Color, EL Zone System, Arri False Color
• Frame Grab + Onion Skin Overlay: Capture lossless 1920 x 1080 Pixel Frame Grab & Overlay with various Position + Transparency Options

Onboard Signal Processing

• 4K UHD Downscale for HD: Available on loop out
• DCI Crop: Available on loop out
• Interlaced to Progressive: 2:2 & 3:2 Pulldown
• PsF to Progressive: 2:2 & 3:2 Pulldown

Optional Activation Keys

• NDI HX3: $99 optional Activation available via my.atomos.com

Remote Control

• HDMI: Trigger Recording via Camera Record Button – Supported Protocols: Canon, Sony, Atomos Open Standard, Timecode (Rec Run)
• SDI: Trigger Recording via Camera Record Button – Supported Protocols: Arri, Canon, Ikegami, JVC, Panasonic, RED, Sony, Timecode (Rec Run) (optional Atomos Connect Accessory required)
• Serial 2.5mm Jack: Start & Stop Recording via compatible LANC Remotes – Calibration via optional USB to Serial Cable
• Bluetooth LE: Via AtomRemote App (optional Atomos Connect Accessory required)
• Wireless RF: AirGlu™ Gang Control (optional Atomos Connect Accessory required)

External Device Control

• Serial 2.5mm Jack: Z CAM Camera Control via Remote to USB-C Cable

Cut & Tag

• FCP XML: Up to 10 Tags supported for each Clip

Supported Applications

• XML: Apple Final Cut Pro (.fcpxml)
• Apple ProRes RAW: Apple Final Cut Pro, Adobe Premiere, Avid Media Composer, Grass Valley Edius, ASSIMILATE SCRATCH, FilmLight Baselight
• Video Codecs: All NLE applications that support Apple ProRes, Avid DNx and H.265 in .MOV Wrapper

• 1x Ninja
• 1x Battery Eliminator
• 1x USB C PD to 2.1mm DC power lead
• 1x QuickStart Guide
• Warranty: Standard 1-year or 2-years with product registration
