DISCONTINUED PRODUCT

Unfortunately this product has been discontinued but I'm sure we had a new and better option.   Search above or contact us via email or chat.

VideoGuys Part # (SKU): POWERSTATIONVID
MFR Part # (MPN): ATOMPWS002
Extend camera runtime. Charge 3x Faster. Continuous Power. Atomos Power Station is a compact continuous power supply that is capable of powering up to 4 devices (2DC, 2USB) simultaneously with a maximum power output of 4 amps at 7.4volts.
  • Full Description
  • Specifications
  • What's Included
  • Demo Videos
  • Reviews

Extend camera runtime. Charge 3x Faster. Continuous Power.

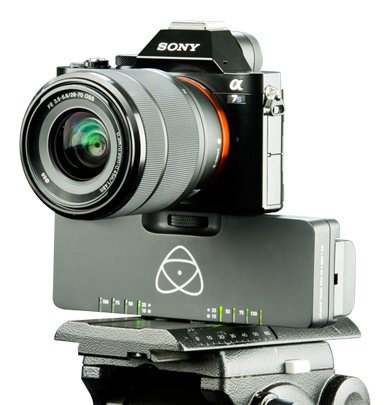

The Atomos Power Station is a compact continuous power supply that is capable of powering up to 4 devices (2DC, 2USB) simultaneously with a maximum power output of 4 amps at 7.4volts. Fast charge technology provides a 3x faster charge cycle than traditional NP style battery chargers. Simple LED indicators independently display the status of both batteries allowing plenty of time to hot swap depleted batteries. The slim form factor allows for easy mounting to your equipment with simple 2.1mm barrel DC outputs that can power most commonly used camera equipment as well as charging USB devices.


CONTINUOUS POWER
Our patented Continuous Power dual battery system allows batteries to be hot swapped ensuring you will never be without power in the field.


3x FASTER CHARGE
The DC input lets you connect to AC power to charge the provided batteries up to 3x the rate of conventional chargers.


2 x DC
The dual DC output and provided splitter cable allows powering of up to 2 DC devices on the rig.


2 x USB
A flexible dual USB power source allows you to charge 2 USB devices (up to 3A) eg. cameras, tablets & smart phones.


LED READOUTS

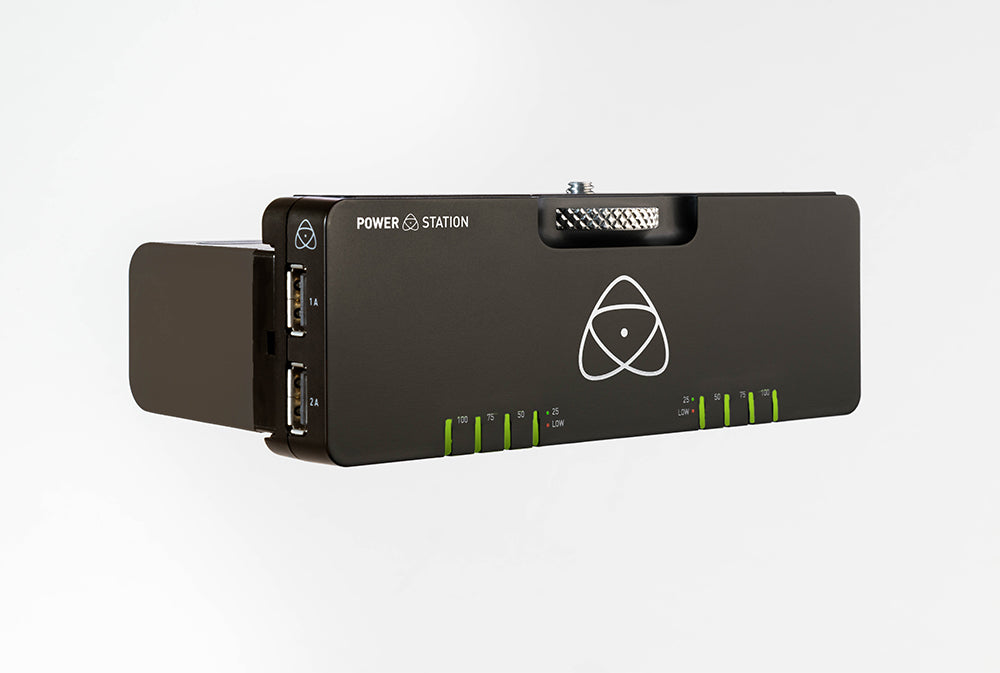

The independent left and right LED displays on the front of Power Station give a quick 5 step visual guide on the power remaining for each battery from 100% down to 5%.


DC BATTERY ADAPTERS
Dummy batteries are available to power popular cameras including Sony A7s (included), Sony FS Series, Panasonic GH4 (included), Nikon D810 and Canon 5DMKIII.




































































Weight
Without batteries143g / 5oz
With batteries

Photo Model 345g / 12.2oz
Video Model 719g / 25.4oz


Dimensions (W x H x D mm)160 x 55 x 35mm
ConstructionHigh quality lightweight ABS Polycarbonate for durability & portability
Power Input
DC Input voltage12V to 19V
D-tap input voltage (via adapter)12V to 19V
Battery input voltage7.4V System (8.4V Max), 2 slots
Compatible BatteriesNP series (L Mount)
Power Output
On DC power2 DC outputs at 8.4V, 4A Max Total
USB Charging2 USB outputs at 5V, 3A Max Total
Max Total Output Power

32W


Battery Management
Battery Charging (on DC power only)2 x 1.6A fast chargers (approx three hours to charge a NP-F570 battery)




















Battery Level IndicatorsCharge remaining indicators for both batteries
Continuous Power *Patent PendingPrimary-Secondary battery system. Change batteries without losing power. Loop batteries continuously. Falls back on battery power if mains power lost.
Accessories included15V AC/DC Adapter
All specifications correct when published, subject to E&OE.

  • Power Station unit

  • 2 x 7800mAh batteries

  • 5 x battery adapters

  • Soft Carry Case

  • AC/DC Adapter

  • 6 x Velcro Straps
