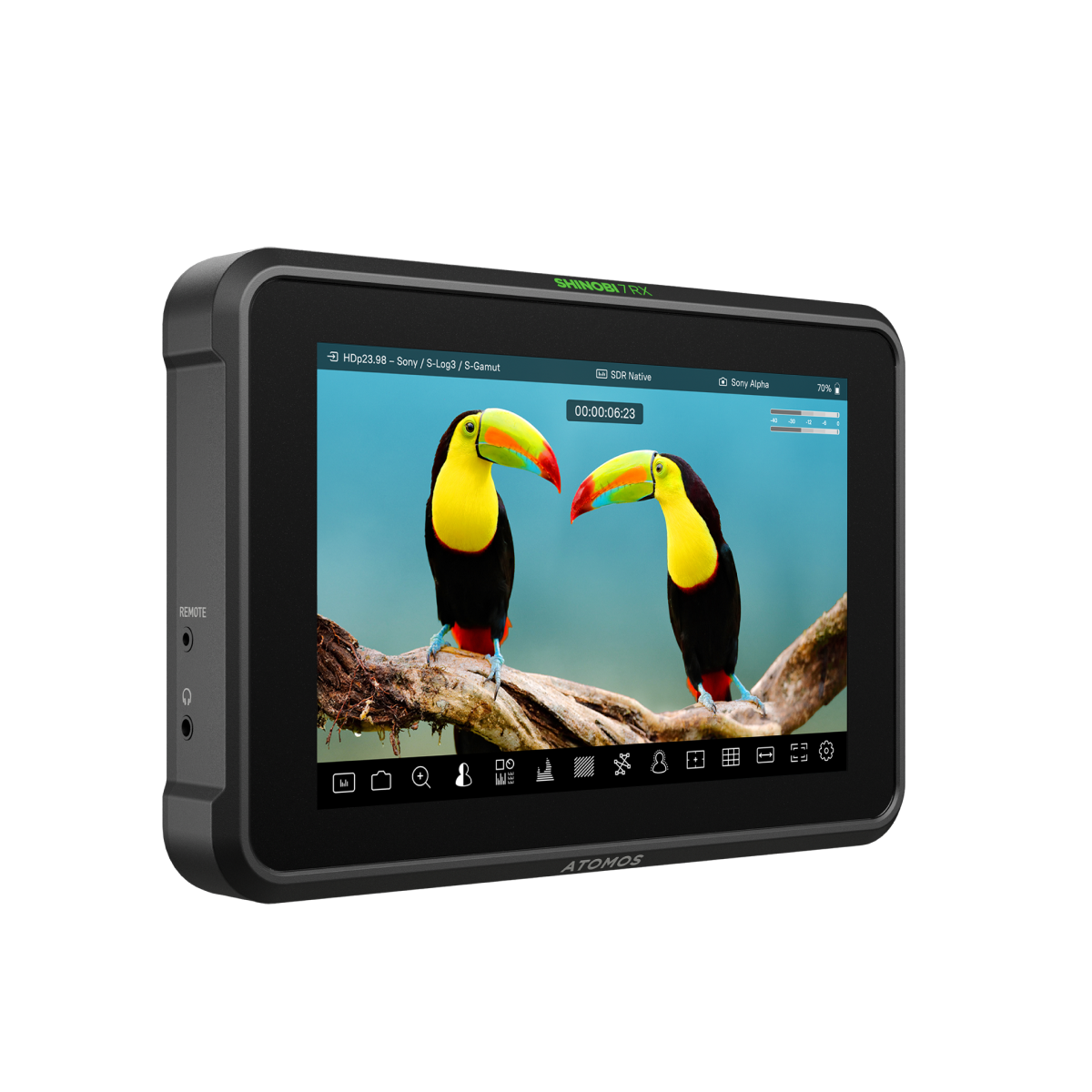

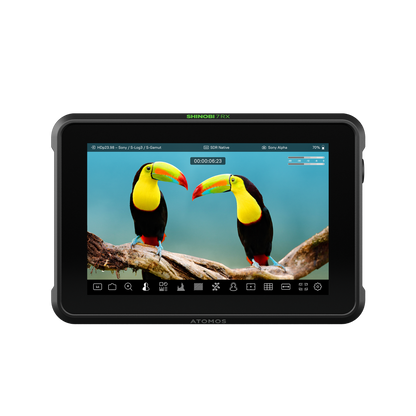

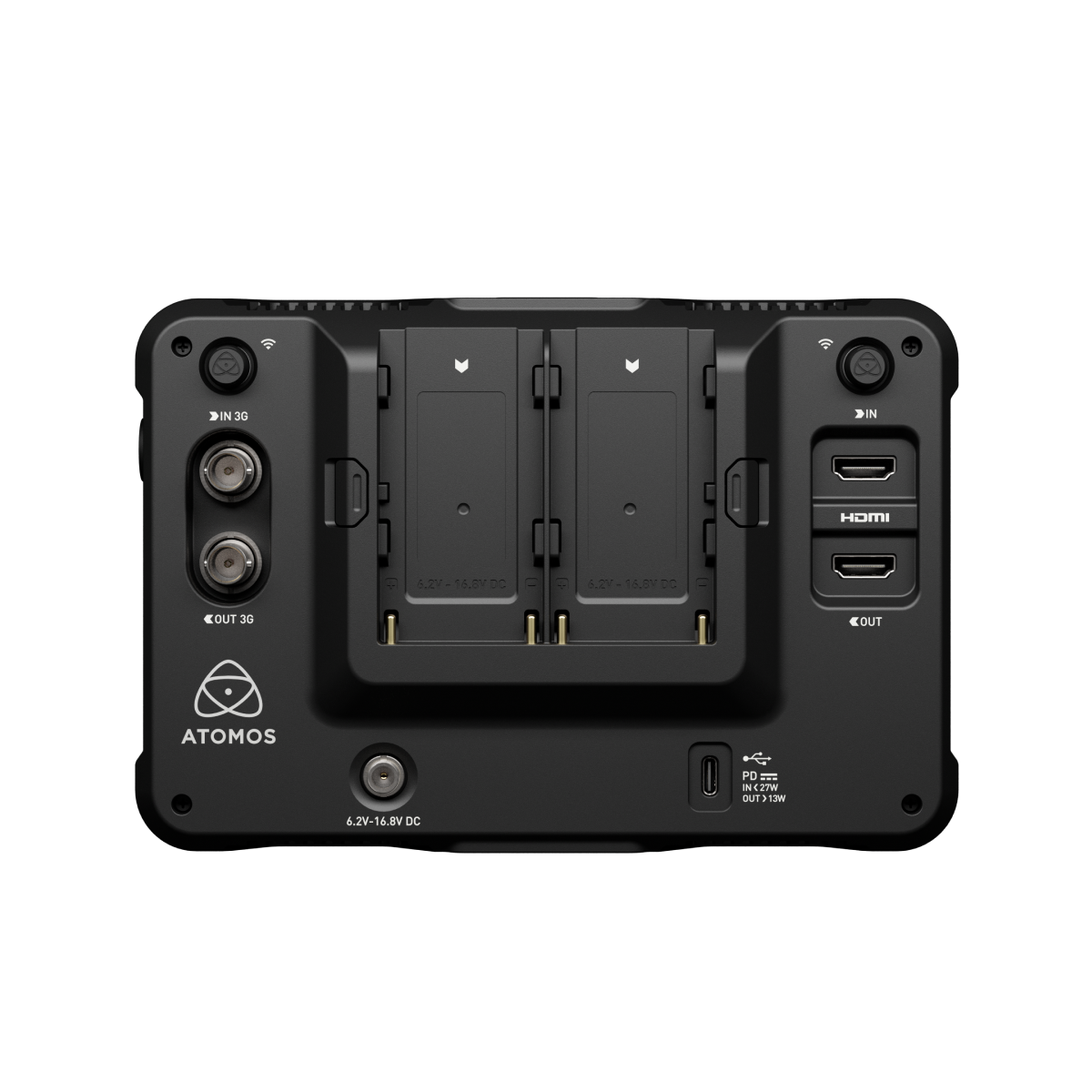

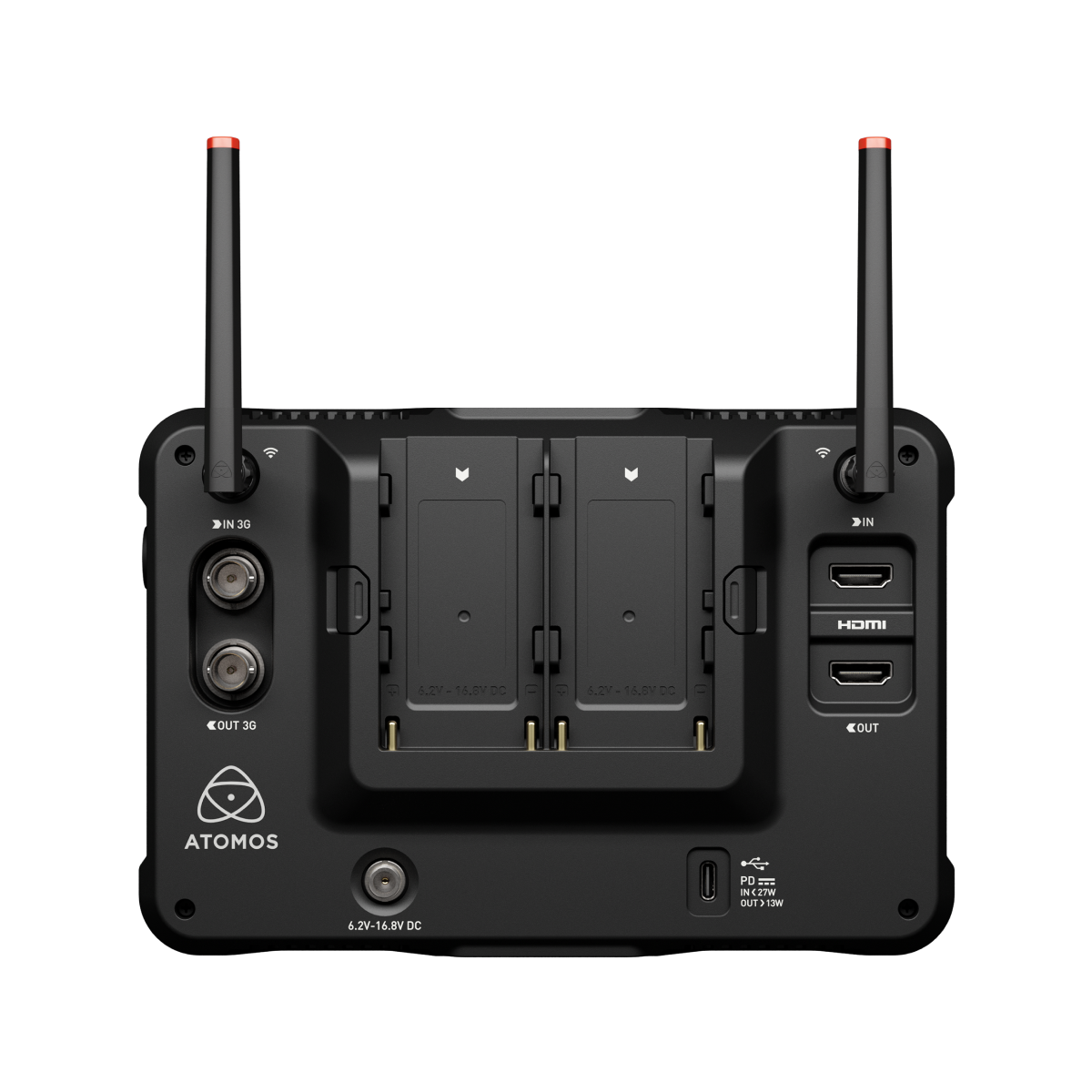

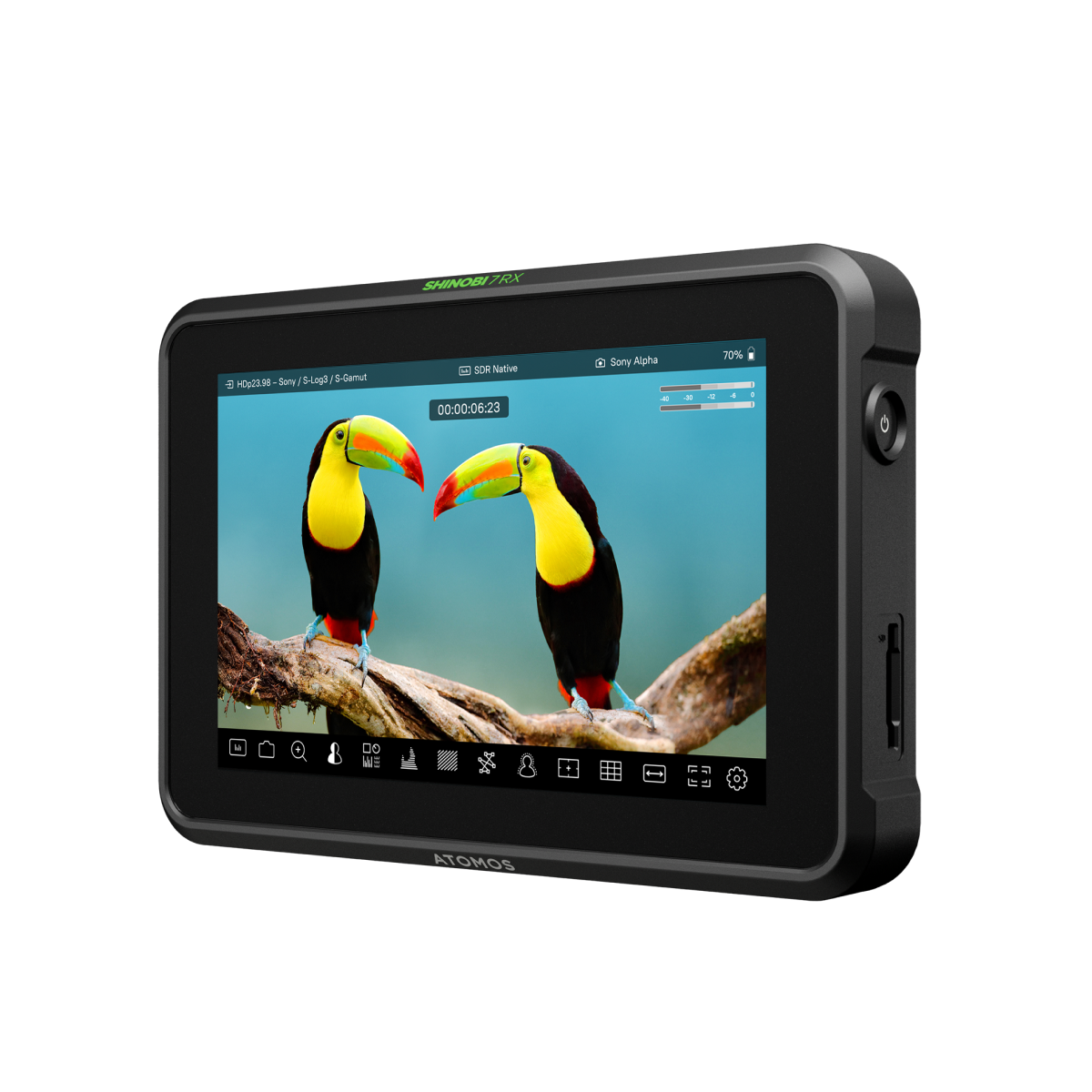

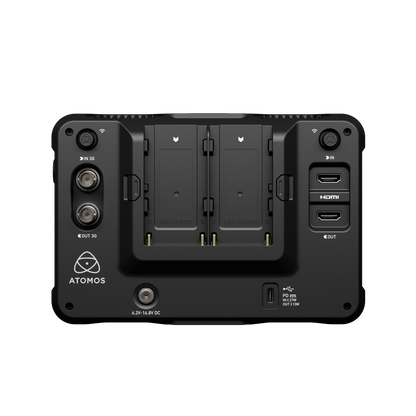

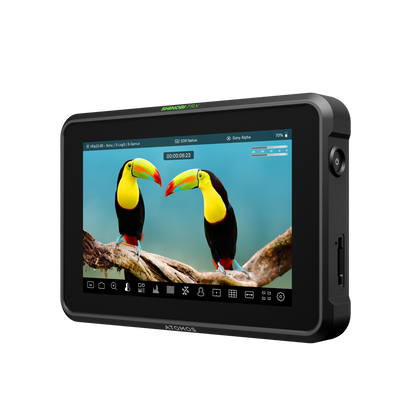

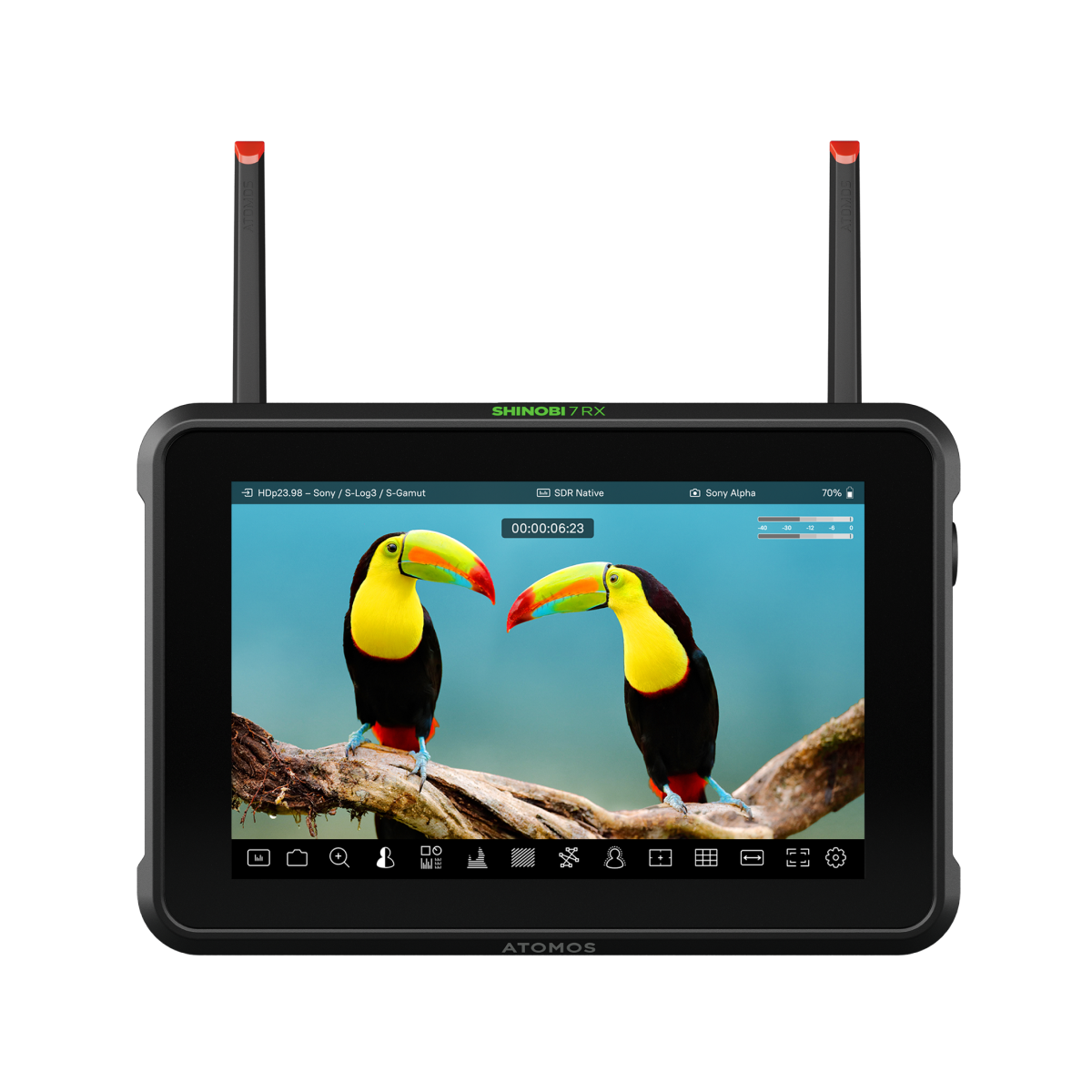

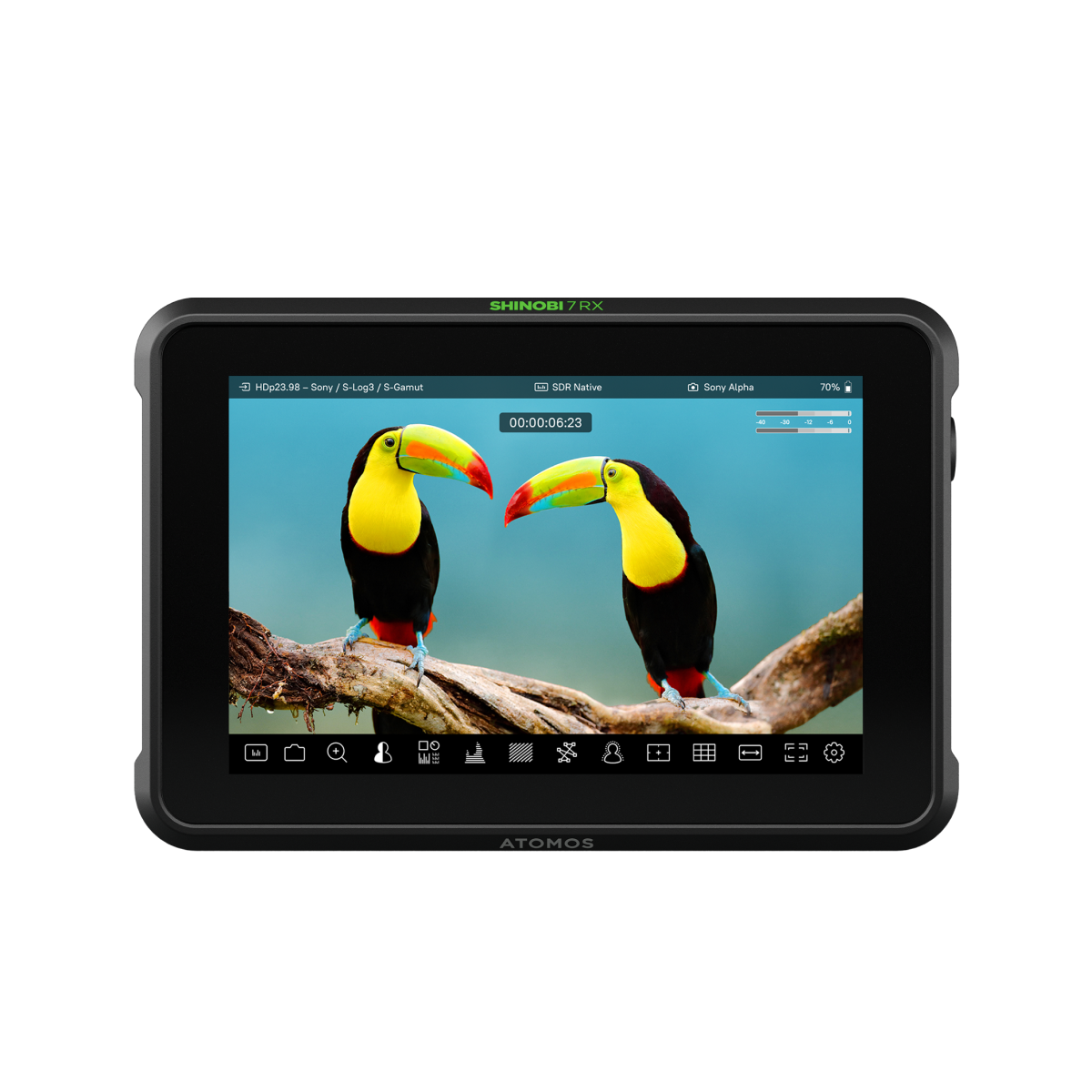

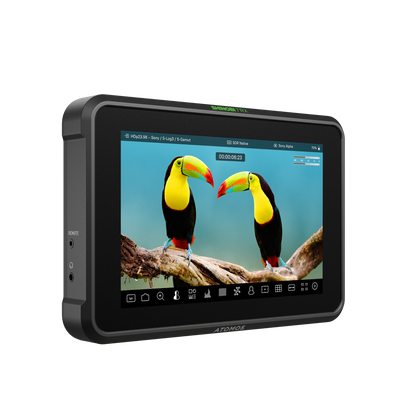

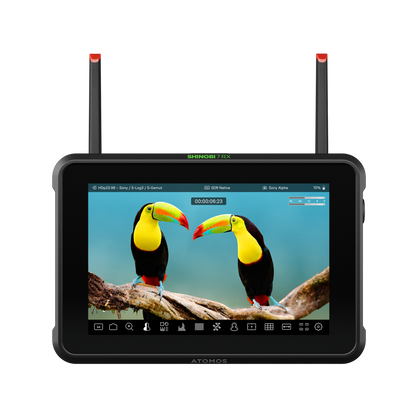

Atomos Shinobi 7 RX 7-inch HDMI & SDI monitor

Shinobi 7 RX 7-inch, 2200nit HDR video photo monitor with camera control

Shinobi 7 RX combines a larger 7-inch HDR screen with a calibrated peak brightness of 2200nits and the lightweight monitor-only functions of Shinobi. Can be used in the brightest of environments to monitor signals up to 4Kp60 via HDMI or HDp60 via 3G-SDI. Take control of Canon, Fujifilm, Nikon, Panasonic, and Sony cameras via USB-C, plus Z CAM cameras via optional USB-C to serial cable. The addition of Wi-Fi connectivity provides a stable link between the Shinobi 7 RX and the TX component of Atomos’ TX-RX wireless video system, or a RTSP H.264 stream. An ideal director’s monitor, focus puller’s monitor, program or preview display for video switchers.

Features:

• 7-inch HDR screen with a calibrated peak brightness of 2200nits
• HDMI / 3G-SDI input and output
• Camera control over USB-C (see website for supported models)
• Touch to focus (see website for supported models)
• Integrated 5G Wi-Fi for low latency (<60ms) receive from Atomos TX
• Stunning 10+ stops of dynamic range in real-time from Log/PQ/HLG signals
• Super-bright, 1500nit 5-inch touchscreen display
• Built-in 3D LUT box
• Supports 8-channel, 24-bit audio input via SDI
• Dual NPF battery slots

Dimensions (W x H x D mm)

• 198mm x 133mm x 39mm

Weight

• 580g (excluding batteries and antennas)

Mount points

• 1 x anti-rotation 1/4-inch / 3/8-inch top and bottom

Environmental

• Ambient operating temperature: Up to 40 degrees Celsius

Construction

• Body: ABS polycarbonate

Cooling

• Passive heat sink

Power

• Input voltage: 6.2V - 16.8V
• Operating power: 5.8V - 7.2V

Multi-function button

• Power / lock screen

Continuous power

• Via NP-F battery or USB-C PD Power

DC in the connector

• Via Battery Eliminator (optional)

DTAP

• Up to 13W

USB PD IN

• 45W capable, power supply required

USB PD OUT

• Up to 13W

Display

• Size 7-inch HDR screen with a calibrated peak brightness of 2200nits

Resolution

• 1920 x 1080

Backlight Type

• Edge-lit

Brightness (cdm2 / Nits)

• 2200

Aspect ratio

• 16:9

Color Gamut

• Rec.709

Calibration support

• Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable

Color Pipeline

• Gamma
  • Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 /
  • LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 /
  • LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ
  • (HDR10), HLG, Nikon N-Log
• Gamut
  • BT.2020, DCI P3, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709.
  • Canon Cinema: DCI P3 / DCI P3plus / Rec.709. Panasonic: V Gamut. ARRI: Alexa Wide Gamut. JVC: LS300. RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut

3D LUT Display

• .Cube format  (17 & 33 points supported)

3D LUT Down Stream

• Loop out

3DLUT 50/50

• Yes

Monitoring Modes

• SDR Native / HDR HLG / HDR PQ / 709 LUT / User LUT
• HDR Output Conversion

Video Input

HDMI

• 1 x HDMI (2.0)

Locking port

• N/A

SDI

• 3G

Wi-Fi

• Wi-Fi 6E

USB

• 1 x USB-C 2.0/3.0

Bit Depth

• 8/10-bit video

Video Chroma Subsampling

• 4:2:2

Video Output

HDMI

• 1 x HDMI (2.0)

Locking port

• N/A

SDI

• 12G

Wi-Fi

• Wi-Fi 6E

USB

• 2 x USB-C 2.0/3.0

Bit Depth

• 8/10-bit video

Video Chroma Subsampling

• 4:2:2

Metadata

HDMI

• N/A

Network

Wi-Fi

• Wi-Fi 6E

USB

• 1 x USB-C 3.0

Connectivity

LANC

• Yes

Audio In/Out

HDMI

• 8-channel, 24-bit

SDI

• 12-channel, 24-bit

Analogue Audio Line In

• 3.5mm headphone jack, 2-channel input

Headphone Out

• 3.5mm headphone jack, 2-channel

Timecode

Embedded

HDMI

• (display only)

Time of day

• Yes

Reference / Genlock input

• No

LTC

• No

Resolution & Frame Rates

• 4K DCI
  • 23.98/24/25/29.9/30/50/59.94/60p
• 4K UHD
  • 23.98/24/25/29.9/30/50/59.94/60p
• 2K DCI 2048 x 1080
  • Yes
• 1080p
  • 23.98/24/25/29.9/30/50/59.94/60/100/120p
• 1080 PsF
  • Converted to P and looped out PsF
• 1080i
  • 50/59.94/60i
• 720p
  • 50/59.94/60p

Supported Media

SD

• To update firmware and upload LUTs

File System

• FAT32, NTFS

On-screen Monitoring Tools

MultiScope Analysis View

• Image, WFM, vector, histogram

Waveform

• 3 sizes – adjustable opacity & brightness

Histogram

• 3 sizes – adjustable opacity & brightness

RGB parade

• 3 sizes – adjustable opacity & brightness

Vectorscope

• 1 size – adjustable opacity & brightness

1 x Zoom

• Yes. 1:1 pixel mapping for 4K

2 x Zoom

• Yes

4 x Zoom

• Yes

Focus peaking

• 4 modes (color, black & white, outline, edge sharpening) with adjustable outline color & peaking intensity

Atomos False Color

• Yes, with scale

Zebra

• Adjustable threshold (50% to 105%)

Isolate color channel

• Blue Only

Cine Frame Guides

• Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9

Social Frame guides

• Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2

Safe areas

• SMPTE safe title area – 93% & 90%

Grid markers

• 9 grid

Anamorphic desqueeze

• 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x

Display Flip

• Horizontal & vertical

External Device Control

USB-C

• Camera control for supported cameras via USB-C. Controllable functions: Record Trigger, White Balance, Shutter Speed,
• Shutter Angle (if supported by camera), Aperture, ISO, Camera Overlays, Record Indicator, Touch to Focus - see Atomos website for camera model compatibility. USB-C port can also be used with external calibrators (no PC required).

Serial 2.5mm Jack

• Calibration via optional USB to serial cable

Box dimensions (W x H x D mm)

• 245mm x 180mm x 80mm

Box weight

• TBA

Warranty

• Standard 1 year. Extended to 2 years on product registration.

What’s in the Box

• 7-inch HDMI & SDI monitor
• Wi-Fi antenna
• 5x antenna tips (black, white, yellow, green, red)
• 2 x antenna caps,
• USB-C 2.0 cable (1m)
• Quick Start Guide.
