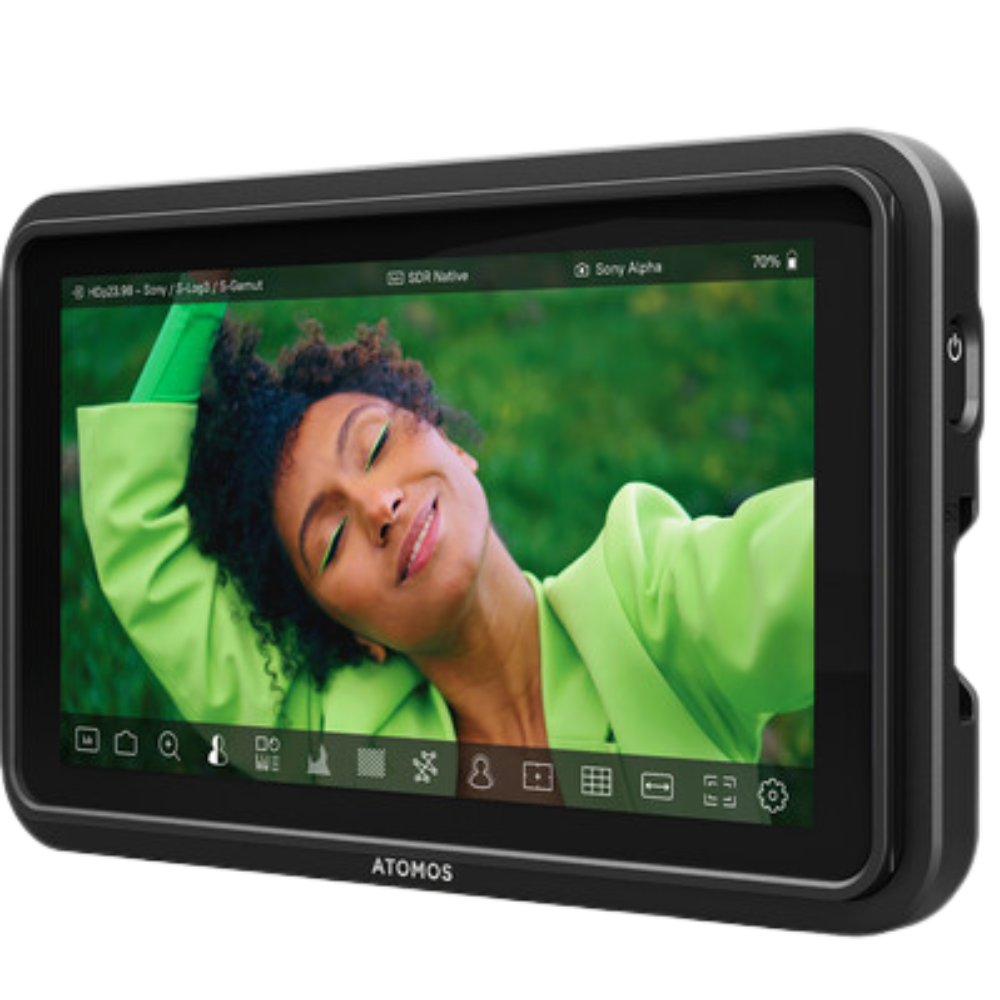

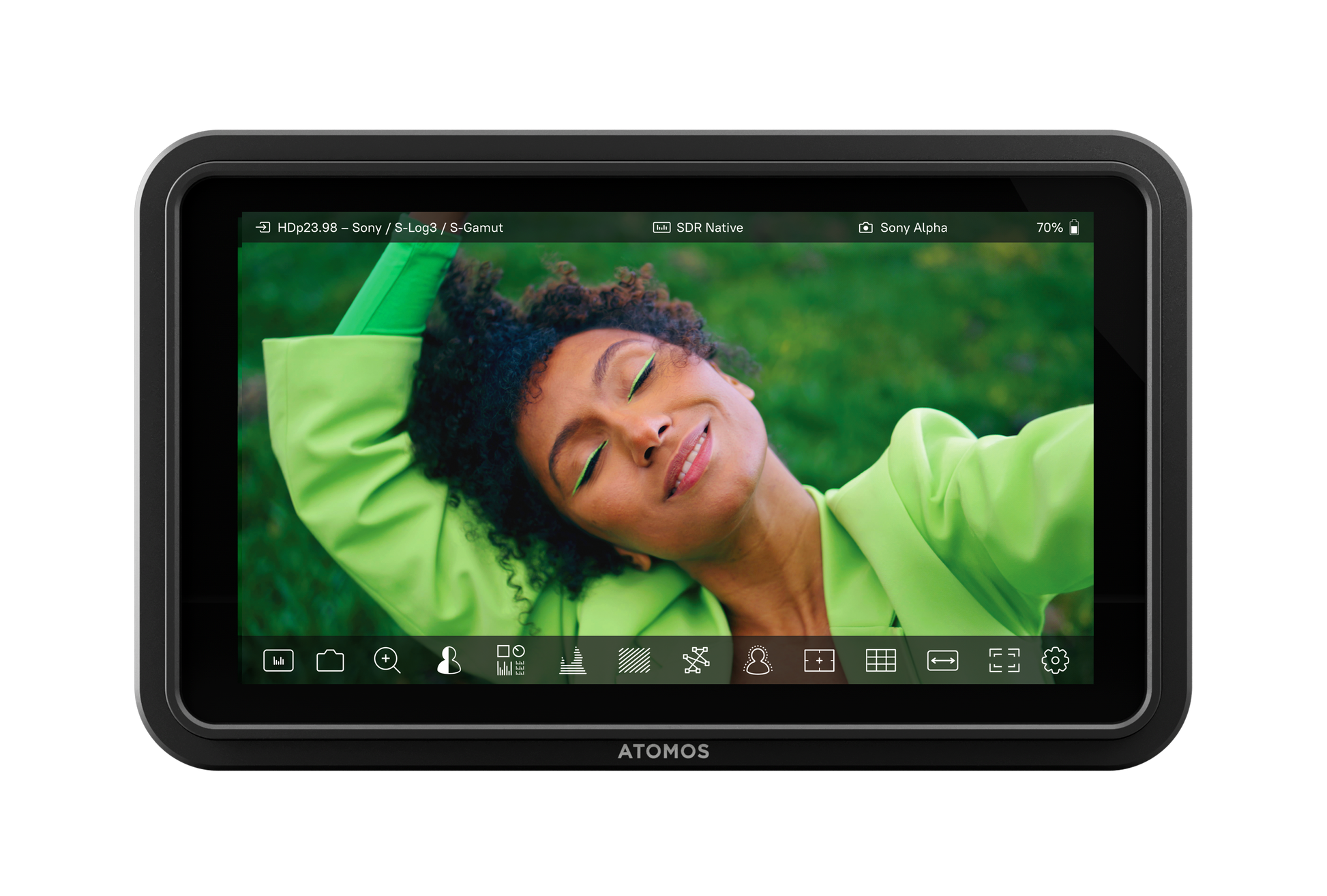

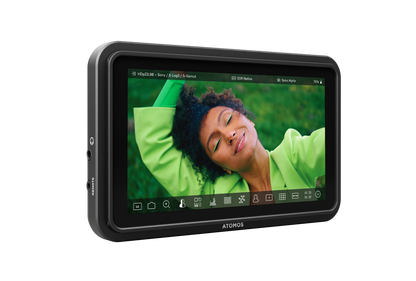

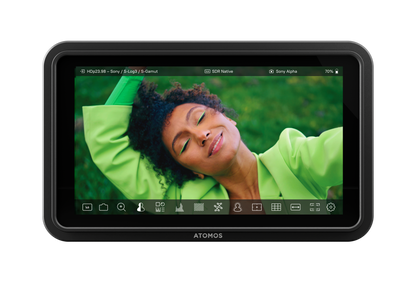

Atomos Shinobi II 5.2" HDMI HDR Monitor

Enhance your on-camera viewing with the Atomos Shinobi II 5-inch HDMI HDR Monitor.
Built for vloggers, photographers, and content creators, the Shinobi II introduces a range of upgrades over the original model. It features a slimmer body, a much brighter 1500 cd/m² display, and USB-C camera control with status indicators for Canon, Panasonic, Sony, and Z CAM systems. The monitor also runs on the redesigned AtomOS 11 interface, adds USB-C PD power input/output, includes a locking HDMI and USB-C adapter, offers advanced image tools, and delivers highly efficient power use that allows a full day of operation from a single battery.

Key Features

• Touch to Focus
• Camera Control, Shutter Release
• Slim, Lightweight, Low-Profile Design
• 5-inch, 1920 x 1080 Capacitive Touchscreen
• USB PD Power
• High 1500 cd/m² Brightness
• 4K HDMI Input, HDR/HLG/PQ Support
• AtomHDR Mode with 10 Stops Dynamic Range
• Built-In and USB-C Calibration Support
• Single Sony L-Series Battery Slot

Brighter & Slimmer

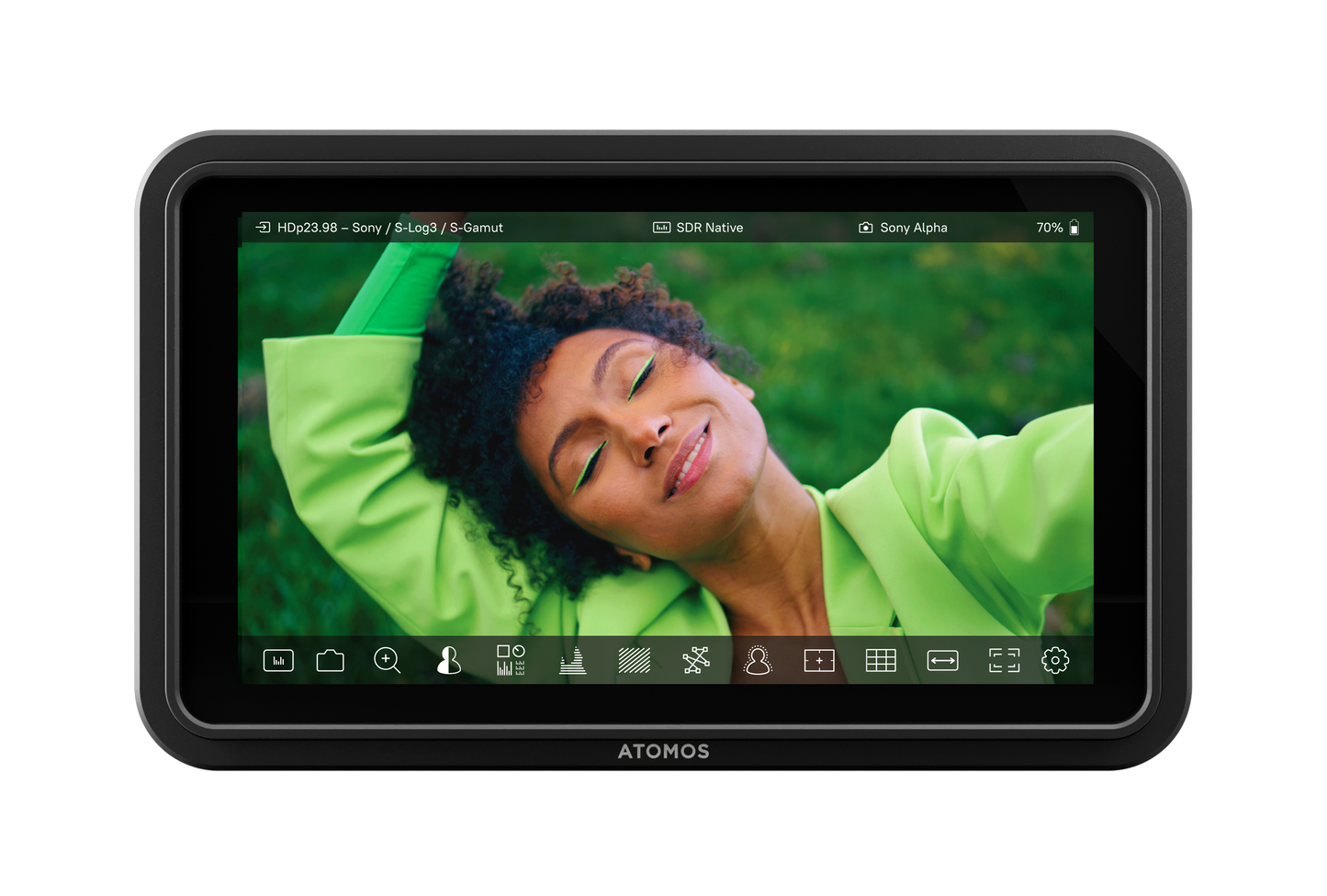

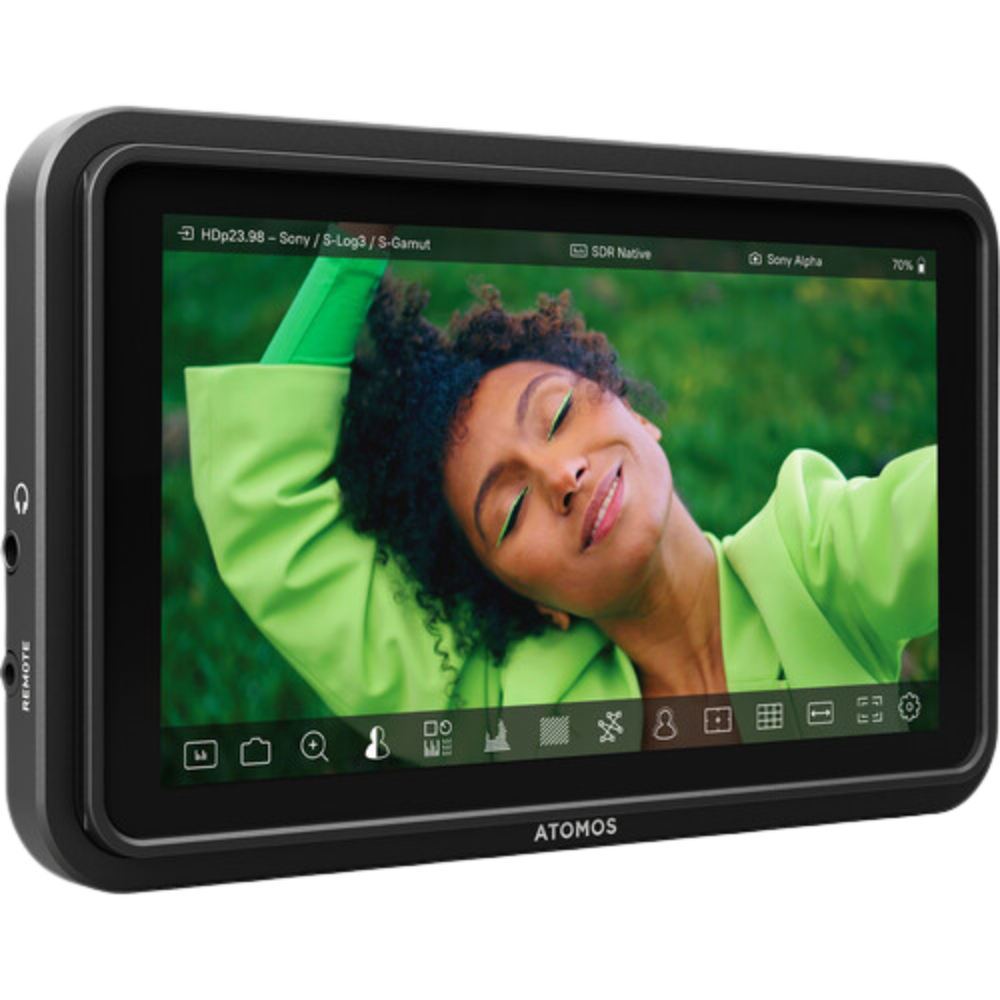

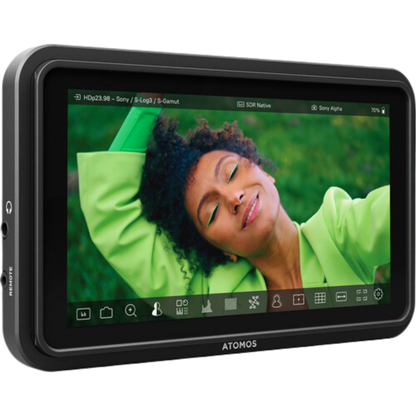

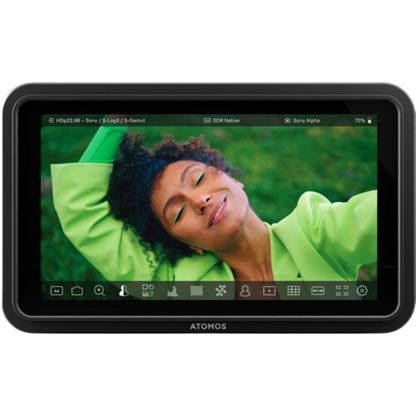

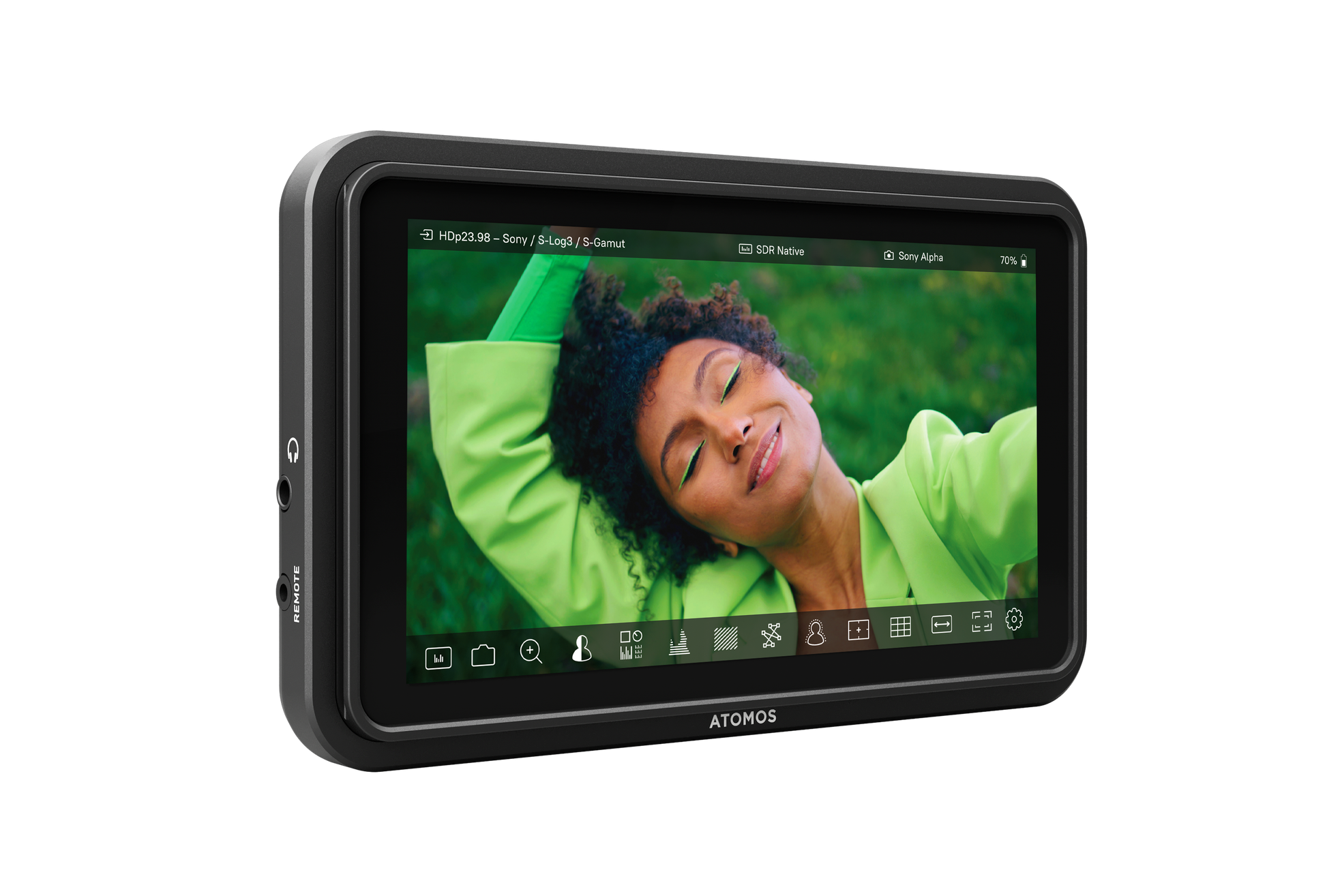

The second-generation Shinobi delivers a refined design with reduced weight and improved ergonomics.  The display features a 5-inch touchscreen with 1920 x 1080 resolution and 1500-nit (cd/m²) brightness, making it 50 percent brighter than its predecessor and easy to use in daylight conditions.

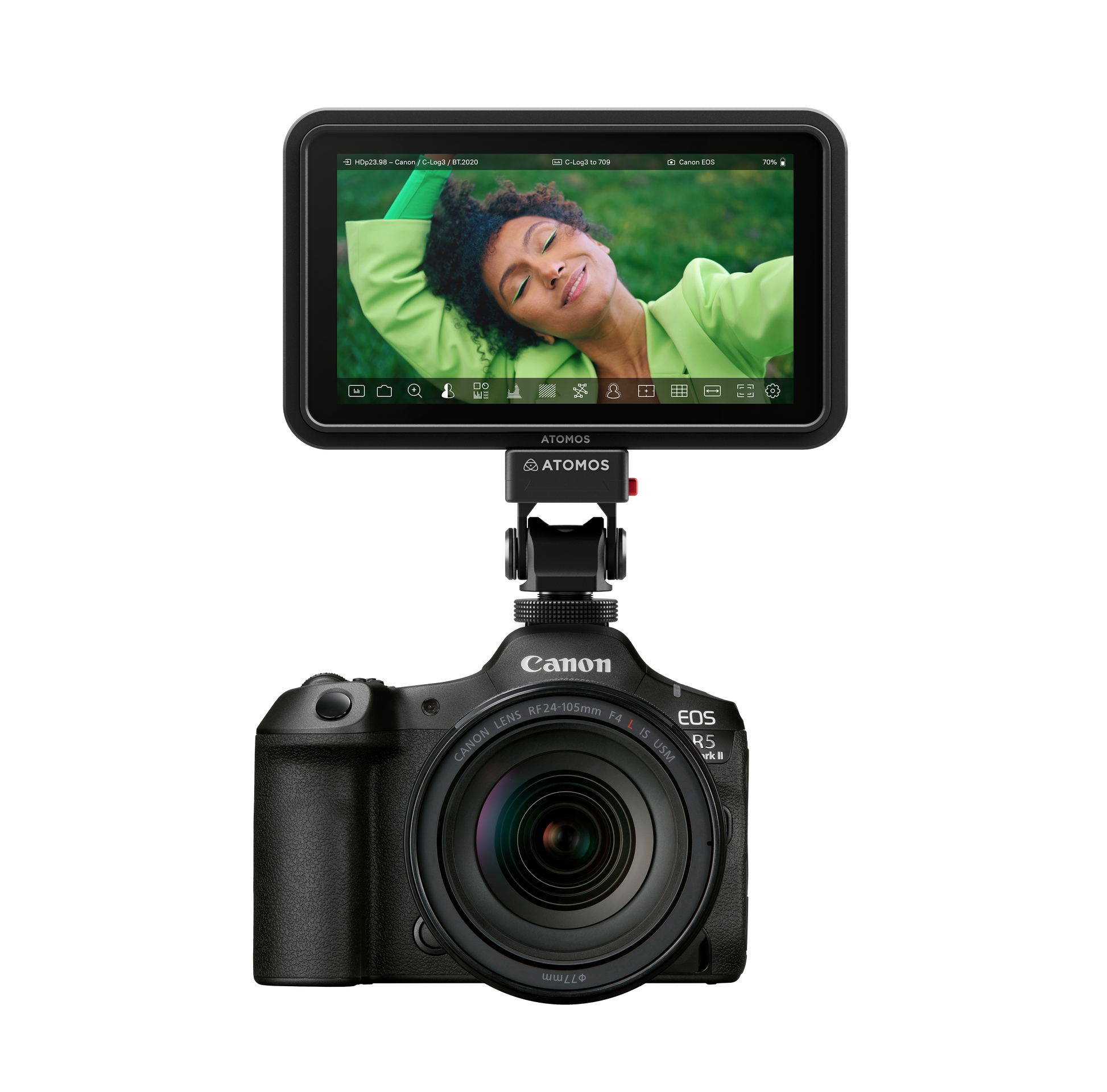

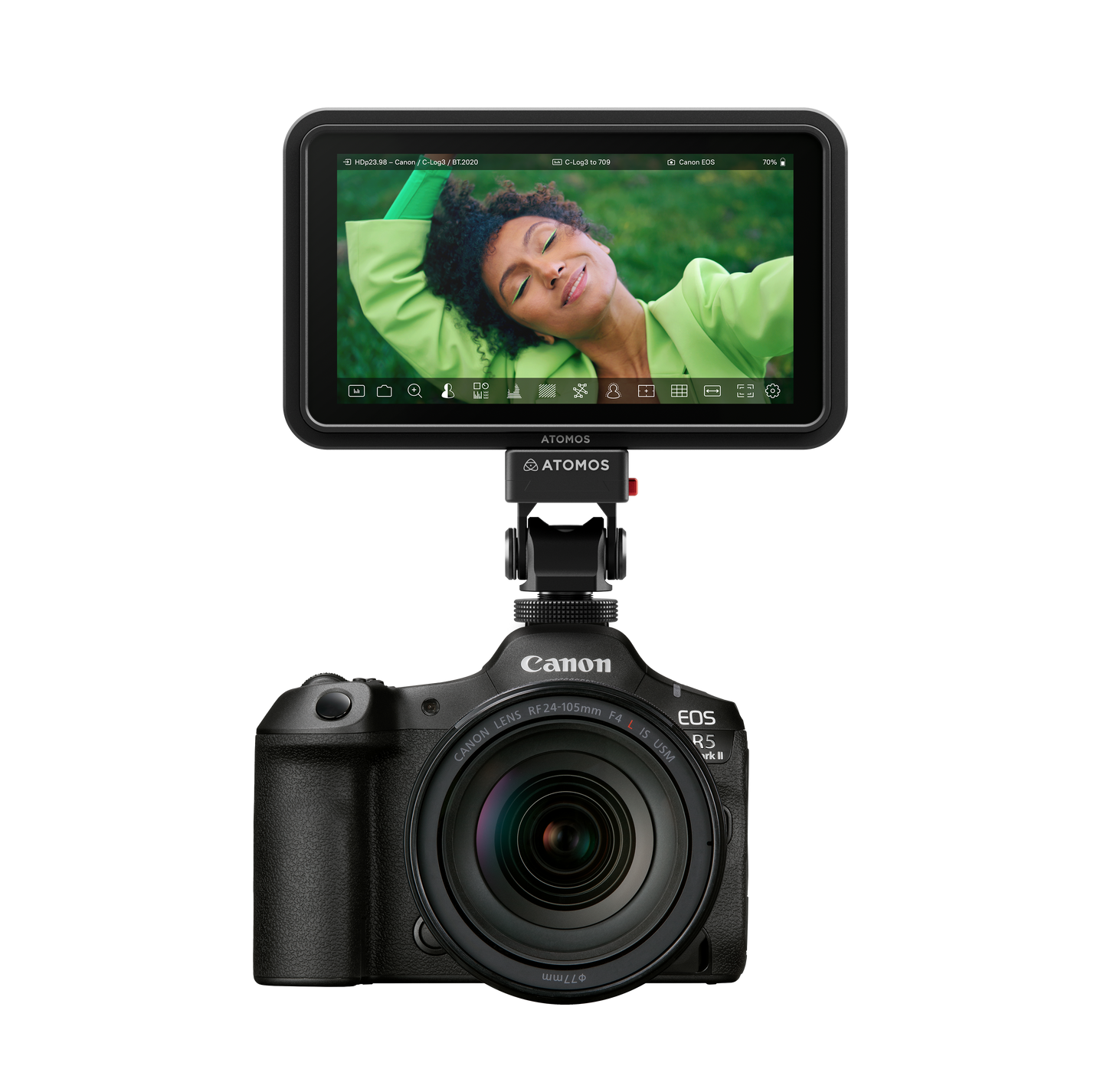

Camera Control

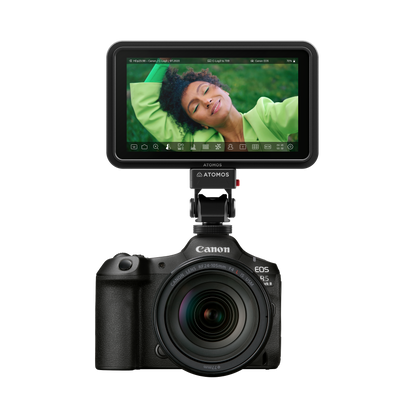

Control your mirrorless or DSLR camera directly through the monitor with the built-in USB-C connection. Compatible brands include Canon, Panasonic, Sony, and Z CAM, with a 2.5mm LANC port for added support. Future firmware updates will expand compatibility to FUJIFILM, Nikon, OM System, and Sigma.

Touch to Focus
With AtomOS 11.03.00, you can now set your focus point directly on the Shinobi II touchscreen when using supported cameras. Models currently compatible include Canon EOS R6 Mark II, EOS R1, EOS R5 Mark II, EOS R7, FUJIFILM GFX100 and X-S20, Nikon Z9 and Z8, Panasonic LUMIX S5 II and S5 II X, and Sony a7 IV, a7S III, ZV-E10 II, FX3, and FX30.

Shutter Release
The new shutter release function enables you to trigger photo capture right from the Shinobi II screen. This is ideal for workflows such as HDR bracketing, focus stacking, or when capturing multiple exposures.

Camera Status
Keep track of essential camera information on-screen, including recording formats, battery life, and remaining recording time. A red border appears whenever the camera is recording internally, whether triggered from the body or through the Shinobi II.

AtomOS 11 & Advanced Image Tools
The updated AtomOS 11 brings a cleaner interface and enhanced image monitoring options. Adjust aperture, shutter, and ISO while using tools like false color (Atomos, ARRI, or EL Zone), waveforms, zebras, and histograms to achieve precise exposure every time.

Input Signals
An HDMI 1.4 input lets you monitor signals up to DCI or UHD 4K at 30 fps and 1080p at 60 fps.

HDR & LUT Support
Preview Log footage in HDR with built-in HLG and PQ monitoring modes. Up to eight custom LUTs can be stored on the device, letting you apply your preferred looks while shooting.

Frame Guides
Choose from a wide range of cinematic and social media aspect ratios including 2.41, 2.35, 1.91, 1.9, 1.85, 16:9, 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, and 3:2 for framing accuracy across platforms.

Lightweight Design

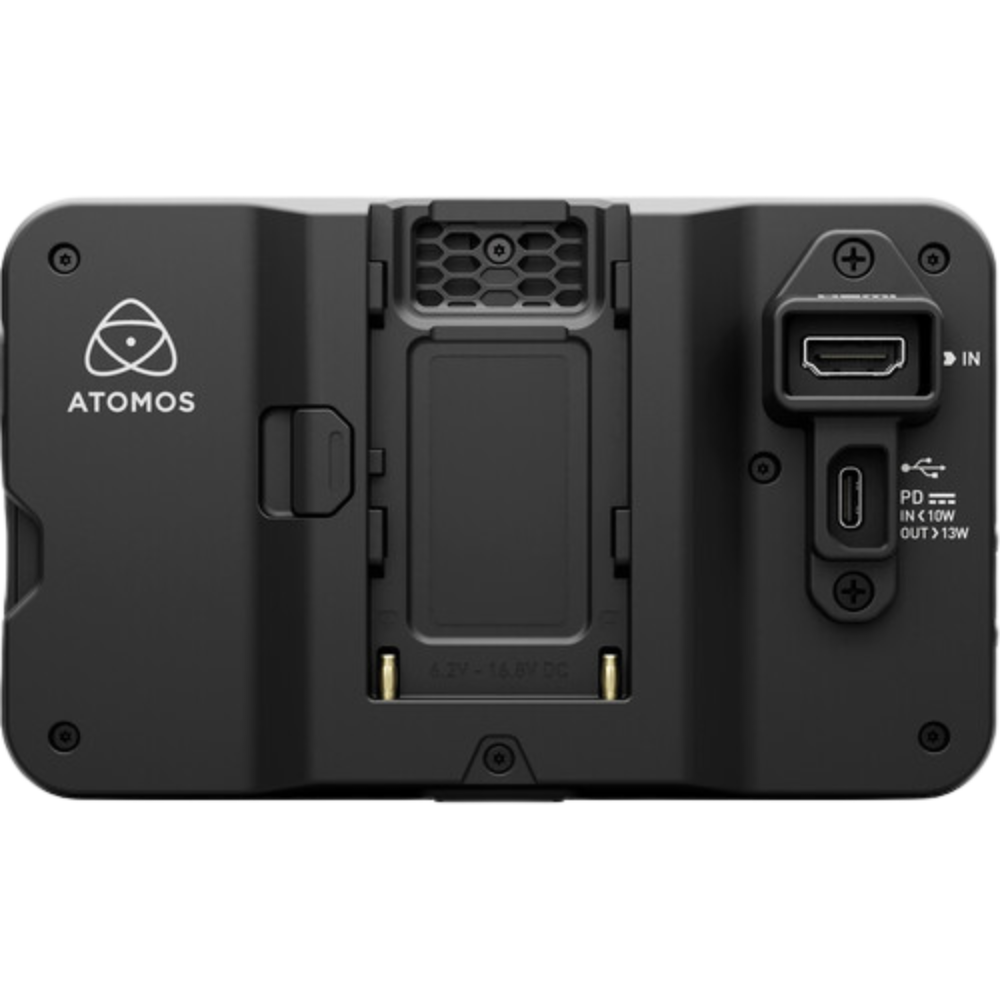

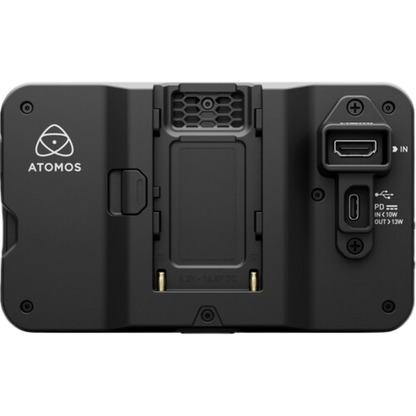

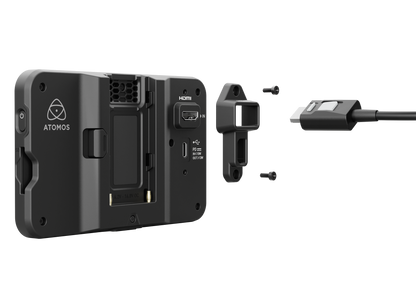

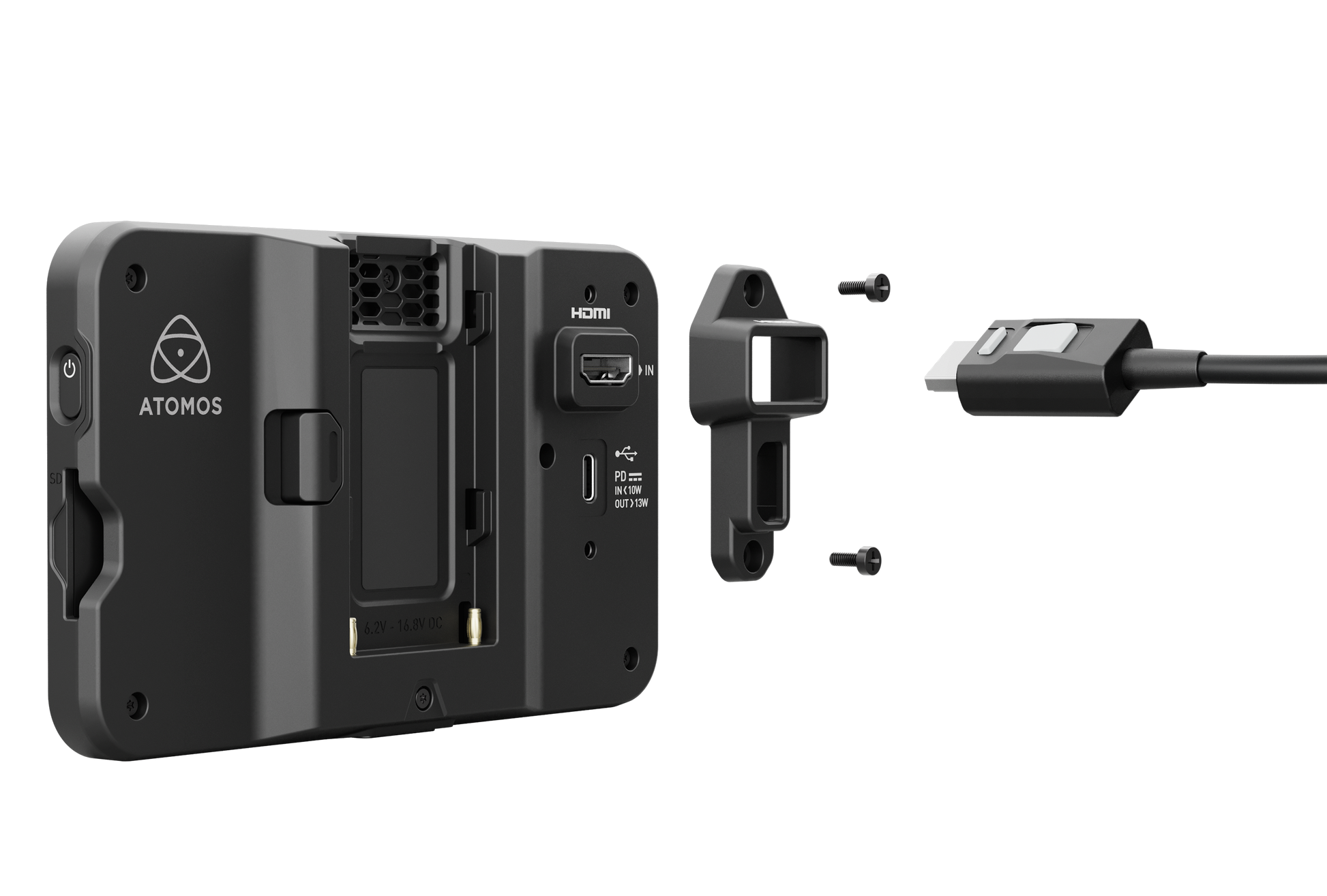

The Shinobi II is built with portability in mind, weighing only 7.4 oz and featuring a slimmer profile. Anti-twist locating holes complement the 1/4″-20 mounts, and the centrally placed battery plate improves balance. A locking HDMI/USB-C adapter secures your cables during production.

Power Options

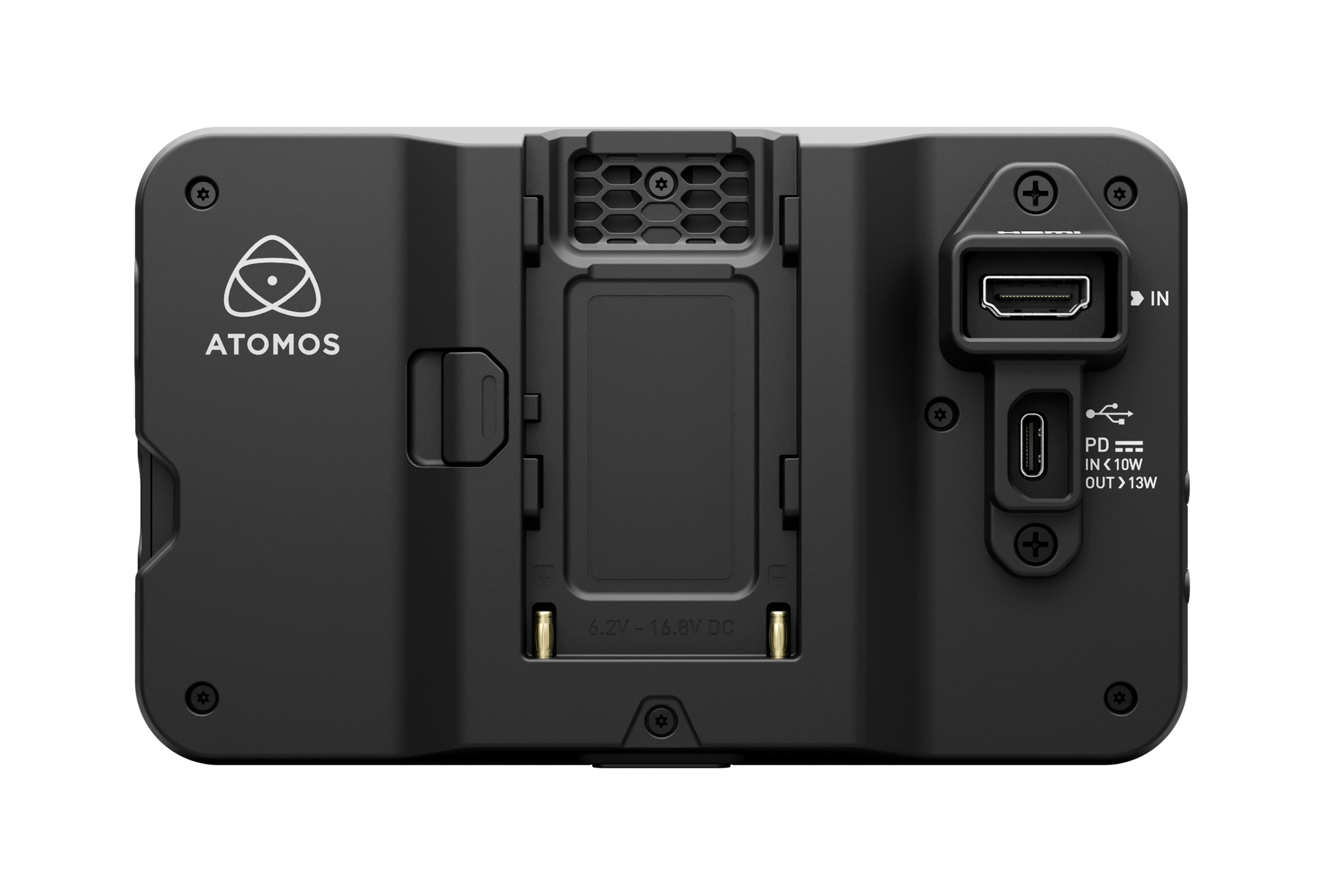

Power the monitor with an L-series/NP-F battery, an optional dummy battery with DC input, or via USB-C PD charging at 10W. The monitor can also output 13W of USB-C PD power to your camera while maintaining camera control functions.

Physical

• Dimensions (W x H x D mm): 151mm x 91.5mm x 20.8 mm (28.5mm with locking cable adaptor attached
• Weight: 210g / 7.4oz.
• Mounting Points: Bottom: 1 x 1/4-inch 20 with anti-rotational points

Environmental

• Ambient Operating Temperature: Up to 40 degrees Celsius

Construction

• Body: ABS Polycarbonate Plastic
• Cooling: Passive heat sink

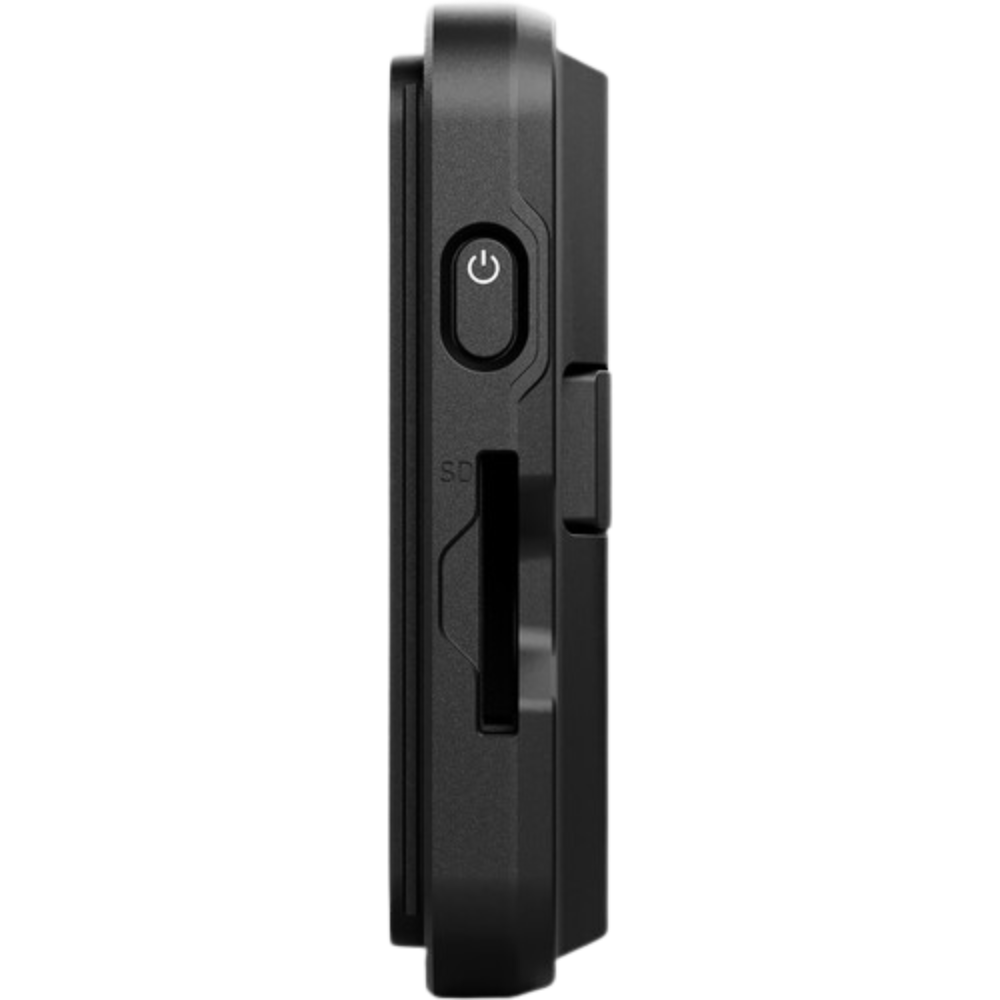

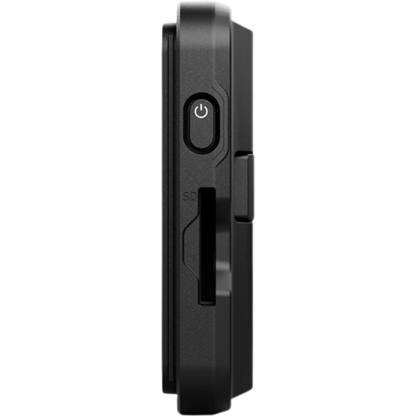

• Multi-Function Button: Power / Lock Screen
• Touch Screen: Capacitive Touch

Power

• Input Voltage: 6.2V to 16.8V
• Compatible Batteries: 1 x NP-F / L-Series
• Built-in battery: No
• Continuous power: Via NPF battery or USB-C PD
• DC-In Connector: Via Battery Eliminator (separate purchase)
• D-Tap: Via optionally available Battery Eliminator or D-Tap to DC-Barrel Cable

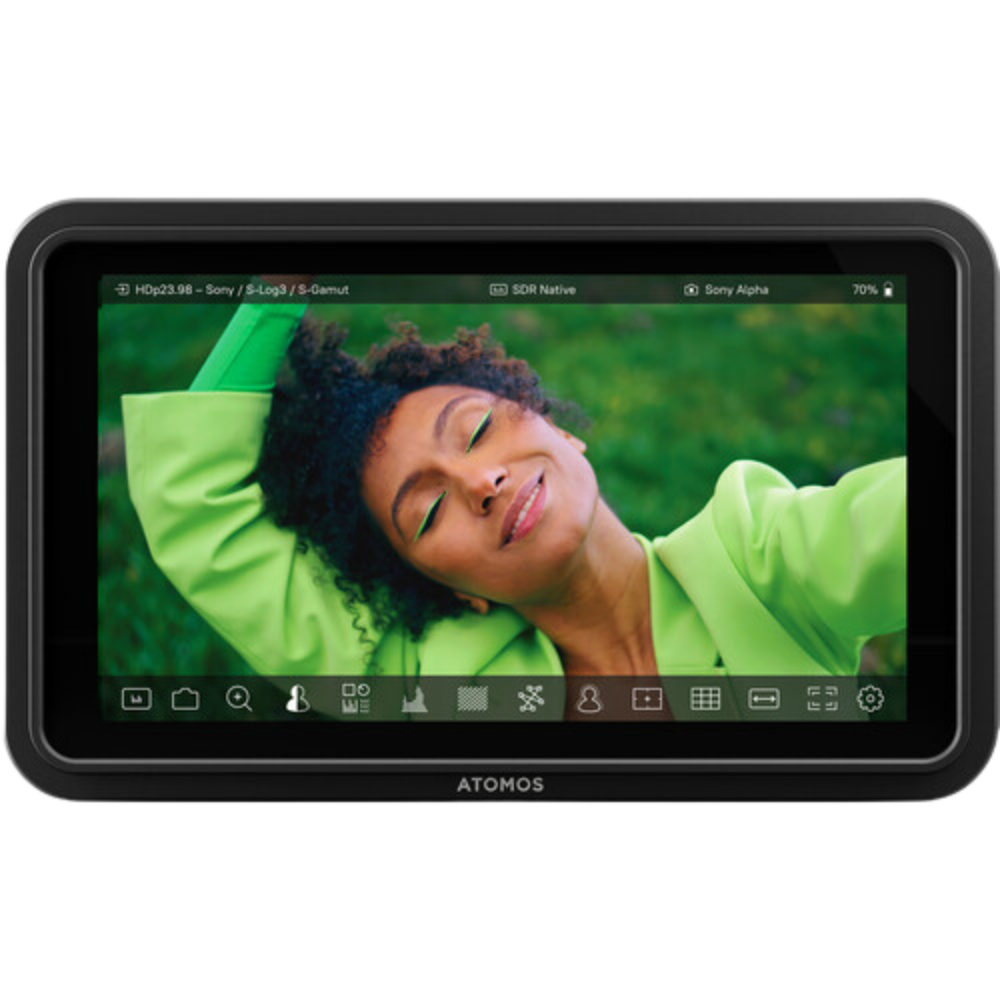

Display

• Display Panel: SuperAtom IPS Panel (Capacitive Touch)
• Size: 5.2-inch
• Resolution: 1920 x 1080
• Viewing Angle: 178 + H & V
• PPI: 427
• Bit Depth: 10-bit (8+2 FRC)
• Backlight Type: Edge-lit
• Brightness (cd/m² / nits): 1500
• Aspect Ratio: 16:9
• Color Gamut: Rec.709
• Calibration Support: Simple on-device calibration (connect Calibrite probe directly to Shinobi II via USB-C). Atomos Calibrator on PC/Mac with Calibrite ColorChecker Display Pro & ColorChecker Display Plus + Simple on-device calibration (connect Calibrite probe directly to Shinobi II via USB-C)

Color Pipeline

• Gamma: Sony S-Log / S-Log2 / S-Log3, Canon C-Log / C-Log 2 / C-Log3, Panasonic V-LOG, Arri LogCEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600 / LogC4, JVC J-Log1, RED Log3G12 / RED LogFilm / PQ10K / LOG3G10, Fujifilm F-Log / F-Log2, Nikon N-LOG / HLG, Olympus OM-LOG400 / FLAT, OM-System OM-LOG400 / FLAT, Leica L-LOG
• Gamut: BT2020, DCI P3, DCI P3 65, Sony SGamut / SGamut3 / SGamut3.cine, Canon Cinema / DCI P3 / DCI P3+ / BT.2020, Panasonic V Gamut, ARRI Alexa Wide Gamut, Rec.709, JVC LS300, RED DragonColor / DragonColor2 / REDColor2 / REDColor3 / REDColor4 / REDWideGamut
• 3D LUT Display: .Cube format (17 & 33 points supported)
• 3D LUT 50/50 Split: Yes
• Monitoring Modes: SDR Native, HDR HLG, HDR PQ, 709 LUT, User LUT
• Display Controls: Backlight, Lift, Gamma, Gain
• AtomHDR: Built-in Technical Log to HDR EOTF
• 3D LUTs: Load .Cube files from SD Card into 8 LUT Slots On-Device & use for Monitoring

Video Input

• HDMI: 1 x HDMI (1.4)
• Bit Depth: 8 / 10-Bit
• Chroma Subsampling: YCbCr 4:2:0 & 4:2:2

Audio In/Out

• HDMI Embedded: 2-channel, 24-bit, input dependent

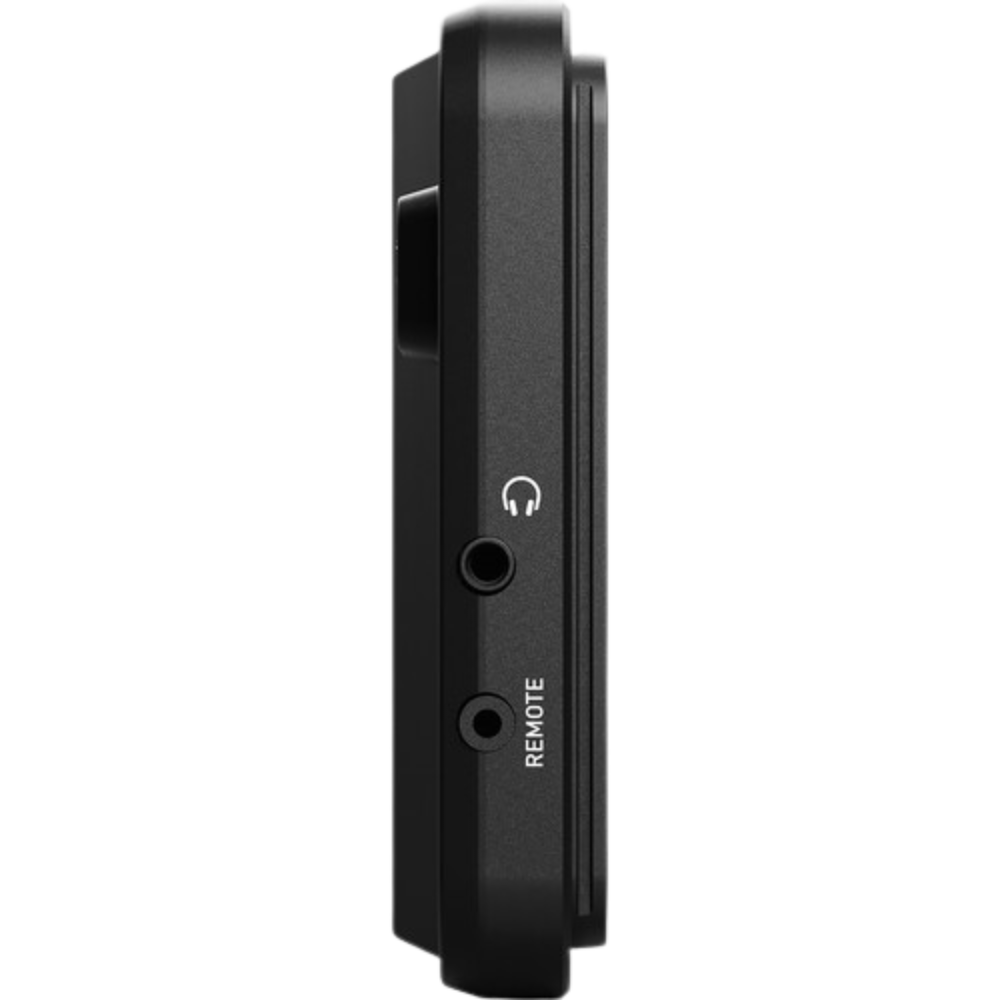

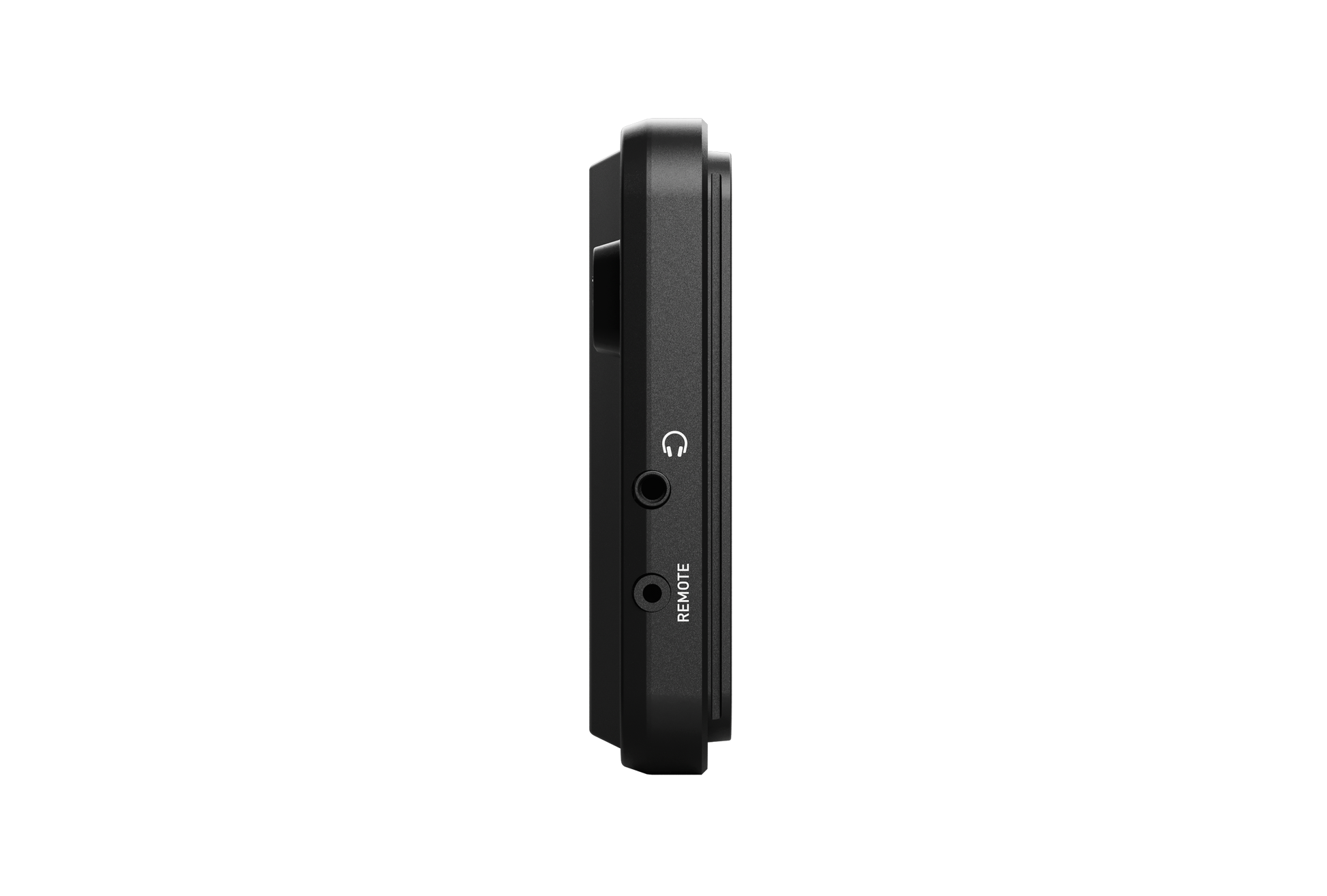

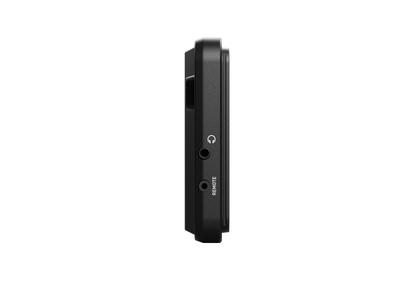

• Headphone Out: 3.5mm headphone jack, 2-channel

Resolution and Frame Rates (Monitoring)

• 4K DCI: 23.98/24/25/29.97/30
• 4K UHD: 23.98/24/25/29.97/30
• FHD 1920 x 1080 Progressive: 23.98/24/25/29.97/30/50/59.94/60
• FHD 1920 x 1080 Interlaced: 50i/60i
• 1280 x 720 Progressive: 50/59.94/60p

Supported Media

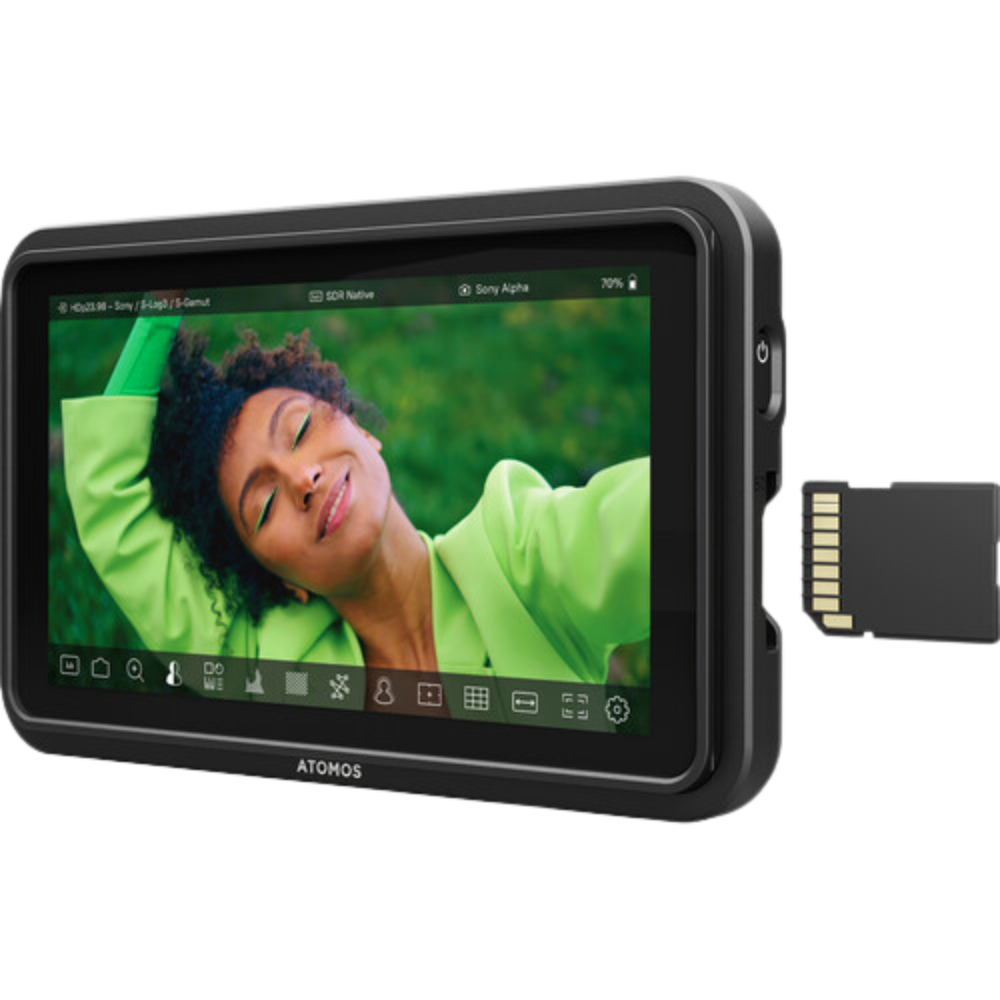

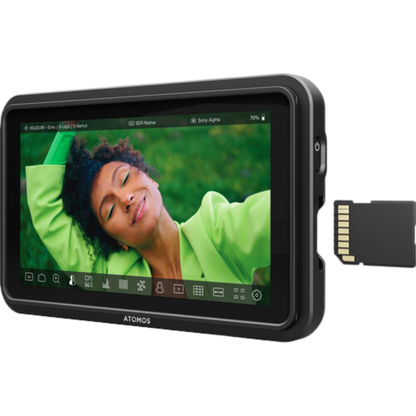

• SD Card: Update firmware & upload LUTs
• File System: FAT32, NTFS

On-Screen Tools

• MultiScope Analysis View: Image, waveform, histogram, & vectorscope
• Waveform: 3 sizes – adjustable opacity & brightness
• Histogram: 3 sizes – adjustable opacity & brightness
• RGB Parade: 3 sizes – adjustable opacity & brightness
• Vectorscope: 1 size – adjustable opacity & brightness
• 1 x Zoom: Tap to Zoom
• 2 x Zoom: Tap to Zoom
• 4 x Zoom: Tap to Zoom
• Focus Peaking: 4 modes (color, black & white, outline, edge sharpening) with adjustable outline color & peaking intensity
• Colorized Exposure: Atomos & Arri False Color, EL Zone System™
• Zebra: Adjustable threshold (50% to 105%)
• Isolate Color Channel: Blue only
• Cine Frame Guides: Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9
• Social Frame Guides: Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2
• Safe Areas: SMPTE Safe Title Area – 93% & 90%
• Grid Markers: 9 grid
• Anamorphic Desqueeze: 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x
• Display Flip: Horizontal & Vertical

External Device Control

• USB-C: Camera control for supported cameras via USB-C. Controllable functions: Record Trigger, White Balance, Shutter Speed, Shutter Angle (if supported by camera), Aperture, ISO, Camera Overlays, Record Indicator
• Serial 2.5mm Jack: Camera control for Z CAM cameras via optional USB to Serial Cable

• Shinobi II
• USB-C 2.0 cable
• HDMI + USB-C locking cable adapter
• Quick Start Guide
• Warranty: Standard 1-year or 2-years with product registration
