Atomos Shogun AV-19 Rack-Mounted Production Monitor Recorder Switcher

Atomos Shogun AV-19 Monitor Recorder Key Features

• 19-inch, 4K HDR DCI-P3 7RU rack-mounted monitor
• Record in ProRes, ProRes RAW, Avid DNx to CFexpress or external USB-C storage
• Record up to four isolated camera feeds (ISOs), plus a fifth program output
• Live multi-camera monitoring
• 2 x 12G-SDI + 2 x 3G-SDI in, 12G-SDI out, HDMI in/out with XLR audio
• Comprehensive technical monitoring tools including EL Zone™ false color, focus peaking, waveform & more
• Transmit and receive NDI® HX3 over Ethernet
• User-definable function buttons
• Log to LUT viewing, supporting 3D & .cube
• Backup recording for redundancy

Atomos Shogun AV-19 Monitor Recorder - 19-Inch Rack-Mountable 4K HDR DCI-P3 Monitor-Recorder-Switcher
19-inch 4K HDR DCI-P3 7RU rackmount monitor-recorder-switcher for professional live production and broadcast. With 4 SDI inputs, ISO recording, live multi-camera switching, NDI HX3 over Ethernet, ProRes/DNx/ProRes RAW, XLR audio, and advanced monitoring tools, it delivers a complete Monitor-Record-Switch workflow for modern studio and outside broadcast environments.

RACK MOUNT HOLES
Mounting points for standard 19-inch rack installation using compatible hardware (7 RU height)

TOUCHSCREEN CONTROL
Easy to navigate and user-friendly interface

CFEXPRESS CARD SLOT
Record 12-bit ProRes, ProRes RAW or DNx to CFexpress Type B card

19-INCH, 1200 NIT 4K HDR DISPLAY
3840 x 2160 4K UHD 100% Rec.709, 99% DCI-P3, 99% NTSC, 87% BT.2020

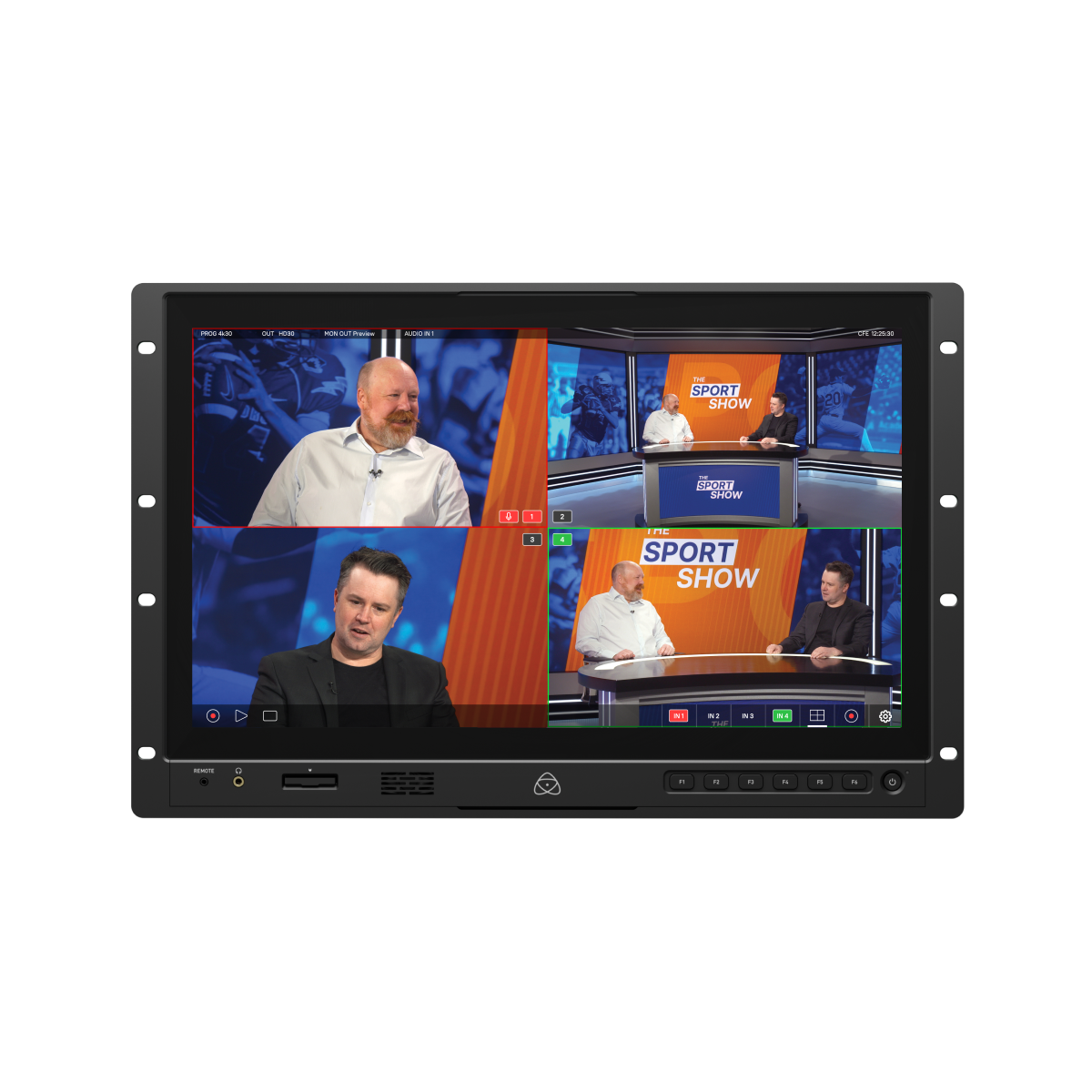

QUAD SPLIT OR FULL SCREEN
Quad-split or switch between 4 inputs

USER-DEFINED FUNCTION BUTTONS
Instant access to up to six frequently used features at the touch of a button

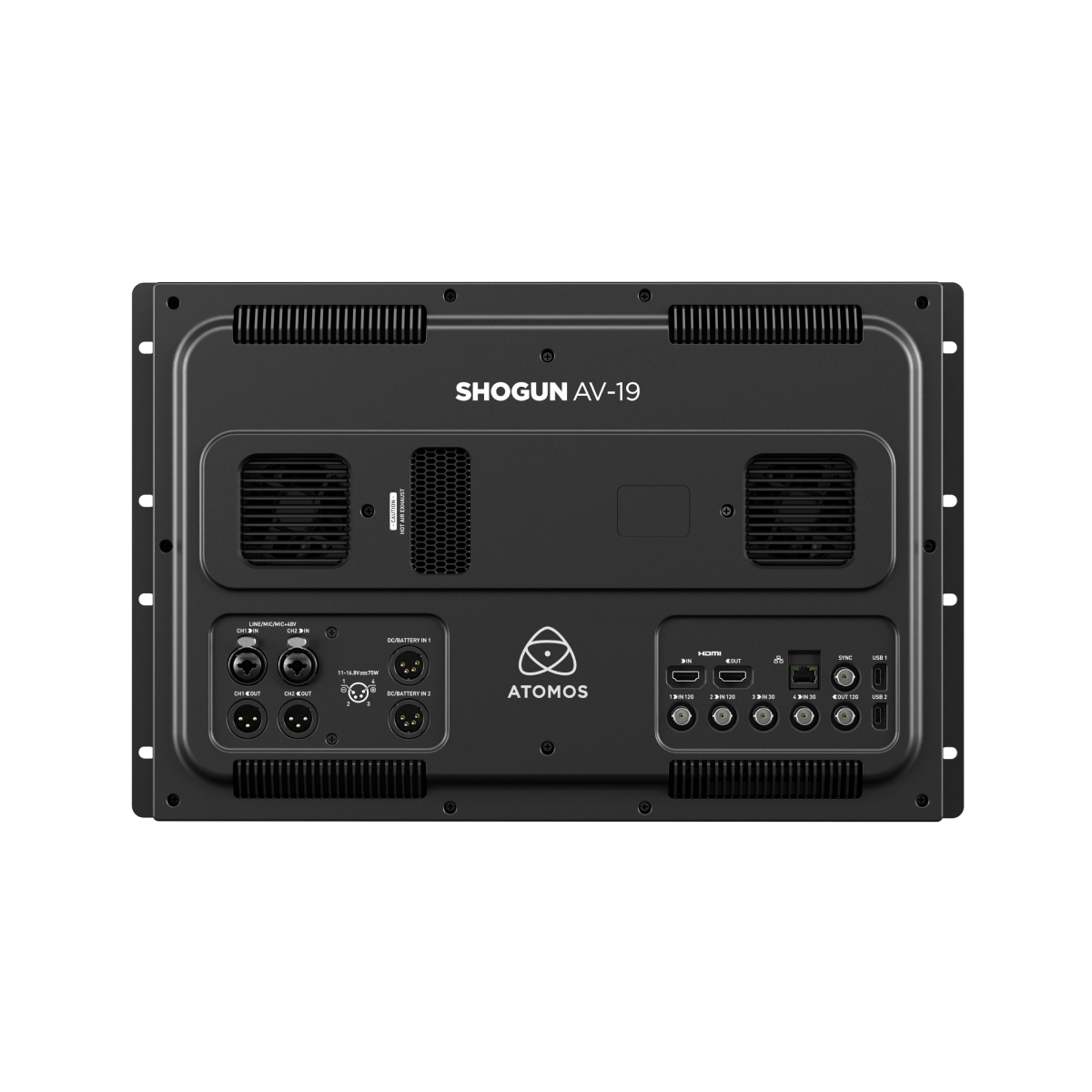

DC / BATTERY INPUTS
XLR-4 connections for DC power supply or a single V-Lock battery. Shogun AV-19 features Atomos Continuous Power technology which uses looping for uninterrupted switching between two power sources (DC and/or Battery) during use. When using a thirdparty power source, ensure GND (–) to Pin 1 and (+) to Pin 4.

AUDIO IN
XLR inputs for line-level or microphone sources, with selectable 48 V phantom power for compatible microphones.

AUDIO OUT
XLR outputs for monitoring. The audio channel routed to each output can be selected via the headphone settings in the audio menu.

HDMI IN/OUT
Supports recording up to 4Kp60. HDMI output provides live loop out or play-out when in playback mode up to 4Kp60 video.

GIGABIT ETHERNET PORT
RJ45 connector

SYNC CONNECTION
Input-only reference signal for locking internal timing to an external source during play back

USB-C PORTS
Used to attach external USB-C media. Please visit: atomos.com/shogun-av-certified for supported devices.

4K/HD-SDI IN
12G-SDI input connections, backward compatible to 6G, 3G and 1.5G signals. Supports 3G-SDI level A and B.

HD-SDI IN
3G-SDI input connections. The SDI inputs support 3G in both level A and B standards.

4K/HD-SDI OUT
Output to an external monitor or other device. Provides loop-through of the incoming SDI or HDMI signal in record and standby mode, and playback when in playback mode.

On-set monitoring
Confidently manage complex productions with a large, color-accurate 4K HDR display that’s ideal for directors, technical directors, and camera operators.

Technical & confidence monitoring
Bright, 19-inch 4K HDR display with comprehensive technical monitoring tools including EL Zone™ false color, focus peaking, waveform & more.

Live switching & routing
Live switcher capable of playing and recording up to four ISO camera feeds, for broadcasts and live events

Physical

• Dimensions (W x H x D mm): 482mm x 310mm x 60mm
• Weight: 5.22 Kg
• Mount points: 19-inch rack ears
• Rack height: 7 RU
• VESA mount: No

Environmental

• Ambient operating temperature: Up to 40 degrees Celsius

Construction

• Body: Aluminium with ABS plastic
• Cooling: Actively controlled fan and heat sink
• Touchscreen: Capacitive touch
• Tally light: LED on front only
• Multi-function buttons: Power + 6 assignable

Power

• Input voltage: DC 12V to 16.8V DC
• Operating power: 75W
• Compatible batteries: Connect to either/both DC 4-pin XLR input
• Battery voltage: 14.4V nominal
• Battery power: Single battery input via dedicated 4-pin XLR
• DC-In connector: 1 x 4-pin XLR for included DC power supply
• D-Tap: Via third-party D-Tap to 4-pin XLR cable

Display

• Size: 19-inch
• Resolution: 3840 x 2160 4K UHD
• Bit depth: 10-bit (8+2 FRC)
• Backlight type: Double Edge-Lit
• Brightness (cdm2 / Nits): 1200
• Aspect ratio: 16:9
• Color gamut: 100% Rec.709, 99% DCI-P3, 99% NTSC, 87% BT.2020
• Calibration support: Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable (ATOMCAB018, sold separately)

Color Pipeline

• Gamma: Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log
• Gamut: DCI P3, DCI P3+, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema / Panasonic V Gamut /ARRI Alexa Wide Gamut / JVC LS300. RED DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
• 3D LUT Display: .Cube format (17 & 33 points supported)
• 3D LUT Down Stream: Loop out
• 3DLUT 50/50: Yes
• Monitoring Modes: Native / HLG / PQ / 3D LUT
• HDR Output Conversion: Log / HDR to HLG / PQ

Video Input

• HDMI: 1 x HDMI (2.0) up to 4K60P
• Locking port: No
• SDI: 2 x 12G-SDI (6G/3G backwards compatible) + 2 x 3G-SDI
• Wi-Fi : No
• Bit depth: 8/10-bit for video / up to 12-bit for RAW
• Video chroma subsampling: YCbCr 4:2:0 & 4:2:2
• HDR Output Conversion: HDMI auto detection

Video Output

• HDMI: 1 x HDMI (2.0) up to 4K60P
• Locking port: No
• SDI loop through: 1 x 12G-SDI
• Wi-Fi : No
• USB: 2 x USB-C 2.0/3.0
• Bit Depth: 8/10-bit video
• Video Chroma Subsampling: 4:2:2

Metadata

• SDI: File name – ARRI & RED.RAW – white balance, exposure index, shutter speed/angle, iris/F-stop, ISO, gamma, gamut
• File naming - standard: Scene/shot/take & rolling scene/shot/take
• File naming - over SDI: Auto-matched filenames from supported ARRI & RED Cameras

Network

• Ethernet: 1 x RJ45

Connectivity

• USB: 2 x USB-C 2.0/3.0
• Bluetooth: No
• LANC: Yes

Video Signal Conversion

• HDMI to SDI: Yes
• SDI to HDMI: Yes

Audio In/Out

• Audio quality: 24-bit / 48kHz
• Audio codec: PCM
• HDMI : 8-channel, 24-bit (input dependent)
• SDI: 12-channel, 24-bit (input dependent)
• Analogue audio in: 2 x 3-pin XLR (female)
• Analogue audio out: 2 x 3-pin XLR (male)
• Speakers: Mono confidence up to 1.5W
• Headphone Out: 3.5mm headphone jack, 2-channel

Timecode

• Embedded: HDMI & SDI
• Time of day: Yes
• Reference / Genlock input: Yes (playback mode only)
• LTC : LTC via dedicated BNC input (record mode only)
• Wireless AirGlu RF Server and Client: No
• Wireless AirGlu BT Server: No

Resolution & Frame Rates (Record, Monitor & Playback)

• 6K RAW: Up to 6Kp30 via SDI
• 4K RAW: Up to 4Kp60 via SDI
• 2K RAW: Up to 2Kp240 via SDI
• 4K DCI: Up to 4Kp60
• 4K UHD: Up to UHDp60
• 2K DCI 2048 x 1080: Up to 2Kp60
• 1080p: Up to 1080p120
• 1080 PsF: Only via pulldown to progressive
• 1080i: 1080i50 / 1080i60
• 720p: Up to 720p60

Supported Media

• CF Express: Atomos certified CF Express Type B media
• USB: Atomos certified USB 3.0 media
• File System: ExFAT

Codecs

• Apple ProRes RAW: ProRes RAW, ProRes RAW HQ
• Apple ProRes: LT, 422, 422 HQ
• Avid DNxHD: DNxHD 220x, 220, 145, 36
• Avid DNxHR: LB, SQ, HQ, HQX
• H.265: LQ, MQ, HQ, XQ in 8/10-bit, 4:2:2 and 4:2:0
• H.264: Not supported

Playback

• Playlist: Yes - create customer playlists from full or sub-clips
• Loop: Yes, with user-customizable in/out markers
• Apple ProRes RAW: Yes - recorded clips
• Apple ProRes: HQ, 422, LT (linear PCM audio only)
• Avid DNx: DNxHD: 220x, 220, 145, 36 – DNxHR HQX, HQ, SQ, LB (linear PCM audio only)
• H.265: Yes

Recording

• Pre-roll : 8s HD / 2s 4K - ProRes, DNxHD only
• Timelapse: Yes
• ISO recording: 4 x ISO up to 1080p60 (3G SDI Level A & B)
• Switched program record: Yes

Multi-input Switching

• Dual input display: Via multi ISO input mode
• Multiple SDI input: Up to 4 x 1080p60 (3G SDI Level A & B)
• Multiview display: Via multi ISO input mode
• Input switching: Yes

On-screen Monitoring Tools

• Waveform: 3 sizes – adjustable opacity & brightness
• RGB parade: 3 sizes – adjustable opacity & brightness
• Vectorscope: 2 sizes – adjustable opacity & brightness
• 1 x Zoom: Yes. 1:1 pixel mapping for 4K
• 2 x Zoom: Yes
• Focus peaking: Colour selected / threshold setting / colour / mono / edges only
• Atomos False Color: Yes, with scale
• ARRI False Color: Yes
• EL Zone False Colour: Yes
• Zebra: Yes, adjustable
• Isolate color channel: Blue Only
• Cine Frame Guides: Presets for 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
• Social Frame guides: Presets for 9:16, 1:1, 191:1, 4:5
• Onion Skin: Yes
• Safe areas: Action and graphic
• Grid markers: 9 grid
• Anamorphic desqueeze: 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x
• Display Flip: Vertical only

Onboard Signal Processing

• 4K UHD downscale for HD : Loop out - 4K UHD to FHD
• DCI Crop: Loop out - 17:9 to 16:9 crop
• Pulldown removal: 24 / 25 / 30 pSF > 24 / 25 / 30p (2:2 pulldown), 60i > 24p (3:2 pulldown)

Remote Control

• HDMI: Auto HDMI trigger, supported protocols - Canon, Sony, Atomos
• SDI: SDI trigger camera selectable
• Serial 2.5mm jack: Calibration via optional USB to serial cable

Accessories

• AC to DC Power Adaptor: Yes, sold separately (ATOMPWR024)
• Sun Hood: No

Camera to Cloud

• ATOMOSphere: Direct progressive upload supported (20GB free storage) over Ethernet
• Adobe Frame.io: Direct progressive upload supported (separate purchase) over Ethernet
• Dropbox: Direct progressive upload supported (separate purchase) over Ethernet

• Shogun AV-19 monitor-recorder-switcher
• 4-pin XLR power supply
• 5 x international IEC power cables,
• Rack nuts and bolts (x10)
• Screen cloth
• Quick Start Guide
• Warranty: 1 year. Extended to 2 years on product registration (excludes screen)
