Atomos Shogun AV-19M 19-inch 4K HDR Rackmount Monitor

Atomos Shogun AV-19M 19-inch 4K HDR Rackmount Monitor

The Atomos Shogun AV-19M is a professional 19-inch 4K HDR rackmount touchscreen monitor designed for live production, broadcast, studio, and on-location video workflows. It combines NDI® HX3, 12G-SDI, and HDMI connectivity with accurate HDR monitoring and professional image-analysis tools.

Built as a dedicated monitoring solution, the Shogun AV-19M is ideal for control rooms, production galleries, OB vehicles, video villages, studios, flypacks, and live events where operators, directors, DITs, and production teams need a large, accurate view of their video sources.

Key Features

• 19-inch 4K HDR DCI-P3 touchscreen display
• Hybrid NDI®, SDI, and HDMI video monitoring
• NDI HX3 over Ethernet for high-quality, low-latency IP video
• View one NDI source full-screen or up to four NDI sources in quad-view
• Monitor a single 12G-SDI or HDMI source full-screen
• 1 x 12G-SDI input and 1 x 12G-SDI output
• 1 x HDMI input and 1 x HDMI output supporting up to 4Kp60
• Professional XLR audio output
• EL Zone™ and ARRI false color
• Focus peaking, waveform, RGB parade, vectorscope, zebras, and more
• 3D and 1D LUT support with custom .cube LUT compatibility
• User-definable buttons for quick access to frequently used functions
• Professional calibration support through the Atomos Calibrator app
• Rack-ready construction for permanent or portable installations
• Optional custom flypack available separately

Dedicated 4K HDR Production Monitoring

The Shogun AV-19M focuses on professional monitoring without integrated recording or live switching. As a result, it provides a streamlined solution for productions that already have established recording and switching equipment.

Its bright 19-inch 4K HDR DCI-P3 touchscreen provides a detailed, large-format view for evaluating focus, exposure, color, and framing. In addition, the rugged rackmount design makes it suitable for broadcast studios, control rooms, OB vehicles, video villages, and portable production systems.

NDI HX3, SDI, and HDMI Connectivity

The Shogun AV-19M supports both traditional and IP-based video production workflows. 12G-SDI and HDMI connections provide compatibility with conventional professional video equipment, while NDI HX3 over Ethernet enables flexible monitoring of networked video sources.

With NDI HX3, production teams can receive high-quality, low-latency video over a standard Ethernet network. This makes the Shogun AV-19M a flexible choice for modern IP video and NDI production environments.

NDI Quad-View Monitoring

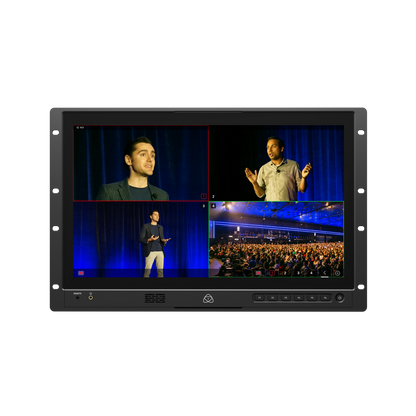

The Shogun AV-19M can display one NDI HX3 source full-screen or combine up to four NDI sources in a quad-view layout.

This gives operators and production teams an easy way to monitor multiple networked video feeds from a single 19-inch display. Therefore, it can provide a convenient monitoring solution without requiring a separate multiview system for supported workflows.

Professional Video Monitoring Tools

The Shogun AV-19M includes a comprehensive collection of tools for evaluating focus, exposure, color, and framing.

Monitoring features include:

• Focus peaking
• Zoom
• Zebras
• EL Zone™ false color
• ARRI false color
• Frame guides
• SMPTE safe areas
• Grid markers
• Waveform
• RGB parade
• Vectorscope
• 3D LUT support
• 1D LUT support
• Custom .cube LUT loading

The monitor can accept Log signals and provide real-time LUT previews to help approximate the final graded image in Rec.709. Custom LUT files can also be loaded from compatible media for more precise image evaluation.

Customizable Function Buttons

User-definable function buttons provide quick access to up to six frequently used features. Operators can assign functions such as monitoring tools, playback modes, LUTs, and anamorphic desqueeze.

As a result, the Shogun AV-19M can be configured around the needs of individual production workflows while providing fast access to essential monitoring controls.

Accurate HDR and Rec.709 Monitoring

The Shogun AV-19M supports professional display calibration using Calibrite Display Pro HL and Plus HL probes through the Atomos Calibrator app. The required Atomos calibration cable, ATOMCAB018, is sold separately.

Professional calibration helps maintain consistent and accurate HDR and Rec.709 monitoring, making it easier for production teams to evaluate images with confidence.

Professional Audio Monitoring

The Shogun AV-19M can monitor audio embedded within SDI, HDMI, or NDI video sources. On-screen audio meters, built-in speakers, and headphone monitoring provide convenient options for checking audio during production.

In addition, XLR audio connectivity allows the monitor to connect with established professional audio monitoring workflows.

Built for Broadcast, Studio, and Live Production

The Shogun AV-19M is designed for professional environments where large-format video monitoring is essential.

Live Events:
Use the 19-inch 4K HDR display as a dedicated monitor for live production, providing operators and directors with a clear view of SDI, HDMI, or NDI sources.

Broadcast and Control Rooms:
The rack-ready design makes the Shogun AV-19M well suited for production galleries, control rooms, and other permanent broadcast installations.

On Set:
Directors, DITs, camera crews, and clients can use the large touchscreen to evaluate focus, exposure, color, and framing.

Video Villages:
The bright 19-inch display provides a shared viewing station for production teams while SDI, HDMI, and NDI connectivity supports a variety of camera and networked video sources.

Portable Production:
The rackmount construction also makes the Shogun AV-19M suitable for portable flypacks and location-based production systems.

Comprehensive Production Connectivity

The Shogun AV-19M provides professional connectivity for modern video production workflows:

• Audio: XLR audio output for external monitoring
• Power: 4-pin XLR DC power input; single-battery operation available separately
• HDMI: HDMI input and output supporting up to 4Kp60
• SDI: 12G-SDI input and output with 6G/3G-SDI backward compatibility
• Networking: RJ45 Ethernet connection for NDI HX3 IP workflows
• USB: Two USB-C ports for compatible media, firmware updates, and LUT workflows

A Professional 19-inch 4K HDR Monitoring Solution

With 4K HDR DCI-P3 display quality, NDI HX3, 12G-SDI, HDMI, quad-view monitoring, professional scopes, LUT support, and rack-ready construction, the Shogun AV-19M provides a flexible monitoring solution for professional video production.

Whether installed in a broadcast control room, studio, OB vehicle, video village, flypack, or live event system, the Shogun AV-19M gives production teams a large, accurate touchscreen display for monitoring critical video sources.

Physical

• Dimensions (W x H x D mm): 482mm x 310mm x 60mm
• Weight: 5.22 Kg
• Mounting Points: 19-inch rack ears
• Rack height: 7 RU
• VESA Mount: No
• Ambient Operating Temperature: Up to 40 degrees Celsius

Construction

• Body: Aluminium with ABS plastic
• Cooling: Actively controlled fan and heat sink
• Touchscreen: Capacitive touch
• Tally Light: LED on front only
• Multi-Function Buttons: Power + 6 assignable

Power

• Input voltage: DC 12V to 16.8V DC
• Operating Power: 75W
• Compatible Batteries: Connect to either/both DC 4-pin XLR input
• Battery Voltage: 14.4V nominal
• Battery Power: Single battery input via dedicated 4-pin XLR
• DC-In Connector: 1 x 4-pin XLR for included DC power supply
• D-Tap: Via third-party D-Tap to 4-pin XLR cable

Display

• Size: 19-inch
• Resolution: 3840 x 2160 4K UHD
• Bit Depth: 10-bit (8+2 FRC)
• Backlight Type: Double Edge-Lit
• Brightness (cd/m²/ nits): 1200
• Aspect Ratio: 16:9
• Color Gamut: 100% Rec.709, 99% DCI-P3, 99% NTSC, 87% BT.2020
• Calibration Support: Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable (ATOMCAB018, sold separately)

Color Pipeline

• Gamma: Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log
• Gamut: DCI P3, DCI P3+, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema / Panasonic V Gamut /ARRI Alexa Wide Gamut / JVC LS300. RED DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
• 3D LUT Display: .Cube format (17 & 33 points supported)
• 3D LUT Down Stream: Loop out
• 3DLUT 50/50: Yes
• Monitoring Modes: Native / HLG / PQ / 3D LUT
• HDR Output Conversion: Log / HDR to HLG / PQ

Video Input

• HDMI: 1 x HDMI (2.0) up to 4K60P
• Locking port: Yes
• SDI: 1 x 12G-SDI (6G/3G backwards compatible)
• Wi-Fi: No
• Bit Depth: 8/10-bit for video
• Video Chroma Subsampling: YCbCr 4:2:0 & 4:2:2
• HDR Output Conversion: HDMI auto detection
• Ethernet: via NDI HX protocol

Video Output

• HDMI: 1 x HDMI (2.0) up to 4K60P
• Locking port: No
• SDI loop through: 1 x 12G-SDI
• Wi-Fi: No
• Bit Depth: 8/10-bit video
• Video Chroma Subsampling: 4:2:2

Network

• Ethernet: 1 x RJ45

Connectivity

• USB: 2 x USB-C 2.0/3.0
• Bluetooth: No
• LANC: Yes

Video Signal Conversion

• HDMI to SDI: Yes
• SDI to HDMI: Yes

Audio Out

• Audio Quality: 24-bit / 48kHz
• Audio Codec: PCM
• HDMI: 8-channel, 24-bit (input dependent)
• SDI: 12-channel, 24-bit (input dependent)
• Analog Audio Out: 2 x 3-pin XLR (male)
• Speakers: Mono confidence up to 1.5W
• Headphone Out: 3.5mm headphone jack, 2-channel

Timecode

• Embedded: HDMI & SDI
• Time of Day: Yes
• Wireless AirGlu RF Server and Client: No
• Wireless AirGlu BT Server: No

Resolution and Frame Rates (Monitor only)

• 4K DCI: Up to 4Kp60
• 4K UHD: Up to UHDp60
• 2K DCI 2048 x 1080: Up to 2Kp60
• 1080p: Up to 1080p120
• 1080 PsF: Only via pulldown to progressive
• 1080i: 1080i50 / 1080i60
• 720p: Up to 720p60

Supported Media

• USB: Atomos certified USB 3.0 media
• File System: ExFAT

Multi-input Switching

• Quad-view display: NDI HX3 only
• Input switching: Yes, NDI HX3 only

On-screen Monitoring Tools

• Waveform: 3 sizes – adjustable opacity & brightness
• RGB parade: 3 sizes – adjustable opacity & brightness
• Vectorscope: 2 sizes – adjustable opacity & brightness
• 2 x Zoom: Yes
• Focus Peaking: Color selected / threshold setting / color / mono / edges only
• Atomos False Color: Yes, with scale
• ARRI False Color: Yes
• EL Zone False Color: Yes
• Zebra: Yes, adjustable
• Isolate Color Channel: Blue Only
• Cine Frame Guides: Presets for 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
• Social Frame guides: Presets for 9:16, 1:1, 191:1, 4:5
• Onion Skin: Yes
• Safe Areas: Action and graphic
• Grid Markers: 9 grid
• Anamorphic Desqueeze: 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x
• Display Flip: Vertical only

Onboard Signal Processing

• 4K UHD downscale for HD: Loop out - 4K UHD to FHD
• DCI Crop: Loop out - 17:9 to 16:9 crop
• Pulldown removal: 24 / 25 / 30 pSF > 24 / 25 / 30p (2:2 pulldown), 60i > 24p (3:2 pulldown)

Accessories

• AC to DC Power Adaptor: Yes, sold separately (ATOMPWR024)
• Sun Hood: No

• Atomos AV-19M 19" Shogun Rackmount 4K HDR Monitor
• 4-Pin XLR Power Supply
• IEC Power Cable Kit (5 International Plugs)
• 10 x Rackmount Nut
• 10 x Rackmount Bolt
• Cleaning Cloth
• Warranty: Limited 1-Year Manufacturer Warranty. Registration Extension: 1-Year
