Description

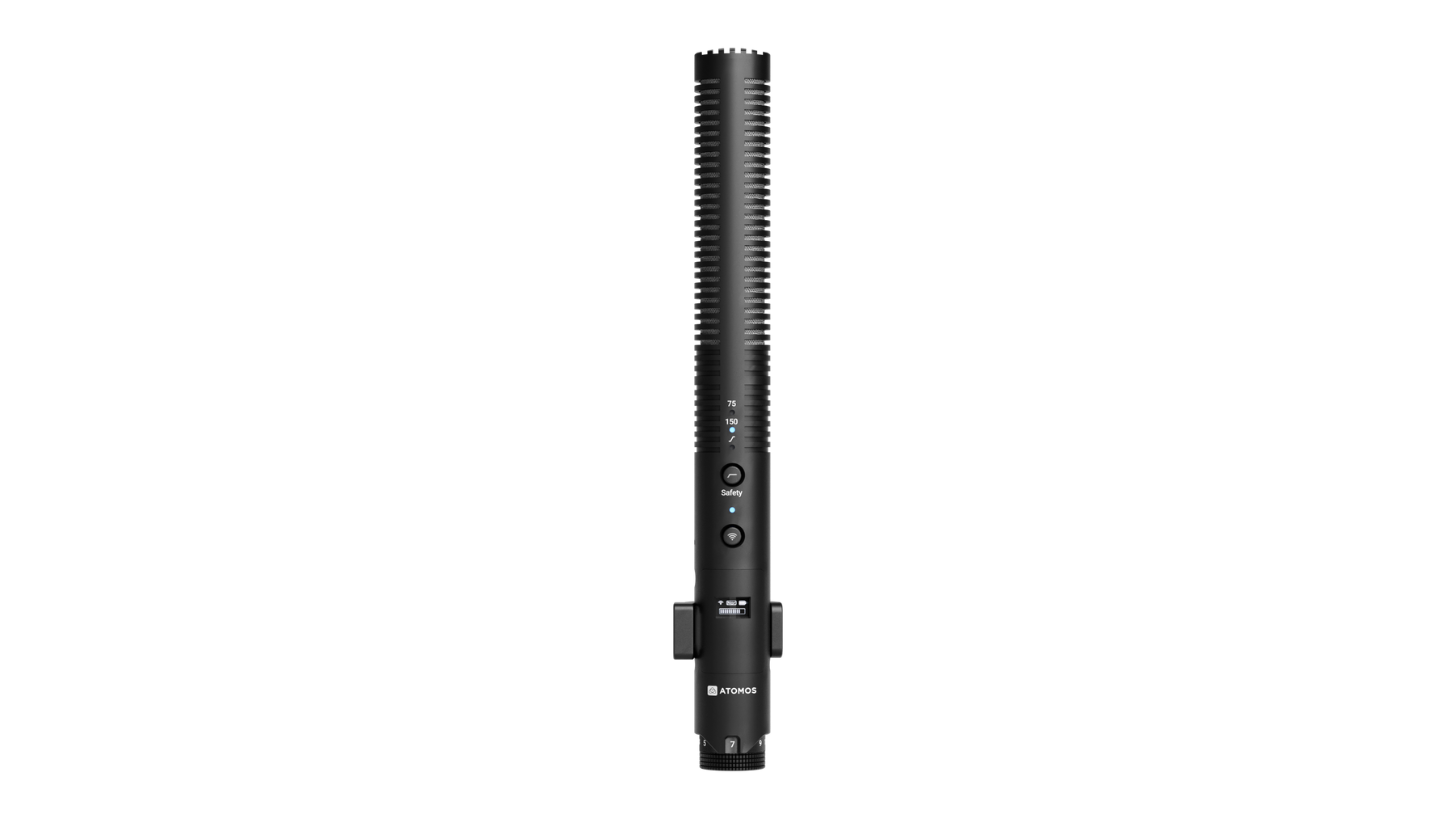

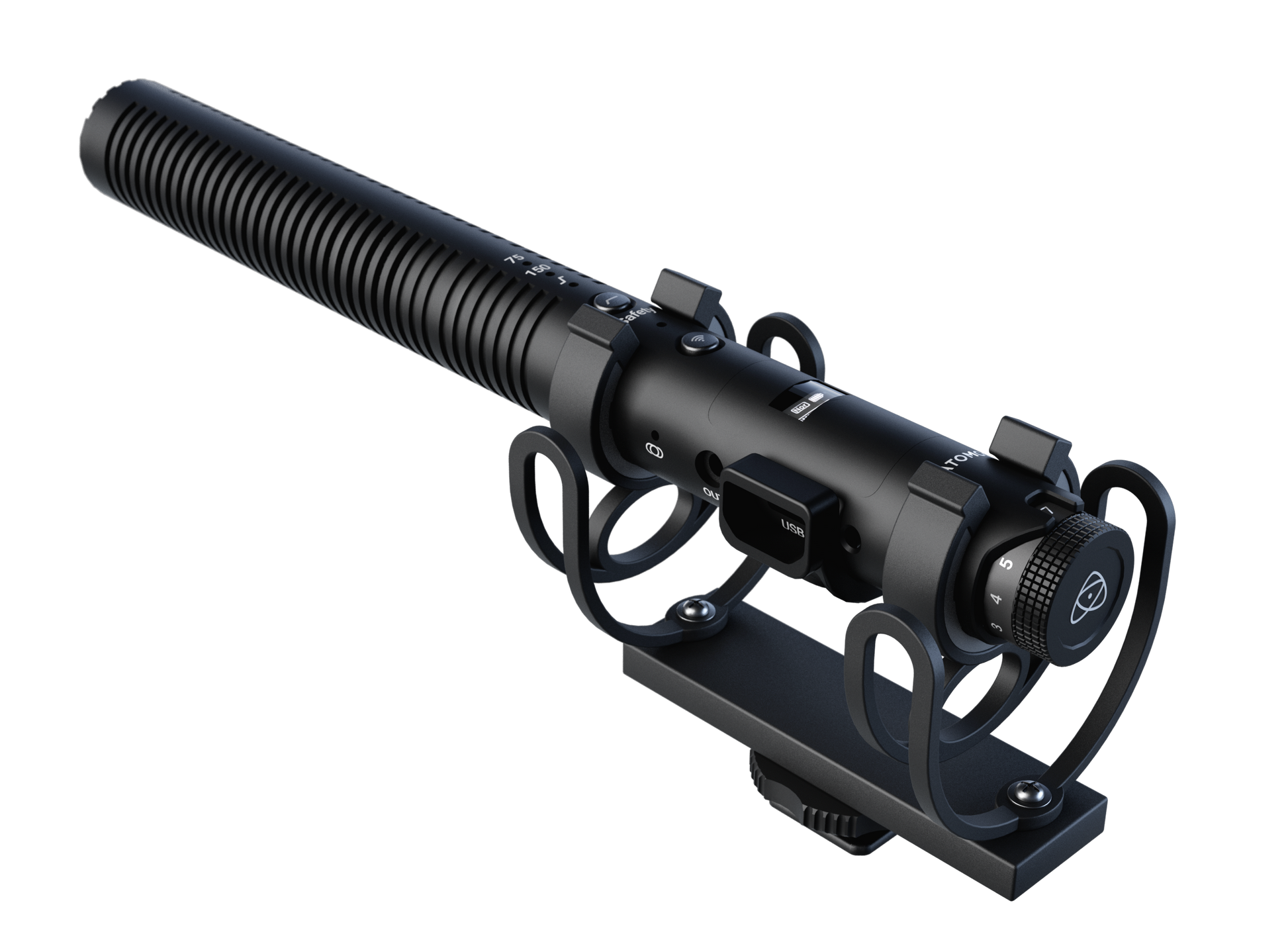

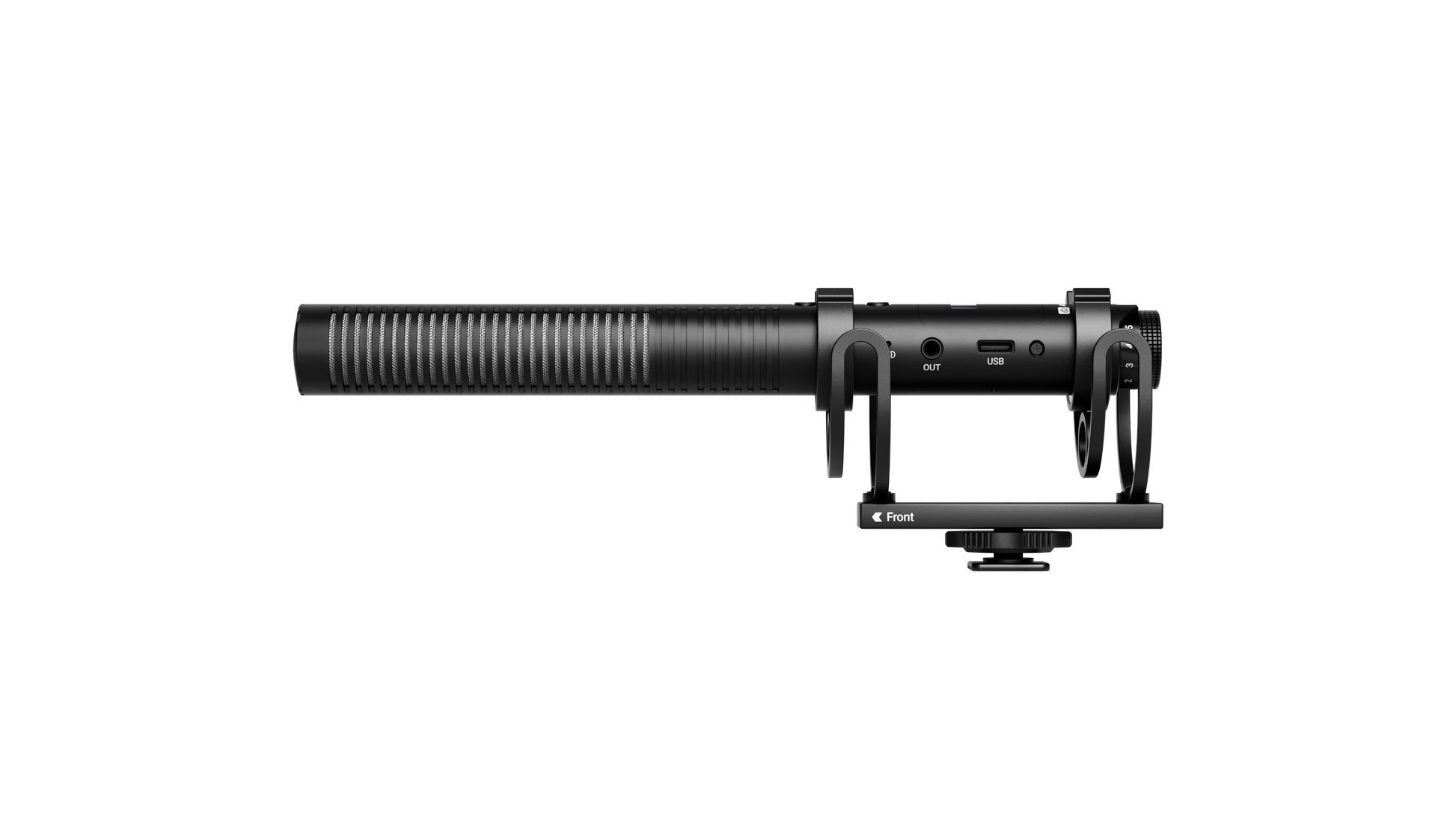

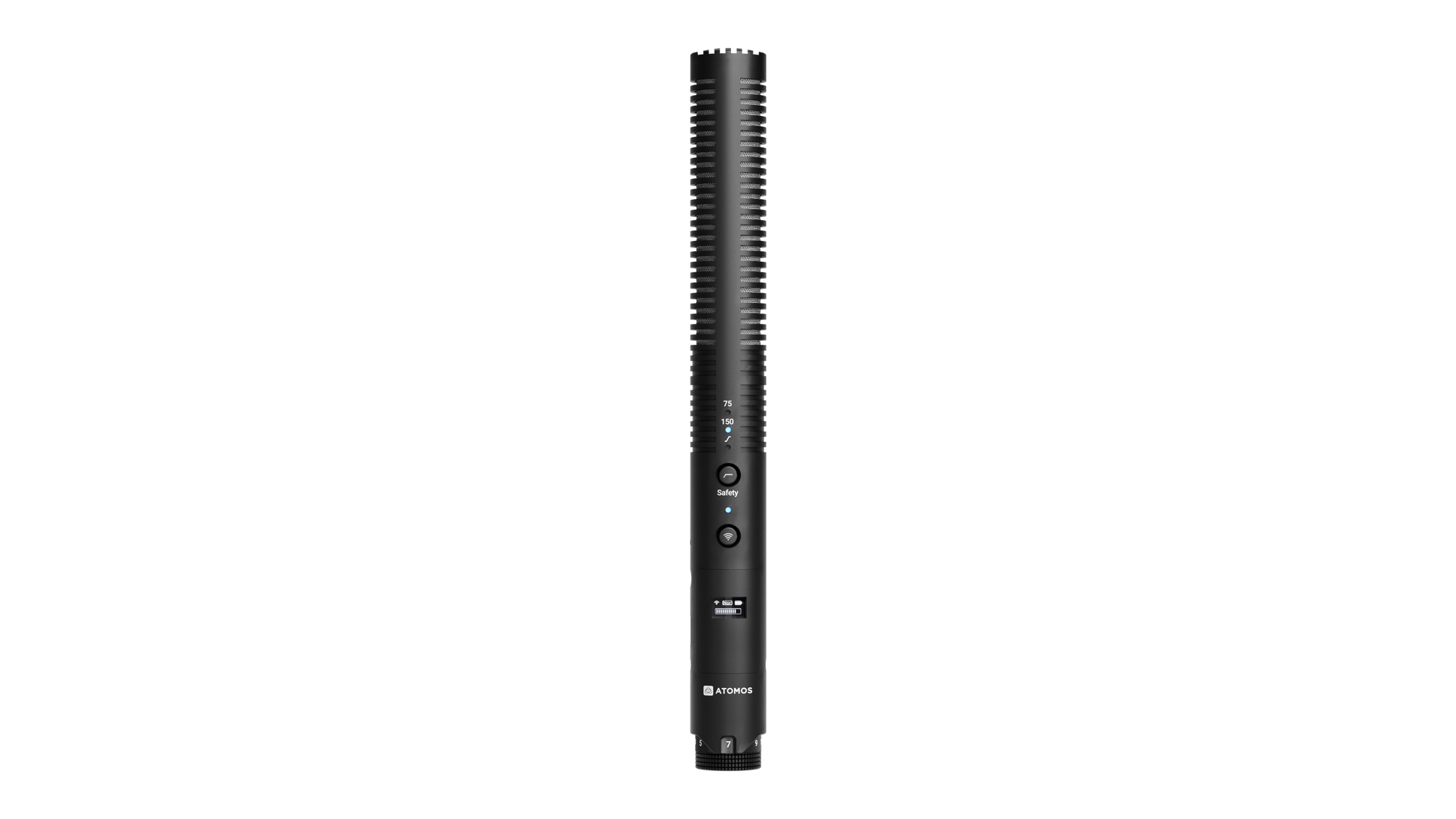

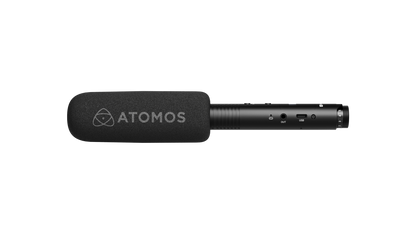

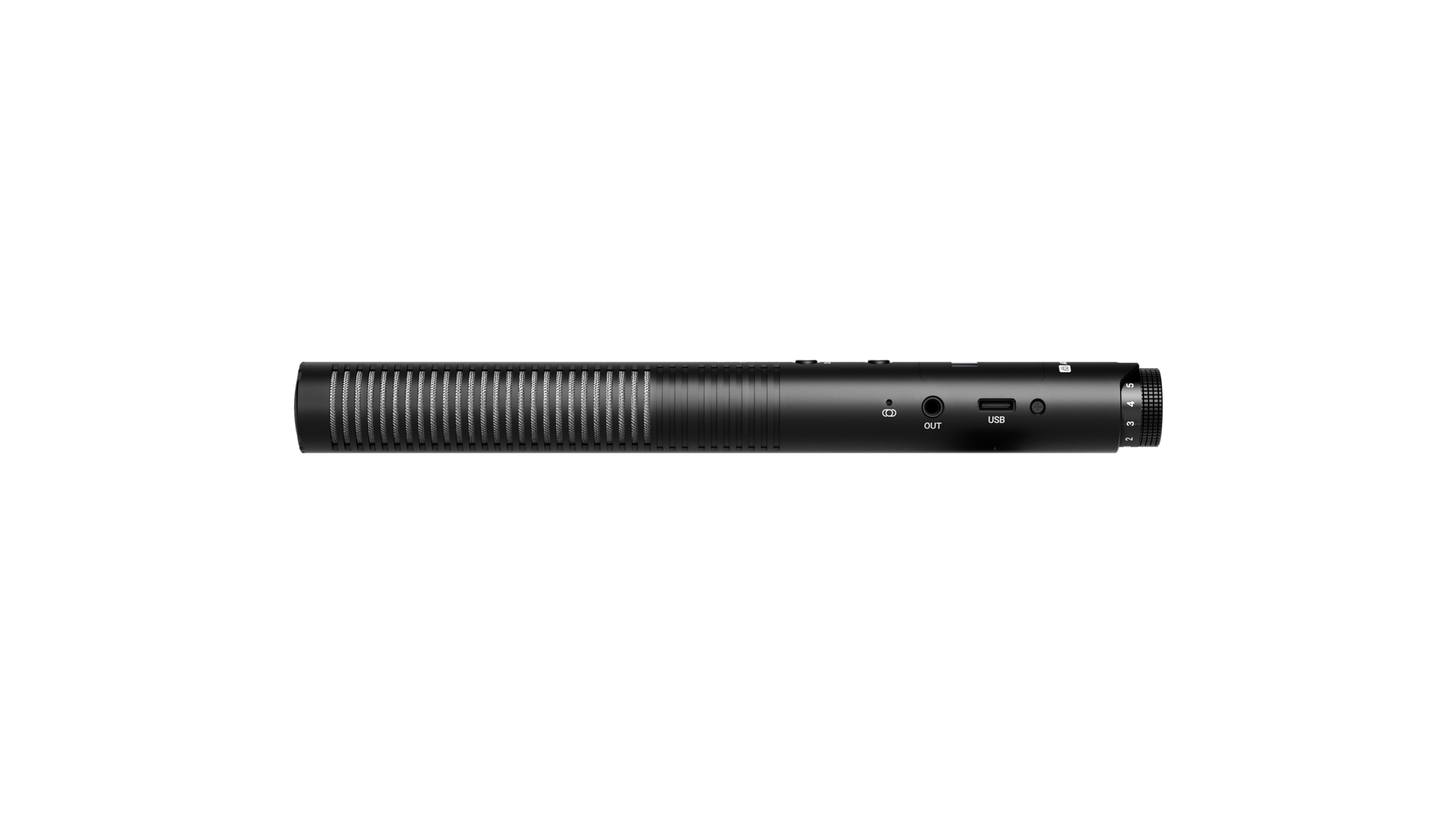

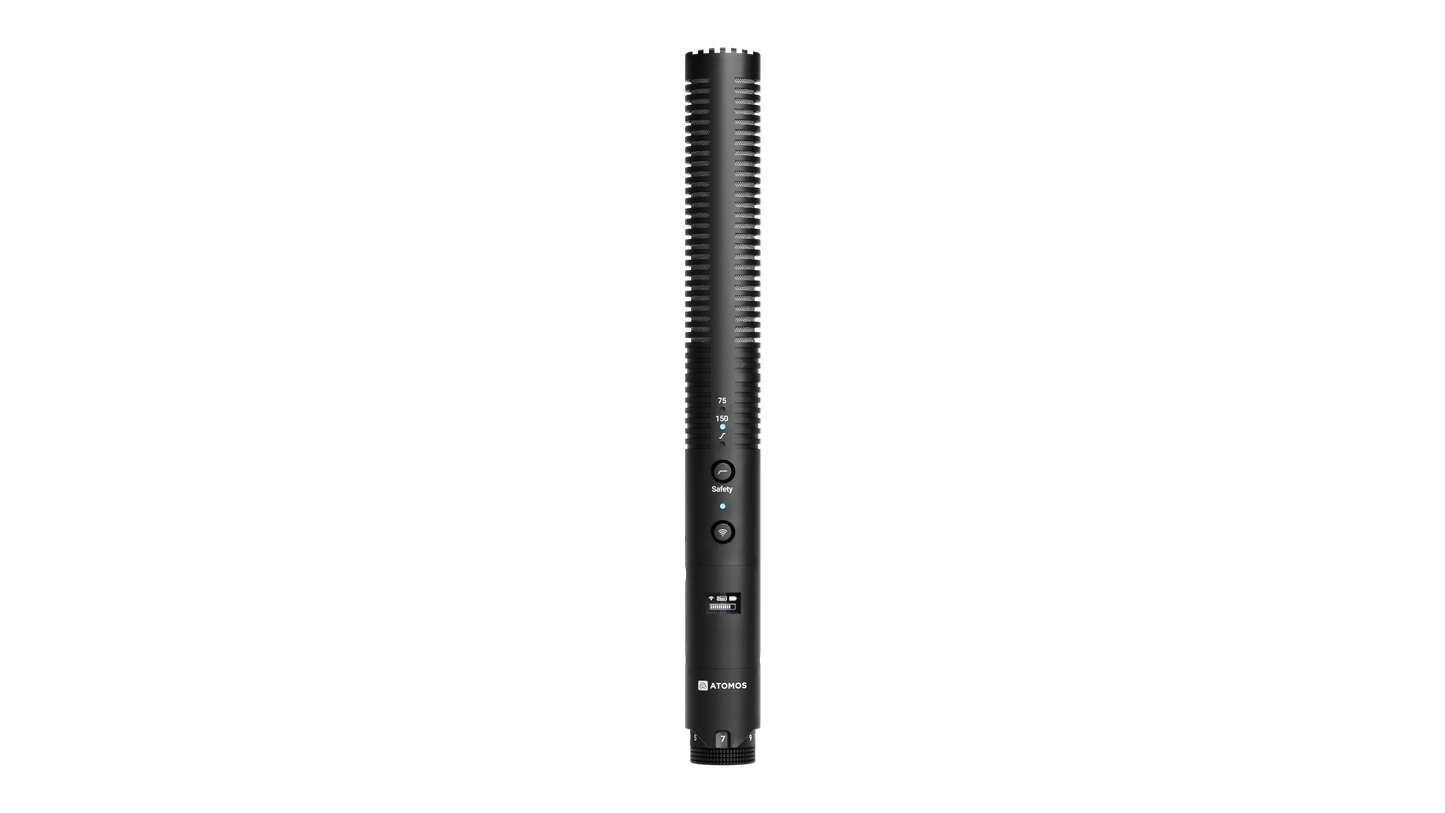

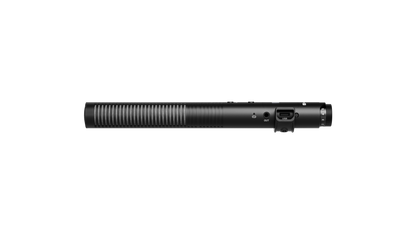

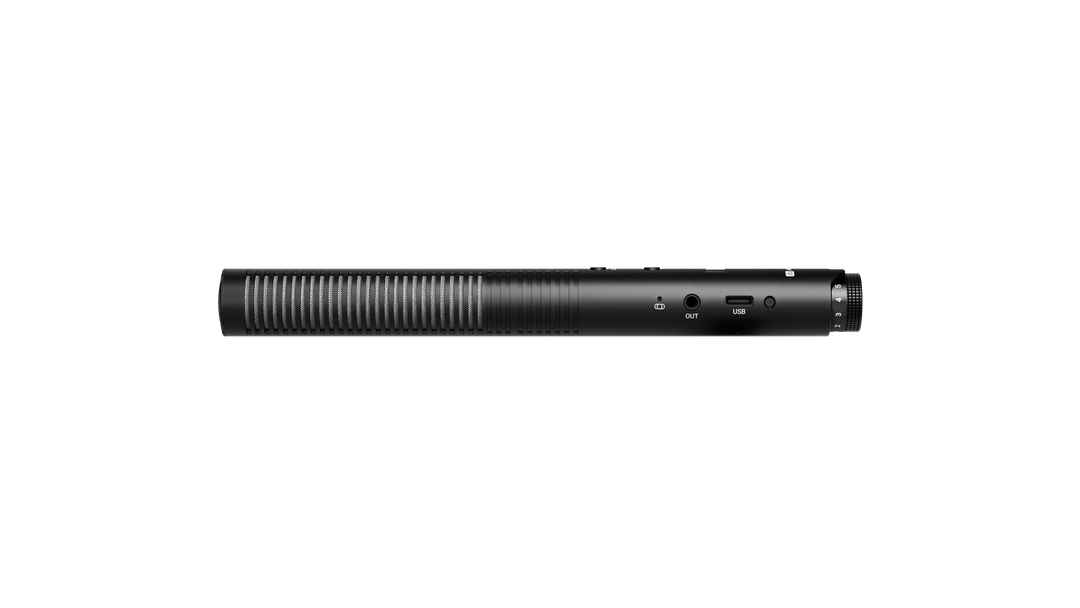

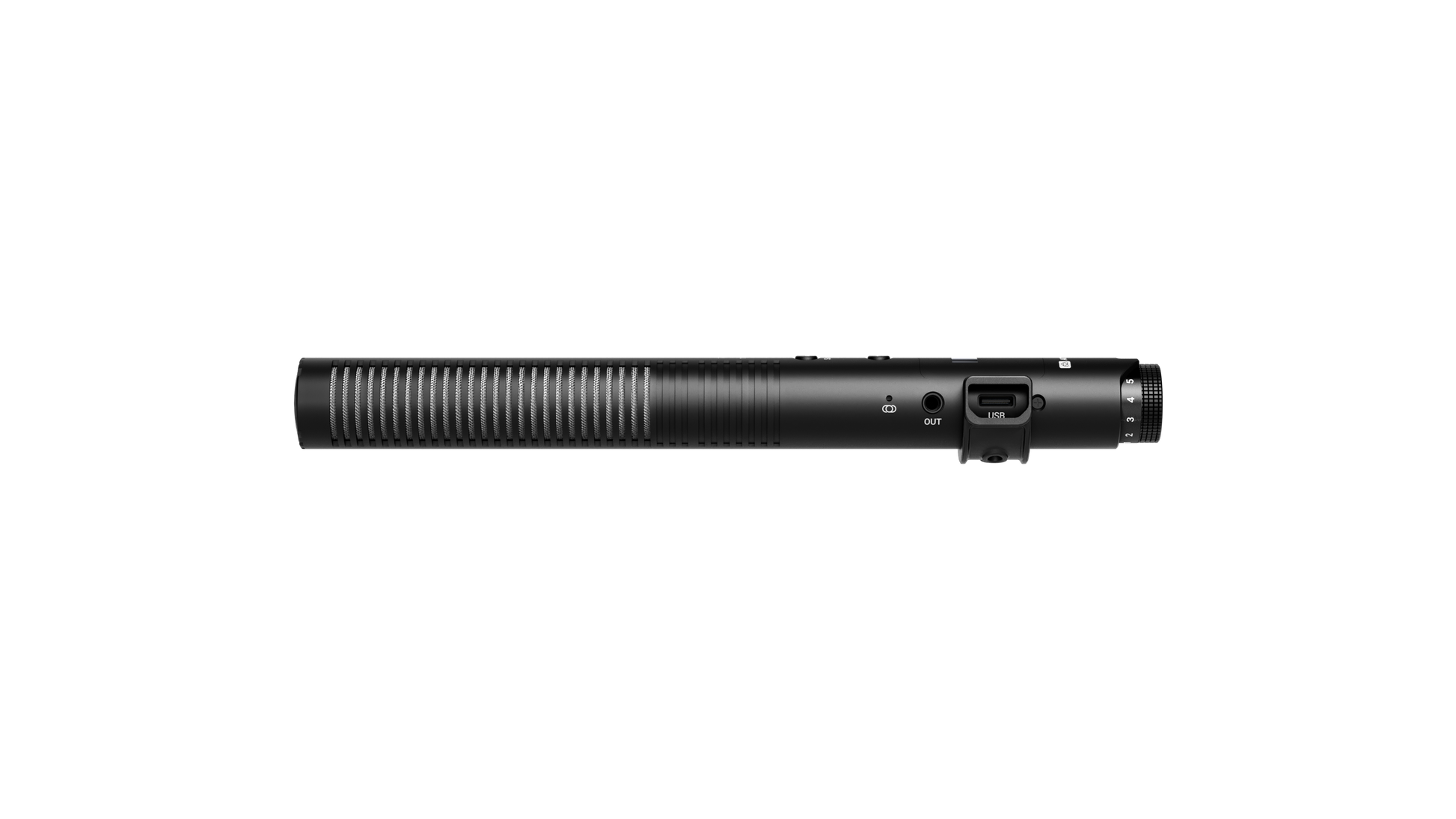

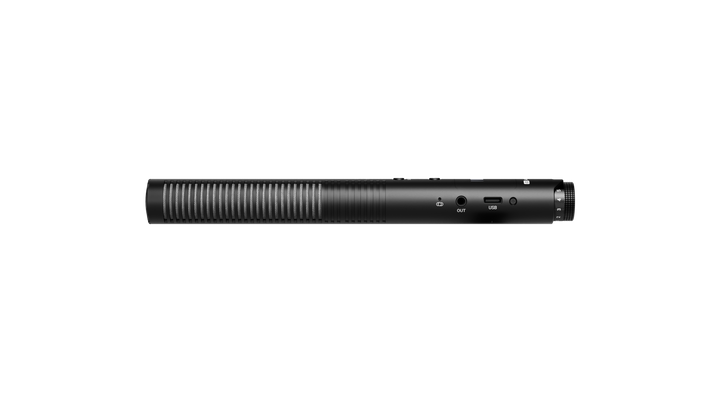

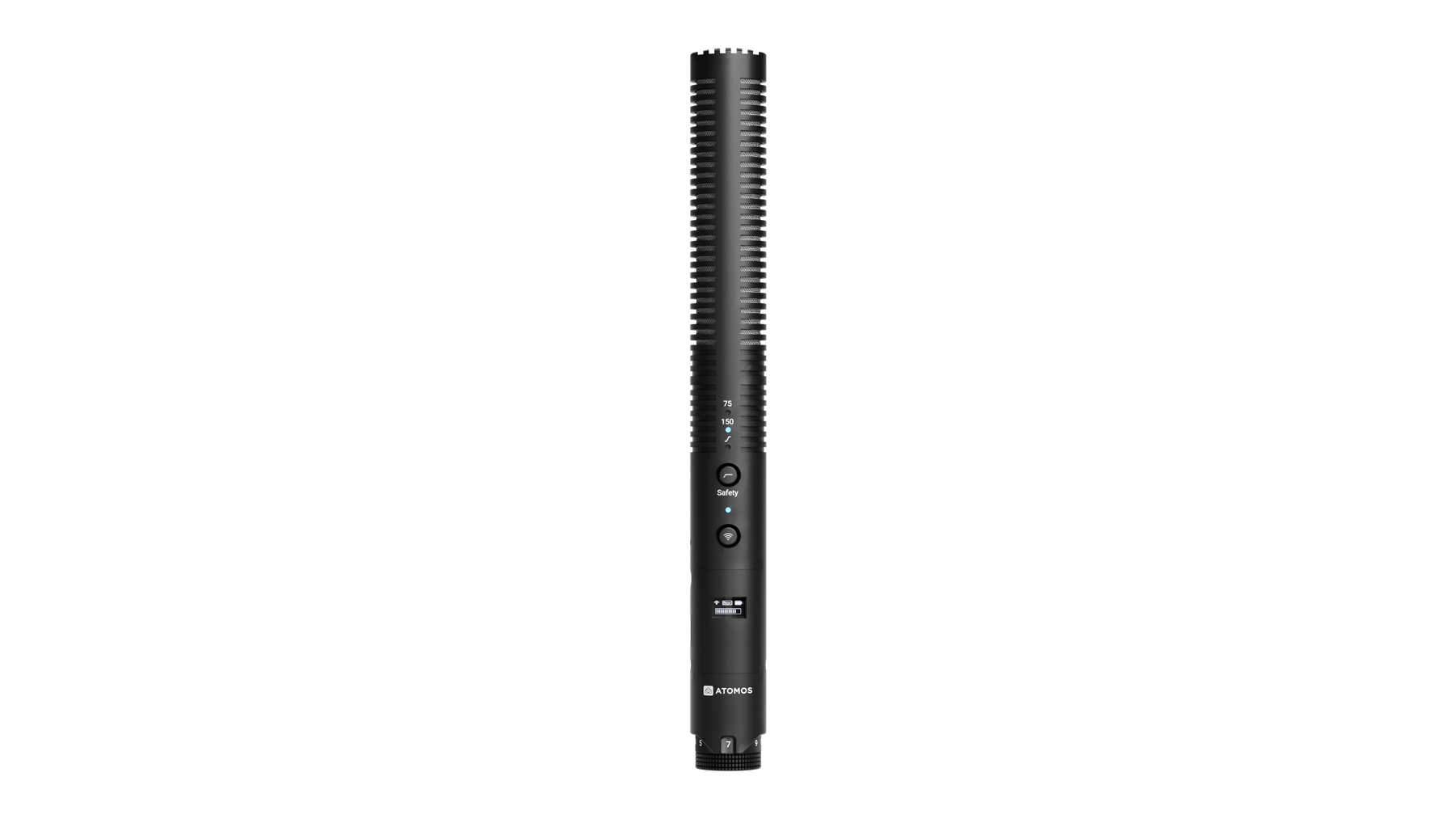

Professional-grade wireless/wired shotgun microphone with locking USB-C and full broadcast feature set. Its dual-mode design offers the flexibility to operate wirelessly over 2.4GHz or via a direct USB-C digital audio connection to ensure a secure, professional-grade link to cameras, monitors, and computers. The StudioSonic Shotgun Mic caters for a diverse range of scenarios, including on-location interviews, run-and-gun shooting, field reporting, and capturing unscripted dialog. Its high quality 48kHz/24-bit super cardioid design isolates voices with precision, even in noisy environments.
Key Features
- Dual Wireless/Wired Modes: instantly switch between wireless (2.4GHz) and wired (USB-C or 3.5mm analog) with a one-touch toggle
- Broadcast-grade Audio: super cardioid condenser capsule with 48kHz/24-bit resolution delivers focused, isolated vocal capture—even in noisy environments
- Advanced Filtering: built-in 75Hz and 150Hz cut filters, high-frequency boost, and manual gain control

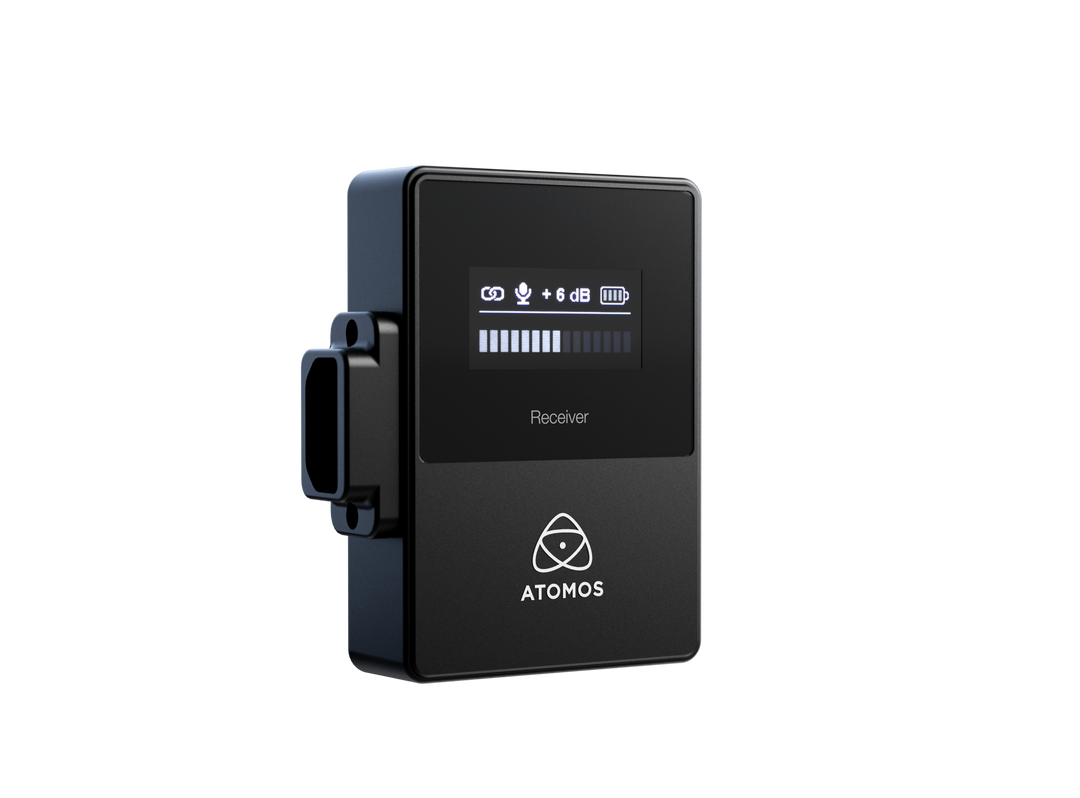

- OLED Status Display: real-time visual feedback for gain levels, filter modes, battery status, and more
- Exceptional Battery Life: up to 8 hours in wireless mode, and up to 50 hours wired
- Ultra-low Latency: <20ms with wireless range up to 100 meters (open area)
Specifications
- Dimensions: Transmitter: Φ22mm x L224mm, Receiver: 54mm x 48mm x 22mm
- Weight: Transmitter: 94gms, Receiver: 29.5gms
- Ambient operating temperature: Up to 40 degrees Celsius
- Body: Aluminium alloy (mic); ABS (receiver)
- Battery: Transmitter: Li-polymer 3.7V 350mAh; Receiver: Li-polymer 3.7V 330mAh
- Battery life: Transmitter: Wired mode 32-50 hours; wireless mode 8-10 hours; on-board recording mode 5 hours. Receiver: 8 hours
- Frequency: 2.4GHz
- Transmitting Power: +10dBm
- Receiving Sensitivity: -96dBm
- Antenna: Ceramic
- Sound Delay: <20ms
- Polar Pattern: Super cardioid
- Frequency Response: 20Hz ~ 20kHz
- Low-cut: -3dB @ 100Hz
- High-frequency Boost: +3dB @ 10kHz
- Output Impedance: 600Ω
- Sensitivity : -38dB ~ -18dB re 1V/Pa (12mv ~ 125mv @ 94dB SPL) ±2dB @ 1kHz
- S/N: 75dB SPL (A-weighted, as per IEC651)
- Equivalent Noise: 19dB SPL (A-weighted, as per IEC651)
- Maximum SPL: 130dB SPL(@ 1% THD)
- Dynamic Range: 111dB SPL (A-weighted, as per IEC651)
- Analog Output: 3.5mm TRRS/TRS
- Digital Output: USB-C 48kHz/24-bit
What's Included

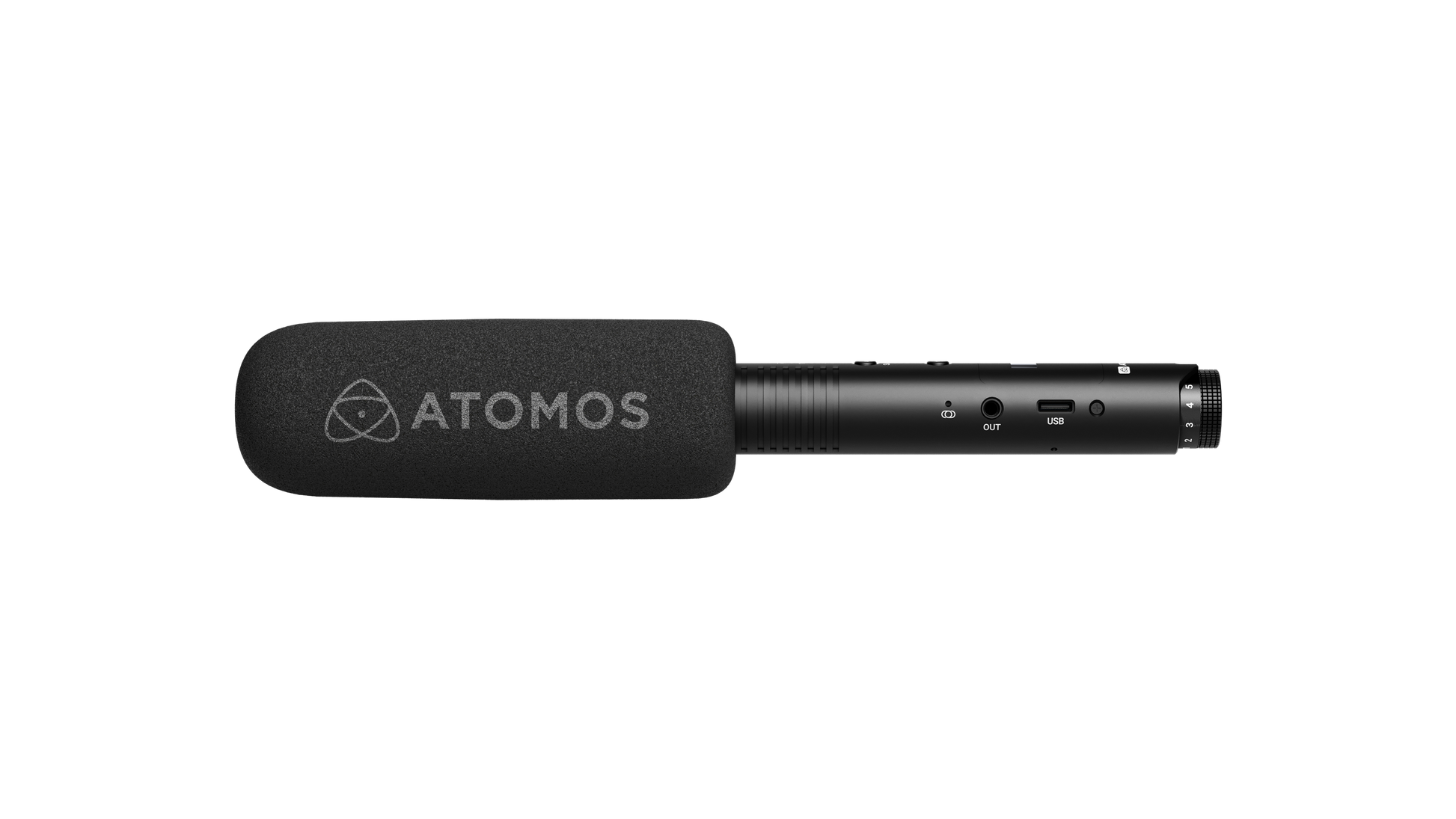

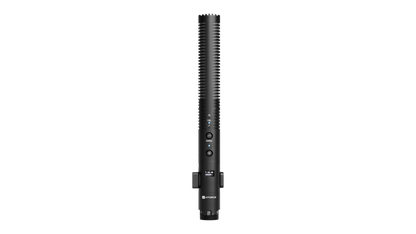

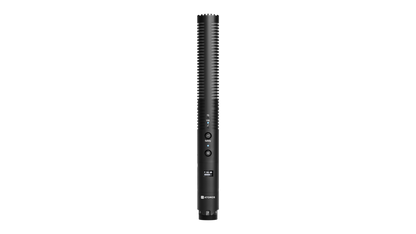

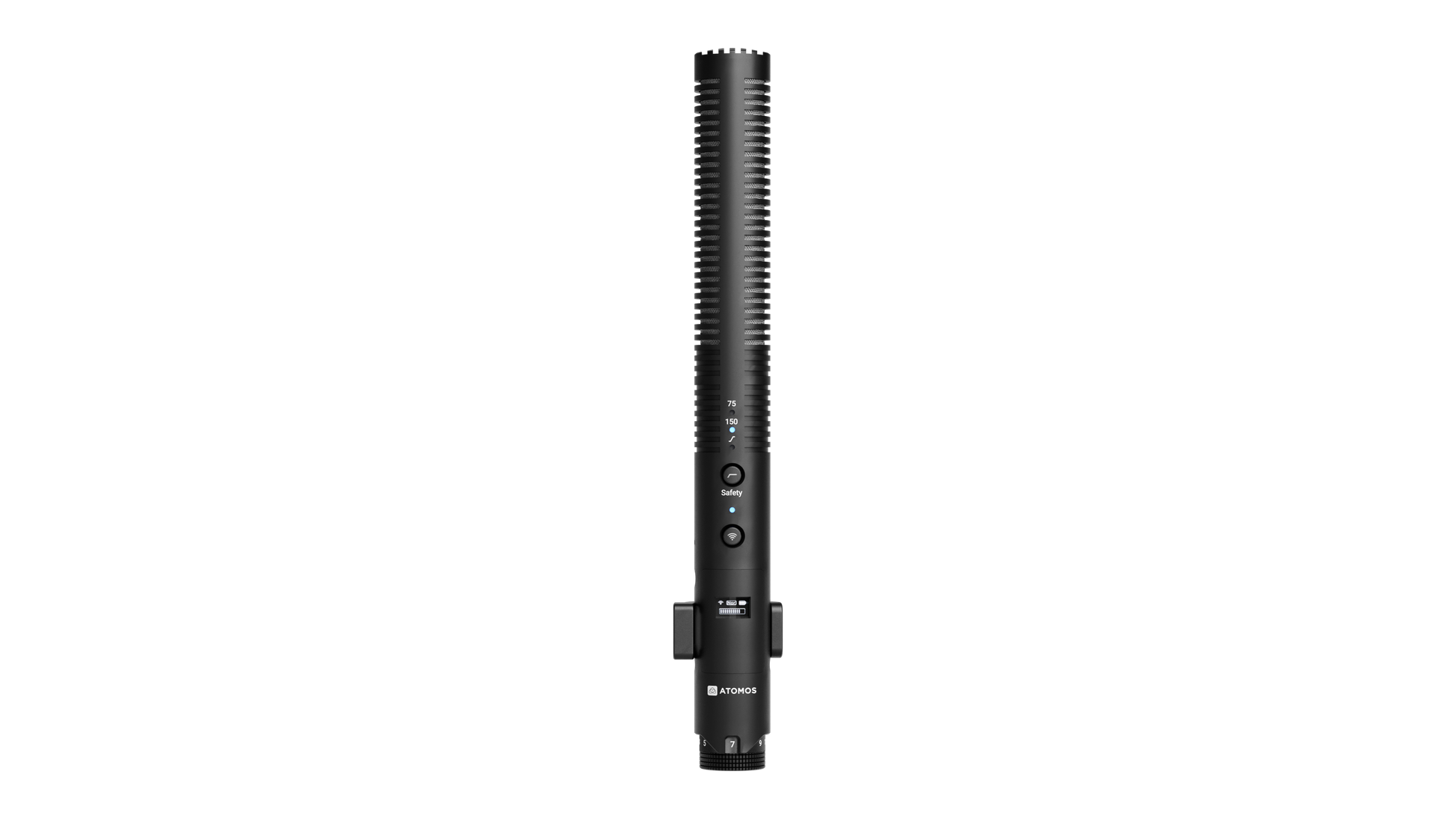

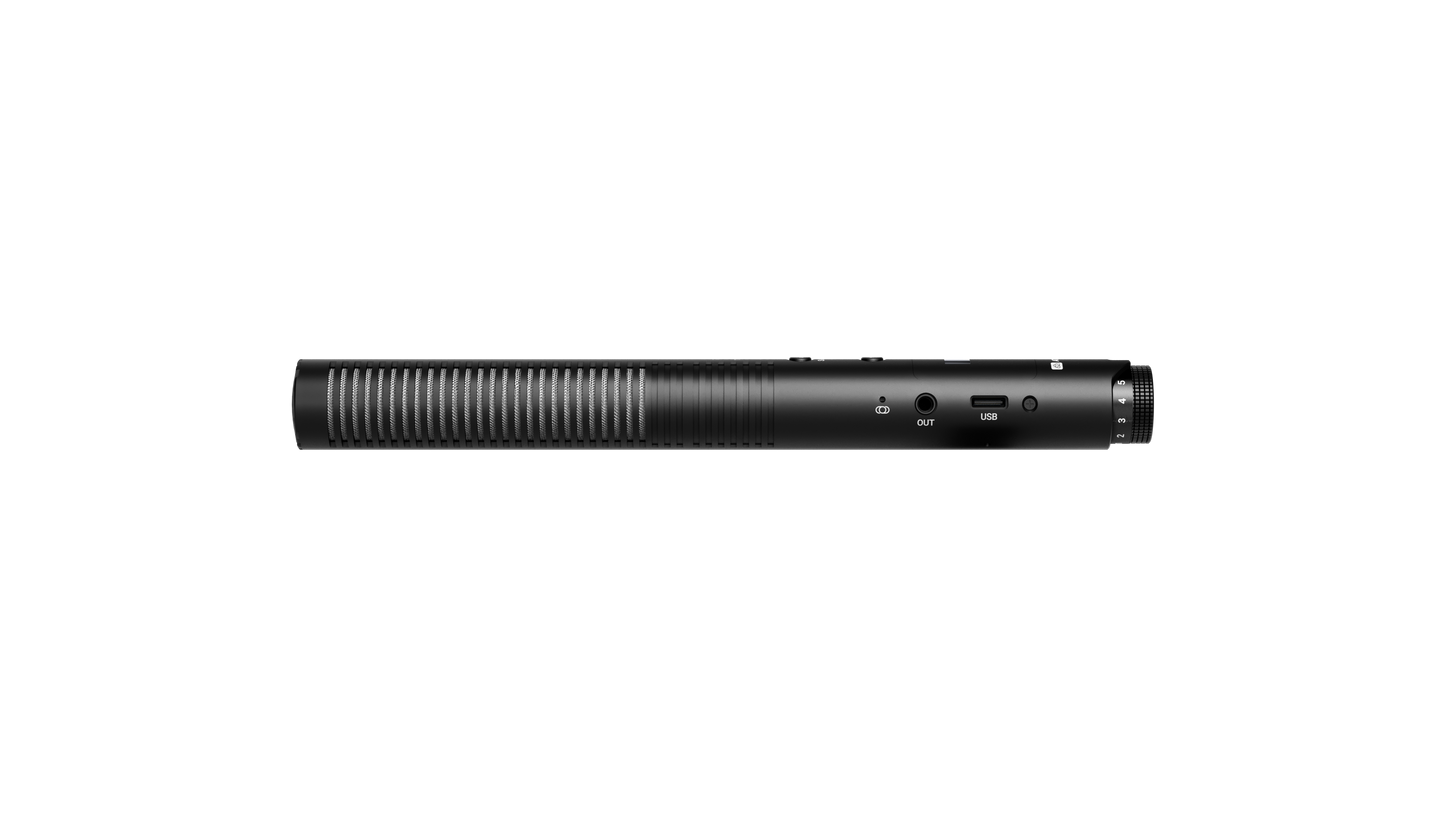

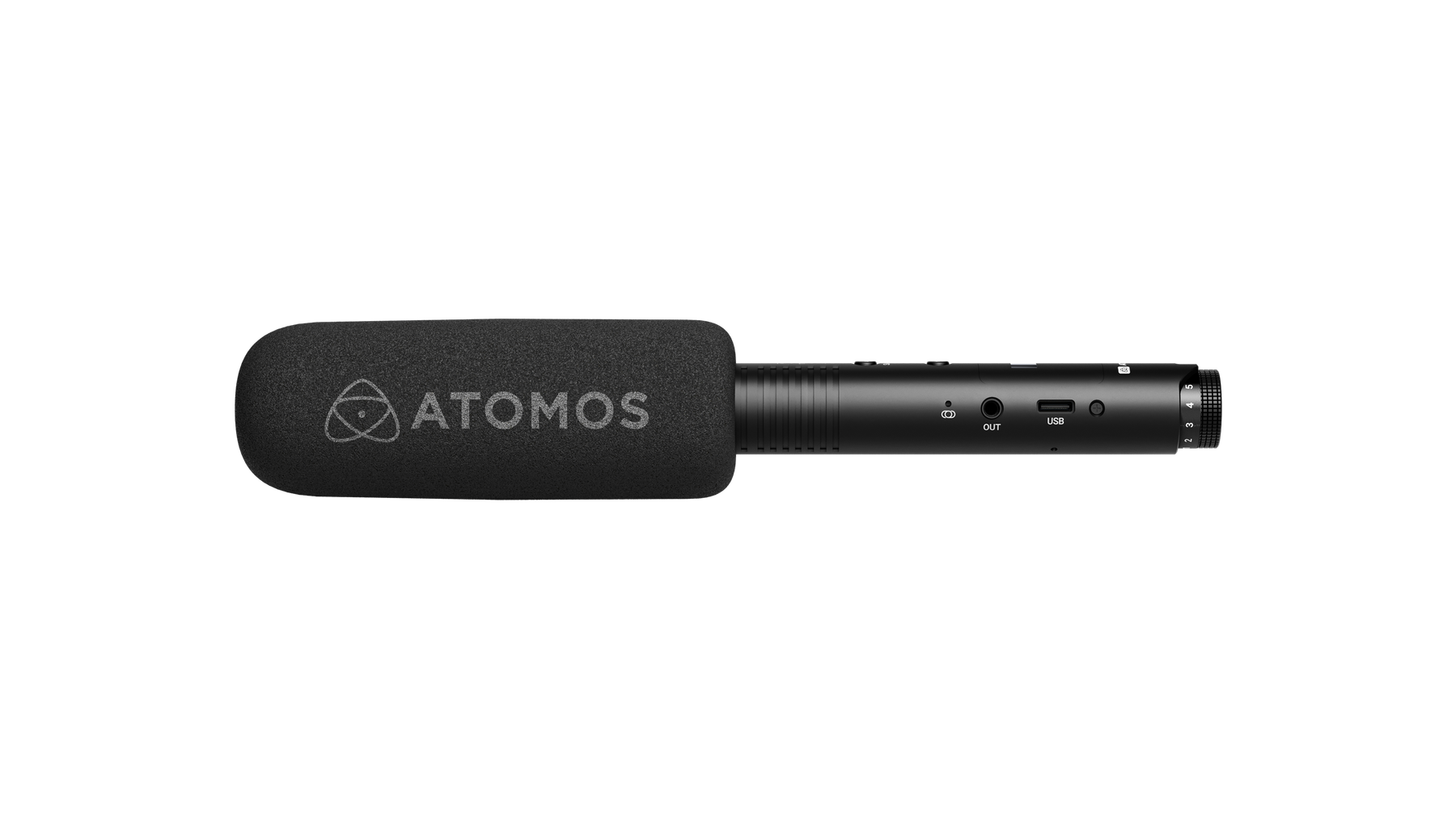

- StudioSonic Shotgun Microphone

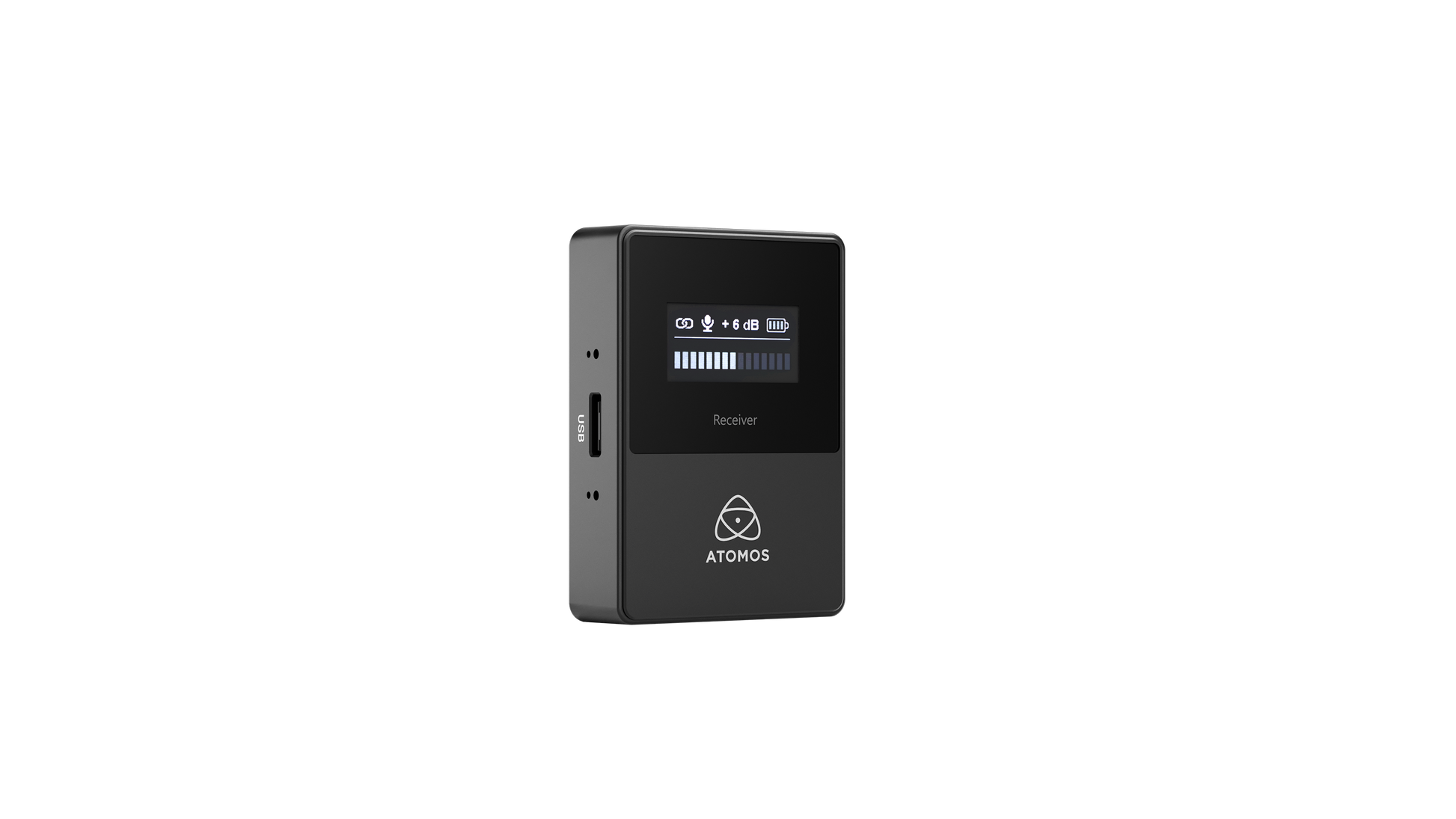

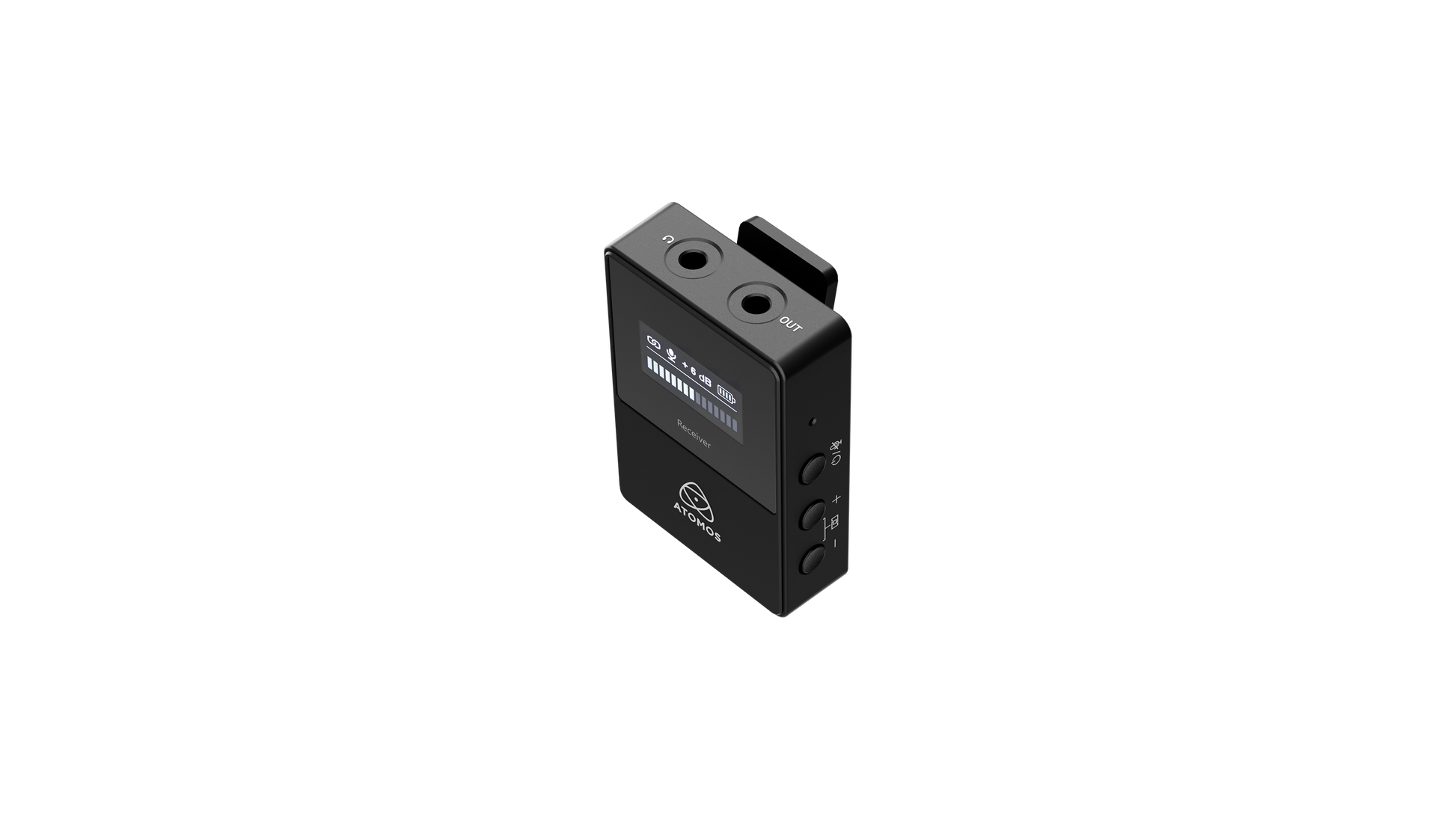

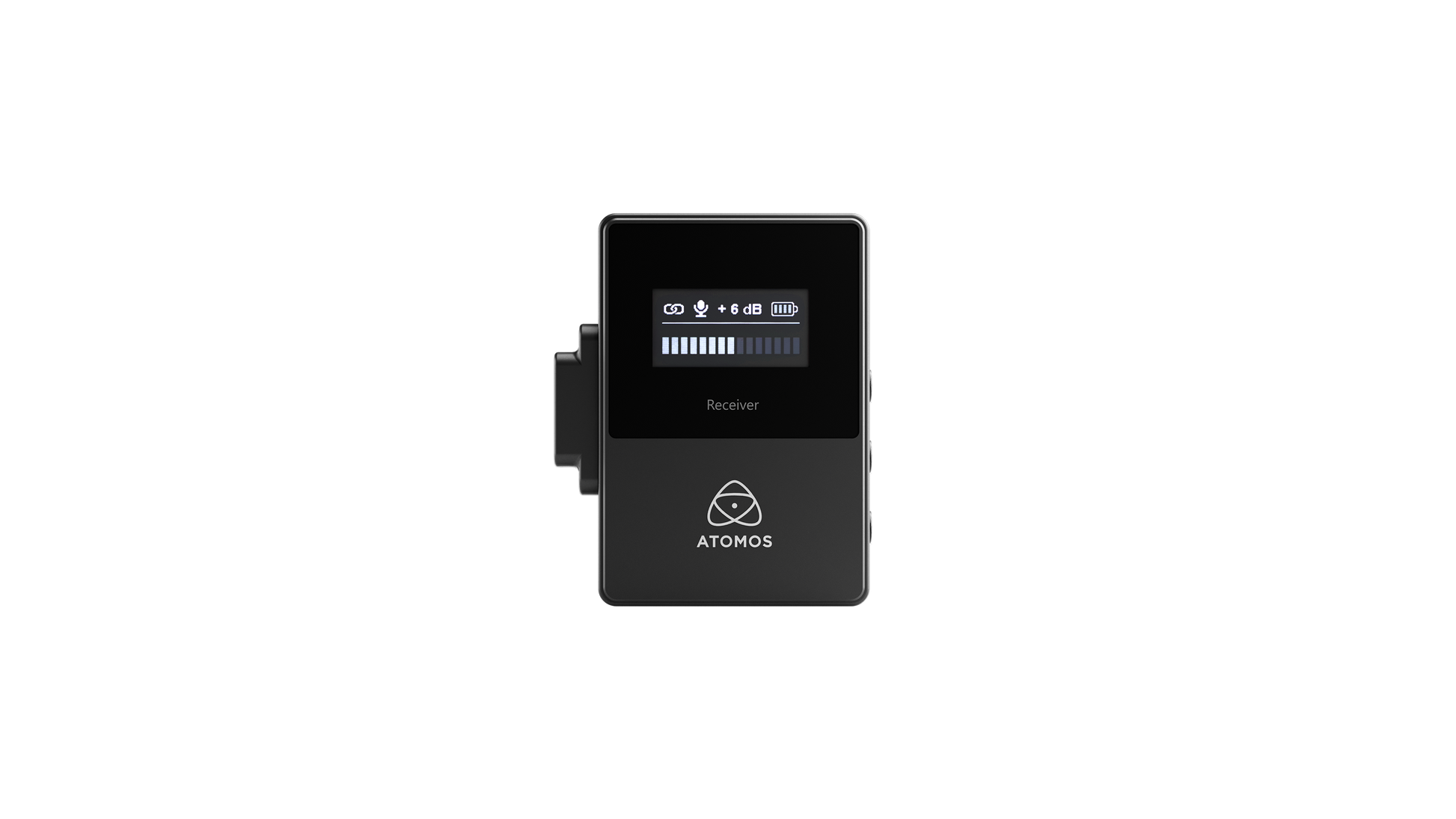

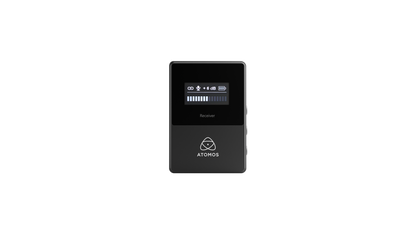

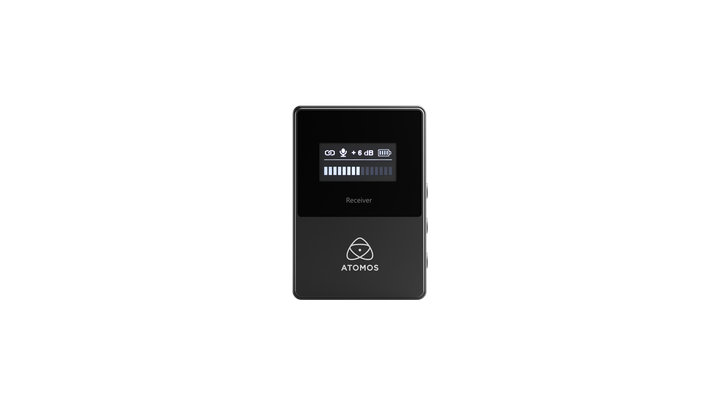

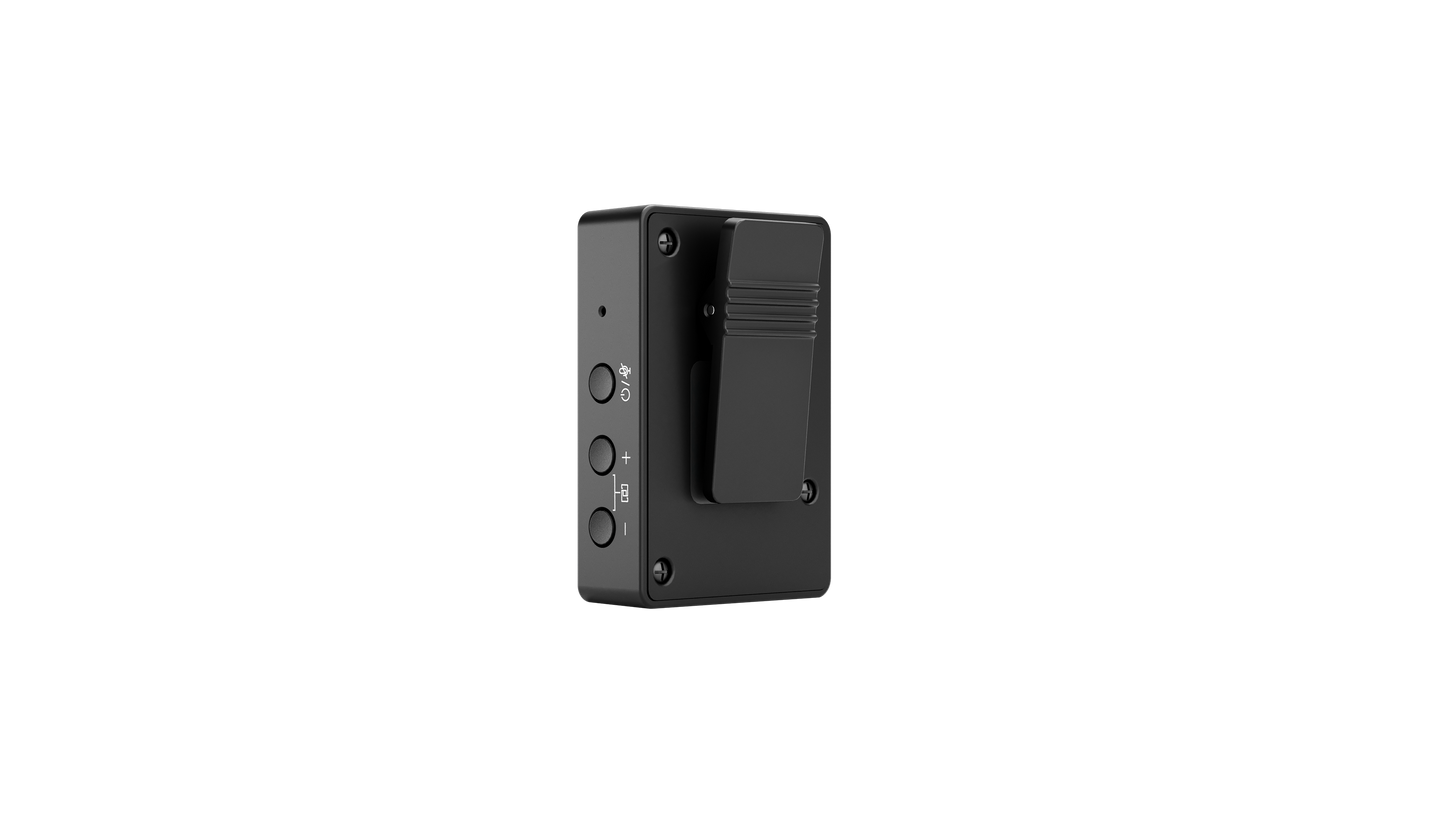

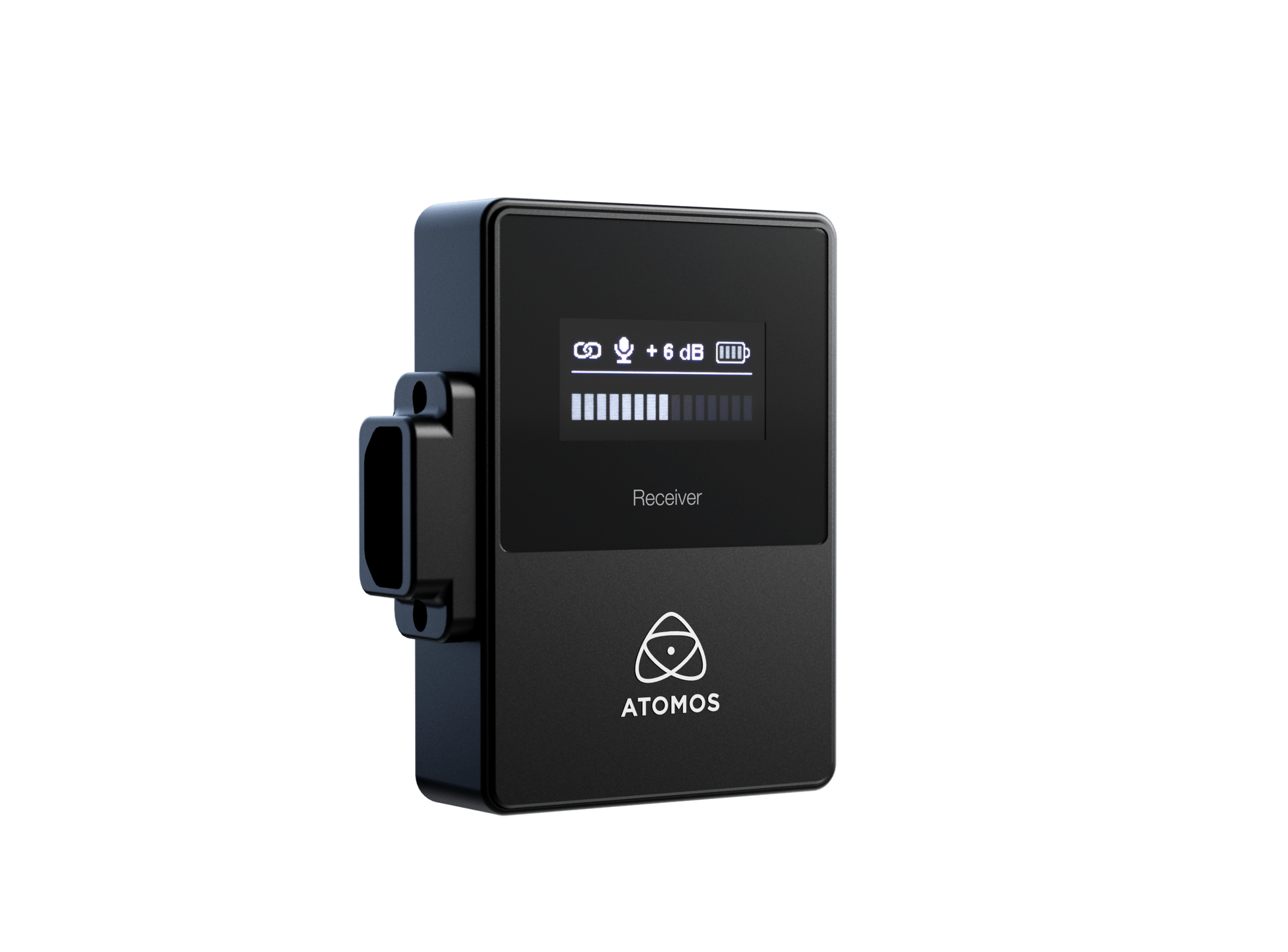

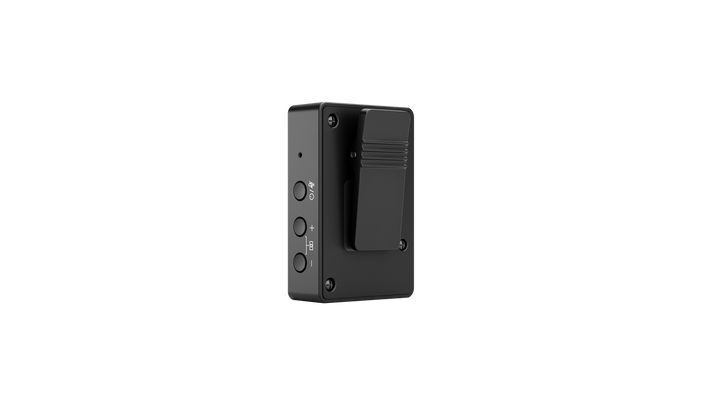

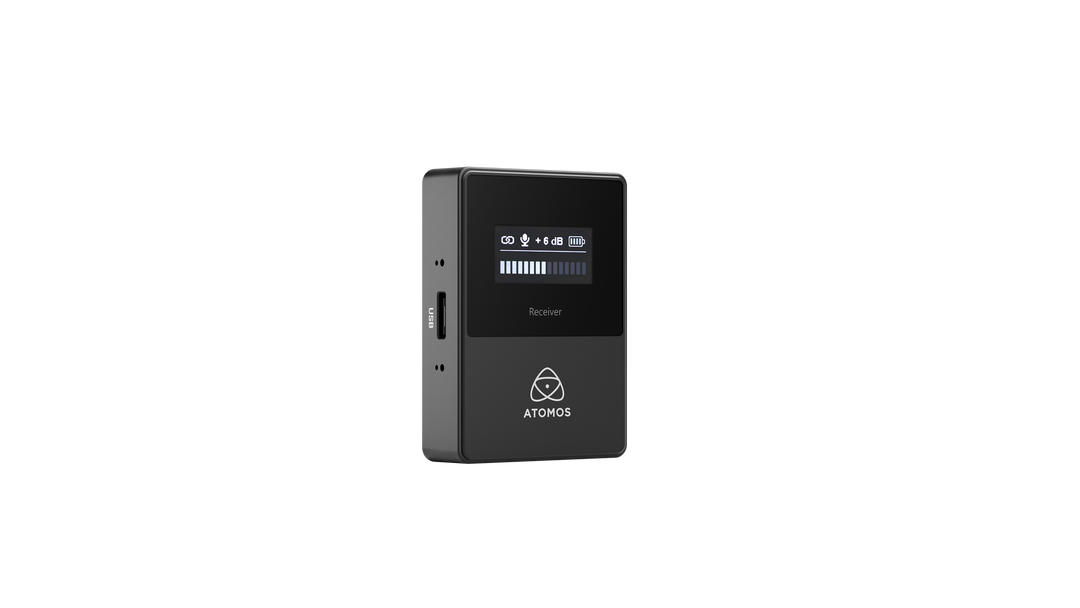

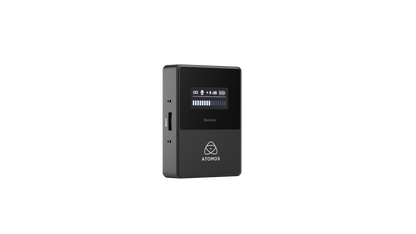

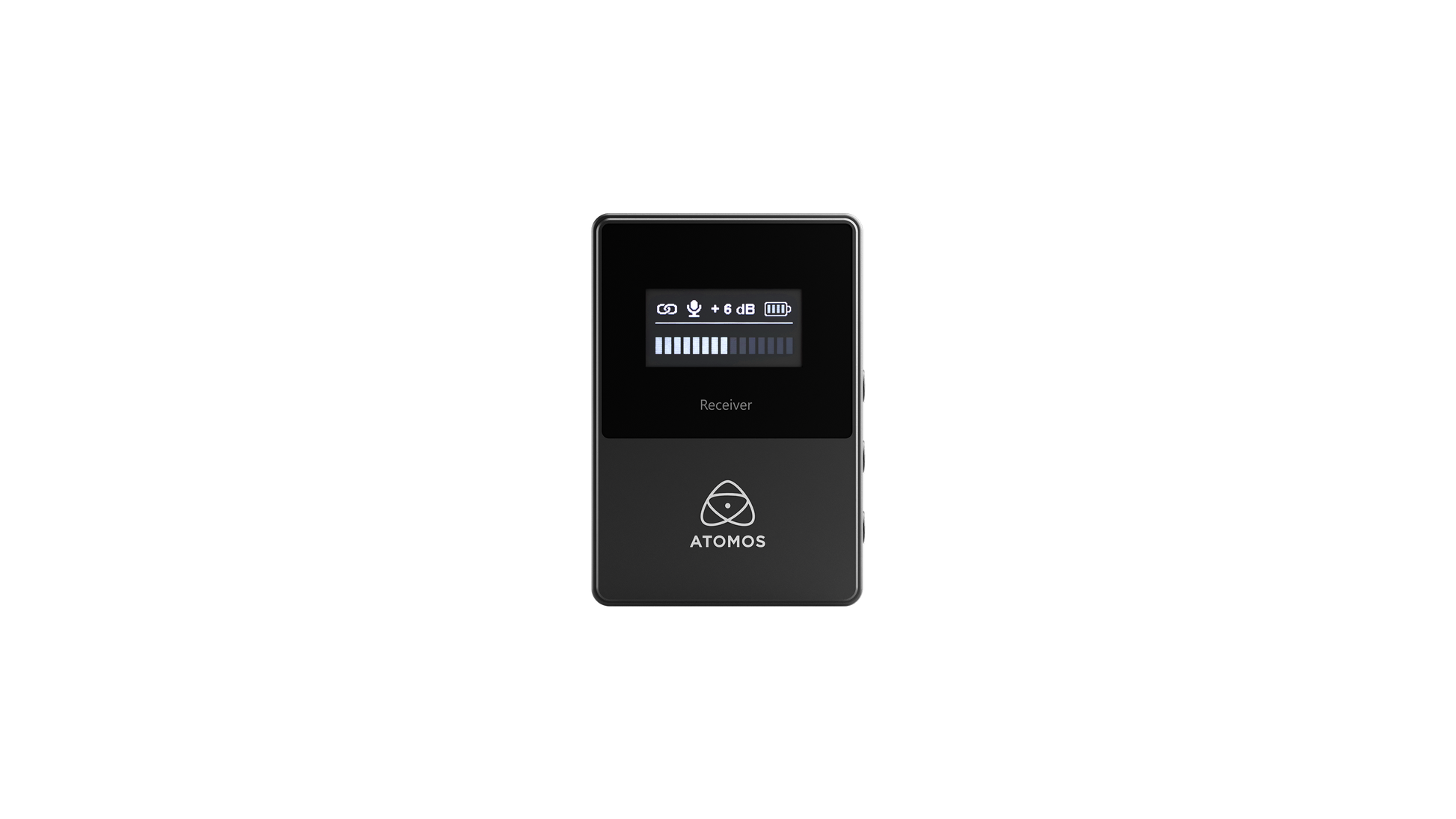

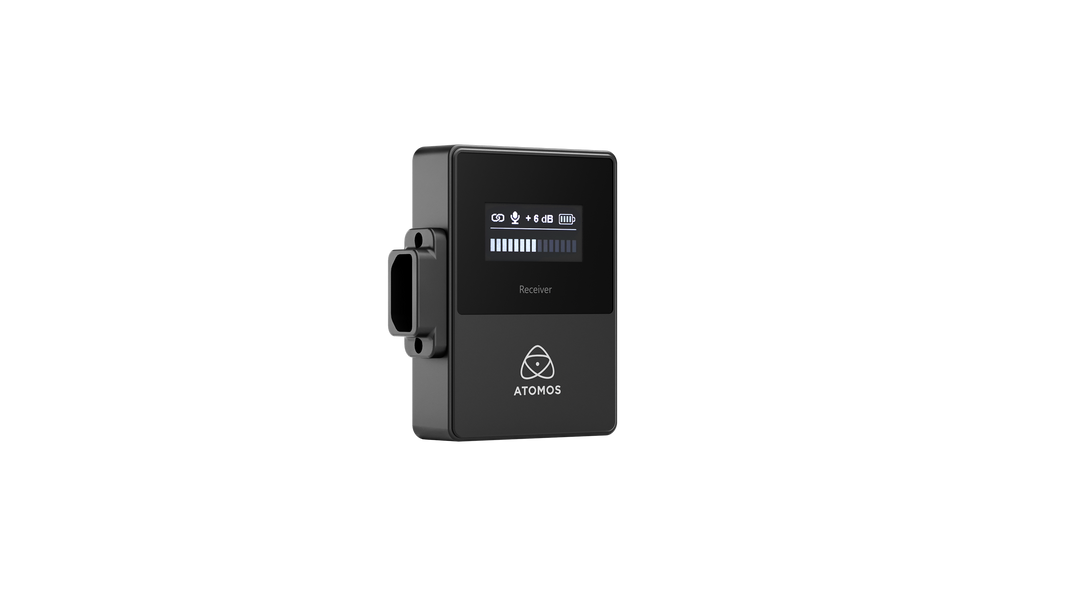

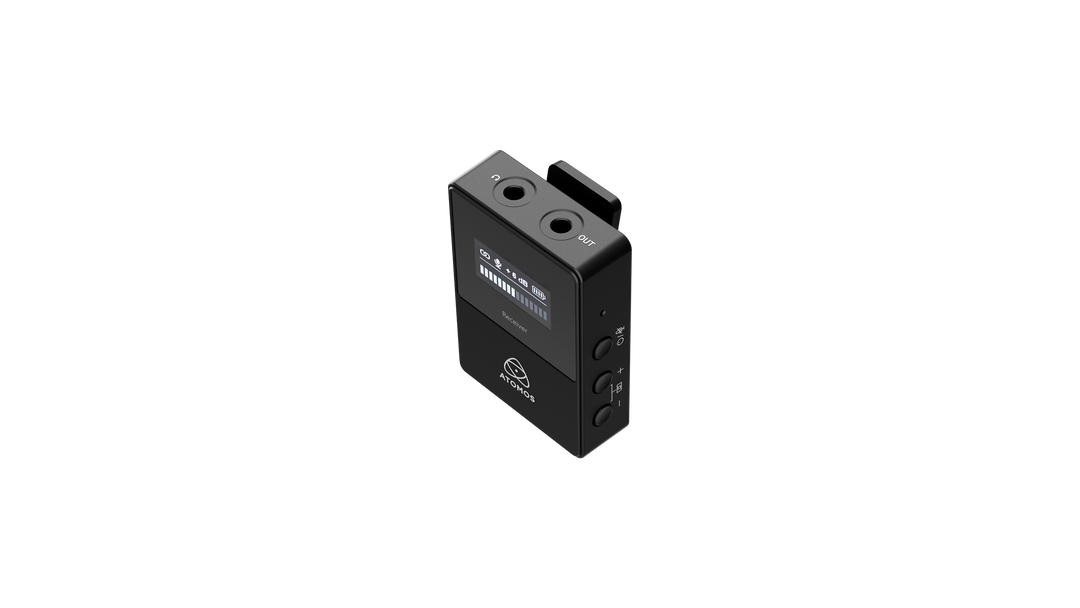

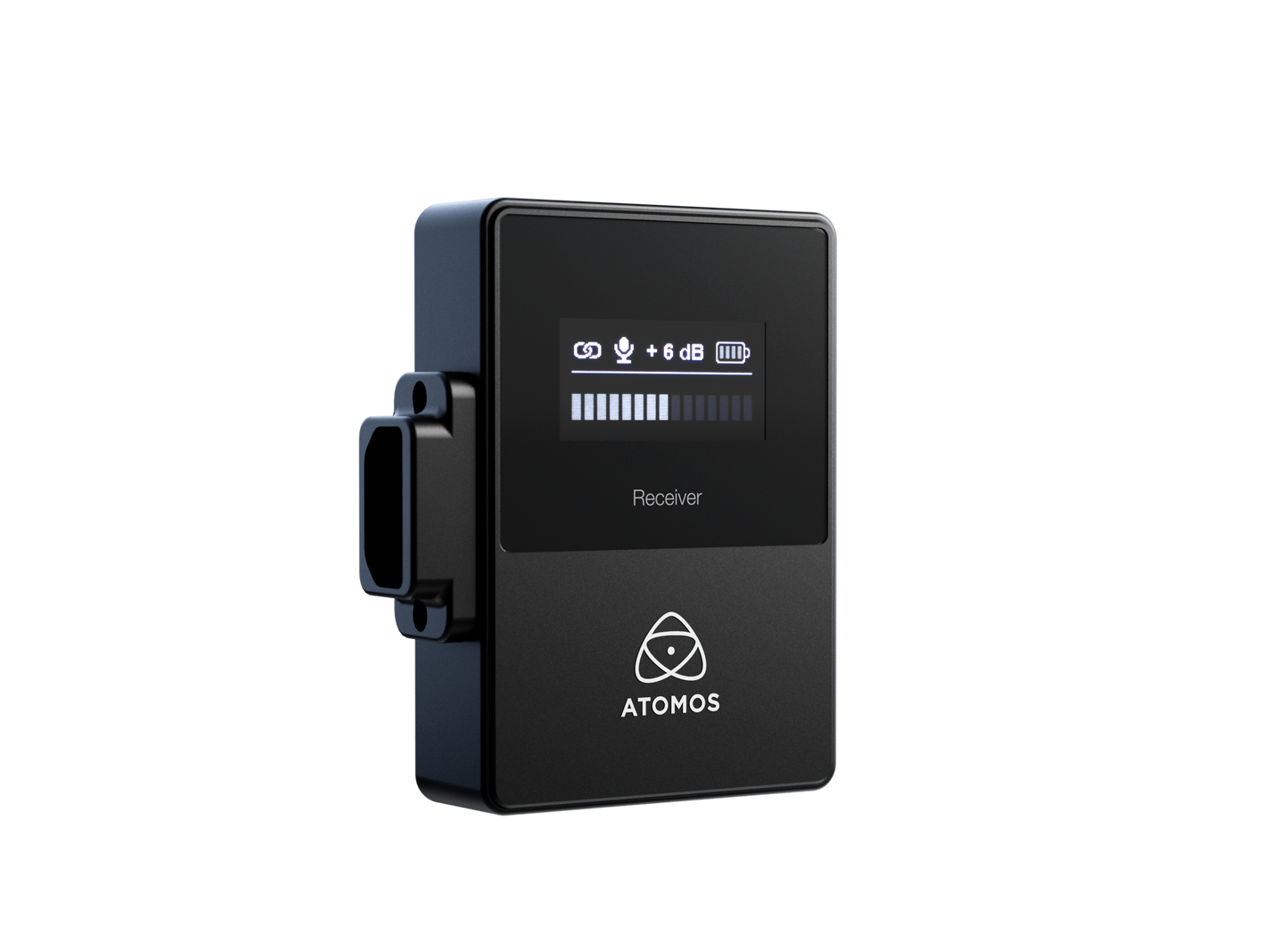

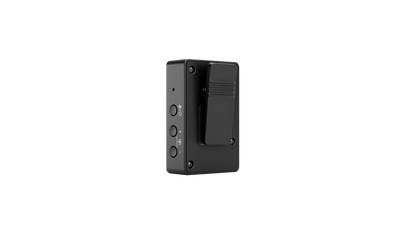

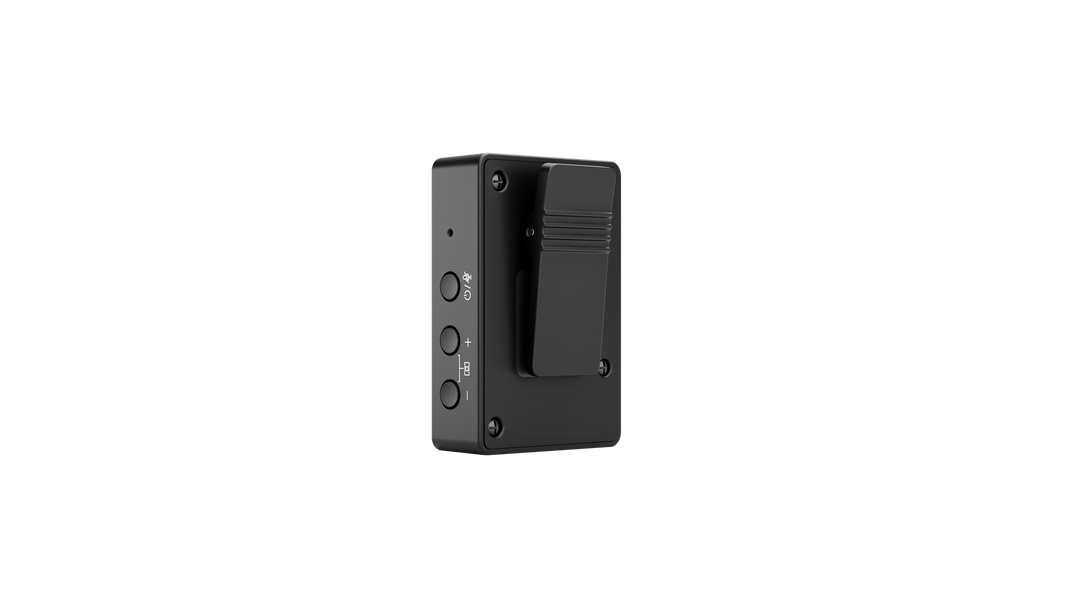

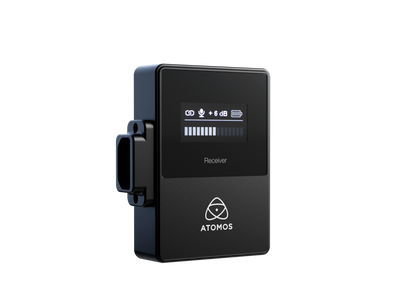

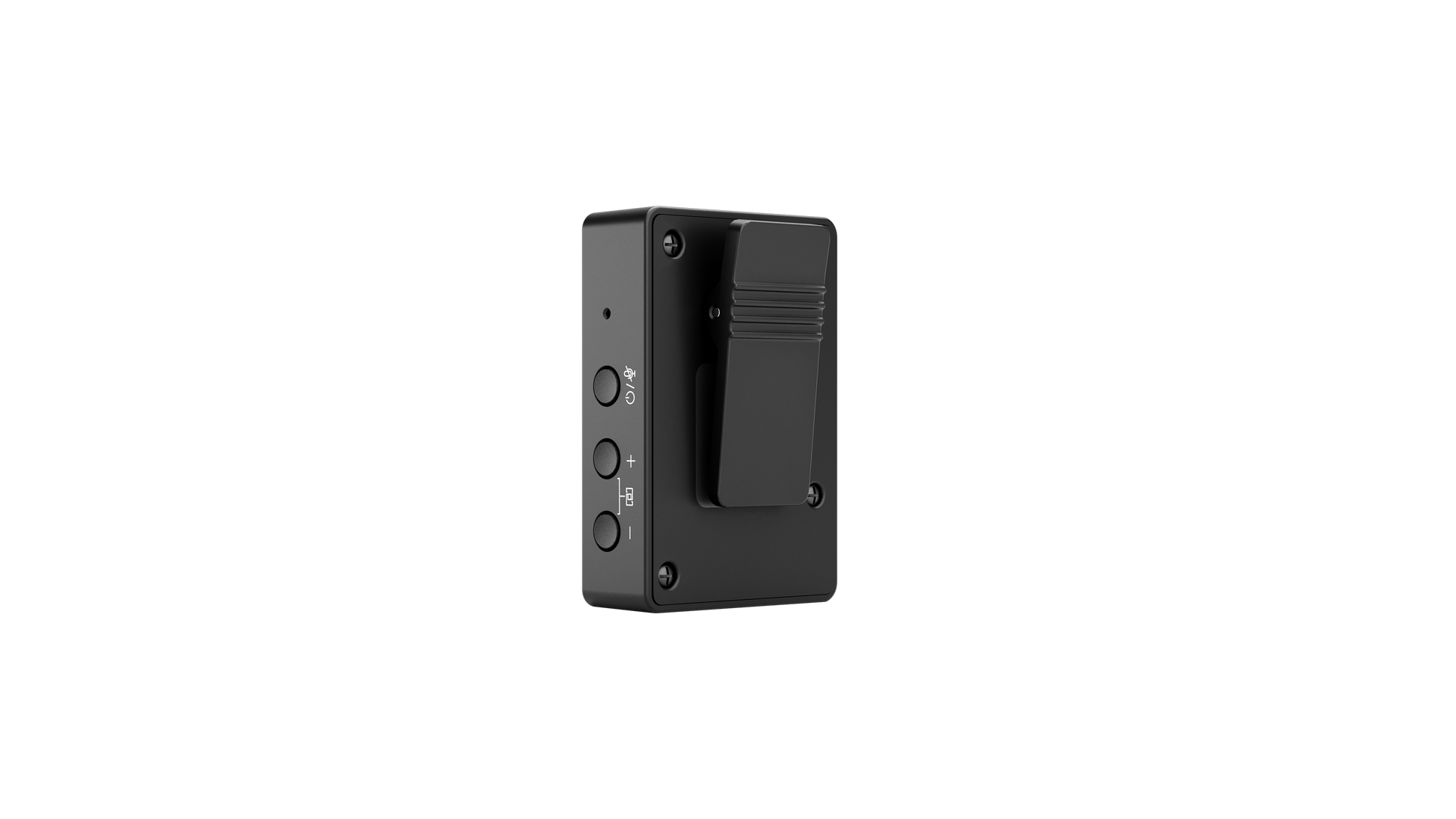

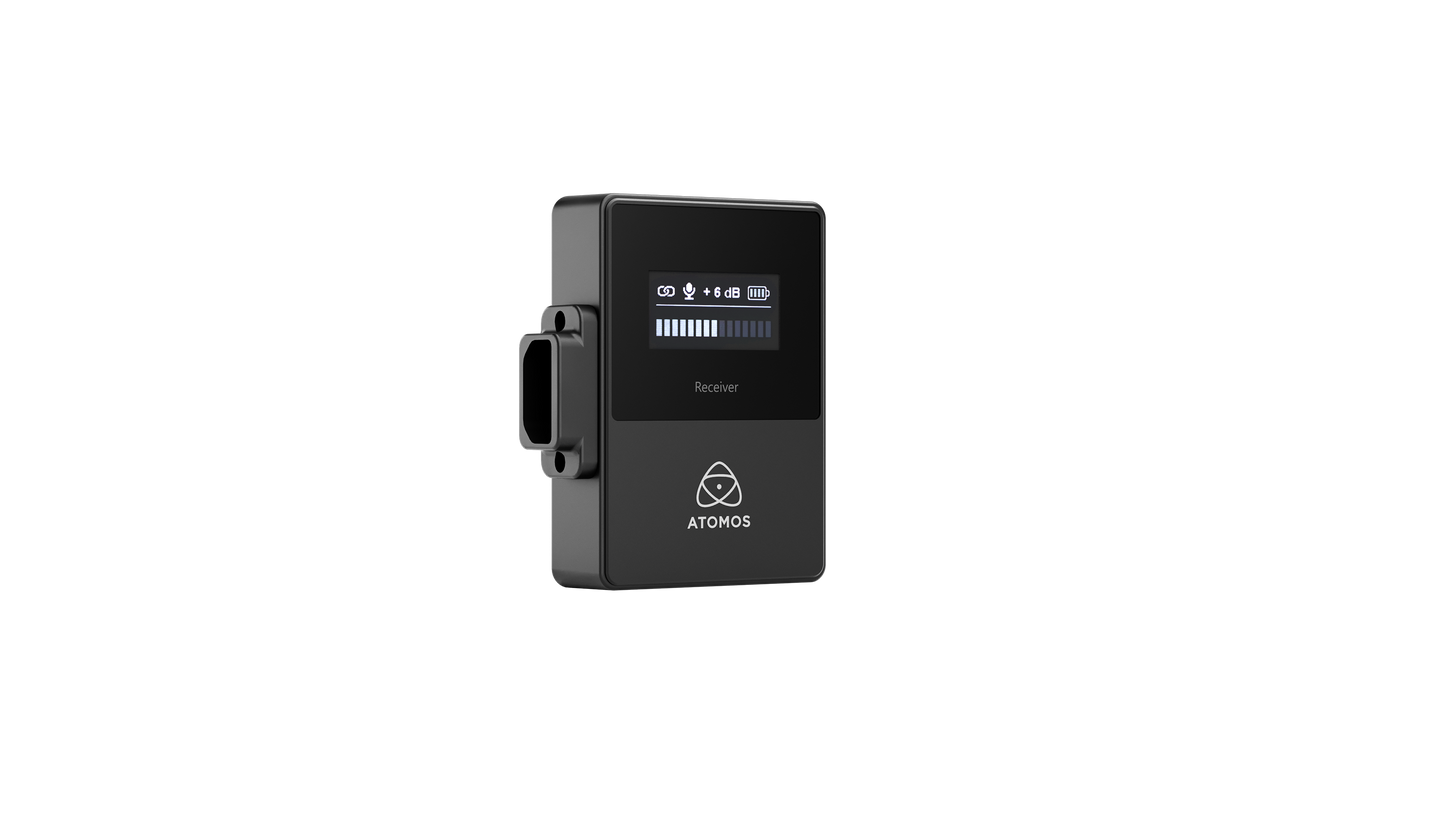

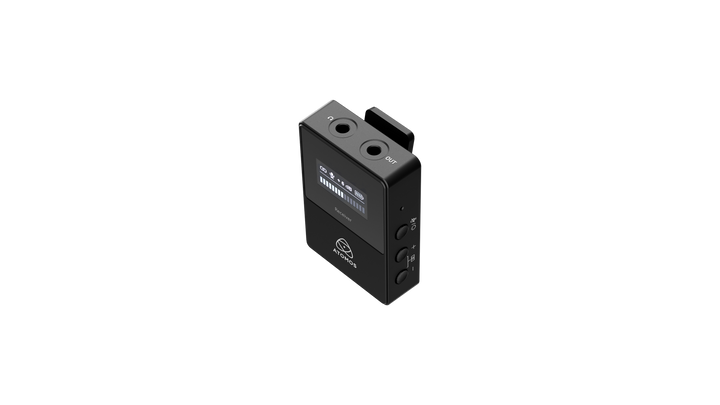

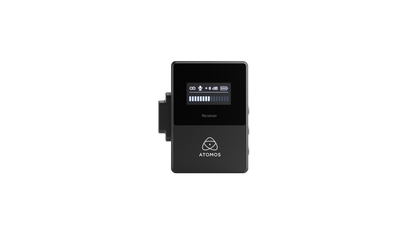

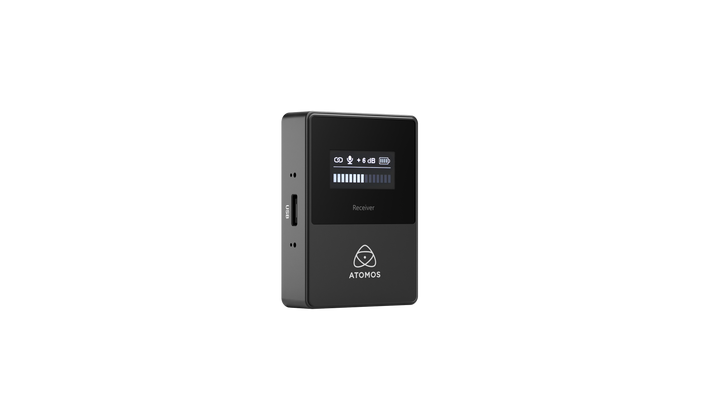

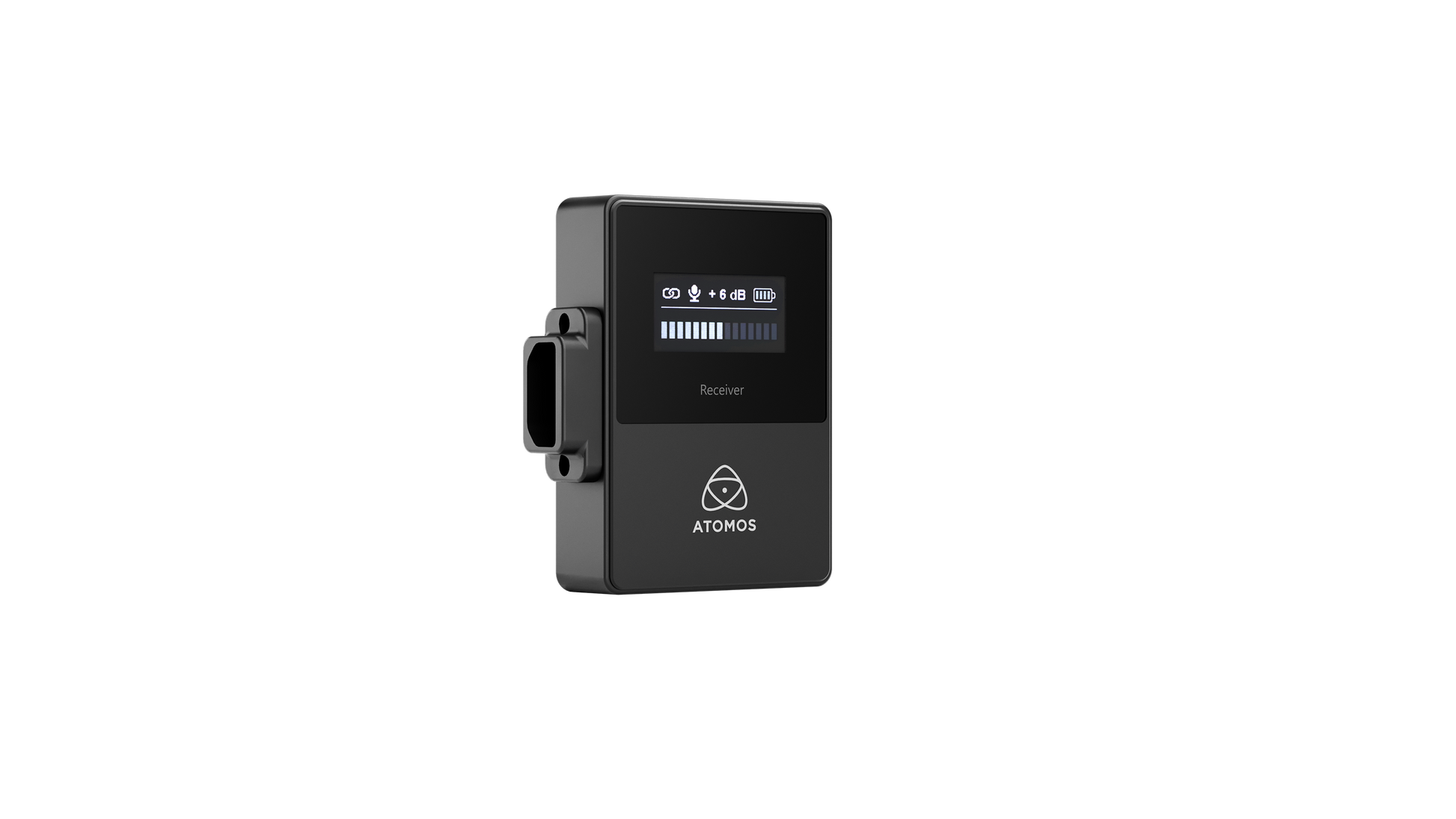

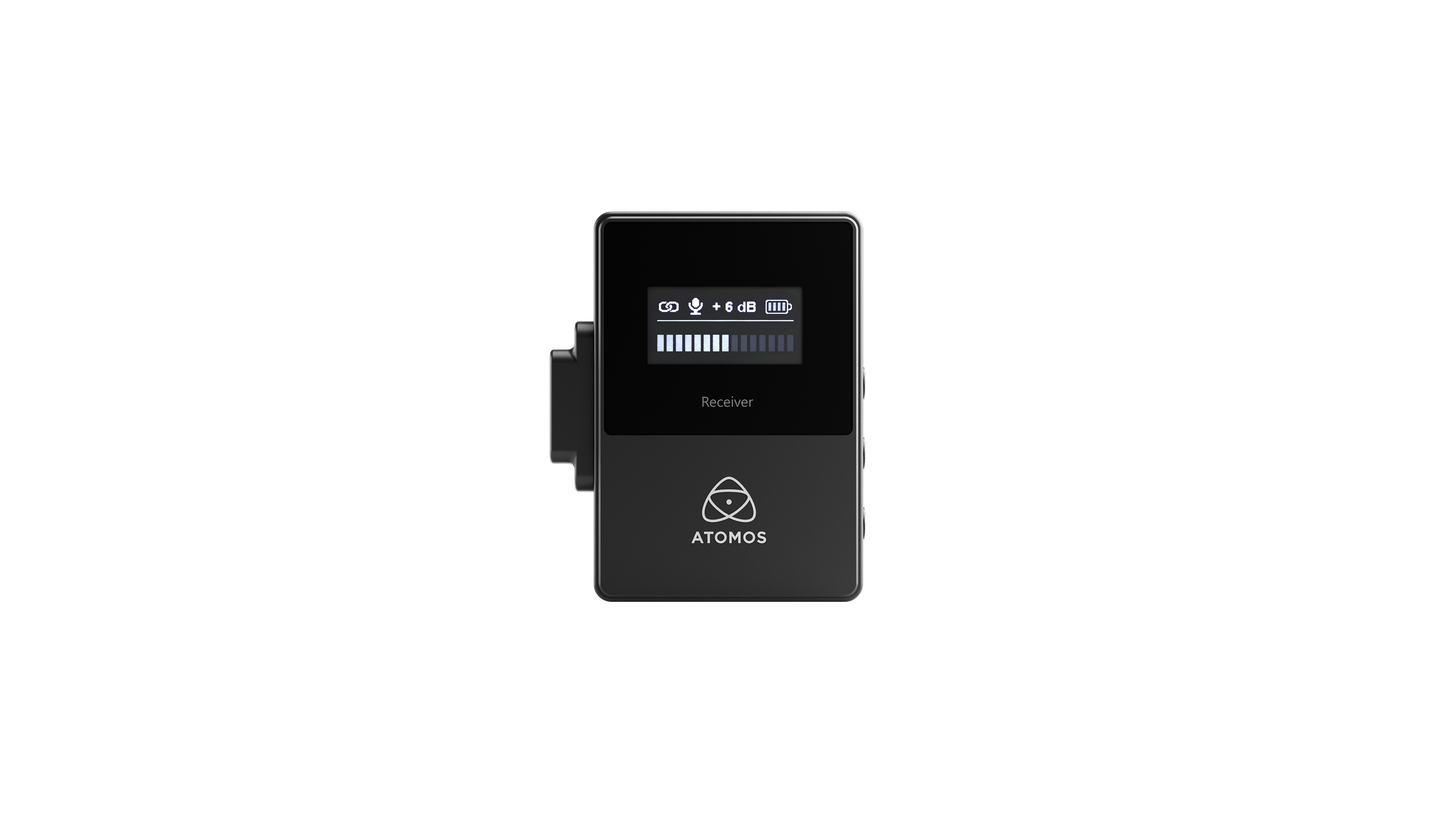

- 2.4GHz RX receiver with USB locking connector
- Atomos USB-C to USB-C locking cable
- 3.5mm TRS cable

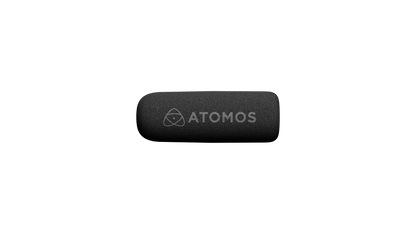

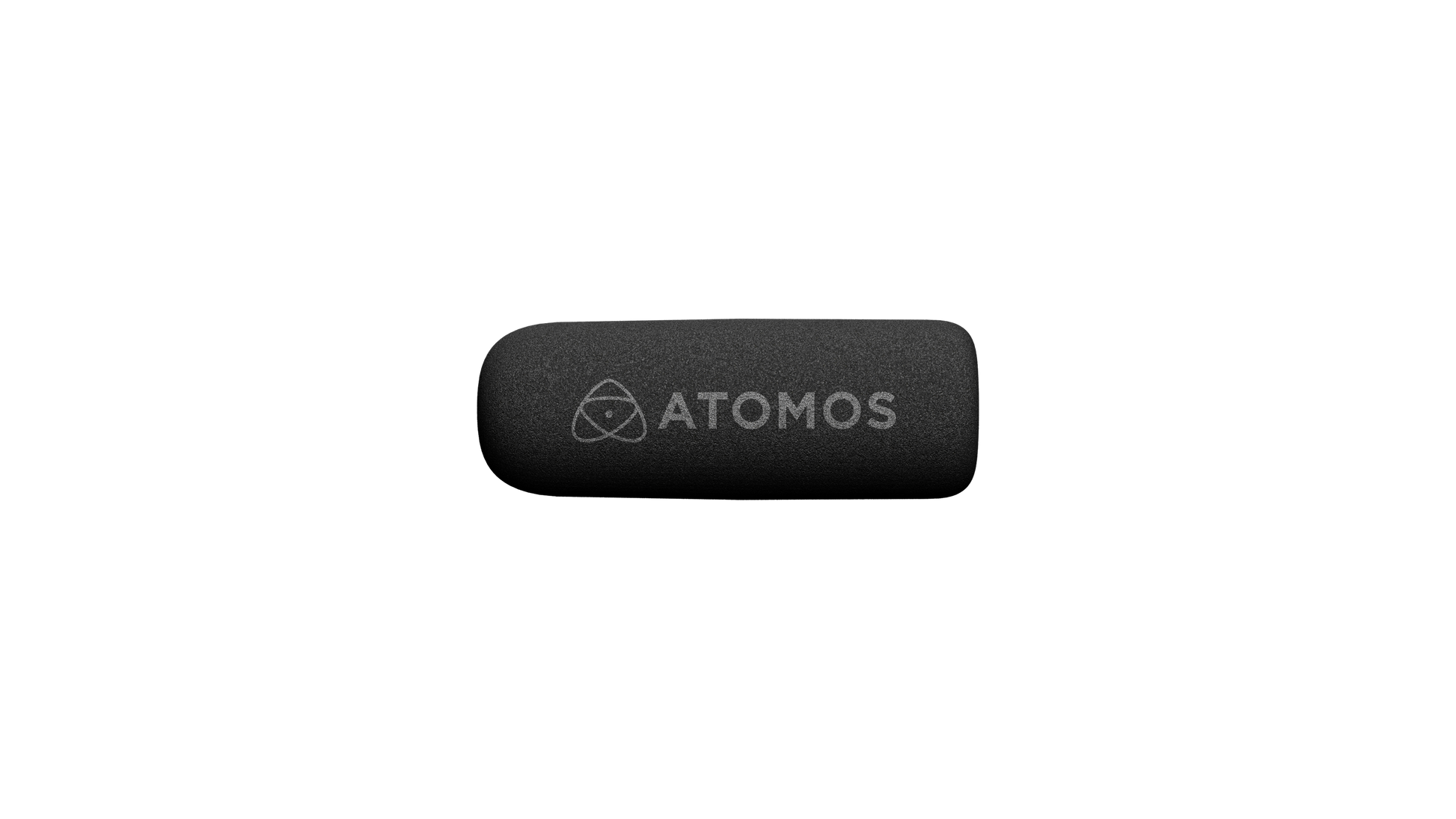

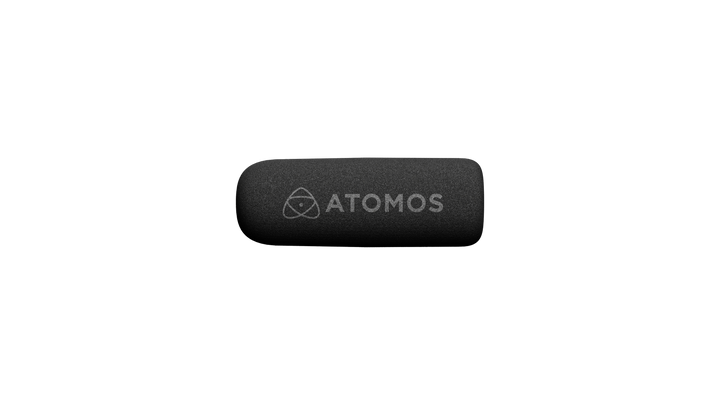

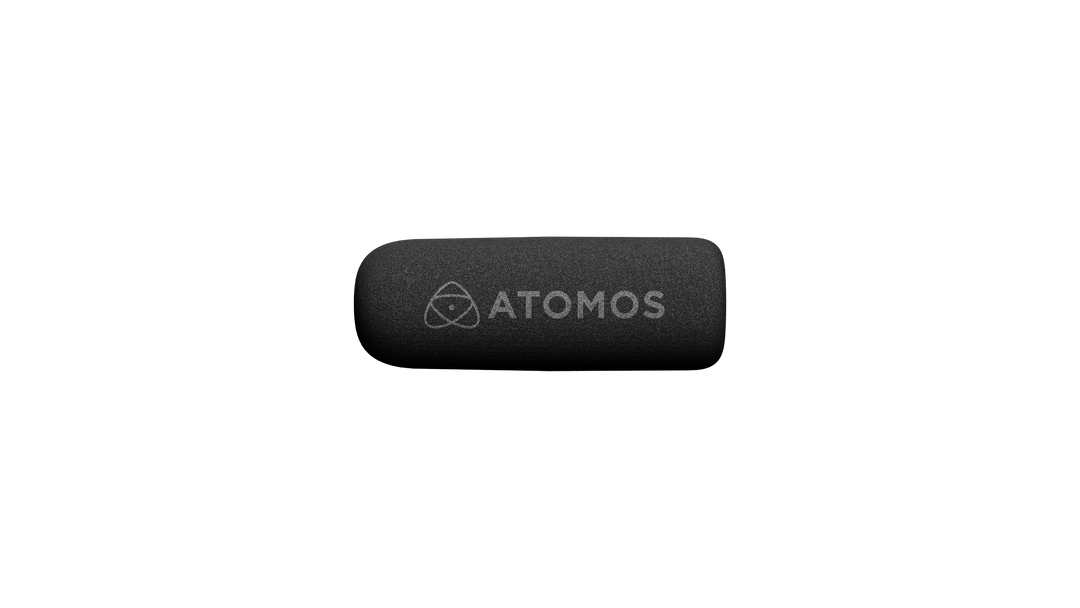

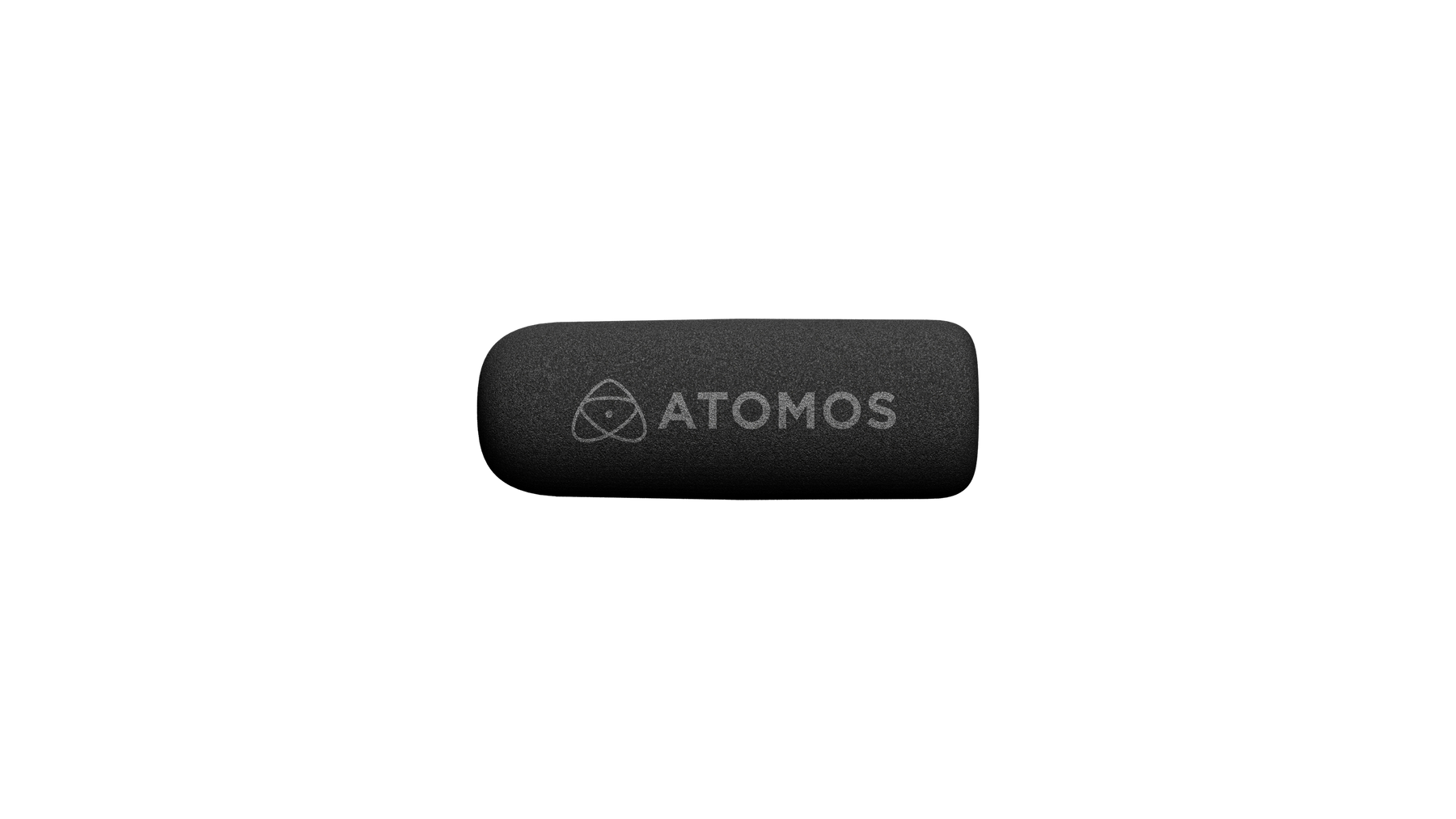

- Wind fur and foam shield

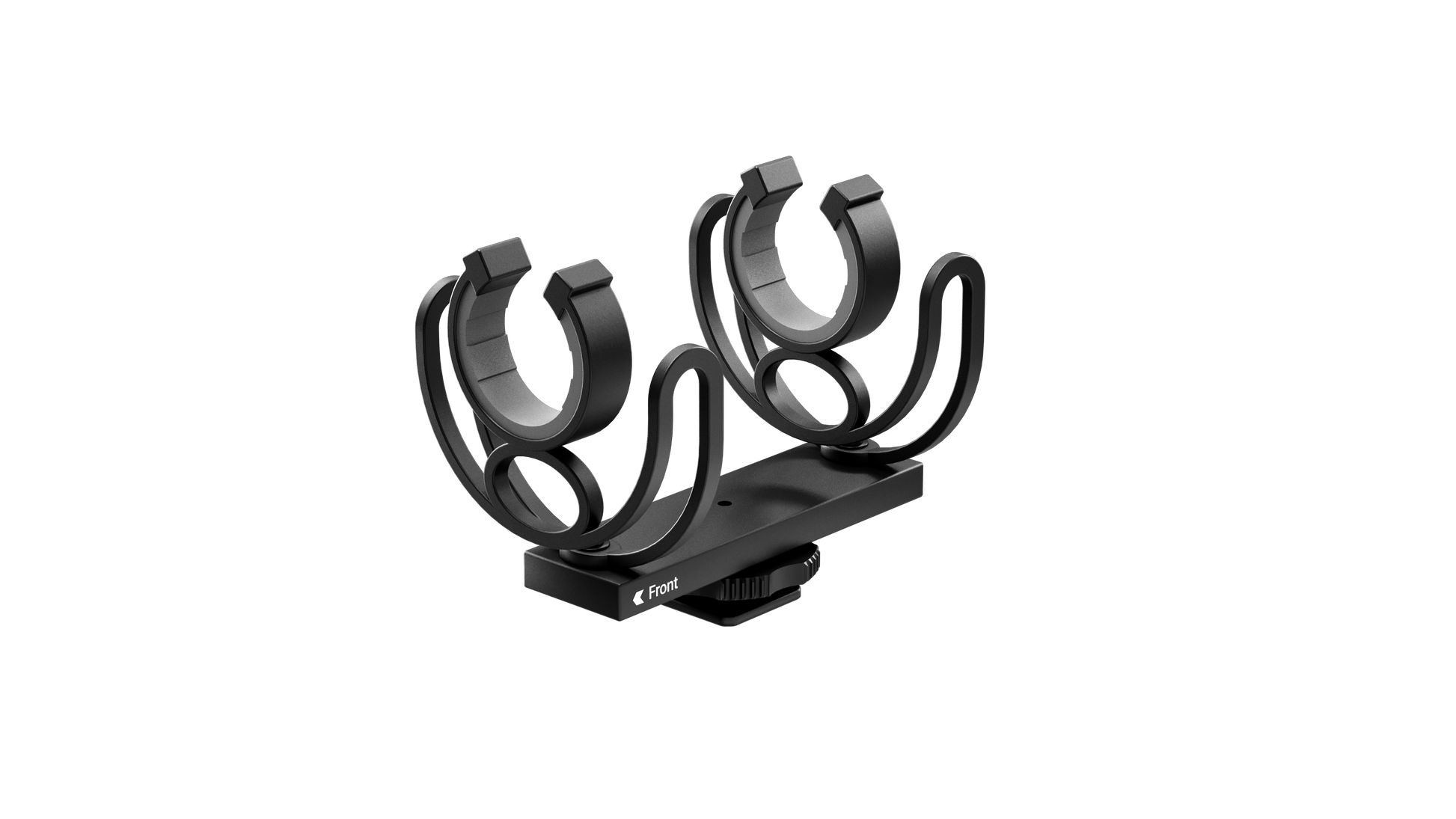

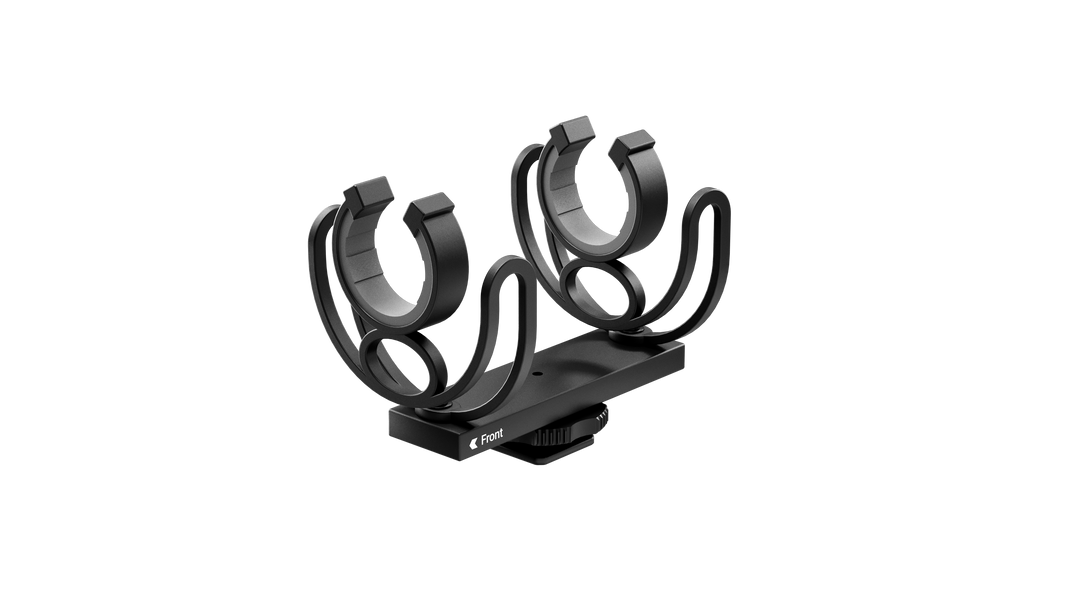

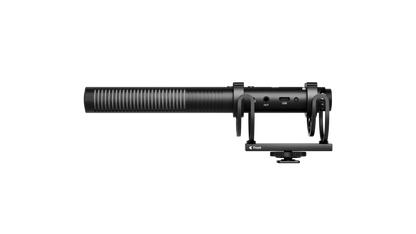

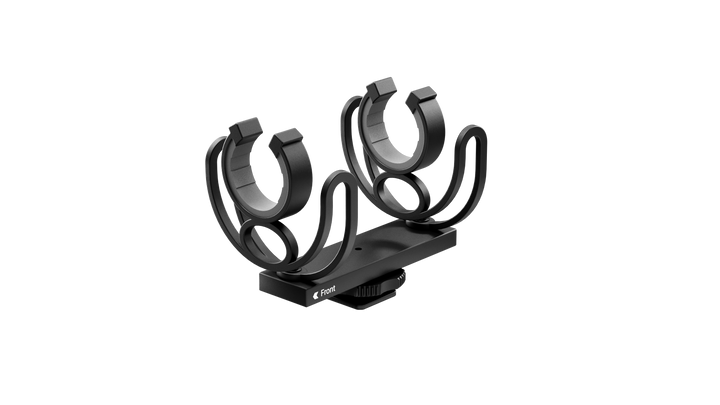

- Adjustable pole mount
- Atomos Quick Release mount
- Premium Atomos case
