Name: Atomos SUMO PRO-19
Brand: ATOMOS
SKU: ATOMSMPR19
Price: 2899.00 USD
Availability: InStock

Description

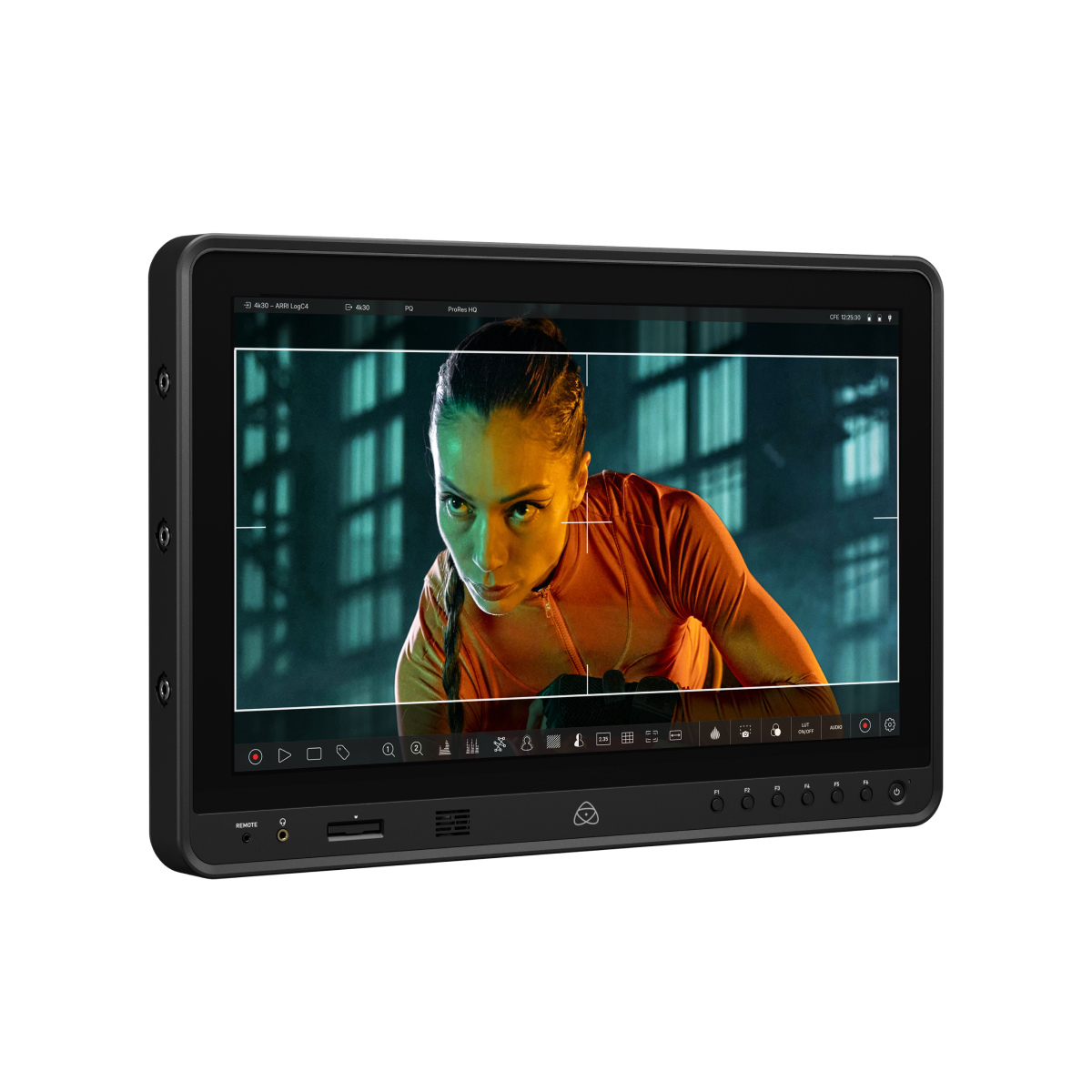

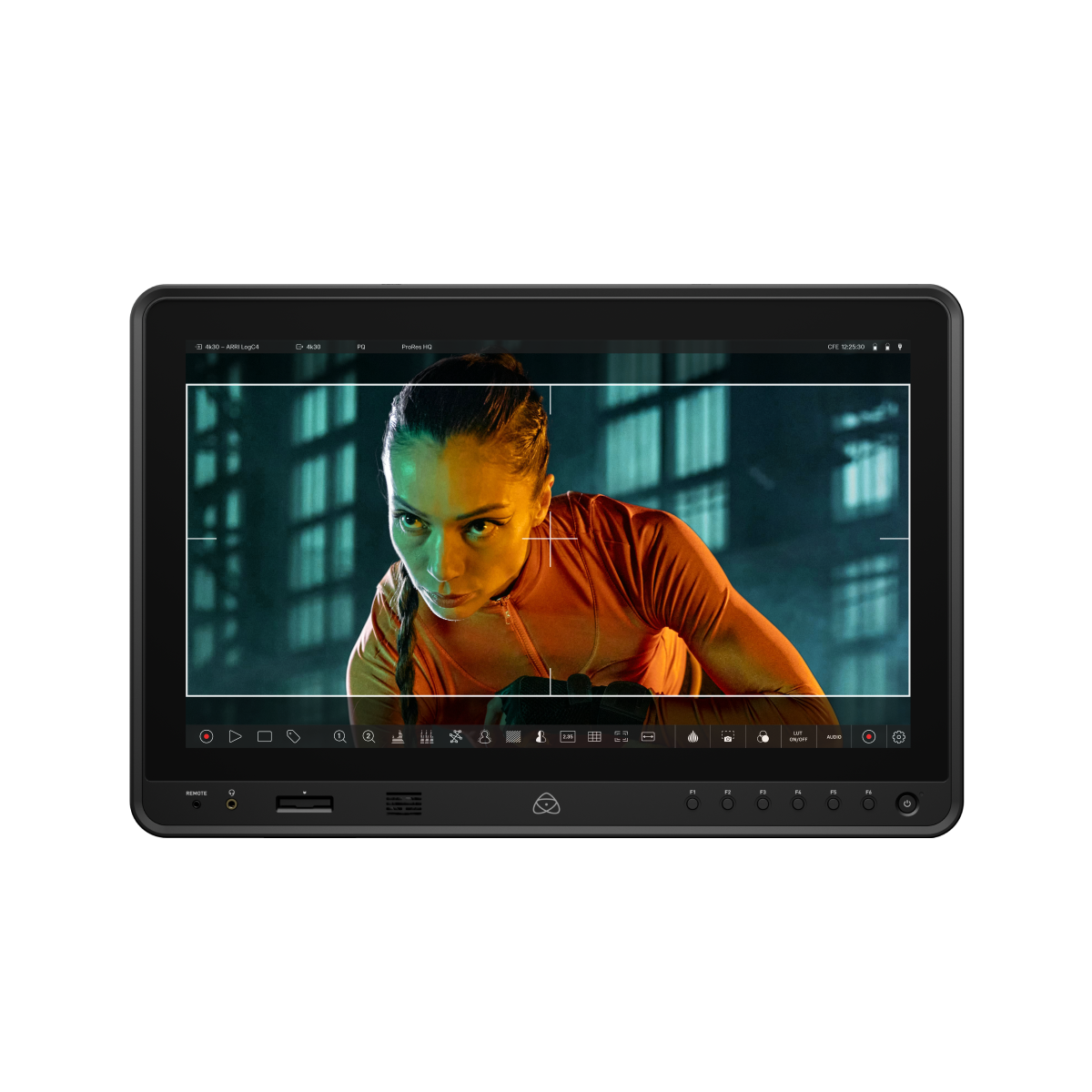

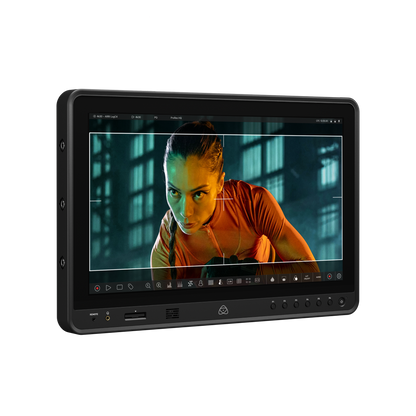

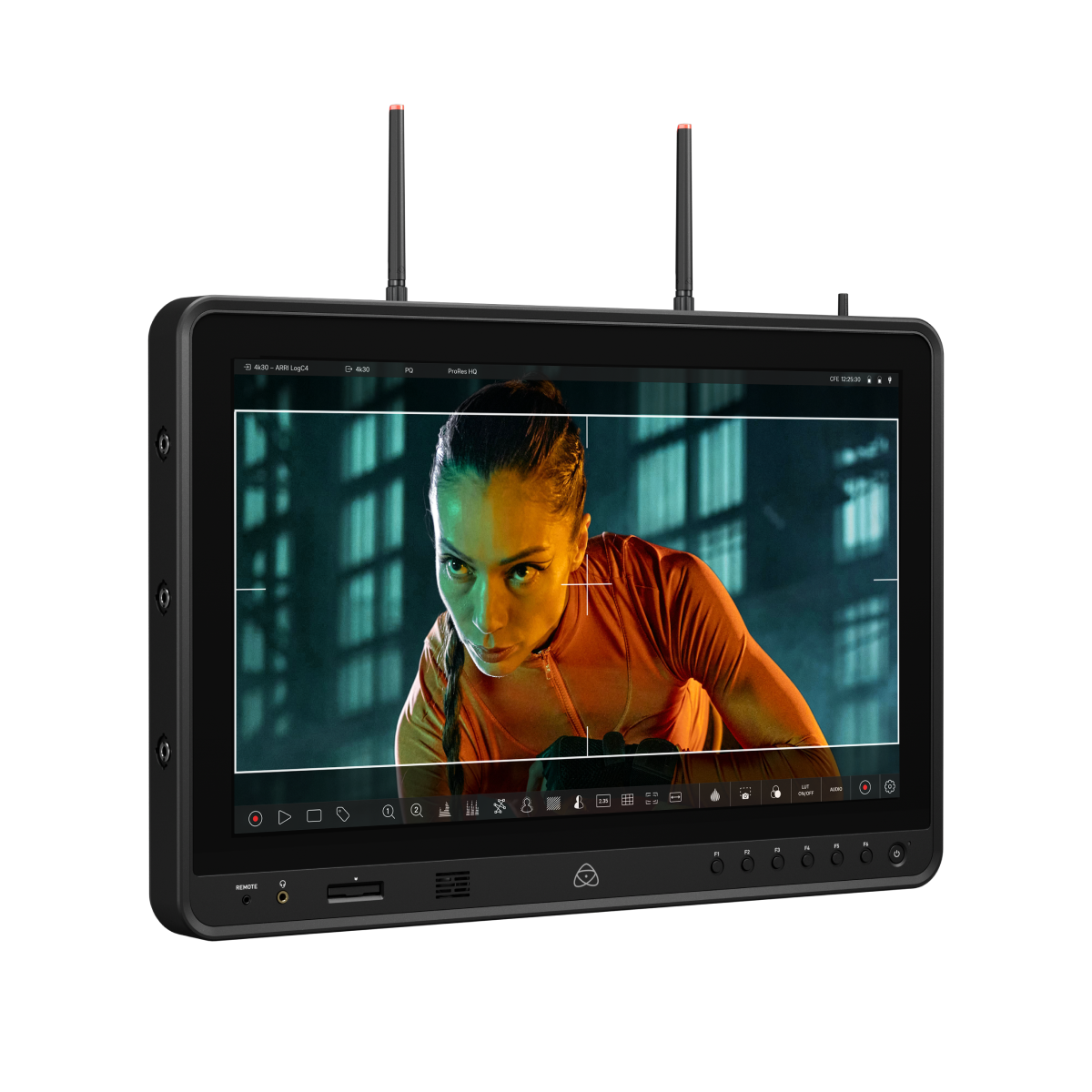

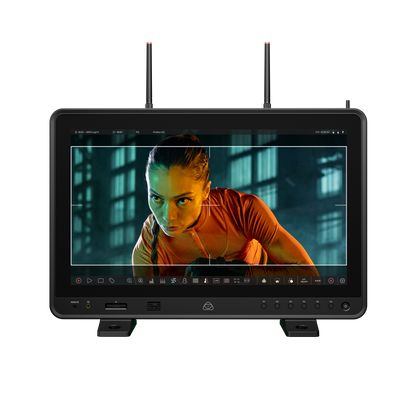

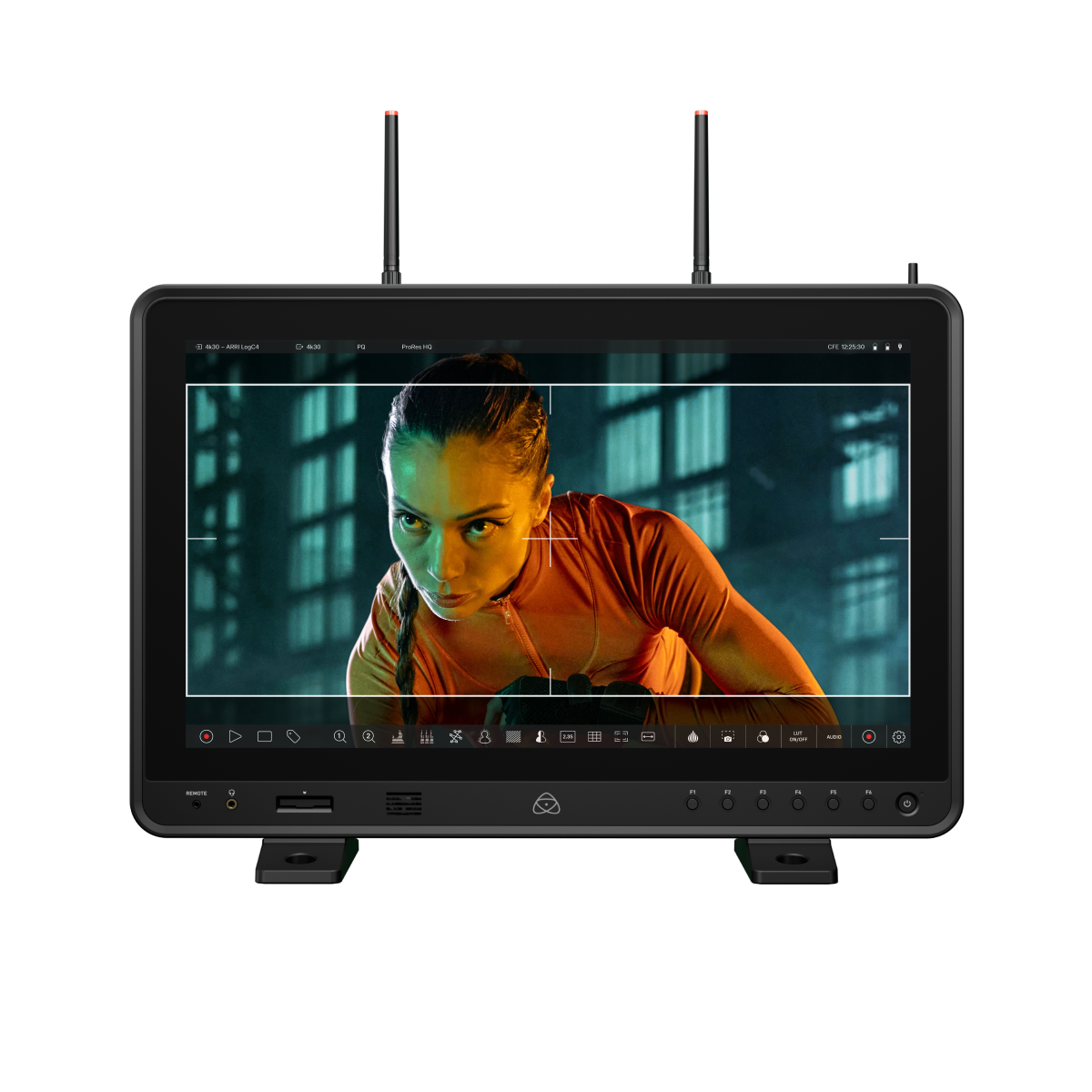

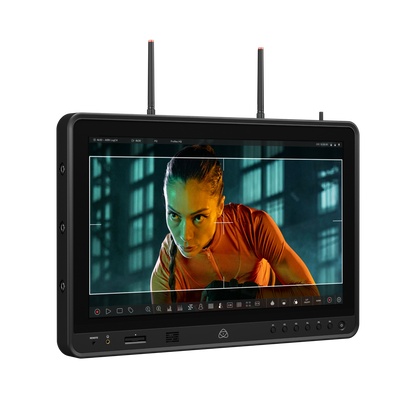

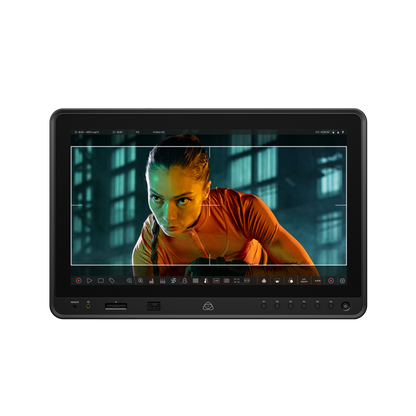

Sumo PRO-19 - 19-inch, 4K HDR DCI-P3 monitor-recorder-switcher

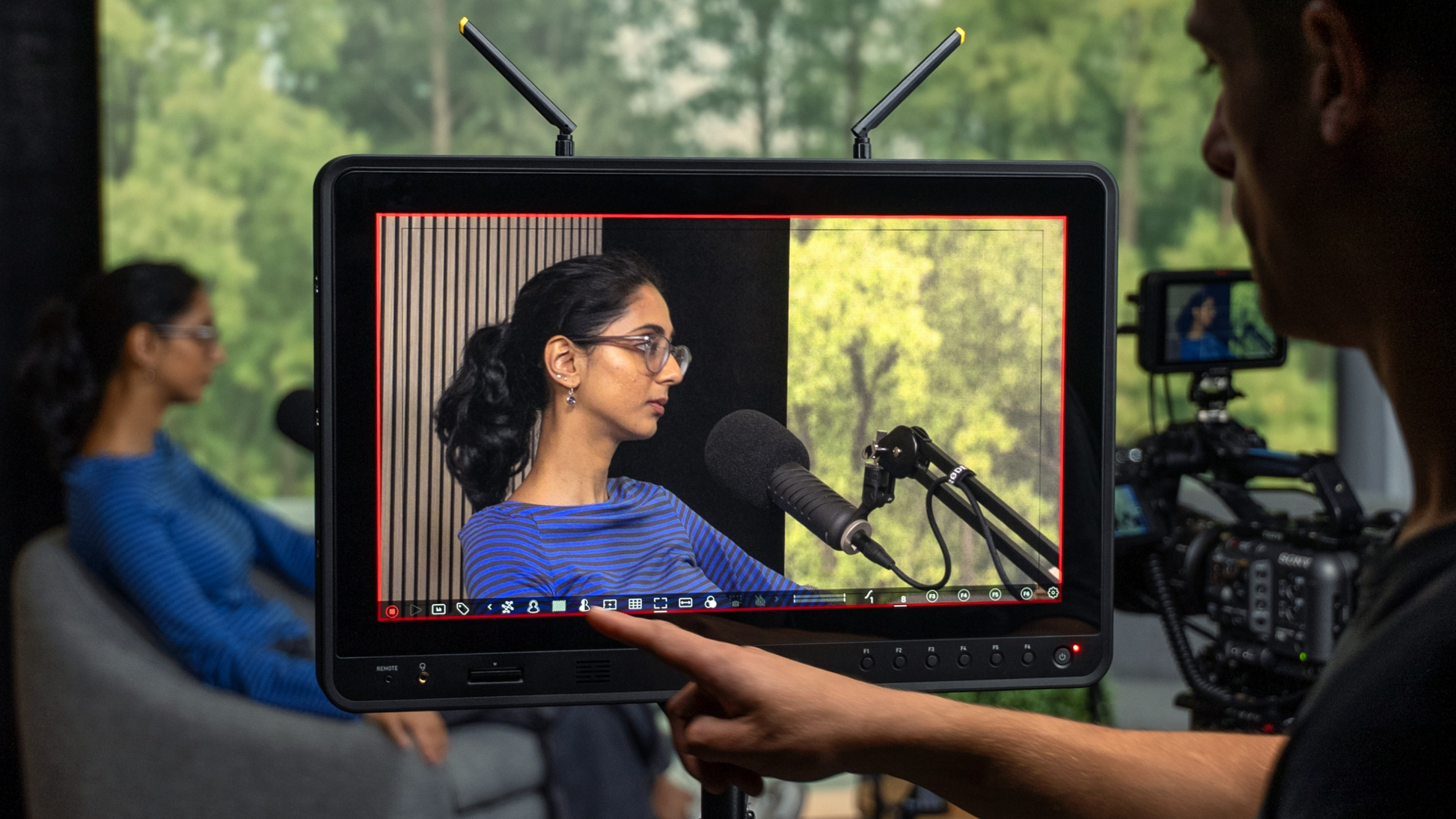

19-inch 4K HDR DCI-P3 monitor-recorder-switcher for on-set review and video village workflows. With 4 SDI inputs, ISO recording, live multi-camera switching, NDI HX3 over Wi-Fi or Ethernet, ProRes/DNx/ProRes RAW, XLR audio, and advanced monitoring tools, it delivers a complete Monitor-Record-Switch workflow for modern studio and film production environments.

Features:

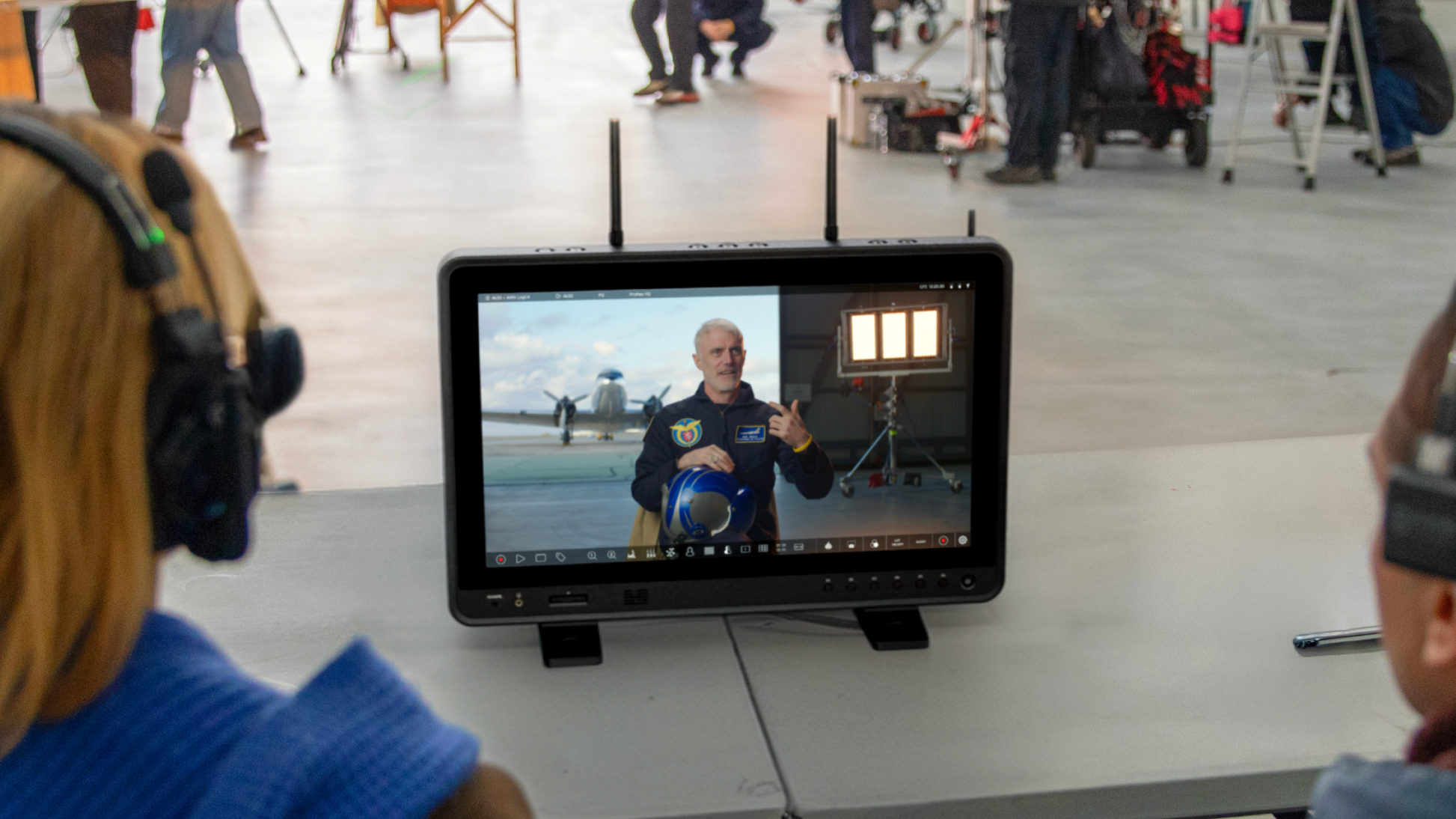

19-inch, 4K HDR DCI-P3 free standing monitor for on-set review & video village workflows
Record in ProRes, ProRes RAW, Avid DNx to CFexpress Type B or external USB-C storage
Record up to four isolated camera feeds (ISOs), plus a fifth program output
Quad-view and multi-camera monitoring

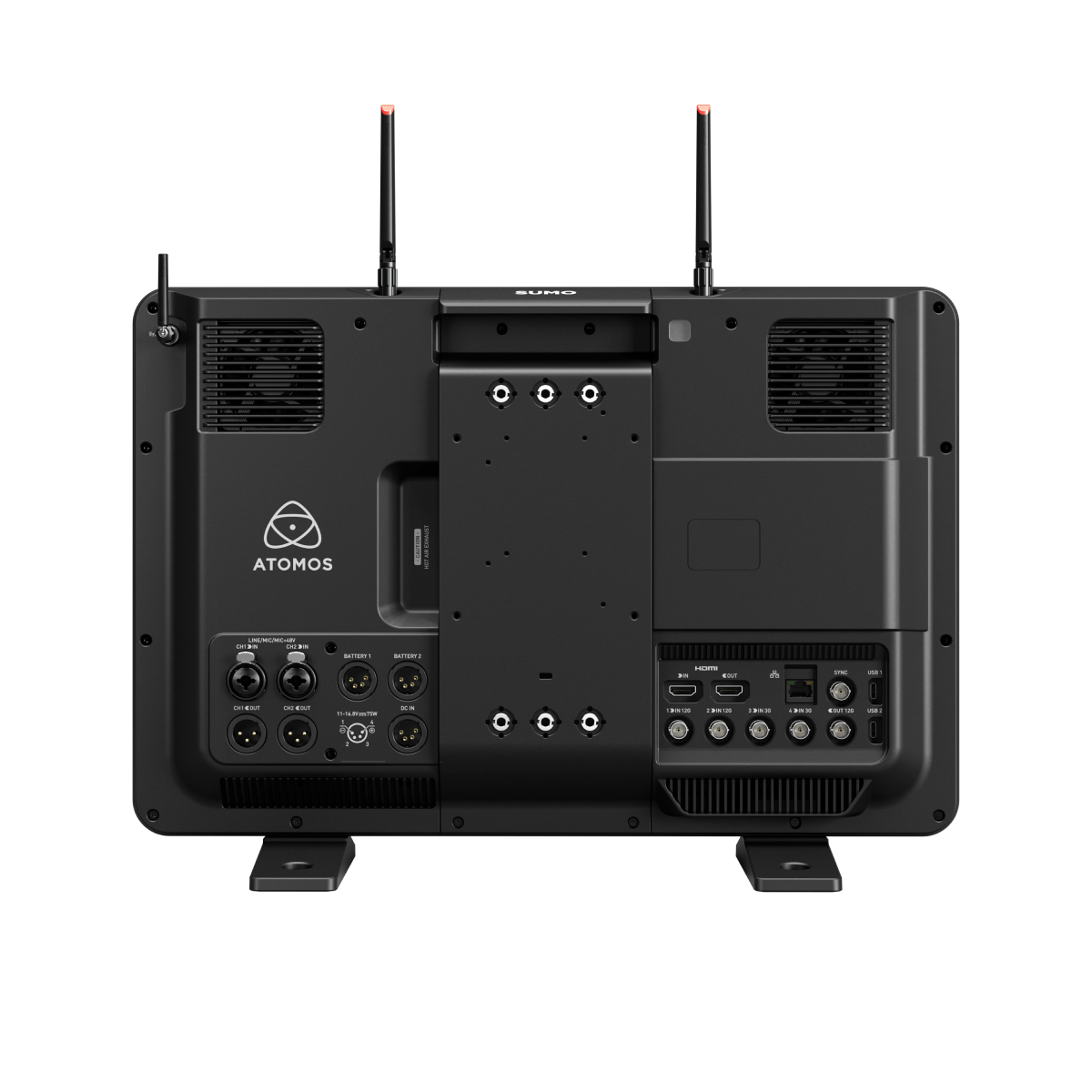

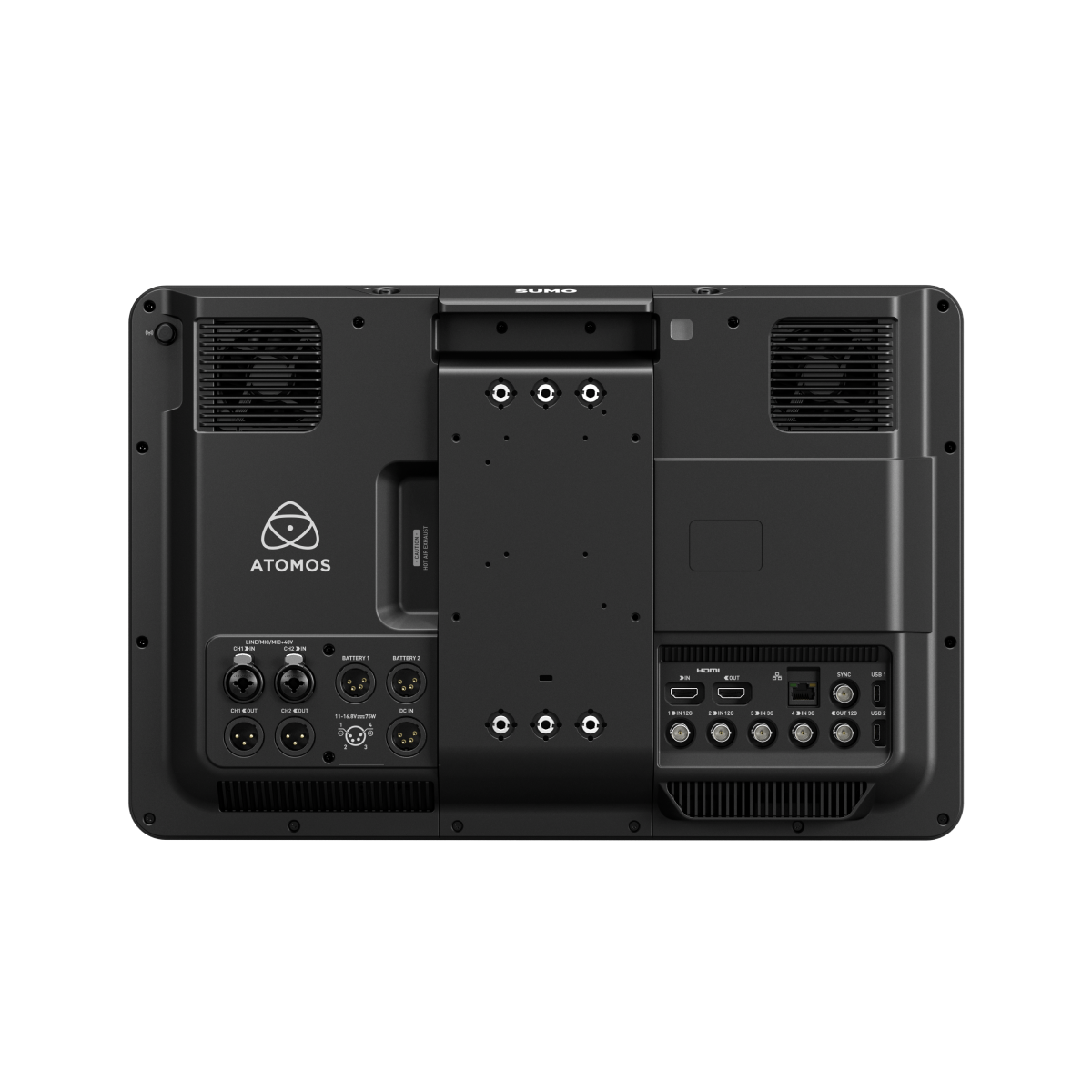

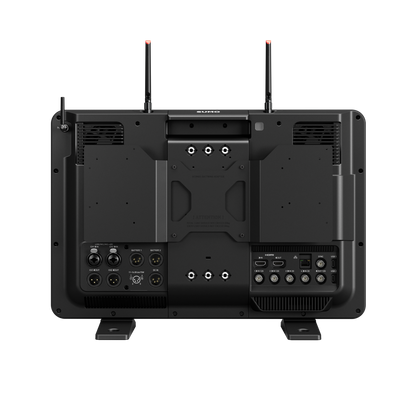

2 x 12G-SDI + 2 x 3G-SDI in, 12G-SDI out, HDMI in/out with XLR audio
Comprehensive technical monitoring tools including EL Zone™ false color, focus peaking, waveform & more

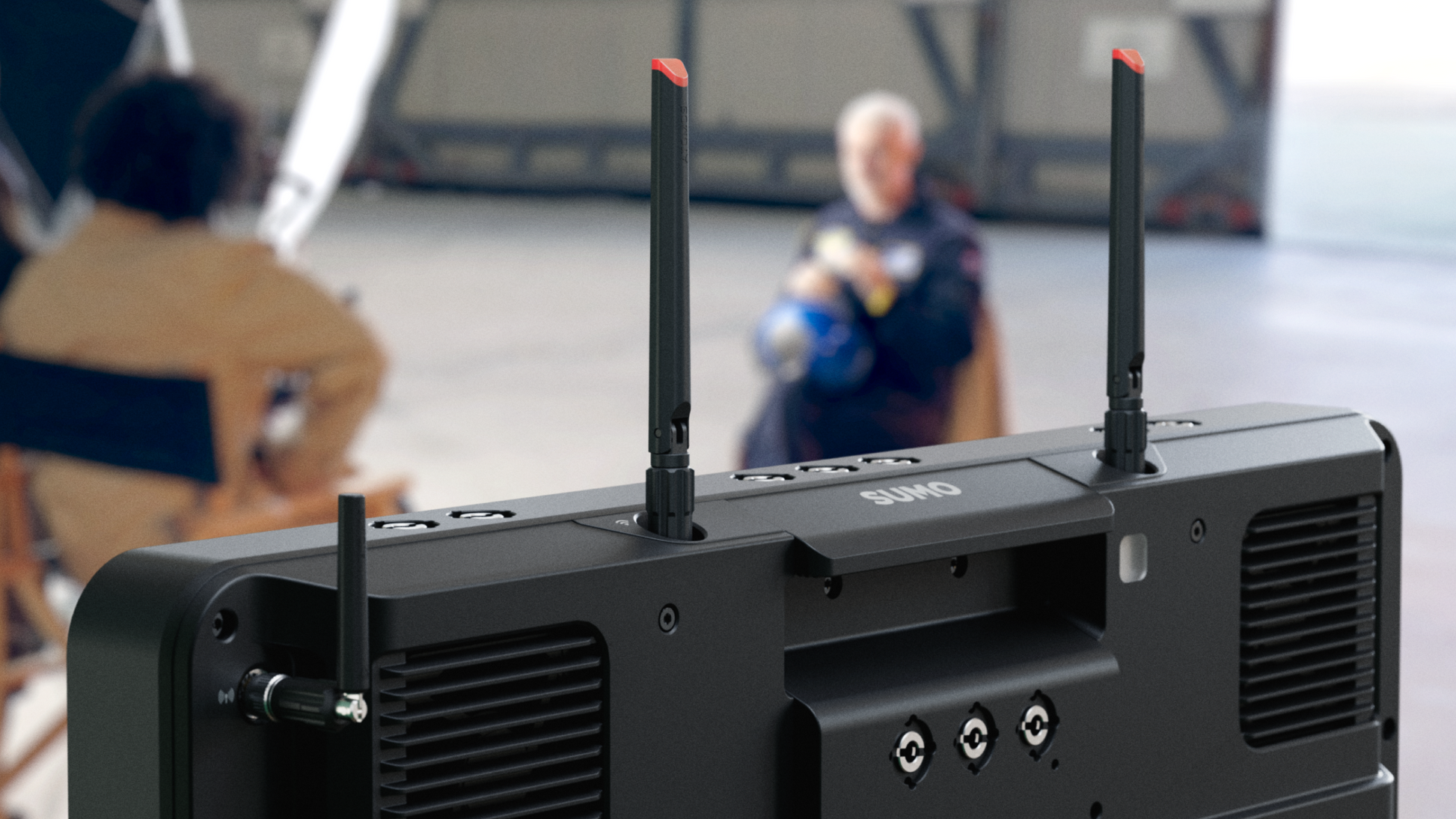

Transmit and receive NDI® HX3 over Wi-Fi or Ethernet
AirGlu timecode over Bluetooth & RF
Direct upload to ATOMOSphere, Frame.io, Dropbox & more
User-definable function buttons

Specifications

Product Specifications

Dimensions (W x H x D mm): 474mm x 315mm x 62mm
Weight: 7.1 Kg
Mount points: Top: 4 x 1/4"20, 2 x 3/8″, Bottom: 6 x 1/4"20, 3 x 3/8″ Right: 4 x 1/4"20, 2 x 3/8″, Left: 2 x 1/4"20, 1 x 3/8″
VESA mount: 100 x 100

Environmental

Ambient operating temperature: Up to 40 degrees Celsius

Construction

Body: Aluminium with ABS plastic
Cooling: Actively controlled fan and heat sink
Touchscreen: Capacitive touch
Tally light: LED on rear
Multi-function buttons: Power + 6 assignable

Power

Input voltage: DC 12V to 16.8V DC
Operating power: 75W
Compatible batteries: 95Wh+ V-Lock / Anton Bauer Gold Mount via XLR terminal (optional mounting plates available)
Battery voltage: 14.4V nominal
Battery power: Dual battery input via dedicated 4-pin XLR
DC-In connector: 1 x 4-pin XLR for included DC power supply
D-Tap: Via third-party D-Tap to 4-pin XLR cable

Display

Size: 19-inch
Resolution: 3840 x 2160 4K UHD
Bit depth: 10-bit (8+2 FRC)
Backlight type: Double Edge Lit
Brightness (cdm2 / Nits): 1200
Aspect ratio: 16:9
Color gamut: 100% Rec.709, 99% DCI-P3, 99% NTSC, 87% BT.2020
Calibration support: Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable (ATOMCAB018, sold separately)

Color Pipeline

Gamma: Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log
Gamut: DCI P3, DCI P3+, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema / Panasonic V Gamut /ARRI Alexa Wide Gamut / JVC LS300. RED Dragon Color / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT Display: .Cube format (17 & 33 points supported)
3D LUT Down Stream: Loop out
3DLUT 50/50: Yes
Monitoring Modes: Native / HLG / PQ / 3D LUT
HDR Output Conversion: Log / HDR to HLG / PQ

Video Input

HDMI: 1 x HDMI (2.0) up to 4K60P
Locking port: No
SDI: 2 x 12G-SDI (6G/3G backwards compatible) + 2 x 3G-SDI
Wi-Fi: Wi-Fi 6E
Bit depth: 8/10-bit for video / up to 12-bit for RAW
Video chroma subsampling: YCbCr 4:2:0 & 4:2:2
HDR Output Conversion: HDMI auto detection

Video Output

HDMI: 1 x HDMI (2.0) up to 4K60P
Locking port: No
SDI loop through: 1 x 12G-SDI
Wi-Fi: Wi-Fi 6E
Bit Depth: 8/10-bit video
Video Chroma Subsampling: 4:2:2

Metadata

SDI: File name – ARRI & RED. RAW – white balance, exposure index, shutter speed/angle, iris/F-stop, ISO, gamma, gamut
File naming - standard: Scene/shot/take & rolling scene/shot/take
File naming - over SDI: Auto-matched filenames from supported ARRI, Canon, RED & Sony cameras

Network

Wi-Fi: Wi-Fi 6E
Ethernet: 1 x RJ45 connector

Connectivity

USB: 2 x USB-C 2.0/3.0
Bluetooth: Yes
LANC: Yes

Video Signal Conversion

HDMI to SDI: Yes
SDI to HDMI: Yes

Audio In/Out

Audio quality: 24-bit / 48kHz
Audio codec: PCM
HDMI : 8-channel, 24-bit (input dependent)
SDI: 12-channel, 24-bit (input dependent)
Analogue audio in: 2 x 3-pin XLR (female)
Analogue audio out: 2 x 3-pin XLR (male)
Speakers: Mono confidence up to 1.5W
Headphone Out: 3.5mm headphone jack, 2-channel

Timecode

Embedded: HDMI & SDI
Time of day: Yes
Reference / Genlock input: Yes (playback mode only)
LTC : LTC via dedicated BNC input (record mode only)
Wireless AirGlu RF Server and Client: Yes
Wireless AirGlu BT Server: Yes

Resolution & Frame Rates (Record, Monitor & Playback)

8K RAW: Up to 8Kp30
6K RAW: Up to 6Kp30
4K RAW: Up to 4Kp60
2K RAW: Up to 2Kp240
4K DCI: Up to 4Kp60
4K UHD: Up to UHDp60
2K DCI 2048 x 1080: Up to 2Kp60
1080p: Up to 1080p120
1080 PsF: Only via pulldown to progressive
1080i: 1080i50 / 1080i60
720p: Up to 720p60

Supported Media

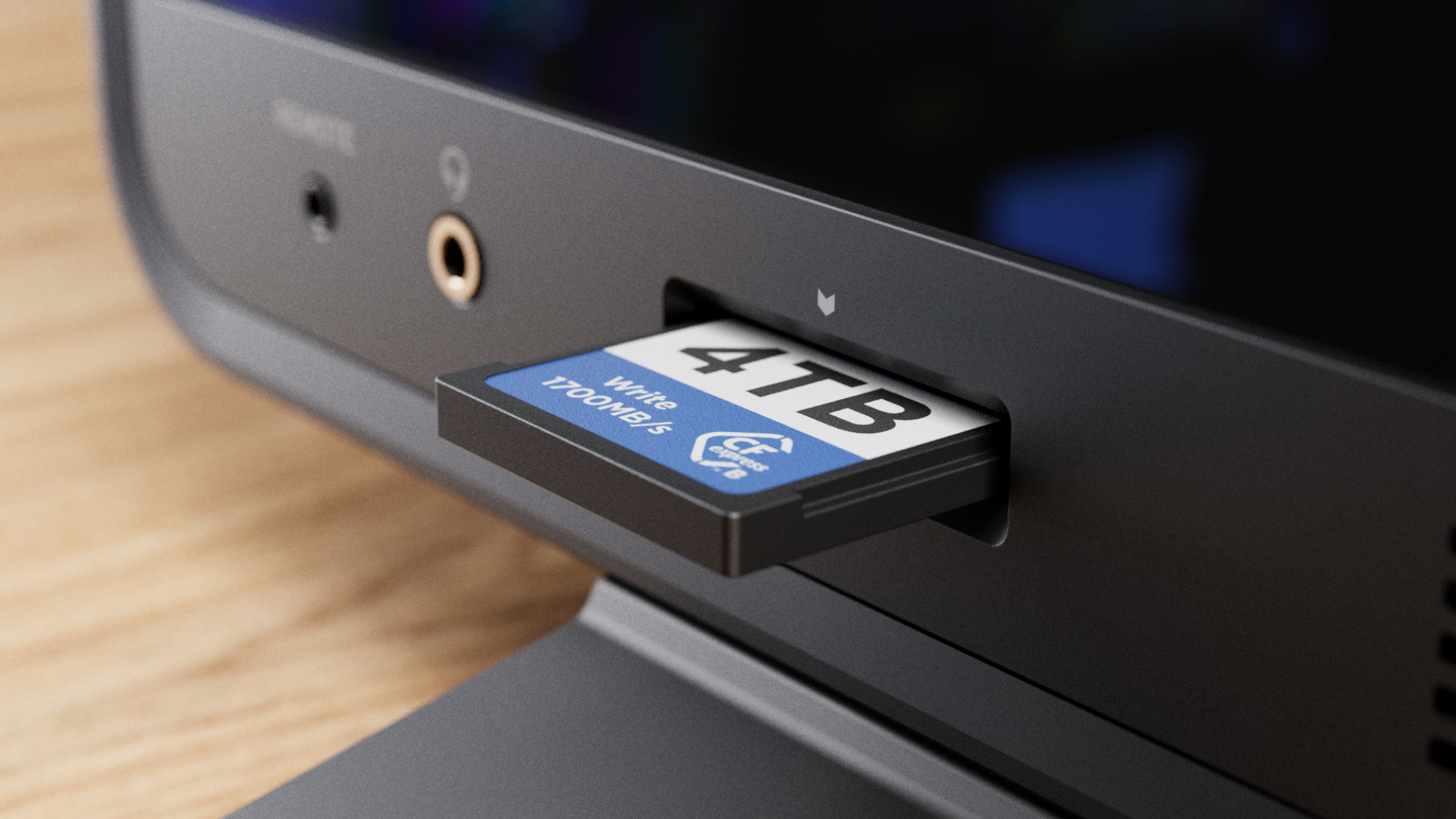

CF Express: Atomos certified CF Express Type B media
USB: Atomos certified USB 3.0 media
File System: ExFAT

Codecs

Apple ProRes RAW: ProRes RAW, ProRes RAW HQ
Apple ProRes: LT, 422, 422 HQ
Avid DNxHD: DNxHD 220x, 220, 145, 36
Avid DNxHR: LB, SQ, HQ, HQX
H.265: LQ, MQ, HQ, XQ in 8/10-bit, 4:2:2 and 4:2:0
H.264: Not supported

Playback

Playlist: Yes - create customer playlists from full or sub-clips
Loop: Yes, with user-customizable in/out markers
Apple ProRes RAW: Yes - recorded clips
Apple ProRes: HQ, 422, LT (linear PCM audio only)
Avid DNx: DNxHD: 220x, 220, 145, 36 – DNxHR HQX, HQ, SQ, LB (linear PCM audio only)
H.265: Yes

Recording

Pre-roll : 8s HD / 2s 4K - ProRes, DNxHD only
Timelapse: Yes
ISO recording: 4 x ISO up to 1080p60 (3G SDI Level A)
Switched program record: Yes

Multi-input Switching

Dual input display: Via multi ISO input mode
Multiple SDI input: Up to 4 x 1080p60 (3G SDI Level A)
Multiview display: Via multi ISO input mode
Input switching: Yes

On-screen Monitoring Tools

Waveform: 3 sizes – adjustable opacity & brightness
RGB parade: 3 sizes – adjustable opacity & brightness
Vectorscope: 2 sizes – adjustable opacity & brightness
2 x Zoom: Yes
Focus peaking: Colour selected / threshold setting / colour / mono / edges only
Atomos False Color: Yes, with scale
ARRI False Color: Yes
EL Zone: Yes
Zebra: Yes, adjustable
Isolate color channel: Blue Only
Cine Frame Guides: Presets for 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
Social Frame guides: Presets for 9:16, 1:1, 191:1, 4:5
Onion Skin: Yes
Safe areas: Action and graphic
Grid markers: 9 grid
Anamorphic desqueeze: 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x
Display Flip: Vertical only

Onboard Signal Processing

4K UHD downscale for HD : Loop out - 4K UHD to FHD
DCI Crop: Loop out - 17:9 to 16:9 crop
Pulldown removal: 24 / 25 / 30 pSF > 24 / 25 / 30p (2:2 pulldown), 60i > 24p (3:2 pulldown)

Remote Control

HDMI: Auto HDMI trigger, supported protocols - Canon, Sony, Atomos
SDI: SDI trigger camera selectable
Serial 2.5mm jack: Calibration via optional USB to serial cable
AirGlu BT: Yes
AirGlu RF: Yes

Accessories

AC to DC Power Adaptor: Yes, sold separately (ATOMPWR024)
Sun Hood: Yes, sold separately by third party

Camera to Cloud

ATOMOSphere: Direct progressive upload supported (20GB free storage) over Wi-Fi or Ethernet
Adobe Frame.io: Direct progressive upload supported (separate purchase) over Wi-Fi or Ethernet
Dropbox: Direct progressive upload supported (separate purchase) over Wi-Fi or Ethernet
