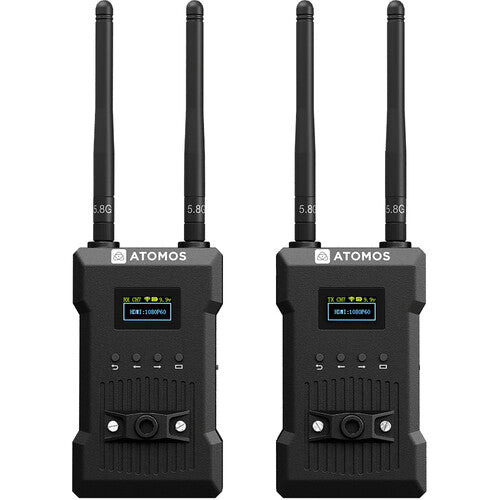

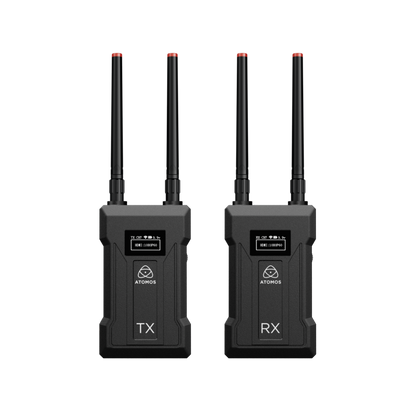

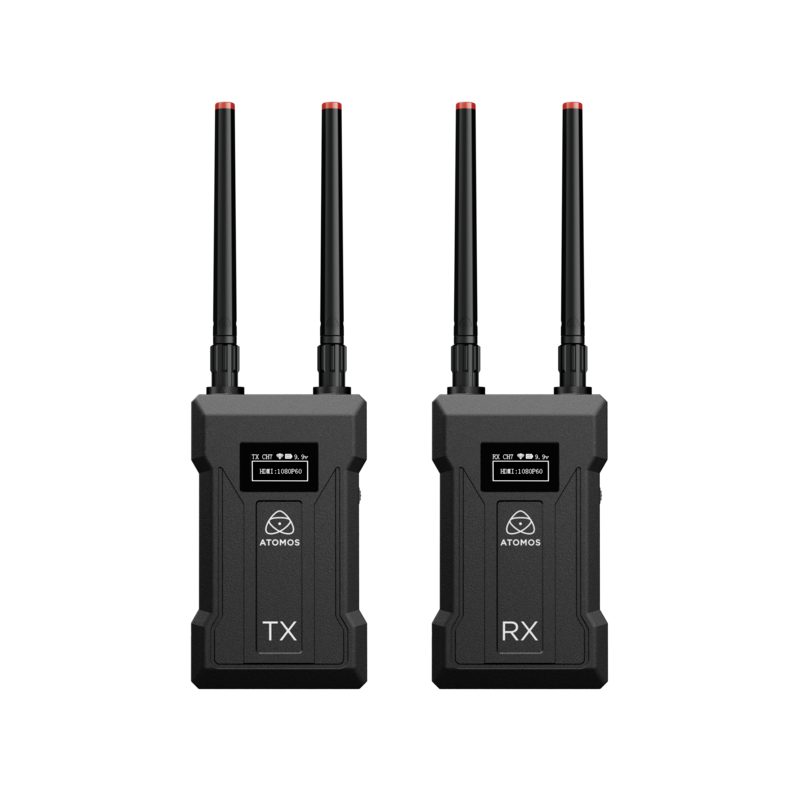

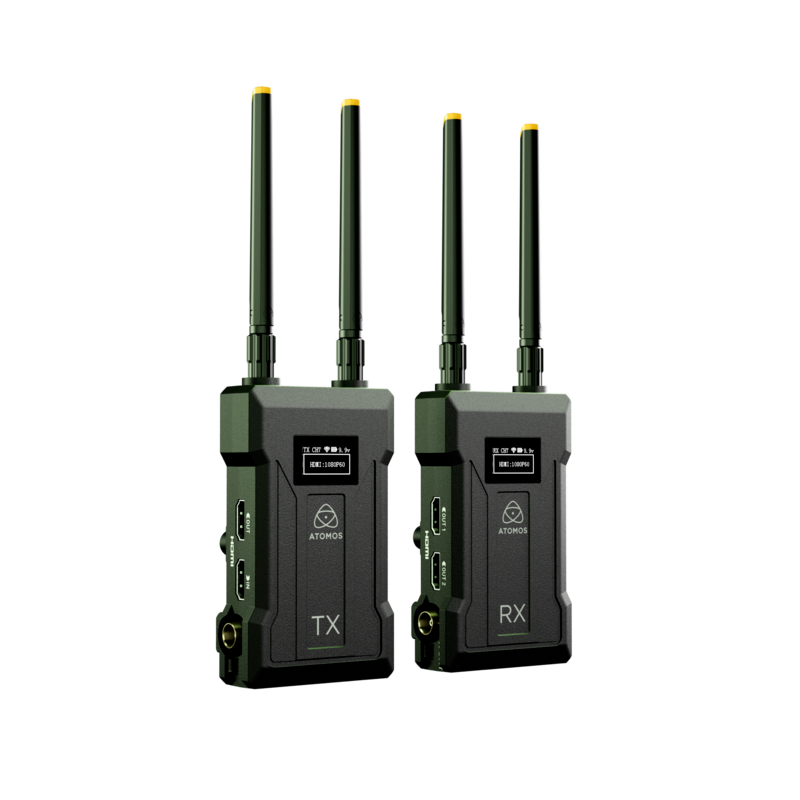

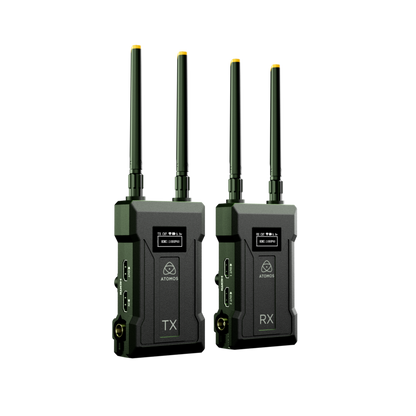

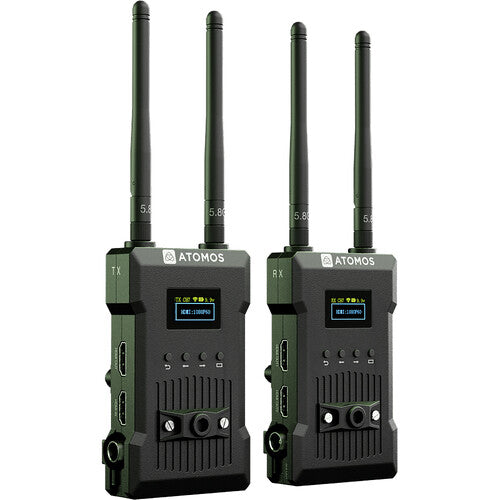

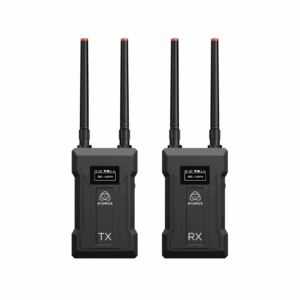

Atomos TX-RX 4K/HD Wireless Video Monitoring Transmitter & Receiver Set

Reliable wireless video. Real-time performance.
The Atomos TX/RX Wireless Video System is a compact, professional-grade transmitter and receiver kit that delivers high-quality, low-latency wireless video to your production workflow. Whether you’re on set, in the studio, or working remotely, this system eliminates cable clutter while maintaining the performance needed for accurate monitoring and real-time collaboration.

Transmit 4K Video with Low Latency
Send up to 4Kp30 or 1080p60 video wirelessly over 5GHz with low latency. The TX transmitter connects via HDMI to your camera or video source and transmits a clean signal to the RX receiver, giving you dependable, real-time viewing without tethering your camera team.

Wireless Monitoring from Anywhere on Set
The RX receiver outputs via HDMI and is powered via USB-C, making it ideal for use with external monitors, director’s displays, or a second Ninja unit. With a transmission range of up to 150 meters (500 feet) in line-of-sight conditions, you can move freely around set without sacrificing video quality or stability.

Secure and Efficient Transmission
Using 5GHz wireless with AES-128 encryption and automatic channel selection, the TX/RX system ensures secure and reliable video transport even in crowded RF environments. It’s built to perform in high-pressure production scenarios where signal integrity matters.

Built for Production Versatility
The system’s compact form factor and lightweight design make it easy to rig, mount, or carry. Quick pairing and flexible power options mean setup takes seconds, not minutes. It’s the ideal solution for shoots that demand mobility, speed, and simplicity.

Who is it for?
The Atomos TX/RX Wireless Video System is designed for filmmakers, ACs, directors, and production teams who want low-latency wireless monitoring without complexity. From fast-paced commercial shoots to independent film sets, this system enables real-time collaboration without the clutter of cables.

Key Features

• Low-latency wireless video transmission over 5GHz
• Supports up to 4Kp30 or 1080p60 video via HDMI
• TX and RX feature HDMI/SDI and USB-C or battery power
• Wireless range up to 150 meters (500 feet) line-of-sight
• AES-128 encryption with automatic channel selection
• Ideal for wireless monitoring, director’s village, or client viewing
• Lightweight, compact, and fast to set up

Physical

• Dimensions (W x H x D mm): 42mm x 67mm x 120mm (TX & RX)
• Weight: 231gms (TX & RX)
• Mount points: 1 x 1/4-inch 20 screw mount on bottom of device

Environmental

• Ambient operating temperature: Up to 50 degrees Celsius

Construction & Control

• Body: Aluminium alloy
• Rotary control: For channel selection
• Power switch: On/off

Power

• Input voltage: 9-16V
• Operating power: 4W (TX & RX)
• Compatible batteries: NP-F970/750/550 battery (not included)
• Built in battery: No

Display

• Resolution: 128 x 64 pixels
• Size: 21.8mm x 10.8mm

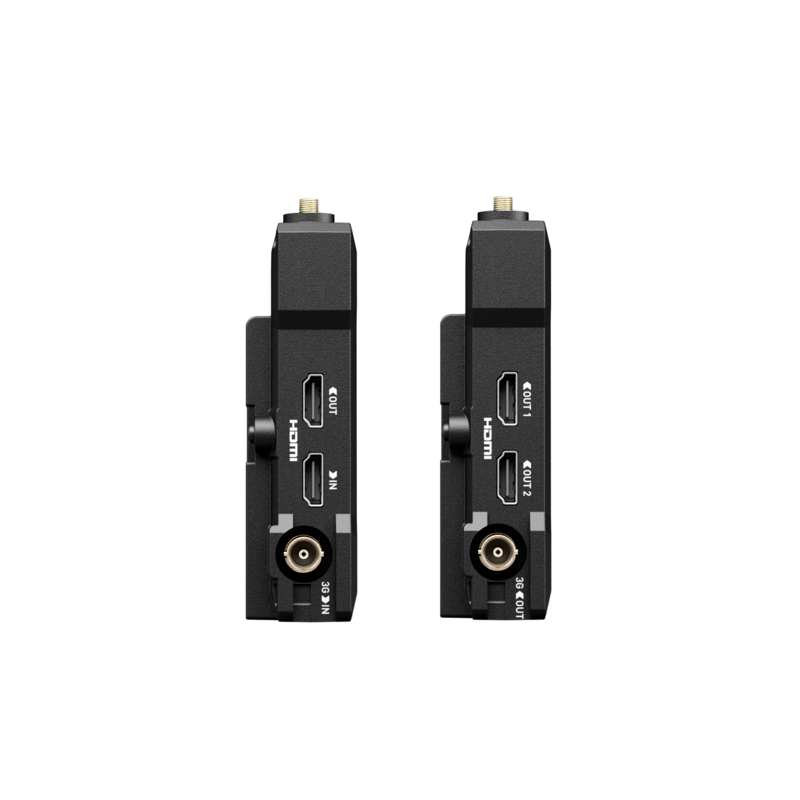

Video Input/Output

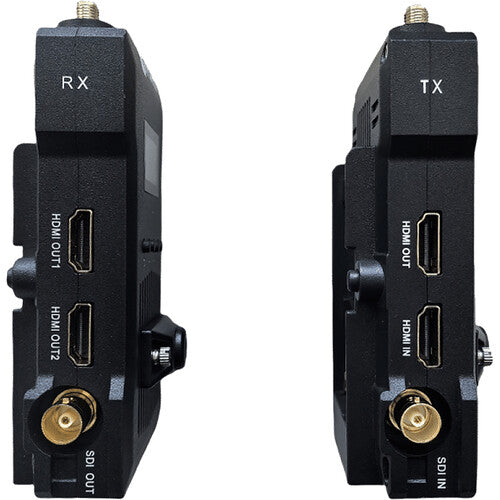

• TX: 1 x 3G-SDI, 1 x HDMI input and 1 x HDMI loop-through
• RX: 1 x 3G-SDI output and 2 x HDMI dual output

Wi-Fi

• Frequency: 5GHz
• Channels: 9 (CH0-CH08)
• Latency: 60ms
• Transmission distance (line of sight): Up to 300m (985ft)

Audio In/Out

• Audio Format: PCM dual channel

Resolution & Frame Rates Supported

• HDMI: 4KP30, 4KP25 (converted to 4KP30), 1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I 50, 720P60, 720P50
• 3G-SDI: 1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I 50, 720P60, 720P50

• Wireless video transmitter
• Wireless video receiver
• 2 x USB A-C 2.0 cable (1m)
• 4 x Wi-Fi antenna
• 10 x antenna tips
• 2 x 1/4-inch screw mount
• Quick Start Guide
• Warranty: Standard 1-year or 2-years with product registration
