SUPPORTED MEDIA
Video Formats
SD—PAL 25i, NTSC 30i
HD—720p (50, 59.94, 60*), 1080i (50, 59.94, 60), 1080PsF (23.98, 24, 25, 29.97, 30), 1080p (23.98, 24, 25, 29.97, 30, 47.96*, 48*, 50, 59.94, 60)
2K—23.98PsF, 24PsF, 25PsF, 29.97PsF, 30PsF, 23.98p, 24p, 25p, 29.97p, 30p, 47.96p*, 48p*, 50p, 59.94p, 60p
Ultra HD—23.98p, 24p, 25p, 29.97p, 30p, 47.952p*, 48p*, 50p, 59.94p, 60p
4K—23.98p, 24p, 25p, 29.97p, 30p, 47.952p*, 48p*, 50p, 59.94p, 60p
Audio Sample Rate
16-bit, 24-bit, 48 kHz (television standard)
Color Spaces
YUV 4:2:2, RGB 444*, REC 709, BT 2020, DCI-P3; 8-bit and 10-bit; 1D LUT support

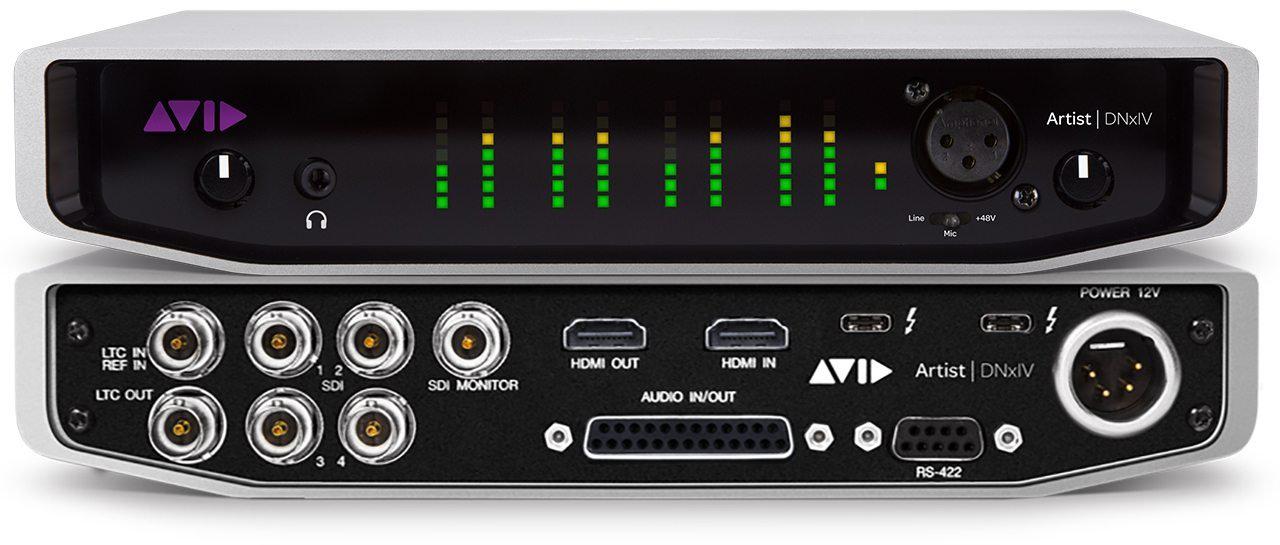

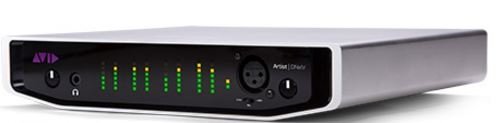

VIDEO AND AUDIO CONNECTIONS
SDI I/O
- Four bidirectional SDI ports and one 3G-SDI monitor output:
- 12G, 6G, 3G, 1.5G input and output
- 12G simultaneous input and output
- Dual 3G input
- Quad 3G input and output, software-controllable division/interleave
HDMI I/O
HDMI 2.0
Audio I/O
- Eight channels of analog audio (coming soon), which can be configured as eight inputs, four inputs and four outputs, or eight outputs
- DB25: Ch 1-8 inputs, Ch 1-8 outputs, or Ch 1-4 input with Ch 5-8 output (audio breakout cable sold separately)
- Eight channels of HDMI I/O embedded in SD, HD, UHD, 2K, and 4K
- One front-panel XLR mic/line input with 48V phantom power and gain control
- One stereo headphone jack with volume control
HOST AND SYNC CONNECTIONS
Computer
Two Thunderbolt 3 ports (cable sold separately)
LTC I/O
Switchable LTC or video reference input on BNC, LTC output on BNC
Device Control
One RS-422 machine control port
HARDWARE SCALING/PROCESSING
Down-Scaling/Conversion
4K to 2K, UHD to HD, HD to SD
Up-Scaling/Conversion
SD to HD
Cross-Conversion
720p to 1080i HD, 1080i to 1080p, 1080i to 720p
Other Conversion
Color space conversion*, hardware deinterlacing
Real-Time Keyer
Alpha channel over video, matte, or frame buffer over incoming video or matte
3D Processing
Frame Compatible/Frame Packed
ADDITIONAL FEATURES
Audio Pass-Through Mixing
Monitor mix the audio being captured (8 channels)
Clock Source (selectable/detectable)
Genlock/Reference Clock (BBG or Tri-level), Internal Clock, SDI (SD and HD), HDMI
Ancillary Data Support
SDI VITC reader, RP188 Timecode I/O, NTSC (closed captioning), HD-SDI (closed captioning), pass through all (HD), pass through all (4K)
ADDITIONAL SPECIFICATIONS
Power (device only)
10–20V, 30W typical, 33W max, 70W max with USB-C power delivery to external devices
Power Supply
One built-in international AC power supply (120–240V, 50–60 Hz)
Operating Temperature
32°–104° F (0°–40° C) Storage temperature -40°–140° F (-40°–60° C)
Relative Humidity
10–90% non-condensing Operating altitude <10,000 feet (<3,000 meters)
Dimensions
(H x W x D) 1.7 x 8.7 x 8.1 inches (42 x 222 x 206 mm)
Weight
3.4 lbs (1.5 kg)
* Currently not supported in Media Composer.
