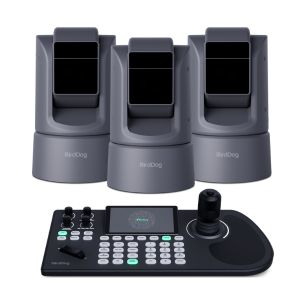

BirdDog 3x O4 PTZ Cameras and KBD Controller Combo (Gray)

BirdDog O4 Combo
Take your productions outdoors with the O4 Combo. Featuring 3x O4 PTZ cameras and a BirdDog KBD Controller. Designed for extreme environments, O4 delivers 12G-SDI, NDI|HB, up to 60x zoom (30x 4K), laser IR night vision, and IP66-rated durability. The perfect combo for stadiums, outdoor venues, and 24/7 monitoring.

BirdDog O4 Outdoor Camera
BirdDog O4 is the PTZ camera built to dominate the outdoors. Designed for stadiums, city infrastructure, outdoor events, and critical perimeter monitoring, O4 delivers professional-grade image quality, extreme environmental resilience, and next-gen AI tracking in one powerful system. From mountain tops to city streets, this is the camera that doesn’t just survive the elements, it owns them.

BirdDog KBD Controller
BirdDog KBD Controller is the ideal tool for PTZ camera operators, designed with a rugged, ergonomic build and a large screen displaying up to four cameras at once. The streamlined menu provides direct access to essentials like camera pairing, while its built-in tally display integrates with mixers like TriCaster or vMix, showing the live camera right on the keyboard. With tactile feedback for camera switching, it’s intuitive and comfortable for extended use. The BirdDog KBD adapts to any setup with NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity, and reflects BirdDog’s commitment to sustainability with its ocean-bound plastic construction. Packed with enhanced features, including improved access, configuration, and joystick calibration, it’s a powerful, affordable solution shaped by user feedback for greater control, comfort, and reliability.

BirdDog O4 Outdoor Camera Specs:

IMAGING

• Imaging Sensor: Sony 1 / 1.8” CMOS – ULTRA HD
• Lens: f=6.9mm~215mm
• Optical Zoom: Optical 30x (4k) – 60x (HD), 8x Digital
• Video Format: "2160p @ 60/59.94/50/30/29.97/25fps
• 1080p @ 60/59.94/50/30/29.97/25fps
• 1080i @ 60,59.94,50fps
• 720p @ 30/29.97/25fps"
• Horizontal angle of view: 60°~2°
• Vertical angle of view: 34°~1.1°
• Diagonal angle of view: 67°~2.3°
• Aperture: f1.35~f4.6
• Focus: Auto (Global/Centre/Upper/Lower/Left/Right), Manual
• Exposure: Auto, Manual Shutter Priority, Iris Priority, Brightness Priority
• Exposure Metering: Average, Centre, Top, Bottom, Left, Right
• Backlight Compensation: Yes
• Exposure Compensation: Yes
• Flicker Reduction: Outdoor / 50Hz / 60Hz
• White Balance: Auto / One Push / Indoor / Outdoor / Manual / Color Temperature
• Digital Noise Reduction: 2D/3D Noise Reduction
• SNR: >50dB
• Effective Pixels: 8.4MP
• HDR: Supported, REC.2020 Color Space

MECHANICAL

• Pan/Tilt rotation: ±170°, -30° ~ +90°
• Pan Control Speed: 0.05-90°/sec
• Tilt Control Speed: 0.05-90°/sec
• Preset Number: 255 Presets
• IR Laser: Included, 500m illumination distance
• FreeD Support: Included, UDP, and Embedded in NDI Stream
• Integrated Heater: Included
• Glass Coating: High-strength Aerospace/Marine grade Hydrophobic, Anti-mildew, Anti-fouling coating.

AI FUNCTIONS

• AI Auto Tracking: Area Management, Framing Adjustment, Sensitivity Adjustment, Auto Framing, Stage
• Tracking, Zone Tracking
• AI Gesture Control: Supported

I/O INTERFACE

• Video Output Interfaces: 12G-SDI, RJ-45
• Video Compression Formats: h.264, h.265, NDI High Bandwidth
• Audio I/O: Stereo Unbalanced 1/4” TRS Input/Output
• Network Interface: SFP+ Fibre Optic, RJ45 1GbBaseT adaptive Ethernet port; PoE++
• Encoder Network Protocols: NDI|HX2, NDI|HX3, High Bandwidth NDI, RTSP, RTMP, SRT, Dante AV-H
• (unlocked via Dante Activator)
• Control Interfaces: Ethernet, Serial
• Control Protocols: NDI, VISCA-IP
• API Control: BirdDog RESTful API 2.0

GENERAL

• Input Voltage: DC 24V, PoE++
• Input Current: 1.2A
• Power Consumption: 40W Max.
• Operating Temperature: -40°C ~ +60°C
• IP Rating: IP66
• Dimensions (W*H*D): 200x330x226mm
• Weight: 7.6Kg

BirdDog KBD PTZ Controller Specs:

Camera Control

• PTZ Control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
• Fine PTZ Control: VISCA-IP, NDI
• Focus Control: Auto Focus, Manual Focus buttons
• Auto Exposure: Direct Button
• Manual Exposure: Toggle Dial adjustment Brightness/Shutter/Gain/Iris
• Auto White Balance: Direct Button
• Manual White Balance: Toggle Dial adjustment R-Gain, B-Gain, Color Temperature
• Auto Focus: Direct Button
• Manual Focus: Direct Button (Near/Far)
• BLC (Backlight Compensation): Direct Button
• Zoom Ring on Joystick: Yes (enable/Disable)
• Programmable Trigger on Joystick: Adjustable, One-Push Focus, AI Tracking, One-Push AWB
• AI Camera Mode Control: Camera Dependent, supported
• Copy/Paste Camera Settings: Supported on selected BirdDog Cameras (VISCA-IP, NDI)

Camera Access

• Max. Cameras support: 255
• Direct Camera access keys: 6
• Direct Preset access keys: 10
• Max Preset support: 255 per camera
• OSD Camera Menu: Menu Button / Interaction with Joystick

Display

• Display Resolution: 1280x720
• Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
• Full Screen IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
• IP Video CODEC support: h.264, h.265
• Tally Borders: Selectable, Multiview and Full Screen mode
• On Screen Menu: Fully configurable
• Light/Dark Mode: YES

NDI Support

• NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
• NDI Multiview: NDI HX2, NDI HX3
• NDI Router: Yes, follows current active camera
• NDI Discovery: Supported
• NDI Access Manager: Supported
• NDI PTZ Sensitivity: Standard (NDI); Superfine (BirdDog Specific)

Setup/Configuration

• WebUI: BirdUI for setup and firmware updates
• Light/Dark Mode: YES
• API-based Camera Selection: YES

Serial Connections

• RS-232: D-Sub connector (9-pin)
• RS-422: Phoenix connector

Mechanical

• Joystick Type: 4D (Integrated Trigger button)
• Keys: 37 Keys; Backlit, Individual Contact, Silicon Pad
• Toggle Dials: 4 knobs; Press Button, Graduated, 360° adjustment
• Zoom Rocket: Spring loaded, adjustable
• Dimensions: 377mm x 177mmx 118mm ; 14.84in x 6.96 x 4.64in (LxWxH including Joystick)
• Construction Material: Aluminium; OBP Ocean-Bound Plastic
• Integrated Carry Handle: YES
• Operating Temperature: -10°C - +55°C; 14°F - 130°F
• Storage Temperature: -10°C - +55°C; 14°F - 130°F
• Operating Humidity: 20% - 80% (Non-condensing)
• Storage Humidity: 0% - 90% (Non-condensing)
• Power Supply: PoE (802.3af), DC12V
• Power Consumption: ≤5W
• Packaging Dimensions: 390x215x165mm; 15.35x8.46x6.49 in

3 x BirdDog O4 Outdoor Camera - Grey
1 x BirdDog KBD PTZ Controller with Integrated Screen
