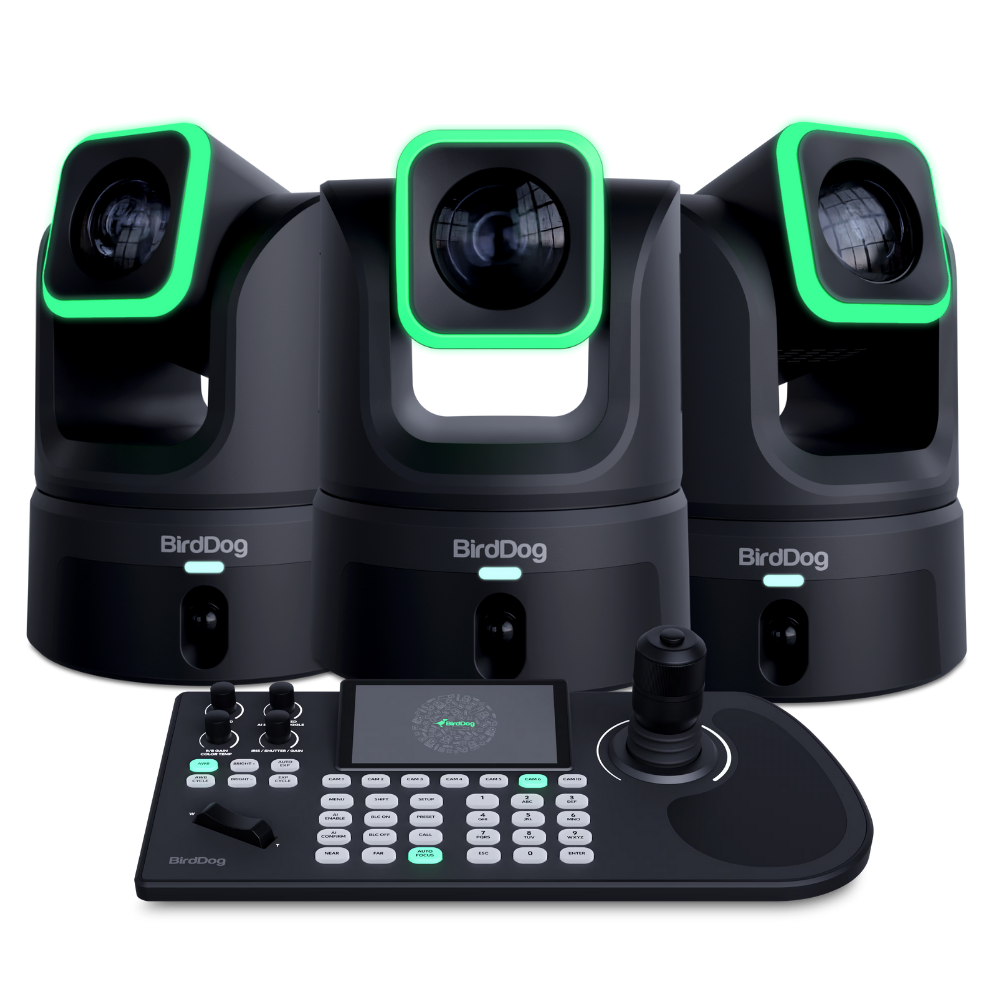

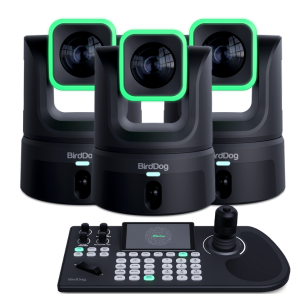

BirdDog 3x BDXLUB + 1x BDKBD Combo

BirdDog XL Ultra PTZ Bundle

Introducing the BirdDog XL Ultra, a revolutionary PTZ camera that combines the power of cinema with the versatility of PTZ technology. This innovative camera is designed to elevate live productions, offering an unparalleled visual experience.

This isn’t just another PTZ. It’s the heavyweight champ, built around a colossal 4/3" CMOS sensor — the kind usually found in pro cinema and DSLR cameras. Paired with a 20× optical zoom (40× in HD), OLPF, and ND filters, XL delivers cinematic depth, incredible low-light performance, and clarity that makes other PTZs look small.

But the BirdDog XL Ultra is more than just a big sensor. Its dual-camera design gives you both a main PTZ and a 100° panoramic camera, each shooting in 4K60, each independently adjustable, and each able to output simultaneously. One camera, two perspectives, endless flexibility.

AI tracking is powered by a neural processor that frames subjects naturally, moving with human-like precision. Premium motors and a next-gen thermal system keep motion whisper-smooth and nearly silent, so all the drama stays in front of the camera, not behind it.

Connectivity is uncompromising: 12G-SDI, HDMI, SFP+ fiber, PoE++, and balanced XLR audio, plus simultaneous Full NDI and NDI HX3. Dual streaming lets you send NDI alongside SRT, RTMP, or RTSP, so you’re ready for any workflow — broadcast, AV, XR, or virtual production.

With signature BirdDog touches like Halo Tally with RGB customization, dual side e-ink displays, and a rear numbering tally system, XL Ultra doesn’t just perform like cinema — it looks the part too.
From studios and XR stages to houses of worship and arena productions.

BirdDog XL Ultra PTZ Bundle Features:

• Large-format 4/3" CMOS sensor for cinematic depth of field and outstanding low-light performance.
• 20× optical zoom (40× in HD) with OLPF and ND filters for precision and clarity.
• AI tracking with machine learning, using dual-camera input for natural, human-like framing.
• Ultra-quiet motors and advanced thermal design for distraction-free operation.
• Dual 4K60 outputs via 12G-SDI and HDMI for uncompromising image quality.
• FreeD and Genlock support, making XL ideal for XR stages, AR workflows, and multi-camera sync.
• SFP+ fiber connectivity for large-scale and remote installs.
• Simultaneous Full NDI and NDI HX3 streaming for flexible workflows.
• Dual streaming support — NDI plus SRT, RTMP, or RTSP concurrently.
• Firmware-ready for NDI 6.2, ensuring future-proof performance.



BirdDog KBD PTZ Controller

BirdDog KBD Controller is the ideal tool for PTZ camera operators, designed with a rugged, ergonomic build and a large screen displaying up to four cameras at once. The streamlined menu provides direct access to essentials like camera pairing, while its built-in tally display integrates with mixers like TriCaster or vMix, showing the live camera right on the keyboard. With tactile feedback for camera switching, it’s intuitive and comfortable for extended use. The BirdDog KBD adapts to any setup with NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity, and reflects BirdDog’s commitment to sustainability with its ocean-bound plastic construction. Packed with enhanced features, including improved access, configuration, and joystick calibration, it’s a powerful, affordable solution shaped by user feedback for greater control, comfort, and reliability.

BirdDog XL Ultra Specs:

 Primary Camera

• Image Sensor: 4/3* Sony CMOS 5K Sensor
• Lens: 20x Optical Zoom Lens
• Video Format: 2160p60
• Additional resolutions: 2160p60, 59.94, 50, 29.97, 25 1080p60, 59.94, 50, 30, 29.97, 25 1080160, 59.94, 50
• 720p60, 59.94,50
• Focal Length: 9.8mm- 186mm
• Aperture: f2.8-f4.5
• Focus: Auto, Manual
• AF Method: PDAF (Phase Detection Auto Focus)
• Horizontal Field of View: 71°- 49
• Exposure: Auto, Shutter Priority, Iris Priority, Manual, BLC, WDR
• Shutter Speed: 1 / 1 -1/10.000s
• 3D Noise Reduction: Yes
• SNR: 300lux-600lux 45-50dB
• Effective Pixels: 20.89M P
• Vertical Field of View: 40°-2°
• Diagonal Field of View: 7 9 ° ~ 4.59
• ND Filter: Yes 1, 1/4/1/16, 1/62
• Optical Low Pass Filter (OLPF): Yes
• Image Stabilization: Digital
• Digital Zoom: 16xSupersampling
• Filter ring: Yes

Secondary Panoramic Camera

• Image Sensor: 1/1.8" Sony CMOS 4K sensor
• Lens: Fixed
• Focal Length: 4.4mm
• Aperture: f2.0
• Horizontal Field of View: 85°
• Vertical Field of View: 53°
• Diagonal Field of View: 93°
• Mechanical
• Pan/Tilst Rotation: +170°, -30° -+90°
• Pan control Speed: 0.05° -120°/
• Tilt Control Speed: 0.05°~90%
• Preset Number: 256
• Integrated Tally Ligh: Halo Style, RGB (Front), Number Style (Rear)
• e-Ink display: 2x 3" Grayscale e-Ink Displays
• Pan/Tilt Drive System: Ultra-finedrive
• Quietness:
• NC 50 (with a sound pressure level corresponding to t h e 500Hz-1kHzfrequencybandbeing49- 51dB)

I/O Interface

• Video Output Interfaces: 12G-SDI, 3G SDI x2, HDMI 2.0, USB-C, 1Gb RJ45, SFP+ Cage (Ethernet)
• Video Compression Formats: H.264, H.265, SpeedHQ
• Network Interfaces: 1x 1GbE Adaptive Ethernet port, PoE++, 1x SFP+ Cage (Ethernet)
• Encoder Network Protocols: High-Bandwidth NDI® (SpeedHQ), NDI® HX3, NDI HX2, SRT, RT S P.RT M P
• Decoder Network Protocols: NDI HX3, NDIO HX2
• Decoder Supported Resolutions: 080p @60/59.94 / 50/30 / 29.97 / 25fps, 720p @60, 59.94, 50fps
• Control Interfaces: 1Gb Ethernet, SP+, RS232 (input &output), RS42, TYPE-C (UVC)
• Control Protocols: VISCA-IP, NDI, VISCA Serial, Pelco-P, Pelco-D
• FreeD Protocol: Supported - UDP /NDI® Embedded
• Analogue Audio: Balanced Audio XLR x 2
• Digital Audio: Embedded with Main and secondary HDMI, 12G-SDI, Network Video, USB (UVC)
• Genlock: Supported
• Timecode: Supported
• SD Card Slot: MicroSD - Recording supported
• Kensington Lock: Supported
• WebUI Control: Integrated BirdDog BirdUl 2.0
• API Support: BirdDog RESTful API 2.0, Crestron Libraries, Osys Libraries

AI Features

• Presenter Tracking: Advanced with Secondary camera assistance
• Auto-Framing: Advanced with Secondary camera assistance
• Zone Tracking: Supported
• Gesture Control: Supported

General

• Environmental Operation: Internal
• Input Voltage: DC-12V, PoE++
• Input current: <60W
• Power Consumption: 12V5A
• Working Temperature: 0°C- 40°C(32°F~105°F)
• Working Humidity: ~20% ~ 80% (Non-condensing)
• Dimensioned (W*H*D): 218.6 × 291.6 × 263.3mm (8.61 x 11.48 x 10.37in)
• Weight: 4K





BirdDog PTZ Controller Specs:

Camera Control

• PTZ Control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
• Fine PTZ Control: VISCA-IP, NDI
• Focus Control: Auto Focus, Manual Focus buttons
• Auto Exposure: Direct Button
• Manual Exposure: Toggle Dial adjustment Brightness/Shutter/Gain/Iris
• Auto White Balance: Direct Button
• Manual White Balance: Toggle Dial adjustment R-Gain, B-Gain, Color Temperature
• Auto Focus: Direct Button
• Manual Focus: Direct Button (Near/Far)
• BLC (Backlight Compensation): Direct Button
• Zoom Ring on Joystick: Yes (enable/Disable)
• Programmable Trigger on Joystick: Adjustable, One-Push Focus, AI Tracking, One-Push AWB
• AI Camera Mode Control: Camera Dependent, supported
• Copy/Paste Camera Settings: Supported on selected BirdDog Cameras (VISCA-IP, NDI)

Camera Access

• Max. Cameras support: 255
• Direct Camera access keys: 6
• Direct Preset access keys: 10
• Max Preset support: 255 per camera
• OSD Camera Menu: Menu Button / Interaction with Joystick

Display

• Display Resolution: 1280x720
• Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
• Full Screen IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
• IP Video CODEC support: h.264, h.265
• Tally Borders: Selectable, Multiview and Full Screen mode
• On Screen Menu: Fully configurable
• Light/Dark Mode: YES

NDI Support

• NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
• NDI Multiview: NDI HX2, NDI HX3
• NDI Router: Yes, follows current active camera
• NDI Discovery: Supported
• NDI Access Manager: Supported
• NDI PTZ Sensitivity: Standard (NDI); Superfine (BirdDog Specific)

Setup/Configuration

• WebUI: BirdUI for setup and firmware updates
• Light/Dark Mode: YES
• API-based Camera Selection: YES

Serial Connections

• RS-232: D-Sub connector (9-pin)
• RS-422: Phoenix connector

Mechanical

• Joystick Type: 4D (Integrated Trigger button)
• Keys: 37 Keys; Backlit, Individual Contact, Silicon Pad
• Toggle Dials: 4 knobs; Press Button, Graduated, 360° adjustment
• Zoom Rocket: Spring loaded, adjustable
• Dimensions: 377mm x 177mmx 118mm ; 14.84in x 6.96 x 4.64in (LxWxH including Joystick)
• Construction Material: Aluminium; OBP Ocean-Bound Plastic
• Integrated Carry Handle: YES
• Operating Temperature: -10°C - +55°C; 14°F - 130°F
• Storage Temperature: -10°C - +55°C; 14°F - 130°F
• Operating Humidity: 20% - 80% (Non-condensing)
• Storage Humidity: 0% - 90% (Non-condensing)
• Power Supply: PoE (802.3af), DC12V
• Power Consumption: ≤5W
• Packaging Dimensions: 390x215x165mm; 15.35x8.46x6.49 in

3 x BirdDog XL Ultra - Black
1 x BirdDog KBD PTZ Controller with Integrated Screen
