BirdDog 3x BDXLUW + 1x BDKBD Combo

BirdDog XL Ultra PTZ Bundle

Introducing the BirdDog XL Ultra, a revolutionary PTZ camera that combines the power of cinema with the versatility of PTZ technology. This innovative camera is designed to elevate live productions, offering an unparalleled visual experience.

This isn’t just another PTZ. It’s the heavyweight champ, built around a colossal 4/3" CMOS sensor — the kind usually found in pro cinema and DSLR cameras. Paired with a 20× optical zoom (40× in HD), OLPF, and ND filters, XL delivers cinematic depth, incredible low-light performance, and clarity that makes other PTZs look small.

But the BirdDog XL Ultra is more than just a big sensor. Its dual-camera design gives you both a main PTZ and a 100° panoramic camera, each shooting in 4K60, each independently adjustable, and each able to output simultaneously. One camera, two perspectives, endless flexibility.

AI tracking is powered by a neural processor that frames subjects naturally, moving with human-like precision. Premium motors and a next-gen thermal system keep motion whisper-smooth and nearly silent, so all the drama stays in front of the camera, not behind it.

Connectivity is uncompromising: 12G-SDI, HDMI, SFP+ fiber, PoE++, and balanced XLR audio, plus simultaneous Full NDI and NDI HX3. Dual streaming lets you send NDI alongside SRT, RTMP, or RTSP, so you’re ready for any workflow — broadcast, AV, XR, or virtual production.

With signature BirdDog touches like Halo Tally with RGB customization, dual side e-ink displays, and a rear numbering tally system, XL Ultra doesn’t just perform like cinema — it looks the part too.
From studios and XR stages to houses of worship and arena productions.

BirdDog XL Ultra PTZ Bundle Features:

• Large-format 4/3" CMOS sensor for cinematic depth of field and outstanding low-light performance.
• 20× optical zoom (40× in HD) with OLPF and ND filters for precision and clarity.
• AI tracking with machine learning, using dual-camera input for natural, human-like framing.
• Ultra-quiet motors and advanced thermal design for distraction-free operation.
• Dual 4K60 outputs via 12G-SDI and HDMI for uncompromising image quality.
• FreeD and Genlock support, making XL ideal for XR stages, AR workflows, and multi-camera sync.
• SFP+ fiber connectivity for large-scale and remote installs.
• Simultaneous Full NDI and NDI HX3 streaming for flexible workflows.
• Dual streaming support — NDI plus SRT, RTMP, or RTSP concurrently.
• Firmware-ready for NDI 6.2, ensuring future-proof performance.



BirdDog KBD PTZ Controller

BirdDog KBD Controller is the ideal tool for PTZ camera operators, designed with a rugged, ergonomic build and a large screen displaying up to four cameras at once. The streamlined menu provides direct access to essentials like camera pairing, while its built-in tally display integrates with mixers like TriCaster or vMix, showing the live camera right on the keyboard. With tactile feedback for camera switching, it’s intuitive and comfortable for extended use. The BirdDog KBD adapts to any setup with NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity, and reflects BirdDog’s commitment to sustainability with its ocean-bound plastic construction. Packed with enhanced features, including improved access, configuration, and joystick calibration, it’s a powerful, affordable solution shaped by user feedback for greater control, comfort, and reliability.

BirdDog KBD Controller Specs:

Camera Control

• PTZ Control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
• Fine PTZ Control: VISCA-IP, NDI
• Focus Control: Auto Focus, Manual Focus buttons
• Auto Exposure: Direct Button
• Manual Exposure: Toggle Dial adjustment Brightness/Shutter/Gain/Iris
• Auto White Balance: Direct Button
• Manual White Balance: Toggle Dial adjustment R-Gain, B-Gain, Color Temperature
• Auto Focus: Direct Button
• Manual Focus: Direct Button (Near/Far)
• BLC (Backlight Compensation): Direct Button
• Zoom Ring on Joystick: Yes (enable/Disable)
• Programmable Trigger on Joystick: Adjustable, One-Push Focus, AI Tracking, One-Push AWB
• AI Camera Mode Control: Camera Dependent, supported
• Copy/Paste Camera Settings: Supported on selected BirdDog Cameras (VISCA-IP, NDI)

Camera Access

• Max. Cameras support: 255
• Direct Camera access keys: 6
• Direct Preset access keys: 10
• Max Preset support: 255 per camera
• OSD Camera Menu: Menu Button / Interaction with Joystick

Display

• Display Resolution: 1280x720
• Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
• Full Screen IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
• IP Video CODEC support: h.264, h.265
• Tally Borders: Selectable, Multiview and Full Screen mode
• On Screen Menu: Fully configurable
• Light/Dark Mode: YES

NDI Support

• NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
• NDI Multiview: NDI HX2, NDI HX3
• NDI Router: Yes, follows current active camera
• NDI Discovery: Supported
• NDI Access Manager: Supported
• NDI PTZ Sensitivity: Standard (NDI); Superfine (BirdDog Specific)

Setup/Configuration

• WebUI: BirdUI for setup and firmware updates
• Light/Dark Mode: YES
• API-based Camera Selection: YES

Serial Connections

• RS-232: D-Sub connector (9-pin)
• RS-422: Phoenix connector

Mechanical

• Joystick Type: 4D (Integrated Trigger button)
• Keys: 37 Keys; Backlit, Individual Contact, Silicon Pad
• Toggle Dials: 4 knobs; Press Button, Graduated, 360° adjustment
• Zoom Rocket: Spring loaded, adjustable
• Dimensions: 377mm x 177mmx 118mm ; 14.84in x 6.96 x 4.64in (LxWxH including Joystick)
• Construction Material: Aluminium; OBP Ocean-Bound Plastic
• Integrated Carry Handle: YES
• Operating Temperature: -10°C - +55°C; 14°F - 130°F
• Storage Temperature: -10°C - +55°C; 14°F - 130°F
• Operating Humidity: 20% - 80% (Non-condensing)
• Storage Humidity: 0% - 90% (Non-condensing)
• Power Supply: PoE (802.3af), DC12V
• Power Consumption: ≤5W
• Packaging Dimensions: 390x215x165mm; 15.35x8.46x6.49 in





BirdDog XL Ultra White Specs

Primary Camera

Image Sensor: 4/3* Sony CMOS 5K Sensor
Lens: 20x Optical Zoom Lens
Video Format: 2160p60
Additional resolutions: 2160p60, 59.94, 50, 29.97, 25 1080p60, 59.94, 50, 30, 29.97, 25 1080160, 59.94, 50
720p60, 59.94,50
Focal Length: 9.8mm- 186mm
Aperture: f2.8-f4.5
Focus: Auto, Manual
AF Method: PDAF (Phase Detection Auto Focus)
Horizontal Field of View: 71°- 49
Exposure: Auto, Shutter Priority, Iris Priority, Manual, BLC, WDR
Shutter Speed: 1 / 1 -1/10.000s
3D Noise Reduction: Yes
SNR: 300lux-600lux 45-50dB
Effective Pixels: 20.89M P
Vertical Field of View: 40°-2°
Diagonal Field of View: 7 9 ° ~ 4.59
ND Filter: Yes 1, 1/4/1/16, 1/62
Optical Low Pass Filter (OLPF): Yes
Image Stabilization: Digital
Digital Zoom: 16xSupersampling
Filter ring: Yes

Secondary Panoramic Camera

Image Sensor: 1/1.8" Sony CMOS 4K sensor
Lens: Fixed
Focal Length: 4.4mm
Aperture: f2.0
Horizontal Field of View: 85°
Vertical Field of View: 53°
Diagonal Field of View: 93°
Mechanical
Pan/Tilst Rotation: +170°, -30° -+90°
Pan control Speed: 0.05° -120°/
Tilt Control Speed: 0.05°~90%
Preset Number: 256
Integrated Tally Ligh: Halo Style, RGB (Front), Number Style (Rear)
e-Ink display: 2x 3" Grayscale e-Ink Displays
Pan/Tilt Drive System: Ultra-finedrive
Quietness:
NC 50 (with a sound pressure level corresponding to t h e 500Hz-1kHzfrequencybandbeing49- 51dB)
I/O Interface

VideoOutput Interfaces: 12G-SDI, 3G SDI x2, HDMI 2.0, USB-C, 1Gb RJ45, SFP+ Cage (Ethernet)
Video Compression Formats: H.264, H.265, SpeedHQ
Network Interfaces: 1x 1GbE Adaptive Ethernet port, PoE++, 1x SFP+ Cage (Ethernet)
Encoder Network Protocols: High-Bandwidth NDI (SpeedHQ), NDI HX3, NDI HX2, SRT, RT S P.RT M P
Decoder Network Protocols: NDI HX3, NDIO HX2
Decoder Supported Resolutions: 080p @60/59.94 / 50/30 / 29.97 / 25fps, 720p @60, 59.94, 50fps
Control Interfaces: 1Gb Ethernet, SP+, RS232 (input &output), RS42, TYPE-C (UVC)
Control Protocols: VISCA-IP, NDI, VISCA Serial, Pelco-P, Pelco-D
FreeD Protocol: Supported - UDP /NDI® Embedded
Analogue Audio: Balanced Audio XLR x 2
Digital Audio: Embedded with Main and secondary HDMI, 12G-SDI, Network Video, USB (UVC)
Genlock: Supported
Timecode: Supported
SD Card Slot: MicroSD - Recording supported
Kensington Lock: Supported
WebUI Control: Integrated BirdDog BirdUl 2.0
API Support: BirdDog RESTful API 2.0, Crestron Libraries, Osys Libraries
AI Features

Presenter Tracking: Advanced with Secondary camera assistance
Auto-Framing: Advanced with Secondary camera assistance
Zone Tracking: Supported
Gesture Control: Supported
General

Environmental Operation: Internal
Input Voltage: DC-12V, PoE++
Input current: <60W
Power Consumption: 12V5A
Working Temperature: 0°C- 40°C(32°F~105°F)
Working Humidity: ~20% ~ 80% (Non-condensing)
Dimensioned (W*H*D): 218.6 × 291.6 × 263.3mm (8.61 x 11.48 x 10.37in)
Weight: 4K

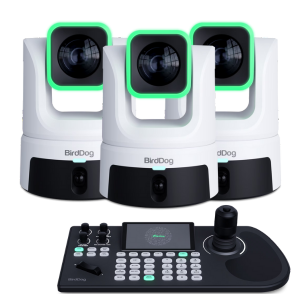

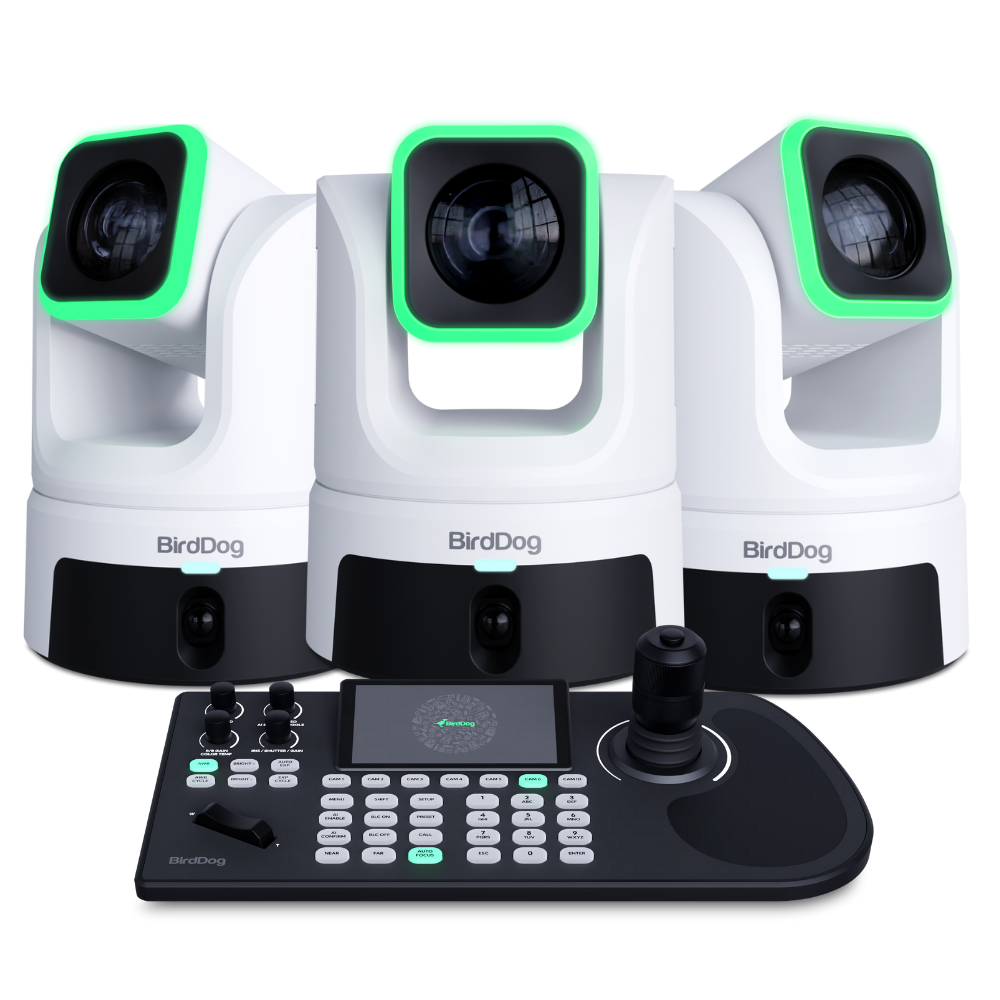

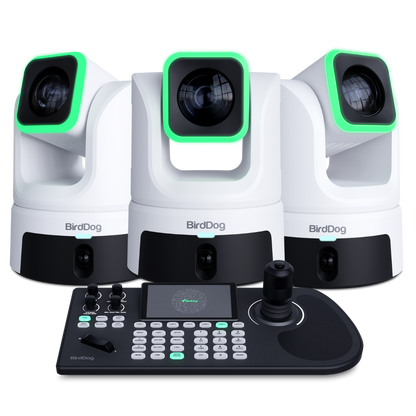

3 x BirdDog XL Ultra - White

1 x BirdDog KBD PTZ Controller with Integrated Screen
