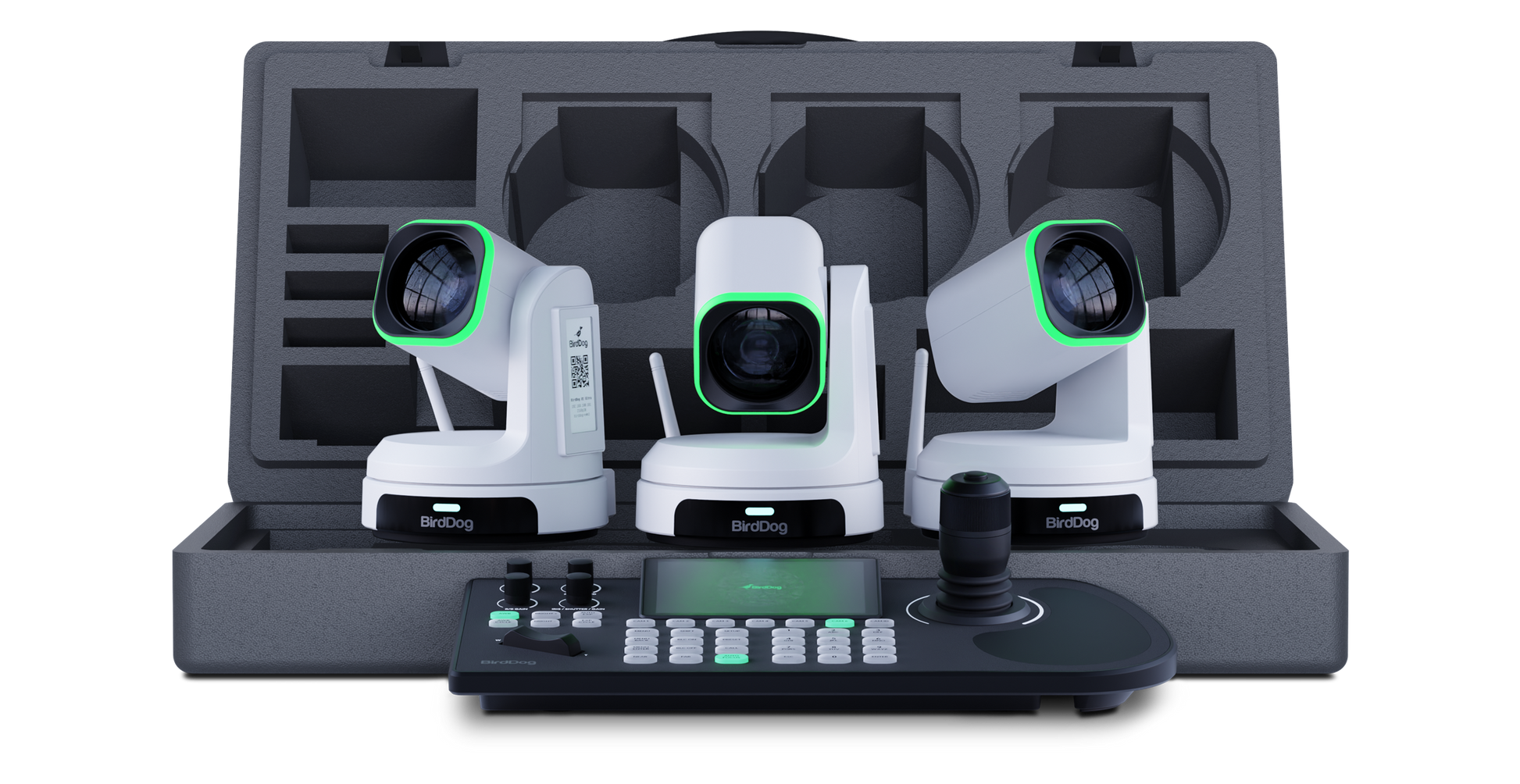

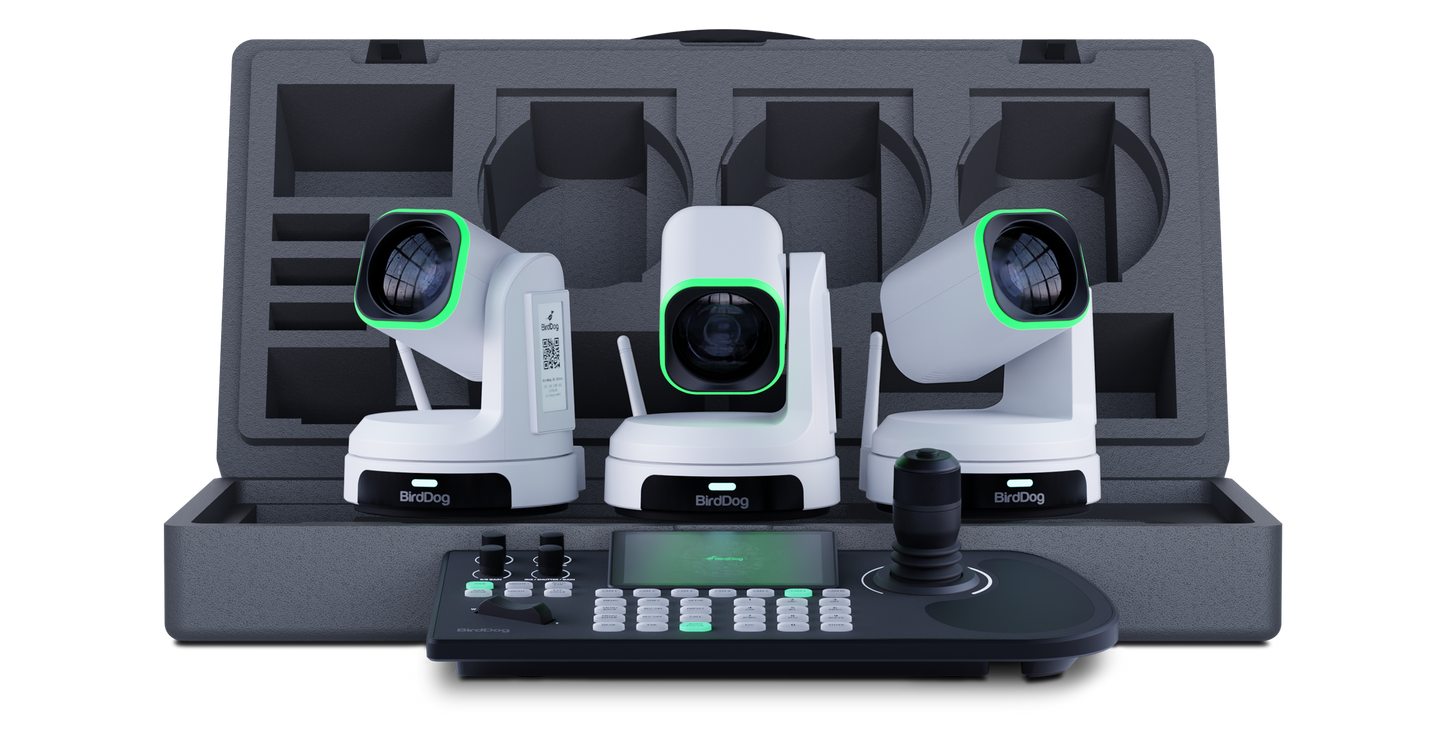

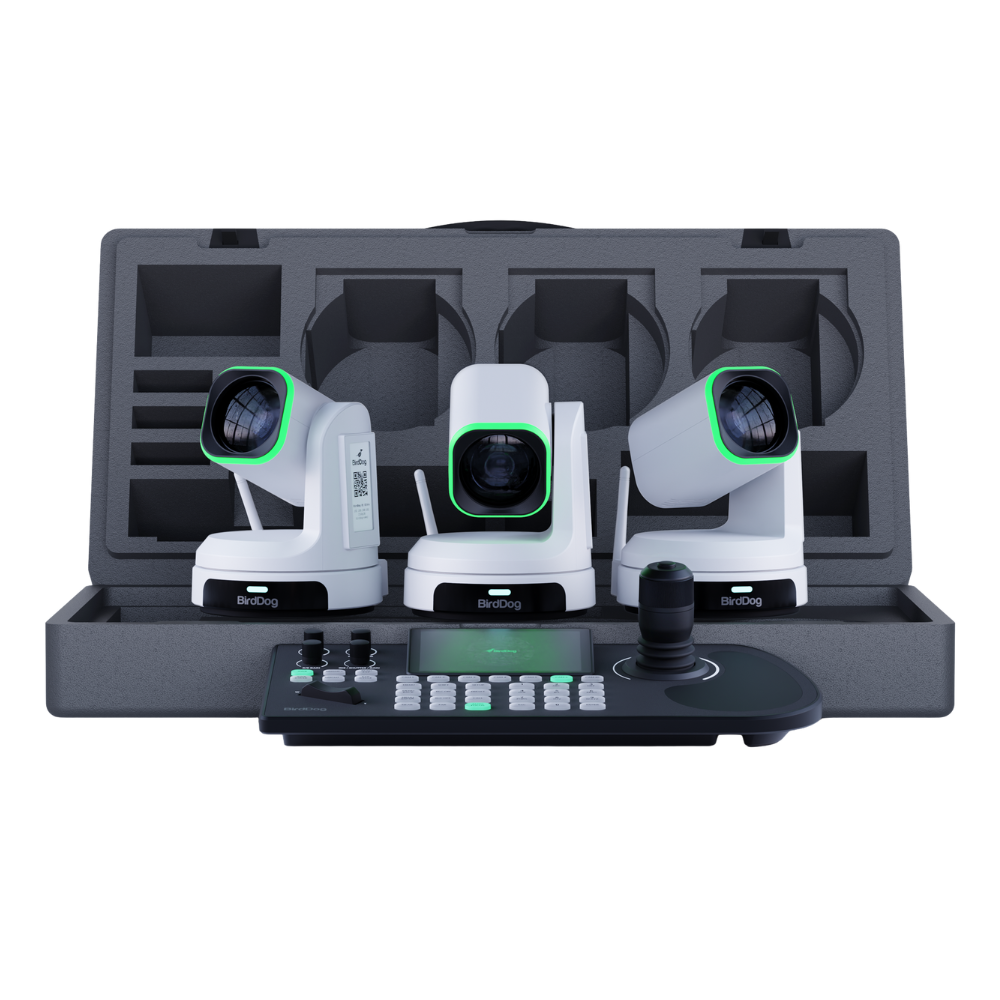

BirdDog 3x X1 30x PTZ Cameras and KBD Keyboard Bundle (White)

X1 30x Bundle
Wider Vision. Farther Reach. Step up your productions with this versatile bundle featuring 3x PTZ cameras with 30x optical zoom, a wider angle of view, and crystal-clear Full HD image quality. Paired with the BirdDog KBD Controller, you’ll have precise, smooth control at your fingertips. Plus, it all comes in a custom protective foam case for secure, easy transport. Perfect for creators who need clarity and flexibility.

X1 30x PTZ Camera
Unlock a new level of content creation with the BirdDog X1 30x, a powerful PTZ camera designed for precision, performance, and versatility. Featuring smooth, controllable movement and exceptional image quality, the X1 30x delivers professional results across any workflow—whether you’re using NDI, baseband video, or going wireless with built-in Wi-Fi. Enjoy advanced tools like AI tracking, Halo Tally, built-in NDI|HX decoding, and the industry-first E-Ink display for effortless control and setup. Now with 30x optical zoom, the BirdDog X1 offers unmatched reach and clarity, making it the smart, reliable choice for creators ready to elevate their productions.

BirdDog KBD PTZ Controller with Integrated Screen
BirdDog KBD Controller is the ideal tool for PTZ camera operators, designed with a rugged, ergonomic build and a large screen displaying up to four cameras at once. The streamlined menu provides direct access to essentials like camera pairing, while its built-in tally display integrates with mixers like TriCaster or vMix, showing the live camera right on the keyboard. With tactile feedback for camera switching, it’s intuitive and comfortable for extended use. The BirdDog KBD adapts to any setup with NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity, and reflects BirdDog’s commitment to sustainability with its ocean-bound plastic construction. Packed with enhanced features, including improved access, configuration, and joystick calibration, it’s a powerful, affordable solution shaped by user feedback for greater control, comfort, and reliability.

IMAGING

• Image Sensor:Sony 1/2.8” CMOS - FULL HD
• Lens: f=5.2~148.4
• Optical Zoom:30x
• Video Format: 1080p @ 60/59.94/50/30/29.97/25fps, 720p @ 60/50/30/25fps 608x1080p (9:16 ratio) @ 60/59.94/50/30/29.97/25fps
• Horizontal angle of view:58.1° (W) – 2.14° (T)
• Vertical angle of view:33.8° (W) – 1.2° (T)
• Diagonal angle of view:65.4° (W) - 2.48° (T)
• Aperture: F1.3~F4.8
• Focus: AI Face, Auto, Manual
• Exposure:Auto, Shutter Priority, Iris Priority, Manual
• Backlight Compensation: Yes
• Digital Noise Reduction: 2D and 3D Noise Reduction
• SNR: >50dB
• Effective Pixels: 2.07 MP

MECHANICAL

• Pan/Tilt Rotation:±175°, -90° ~ +90°
• Pan Control Speed: 0.1 -80°/sec
• Tilt Control Speed:0.1 -60°/sec
• Preset Number: 255 presets
• Filter Ring: Φ52mm

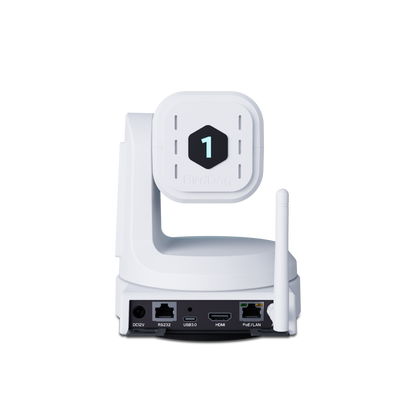

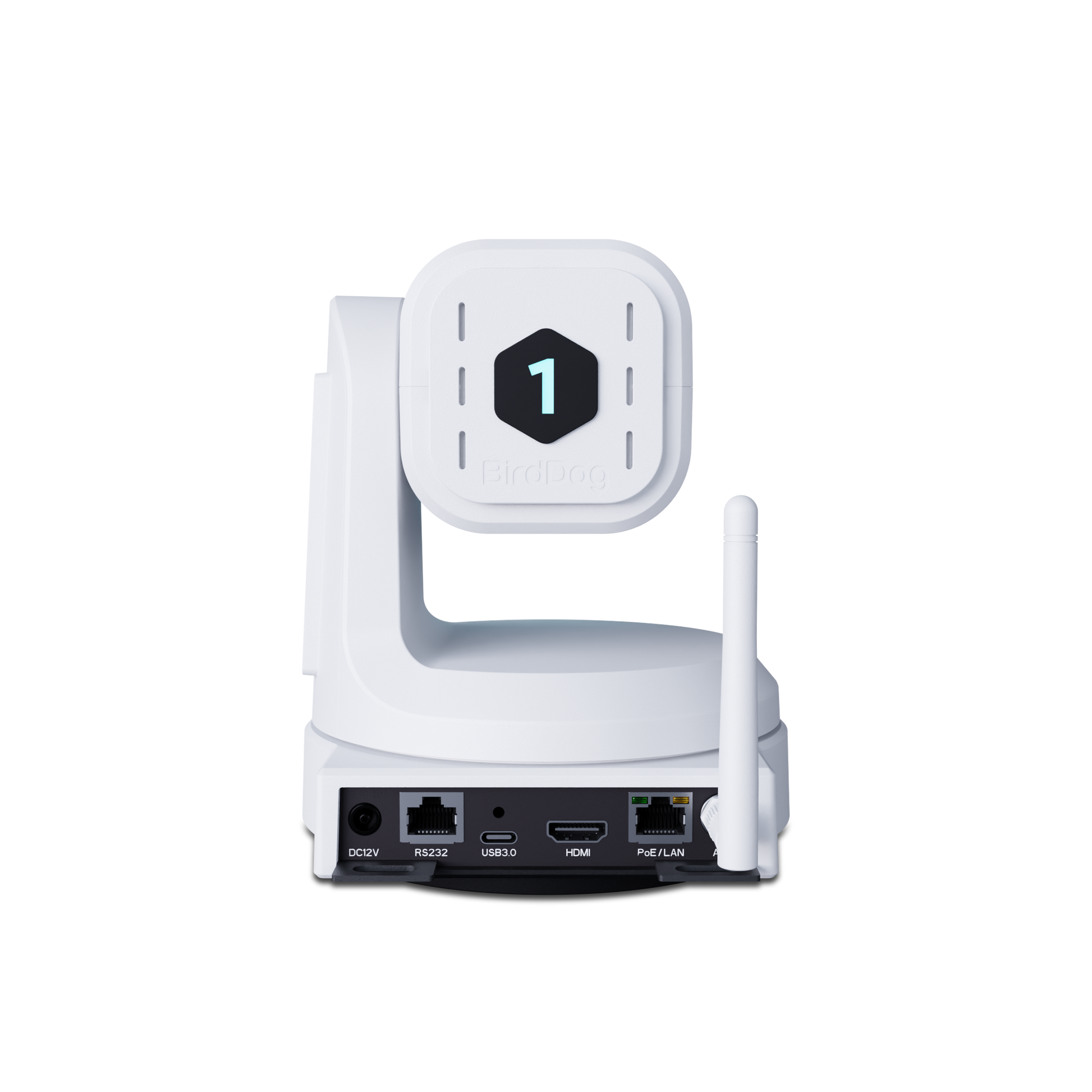

I/O INTERFACE

• Video Output Interfaces: HDMI, USB-C UVC 1.1, Network
• Video Compression Formats: H.264, H.265
• Network Interfaces:100M adaptive Ethernet port; POE IEEE 802.3af, Wi-Fi IEEE 802.11ac
• Encoder Network Protocols: NDI|HX2, NDI|HX3, SRT, RTSP, RTMP
• HDMI Decoder Network Protocols:NDI|HX2, NDI|HX3
• Control Interfaces:10M/100M Ethernet, Wi-Fi IEEE 802.11ac, RS232 (input & output), RS485, TYPE-C(UVC1.1)
• Control Protocols:VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI

GENERAL

• Input Voltage:DC 12V,  POE IEEE 802.3af
• Input Current:2.0A (Max)
• Power Consumption: 13W (Max)
• Working Temperature: -10ºC ~ +40ºC
• Working Humidity:20% ~ 80%
• Dimension (W*H*D): 171.6*192.6*171.6mm/ 260*217*197mm (before / after packing)
• Net and Gross Weight: 1.35kg/2.05kg (Net/Gross weight)

• 3x BirdDog X1 30x PTZ Cameras
• 1x KBD Controller
• 1x Protective foam case for easy transport
