BirdDog 3x X1 PTZ Camera and KBD Keyboard Bundle (Black)

BirdDog 3x X1 PTZ Camera and KBD Keyboard Bundle (Black)

Regular price$4,085.00
/
Free Shipping & Tech Support.

Videoguys Part # (SKU): BDX1BUNDLEB

Short Description:
  • Free Shipping & Tech Support

Perfect for Starting Out Strong.

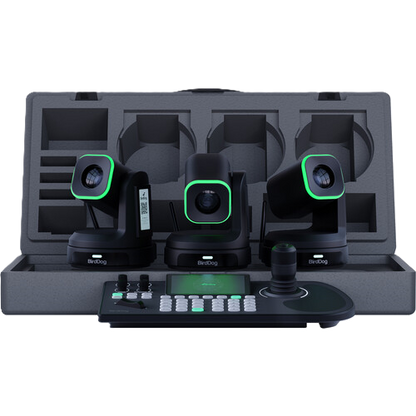

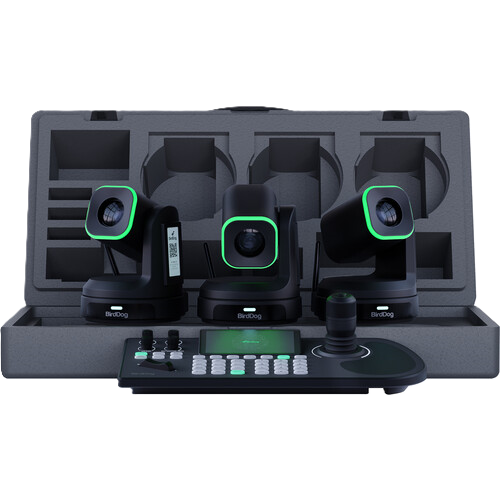

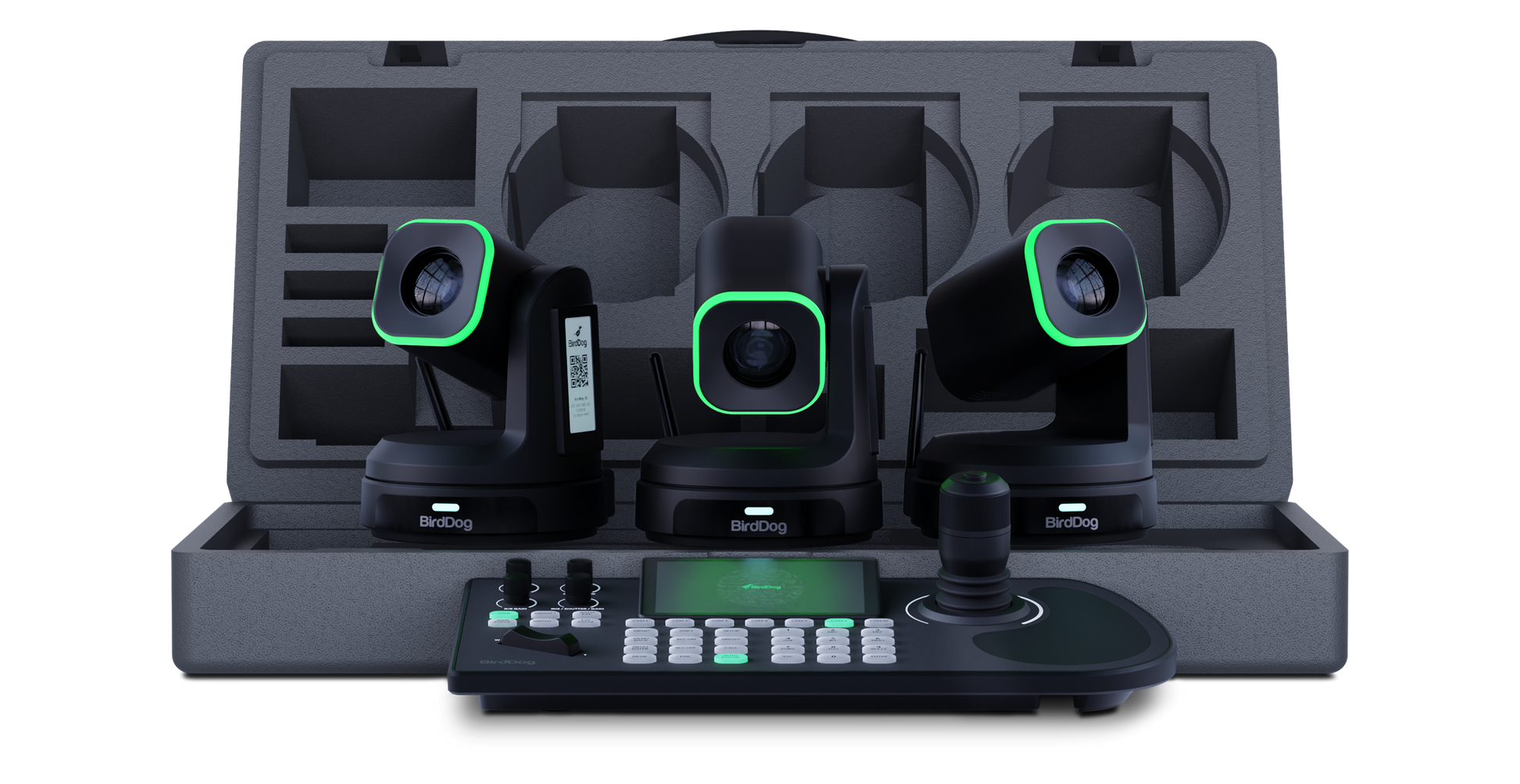

Kick off live production like a pro! This entry-level bundle includes 3x X1 cameras and the all-new BirdDog KBD Controller for easy and accurate control. Plus, it all comes in a custom protective foam case for secure, easy transport. Start strong and upgrade your gear today.


BirdDog X1 20x HD PTZ Camera
Unlock a new level of content creation with the X1. PTZ cameras that deliver smooth, controllable movement and high-quality image, all while being incredibly accessible and versatile.​ Whether you’re diving into NDI, baseband video, or even going wireless with Wi-Fi, these cameras integrate smoothly into any workflow.​ Enjoy effortless control and impressive image quality, with features typically reserved for higher-end models like AI tracking, Halo Tally, built-in NDI|HX decoding and the industry-first E-Ink display. ​ With all these powerful features at your fingertips, the X1 and X1 Ultra are the smart, reliable solution for those ready to take their content creation to the next level.​ Bring the X-factor to your next project!


BirdDog KBD PTZ Controller with Integrated Screen
BirdDog KBD Controller is the ideal tool for PTZ camera operators, designed with a rugged, ergonomic build and a large screen displaying up to four cameras at once. The streamlined menu provides direct access to essentials like camera pairing, while its built-in tally display integrates with mixers like TriCaster or vMix, showing the live camera right on the keyboard. With tactile feedback for camera switching, it’s intuitive and comfortable for extended use. The BirdDog KBD adapts to any setup with NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity, and reflects BirdDog’s commitment to sustainability with its ocean-bound plastic construction. Packed with enhanced features, including improved access, configuration, and joystick calibration, it’s a powerful, affordable solution shaped by user feedback for greater control, comfort, and reliability.

KBD SPECS
Camera Control

  • PTZ Control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
  • Fine PTZ Control: VISCA-IP, NDI
  • Focus Control: Auto Focus, Manual Focus buttons
  • Auto Exposure: Direct Button
  • Manual Exposure: Toggle Dial adjustment Brightness/Shutter/Gain/Iris
  • Auto White Balance: Direct Button
  • Manual White Balance: Toggle Dial adjustment R-Gain, B-Gain, Color Temperature
  • Auto Focus: Direct Button
  • Manual Focus: Direct Button (Near/Far)
  • BLC (Backlight Compensation): Direct Button
  • Zoom Ring on Joystick: Yes (enable/Disable)
  • Programmable Trigger on Joystick: Adjustable, One-Push Focus, AI Tracking, One-Push AWB
  • AI Camera Mode Control: Camera Dependent, supported
  • Copy/Paste Camera Settings: Supported on selected BirdDog Cameras (VISCA-IP, NDI)


Camera Access

  • Max. Cameras support: 255
  • Direct Camera access keys: 6
  • Direct Preset access keys: 10
  • Max Preset support: 255 per camera
  • OSD Camera Menu: Menu Button / Interaction with Joystick


Display

  • Display Resolution: 1280x720
  • Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
  • Full Screen IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
  • IP Video CODEC support: h.264, h.265
  • Tally Borders: Selectable, Multiview and Full Screen mode
  • On Screen Menu: Fully configurable
  • Light/Dark Mode: YES


NDI Support

  • NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
  • NDI Multiview: NDI HX2, NDI HX3
  • NDI Router: Yes, follows current active camera
  • NDI Discovery: Supported
  • NDI Access Manager: Supported
  • NDI PTZ Sensitivity: Standard (NDI); Superfine (BirdDog Specific)


Setup/Configuration

  • WebUI: BirdUI for setup and firmware updates
  • Light/Dark Mode: YES
  • API-based Camera Selection: YES


Serial Connections

  • RS-232: D-Sub connector (9-pin)
  • RS-422: Phoenix connector


Mechanical

  • Joystick Type: 4D (Integrated Trigger button)
  • Keys: 37 Keys; Backlit, Individual Contact, Silicon Pad
  • Toggle Dials: 4 knobs; Press Button, Graduated, 360° adjustment
  • Zoom Rocket: Spring loaded, adjustable
  • Dimensions: 377mm x 177mmx 118mm ; 14.84in x 6.96 x 4.64in (LxWxH including Joystick)
  • Construction Material: Aluminium; OBP Ocean-Bound Plastic
  • Integrated Carry Handle: YES
  • Operating Temperature: -10°C - +55°C; 14°F - 130°F
  • Storage Temperature: -10°C - +55°C; 14°F - 130°F
  • Operating Humidity: 20% - 80% (Non-condensing)
  • Storage Humidity: 0% - 90% (Non-condensing)
  • Power Supply: PoE (802.3af), DC12V
  • Power Consumption: ≤5W
  • Packaging Dimensions: 390x215x165mm; 15.35x8.46x6.49 in
