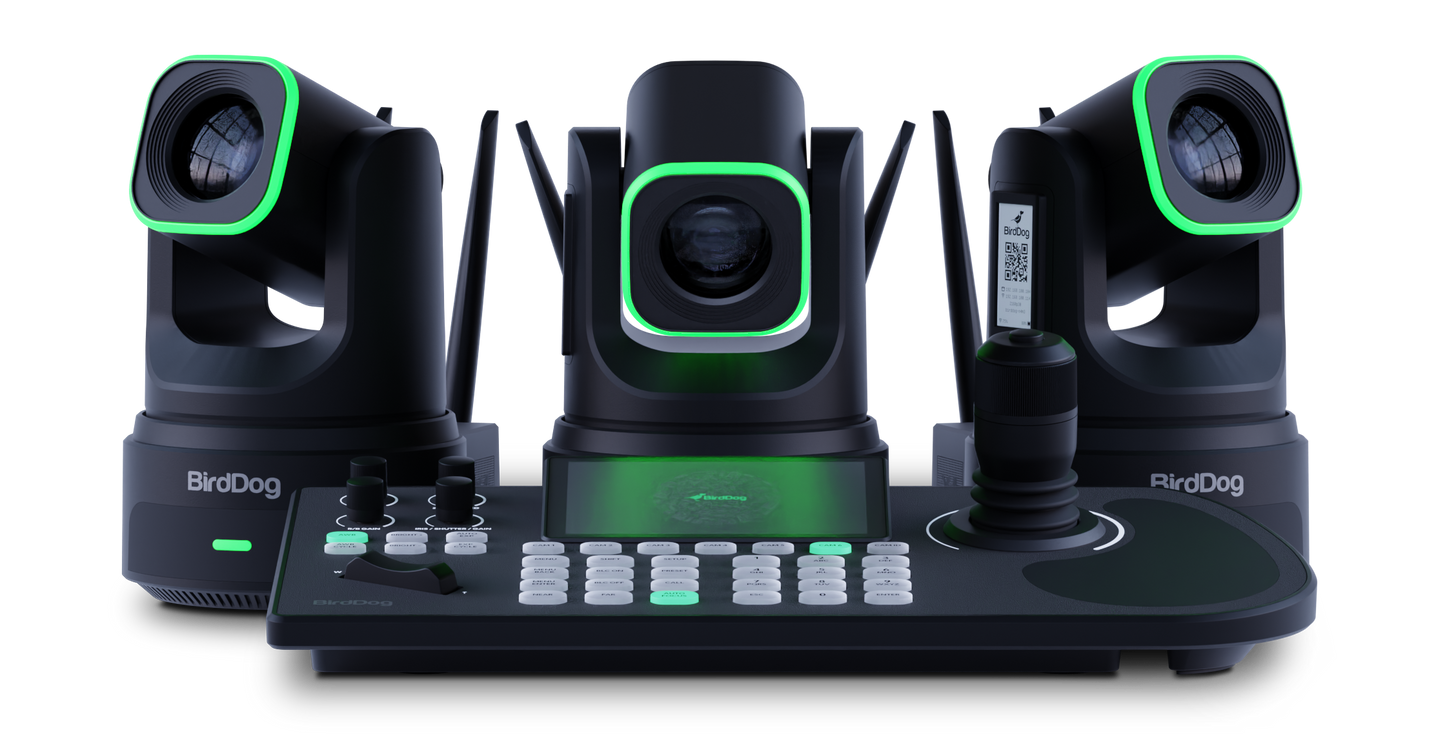

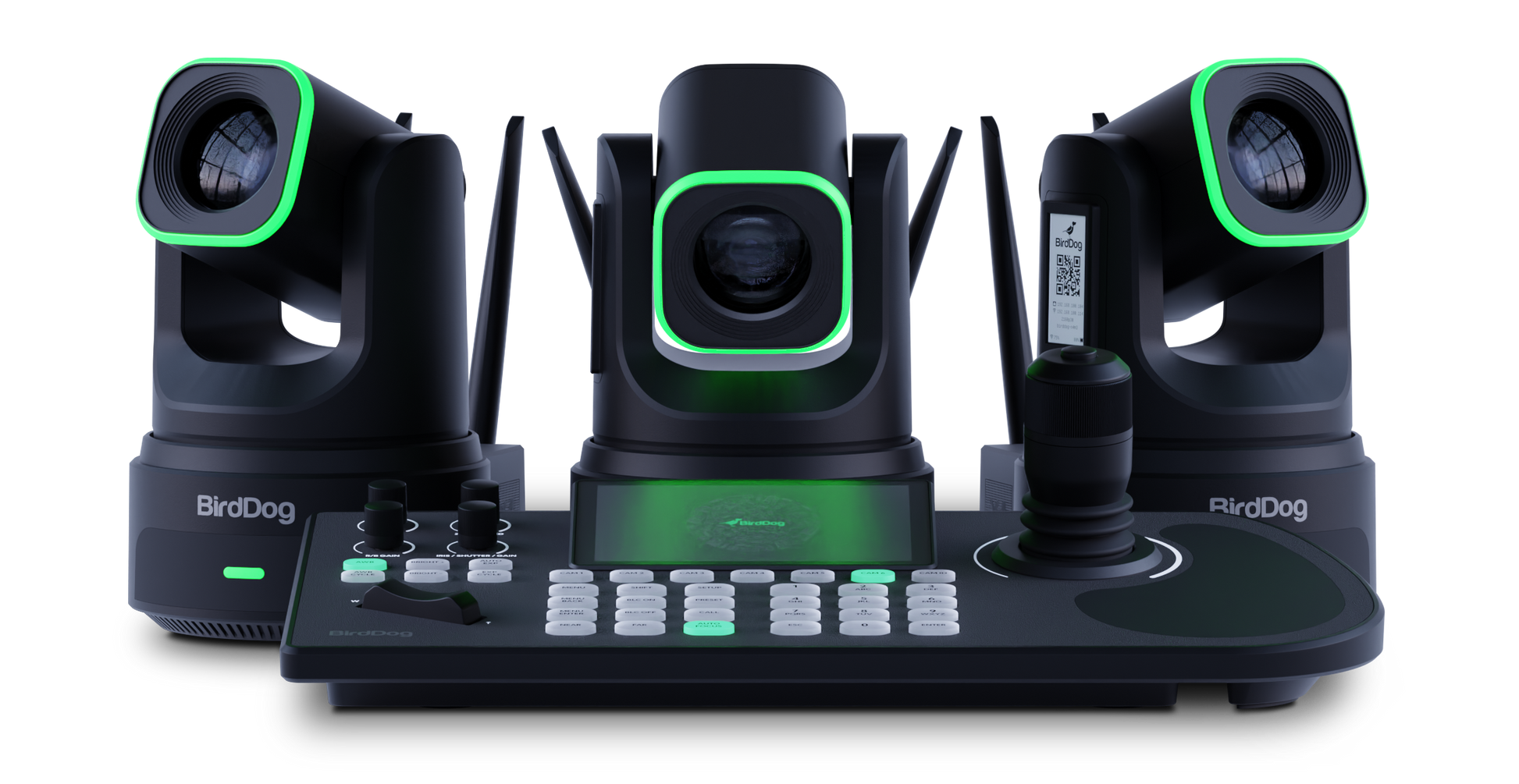

BirdDog 3x X4 Ultra PTZ Cameras and KBD Keyboard Combo (Black)
BirdDog

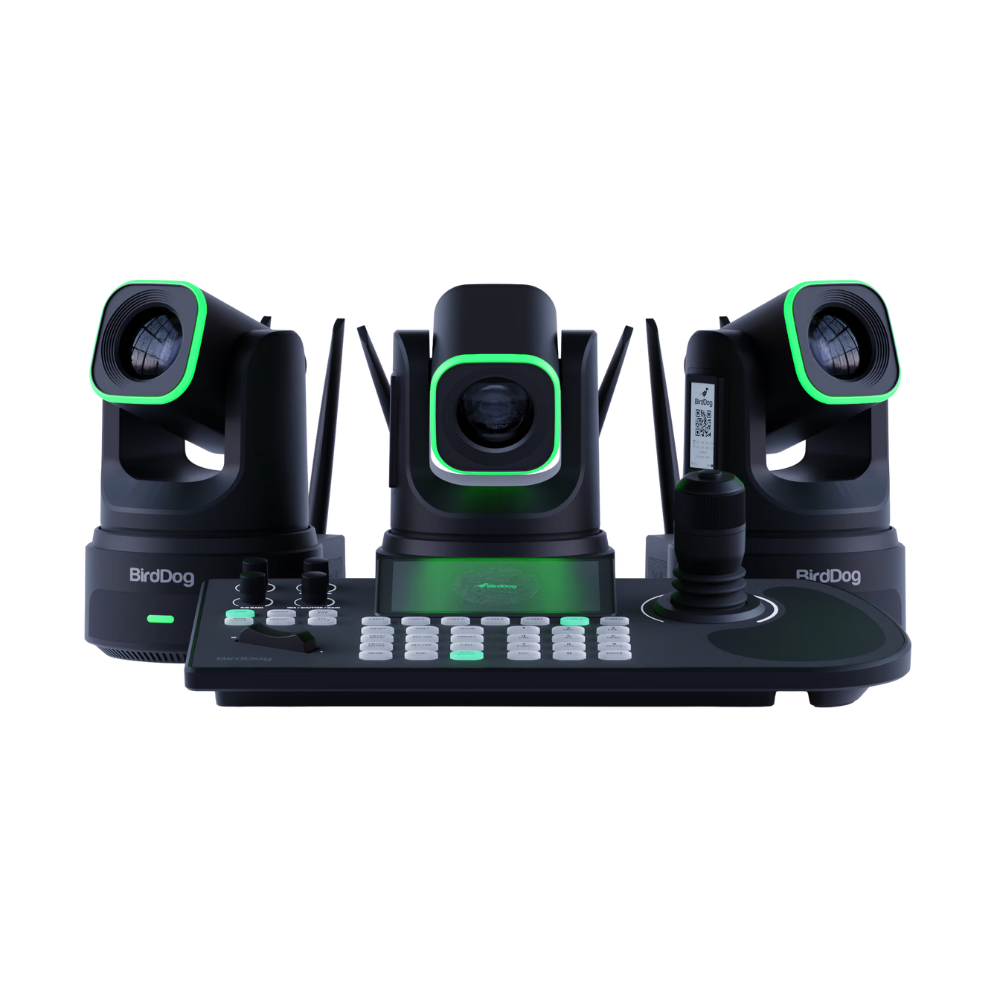

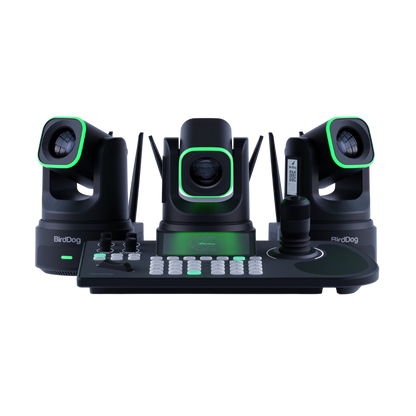

BirdDog 3x X4 Ultra PTZ Cameras and KBD Keyboard Combo (Black)

$6,585.00
/
Free Shipping & Tech Support.
Videoguys Part # (SKU): BDX4UCOMBOB
Short Description:
  • Free Shipping & Tech Support

The Complete Toolset for Any Production.
Ready to tackle any production challenge, this bundle includes 3x X4 Ultra cameras—versatile enough to adapt to every situation—and the all-new BirdDog KBD Controller for intuitive, pro-level control. This pack is built for effortless operation in demanding environments.

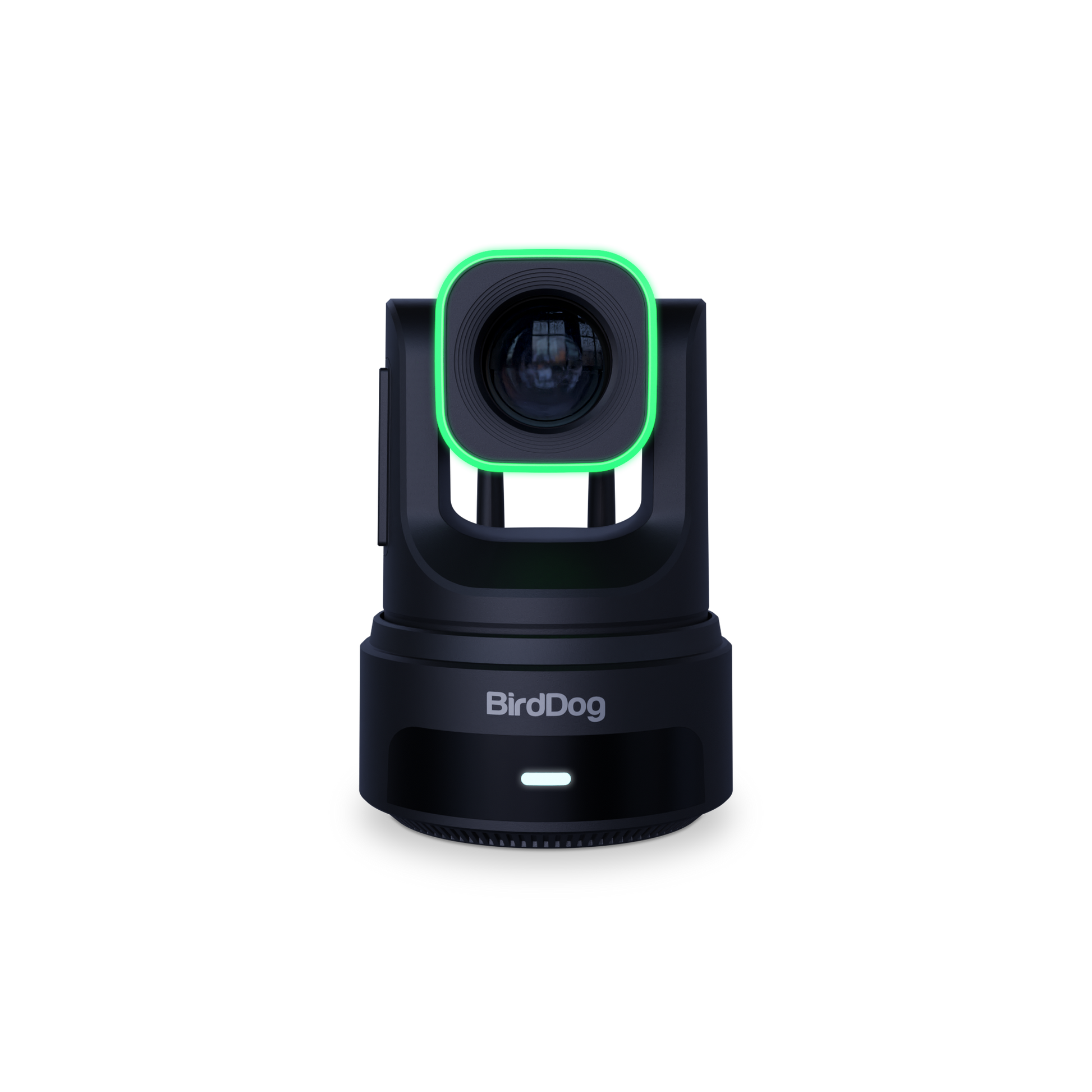

BirdDog X4 Ultra 20x 2160p60 4K PTZ Camera
The True Swiss Army Knife for Live Production. A game-changing camera that combines top-tier image quality with unmatched connectivity.​ No cables? No problem. With a built-in battery that lasts up to 4 hours and Wi-Fi 6, X4 Ultra goes where you go. Perfect for capturing those impossible shots in places where wires can’t reach.​ Use it solo, or wirelessly manage up to 4 cameras with Wi-Fi 6, streaming smoothly via NDI|HX3 when paired with our receiver.​ And when you need it, the X4 Ultra comes with: 3G-SDI, NDI, HDMI, USB-C, RTMP & RTSP. All the connections you could want, right there.​ It’s flexible, versatile, and ready for anything. Just pick it up and start shooting

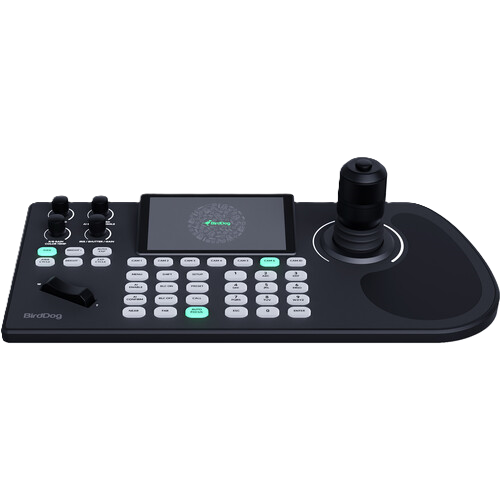

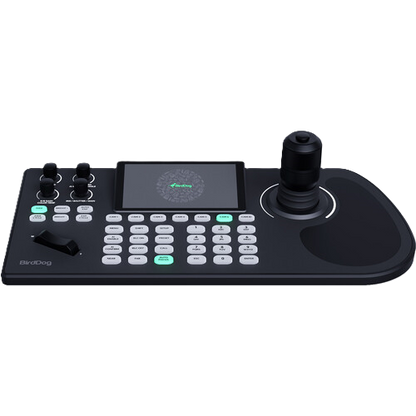

BirdDog KBD PTZ Controller with Integrated Screen
BirdDog KBD Controller is the ideal tool for PTZ camera operators, designed with a rugged, ergonomic build and a large screen displaying up to four cameras at once. The streamlined menu provides direct access to essentials like camera pairing, while its built-in tally display integrates with mixers like TriCaster or vMix, showing the live camera right on the keyboard. With tactile feedback for camera switching, it’s intuitive and comfortable for extended use. The BirdDog KBD adapts to any setup with NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity, and reflects BirdDog’s commitment to sustainability with its ocean-bound plastic construction. Packed with enhanced features, including improved access, configuration, and joystick calibration, it’s a powerful, affordable solution shaped by user feedback for greater control, comfort, and reliability.

KBD SPECS
Camera Control

  • PTZ Control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
  • Fine PTZ Control: VISCA-IP, NDI
  • Focus Control: Auto Focus, Manual Focus buttons
  • Auto Exposure: Direct Button
  • Manual Exposure: Toggle Dial adjustment Brightness/Shutter/Gain/Iris
  • Auto White Balance: Direct Button
  • Manual White Balance: Toggle Dial adjustment R-Gain, B-Gain, Color Temperature
  • Auto Focus: Direct Button
  • Manual Focus: Direct Button (Near/Far)
  • BLC (Backlight Compensation): Direct Button
  • Zoom Ring on Joystick: Yes (enable/Disable)
  • Programmable Trigger on Joystick: Adjustable, One-Push Focus, AI Tracking, One-Push AWB
  • AI Camera Mode Control: Camera Dependent, supported
  • Copy/Paste Camera Settings: Supported on selected BirdDog Cameras (VISCA-IP, NDI)


Camera Access

  • Max. Cameras support: 255
  • Direct Camera access keys: 6
  • Direct Preset access keys: 10
  • Max Preset support: 255 per camera
  • OSD Camera Menu: Menu Button / Interaction with Joystick


Display

  • Display Resolution: 1280x720
  • Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
  • Full Screen IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
  • IP Video CODEC support: h.264, h.265
  • Tally Borders: Selectable, Multiview and Full Screen mode
  • On Screen Menu: Fully configurable
  • Light/Dark Mode: YES


NDI Support

  • NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
  • NDI Multiview: NDI HX2, NDI HX3
  • NDI Router: Yes, follows current active camera
  • NDI Discovery: Supported
  • NDI Access Manager: Supported
  • NDI PTZ Sensitivity: Standard (NDI); Superfine (BirdDog Specific)


Setup/Configuration

  • WebUI: BirdUI for setup and firmware updates
  • Light/Dark Mode: YES
  • API-based Camera Selection: YES

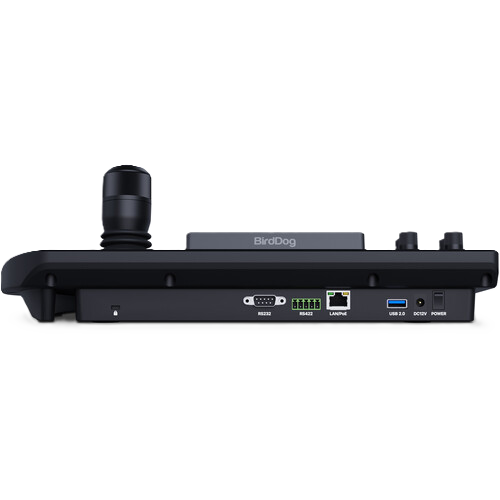

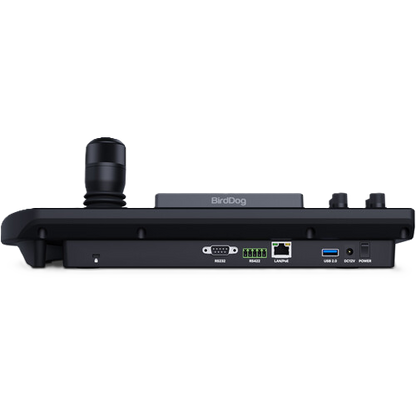

Serial Connections

  • RS-232: D-Sub connector (9-pin)
  • RS-422: Phoenix connector


Mechanical

  • Joystick Type: 4D (Integrated Trigger button)
  • Keys: 37 Keys; Backlit, Individual Contact, Silicon Pad
  • Toggle Dials: 4 knobs; Press Button, Graduated, 360° adjustment
  • Zoom Rocket: Spring loaded, adjustable
  • Dimensions: 377mm x 177mmx 118mm ; 14.84in x 6.96 x 4.64in (LxWxH including Joystick)
  • Construction Material: Aluminium; OBP Ocean-Bound Plastic
  • Integrated Carry Handle: YES
  • Operating Temperature: -10°C - +55°C; 14°F - 130°F
  • Storage Temperature: -10°C - +55°C; 14°F - 130°F
  • Operating Humidity: 20% - 80% (Non-condensing)
  • Storage Humidity: 0% - 90% (Non-condensing)
  • Power Supply: PoE (802.3af), DC12V
  • Power Consumption: ≤5W
  • Packaging Dimensions: 390x215x165mm; 15.35x8.46x6.49 in
