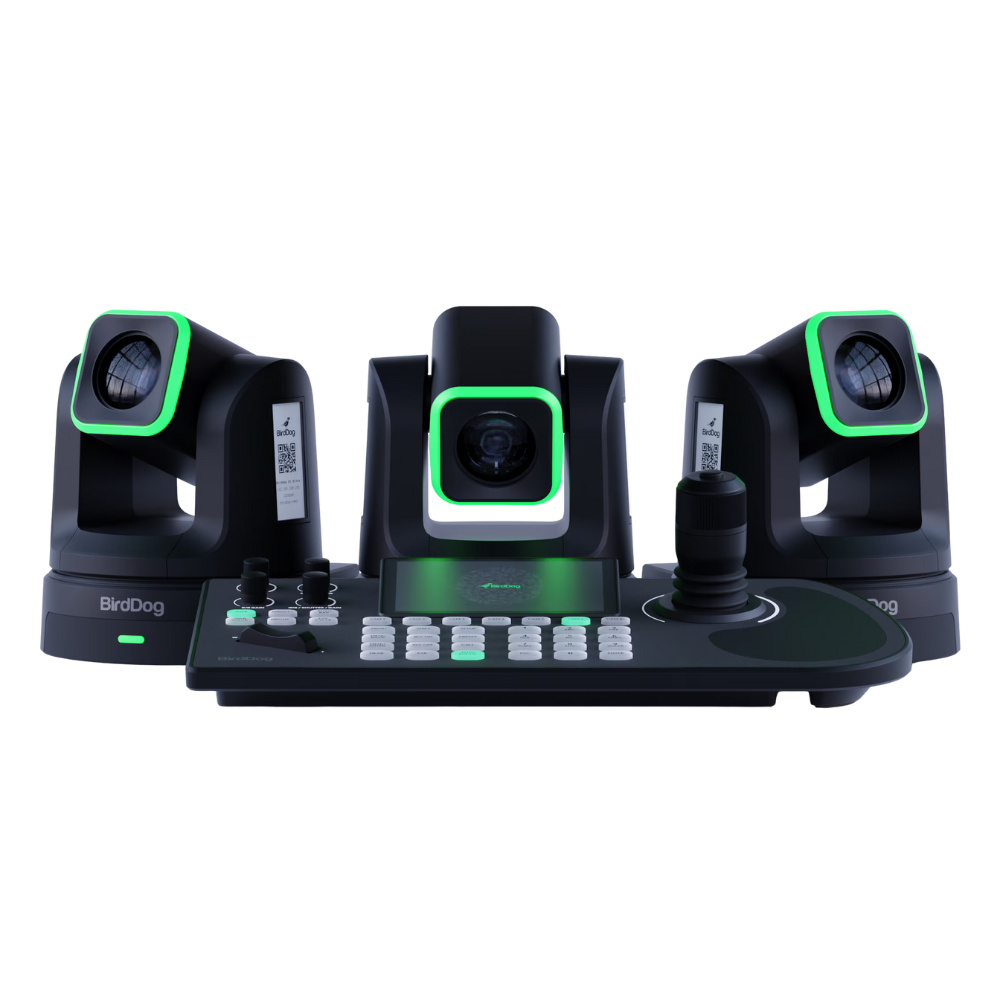

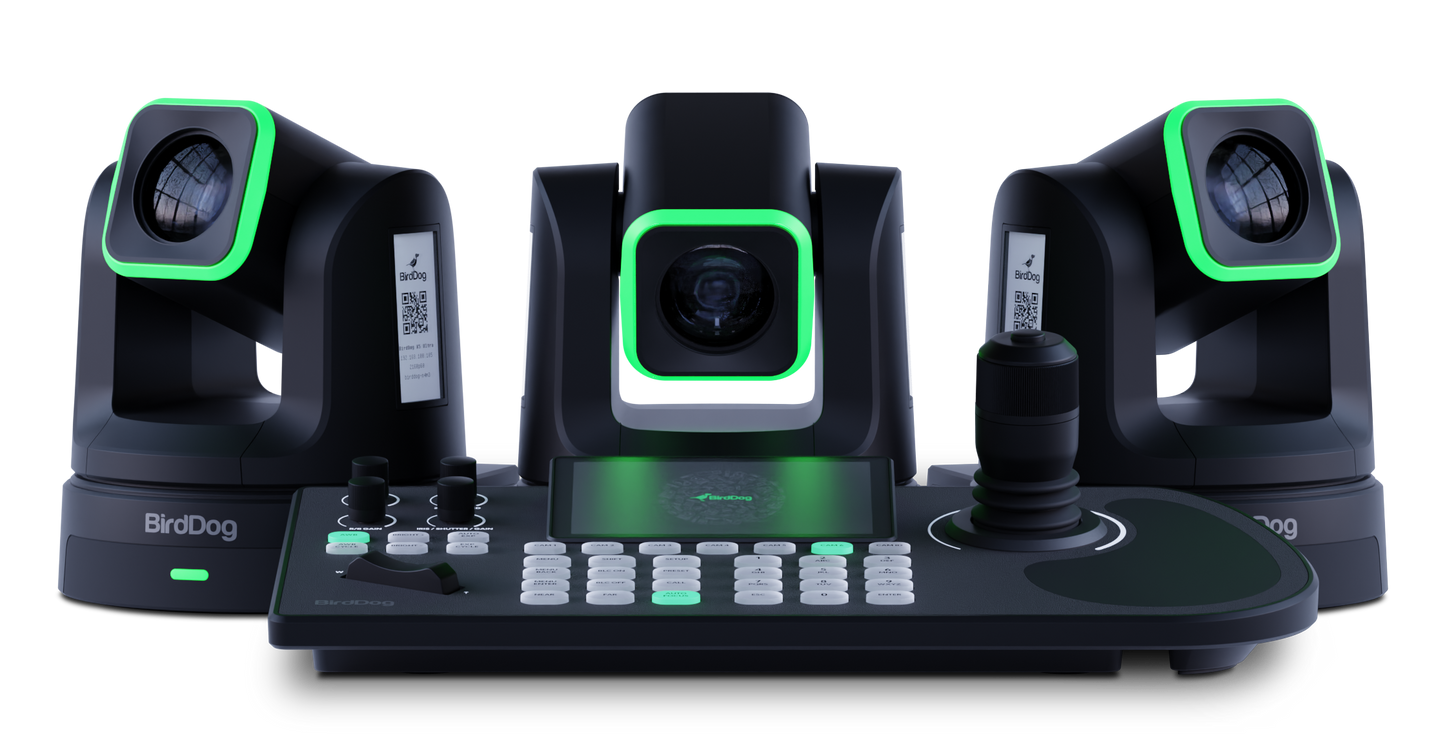

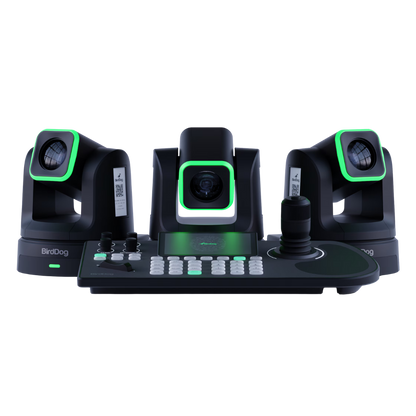

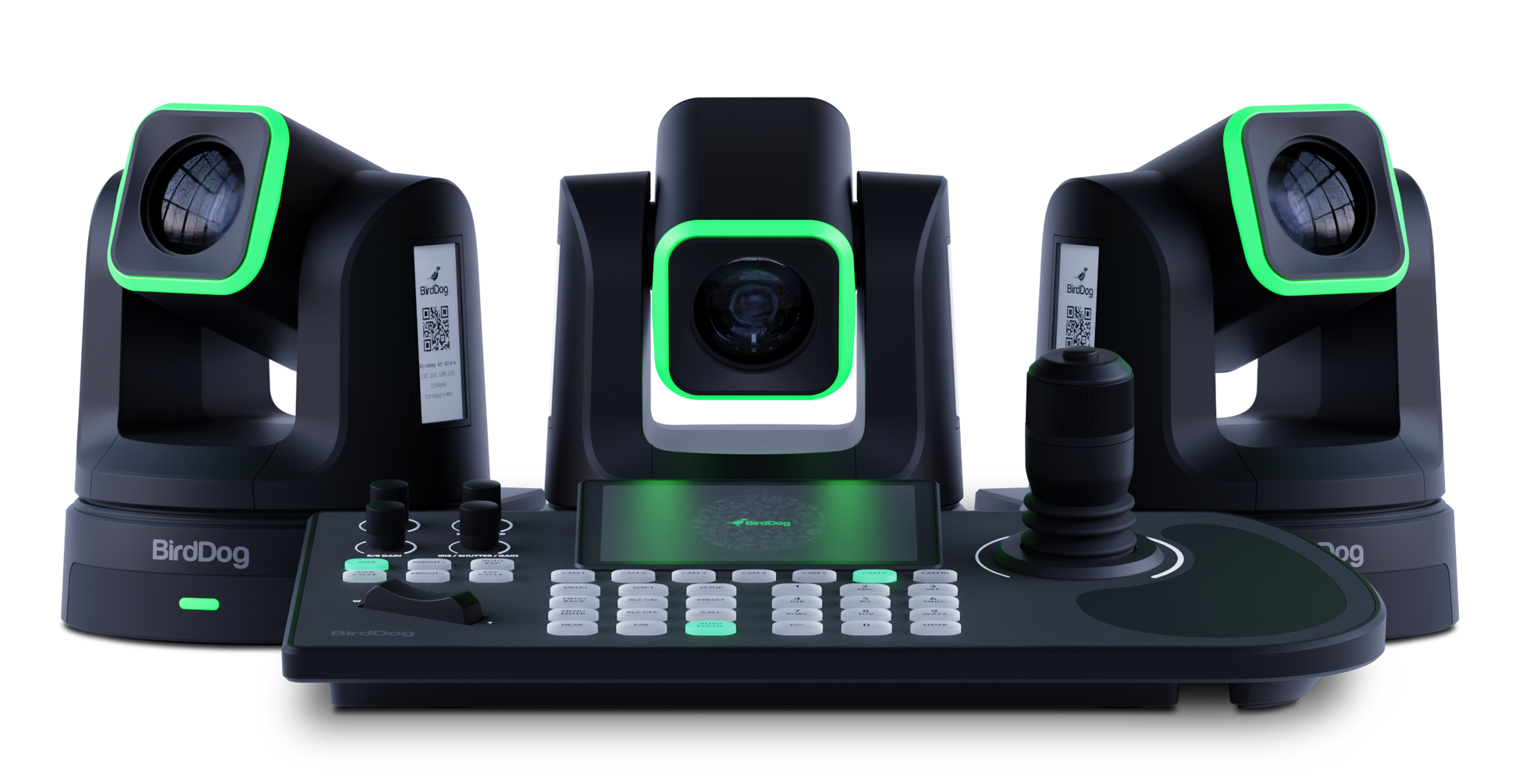

BirdDog 3x X5 Ultra PTZ Cameras and KBD Keyboard Combo (Black)

BirdDog 3x X5 Ultra PTZ Cameras and KBD Keyboard Combo (Black)

Regular price$8,985.00
/
Free Shipping & Tech Support.

Videoguys Part # (SKU): BDX5UCOMBOB

Short Description:
  • Free Shipping & Tech Support

The Ultimate Production Powerhouse.
For top-tier creators, this bundle includes 3x X5 Ultra cameras with 12G-SDI for broadcast quality and the intuitive BirdDog KBD Controller, made for effortless control. Your ultimate toolkit for high-end production!


BirdDog X5 Ultra 20x 4K PTZ Camera
Productions are demanding; the X5 Ultra makes demanding a walk in the park. Featuring unparalleled capability, quality, and performance – take your PTZ game up a notch with X5 Ultra. Imagine next-level robotic controls with ultra-fine and precise movement thanks to its category-busting advanced motor drive system. Movements on air are a breeze, and acceleration/deceleration of moves look natural and slick. Sporting BirdDog’s signature Halo tally system for true audience engagement, revolutionary built-in NDI® decoding*, all the video connectors, including 12G-SDI, dual e-ink displays make branding and maintenance a snap, all wrapped up with a stunning Sony 4K60 image sensor delivering the highest performance NDI® | HX3 possible. X5 Ultra. In every way.


BirdDog KBD PTZ Controller with Integrated Screen
BirdDog KBD Controller is the ideal tool for PTZ camera operators, designed with a rugged, ergonomic build and a large screen displaying up to four cameras at once. The streamlined menu provides direct access to essentials like camera pairing, while its built-in tally display integrates with mixers like TriCaster or vMix, showing the live camera right on the keyboard. With tactile feedback for camera switching, it’s intuitive and comfortable for extended use. The BirdDog KBD adapts to any setup with NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity, and reflects BirdDog’s commitment to sustainability with its ocean-bound plastic construction. Packed with enhanced features, including improved access, configuration, and joystick calibration, it’s a powerful, affordable solution shaped by user feedback for greater control, comfort, and reliability.

KBD SPECS
Camera Control

  • PTZ Control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
  • Fine PTZ Control: VISCA-IP, NDI
  • Focus Control: Auto Focus, Manual Focus buttons
  • Auto Exposure: Direct Button
  • Manual Exposure: Toggle Dial adjustment Brightness/Shutter/Gain/Iris
  • Auto White Balance: Direct Button
  • Manual White Balance: Toggle Dial adjustment R-Gain, B-Gain, Color Temperature
  • Auto Focus: Direct Button
  • Manual Focus: Direct Button (Near/Far)
  • BLC (Backlight Compensation): Direct Button
  • Zoom Ring on Joystick: Yes (enable/Disable)
  • Programmable Trigger on Joystick: Adjustable, One-Push Focus, AI Tracking, One-Push AWB
  • AI Camera Mode Control: Camera Dependent, supported
  • Copy/Paste Camera Settings: Supported on selected BirdDog Cameras (VISCA-IP, NDI)


Camera Access

  • Max. Cameras support: 255
  • Direct Camera access keys: 6
  • Direct Preset access keys: 10
  • Max Preset support: 255 per camera
  • OSD Camera Menu: Menu Button / Interaction with Joystick


Display

  • Display Resolution: 1280x720
  • Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
  • Full Screen IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
  • IP Video CODEC support: h.264, h.265
  • Tally Borders: Selectable, Multiview and Full Screen mode
  • On Screen Menu: Fully configurable
  • Light/Dark Mode: YES


NDI Support

  • NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
  • NDI Multiview: NDI HX2, NDI HX3
  • NDI Router: Yes, follows current active camera
  • NDI Discovery: Supported
  • NDI Access Manager: Supported
  • NDI PTZ Sensitivity: Standard (NDI); Superfine (BirdDog Specific)


Setup/Configuration

  • WebUI: BirdUI for setup and firmware updates
  • Light/Dark Mode: YES
  • API-based Camera Selection: YES


Serial Connections

  • RS-232: D-Sub connector (9-pin)
  • RS-422: Phoenix connector


Mechanical

  • Joystick Type: 4D (Integrated Trigger button)
  • Keys: 37 Keys; Backlit, Individual Contact, Silicon Pad
  • Toggle Dials: 4 knobs; Press Button, Graduated, 360° adjustment
  • Zoom Rocket: Spring loaded, adjustable
  • Dimensions: 377mm x 177mmx 118mm ; 14.84in x 6.96 x 4.64in (LxWxH including Joystick)
  • Construction Material: Aluminium; OBP Ocean-Bound Plastic
  • Integrated Carry Handle: YES
  • Operating Temperature: -10°C - +55°C; 14°F - 130°F
  • Storage Temperature: -10°C - +55°C; 14°F - 130°F
  • Operating Humidity: 20% - 80% (Non-condensing)
  • Storage Humidity: 0% - 90% (Non-condensing)
  • Power Supply: PoE (802.3af), DC12V
  • Power Consumption: ≤5W
  • Packaging Dimensions: 390x215x165mm; 15.35x8.46x6.49 in
