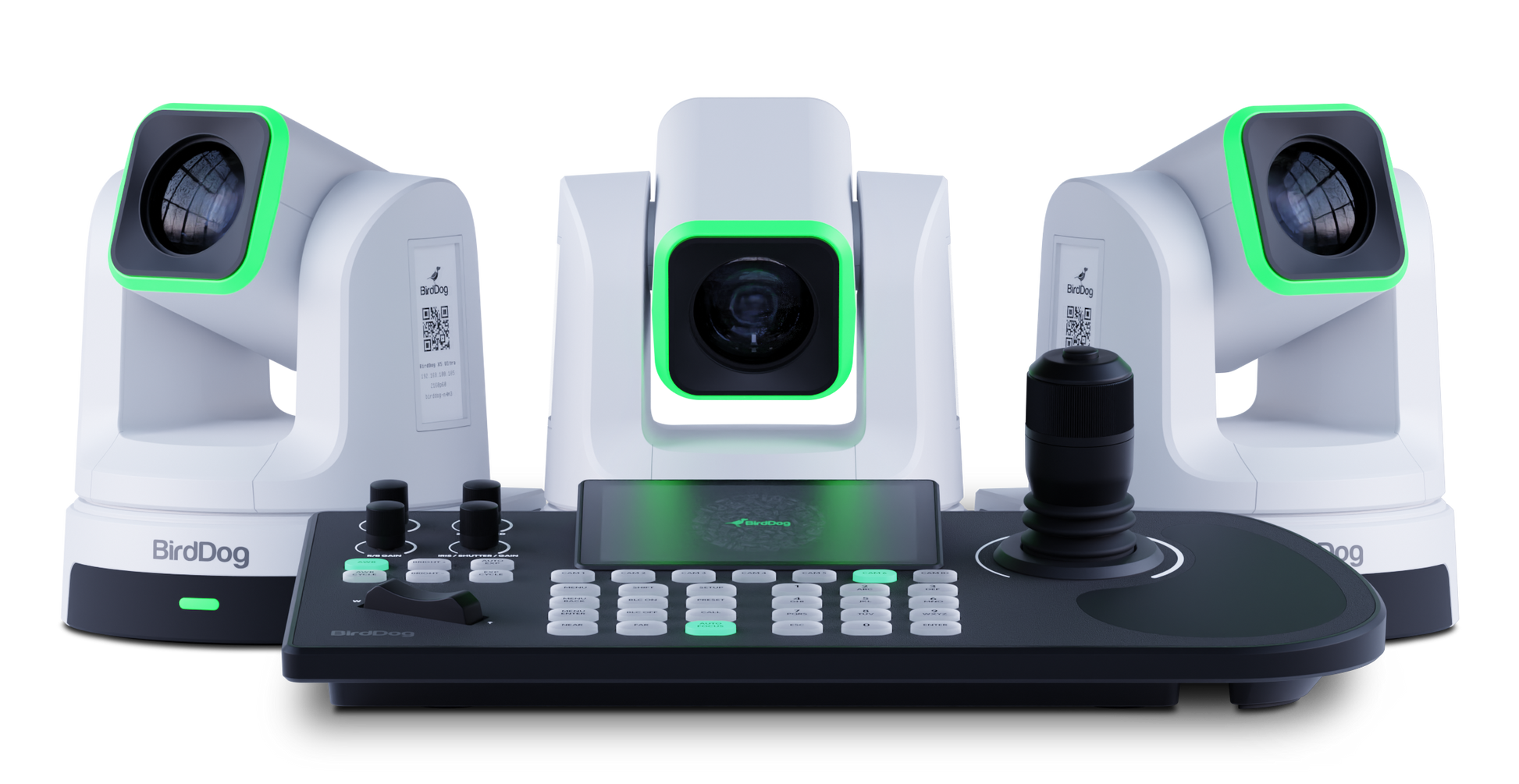

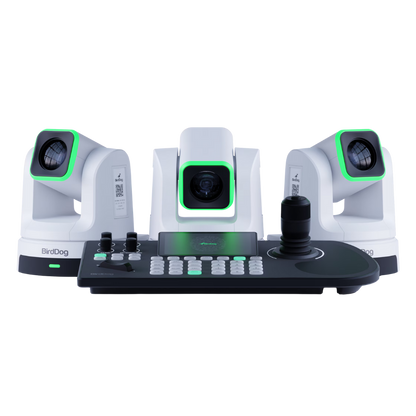

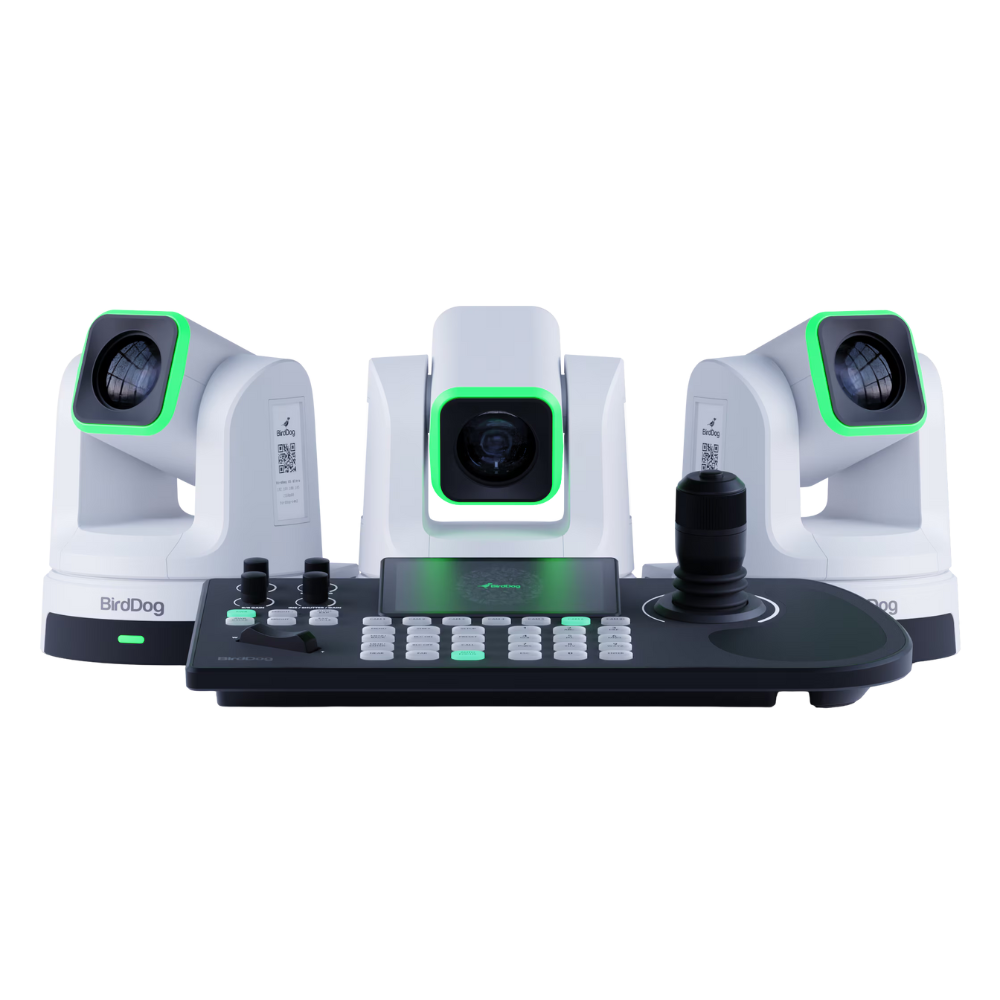

BirdDog 3x X5 Ultra PTZ Cameras and KBD Keyboard Combo (White)

The Ultimate Production Powerhouse.
For top-tier creators, this bundle includes 3x X5 Ultra cameras with 12G-SDI for broadcast quality and the intuitive BirdDog KBD Controller, made for effortless control. Your ultimate toolkit for high-end production!

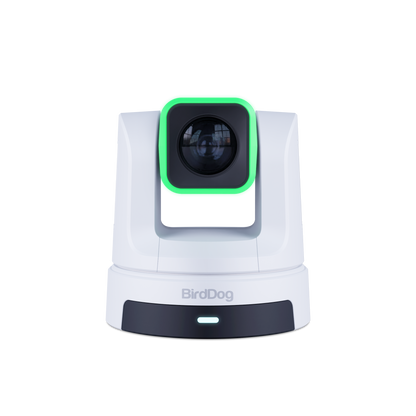

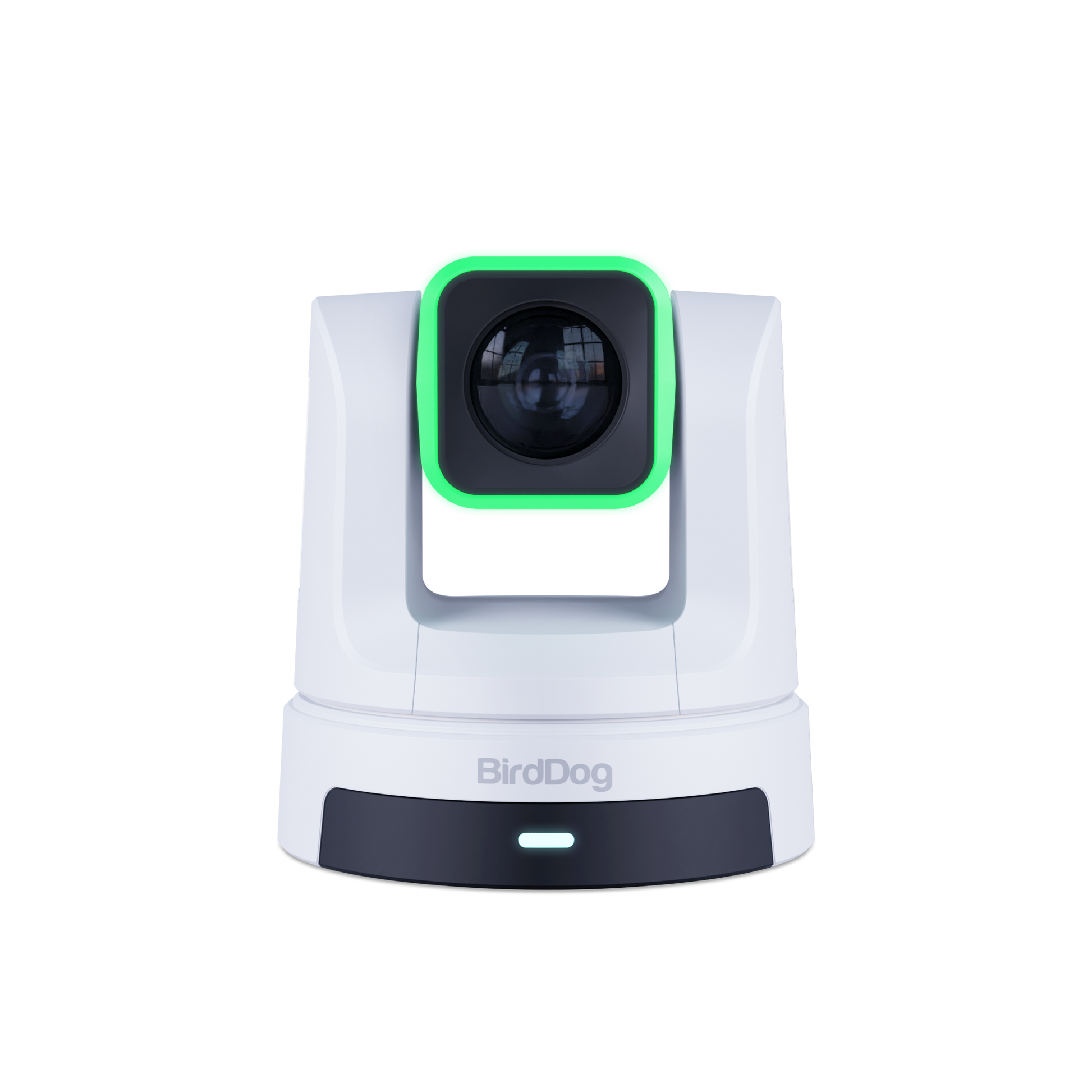

BirdDog X5 Ultra 20x 4K PTZ Camera
Productions are demanding; the X5 Ultra makes demanding a walk in the park. Featuring unparalleled capability, quality, and performance – take your PTZ game up a notch with X5 Ultra. Imagine next-level robotic controls with ultra-fine and precise movement thanks to its category-busting advanced motor drive system. Movements on air are a breeze, and acceleration/deceleration of moves look natural and slick. Sporting BirdDog’s signature Halo tally system for true audience engagement, revolutionary built-in NDI® decoding*, all the video connectors, including 12G-SDI, dual e-ink displays make branding and maintenance a snap, all wrapped up with a stunning Sony 4K60 image sensor delivering the highest performance NDI® | HX3 possible. X5 Ultra. In every way.

BirdDog KBD PTZ Controller with Integrated Screen
BirdDog KBD Controller is the ideal tool for PTZ camera operators, designed with a rugged, ergonomic build and a large screen displaying up to four cameras at once. The streamlined menu provides direct access to essentials like camera pairing, while its built-in tally display integrates with mixers like TriCaster or vMix, showing the live camera right on the keyboard. With tactile feedback for camera switching, it’s intuitive and comfortable for extended use. The BirdDog KBD adapts to any setup with NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity, and reflects BirdDog’s commitment to sustainability with its ocean-bound plastic construction. Packed with enhanced features, including improved access, configuration, and joystick calibration, it’s a powerful, affordable solution shaped by user feedback for greater control, comfort, and reliability.

IMAGING

• Image Sensor: Sony 1/2.8” CMOS - ULTRA HD
• Lens: f=5.4-104mm
• Optical Zoom: 20x
• Video Format
  • 2160p @ 60, 59.94, 50, 30/29.97/25fps,
  • 1080p @ 60, 59.94, 50, 30/29.97/25fps,
  • 720p @ 60, 59.94, 50fps
• Horizontal Angle of View: 56.6°(W)-3°(T)
• Vertical Angle of View: 32.5°(W)-1.7°(T)
• Diagonal Angle of View: 64.7°(W)-3.5°(T)
• Aperture: F1.6(W)-F3.6(T)
• Focus: Auto, Manual
• Exposure: Auto, Shutter Priority, Iris Priority, Manual, BLC, WDR
• Shutter Speed: 1/1 - 1/10000s
• Backlight Compensation: Yes
• Digital Noise Reduction: 3D Noise Reduction
• SNR: >50dB
• Effective Pixels: 8.46 MP
• Filter Ring: ∅49mm
• AI Tracking: Presenter

MECHANICAL

• Pan/Tilt Rotation: ±170°, -30° ~ +90°
• Pan Control Speed: 0.1 -200°/sec
• Tilt Control Speed: 0.1 -200°/sec
• Preset Number: 128 presets, Speed Adjustable
• Integrated Tally Light: Halo style, RGB
• Pan/Tilt Drive System: Ultra-fine drive
• Quietness: Max 28dB at full speed pan

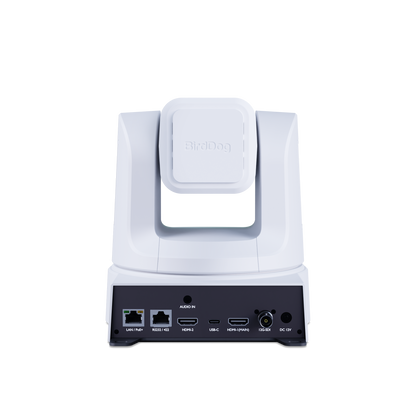

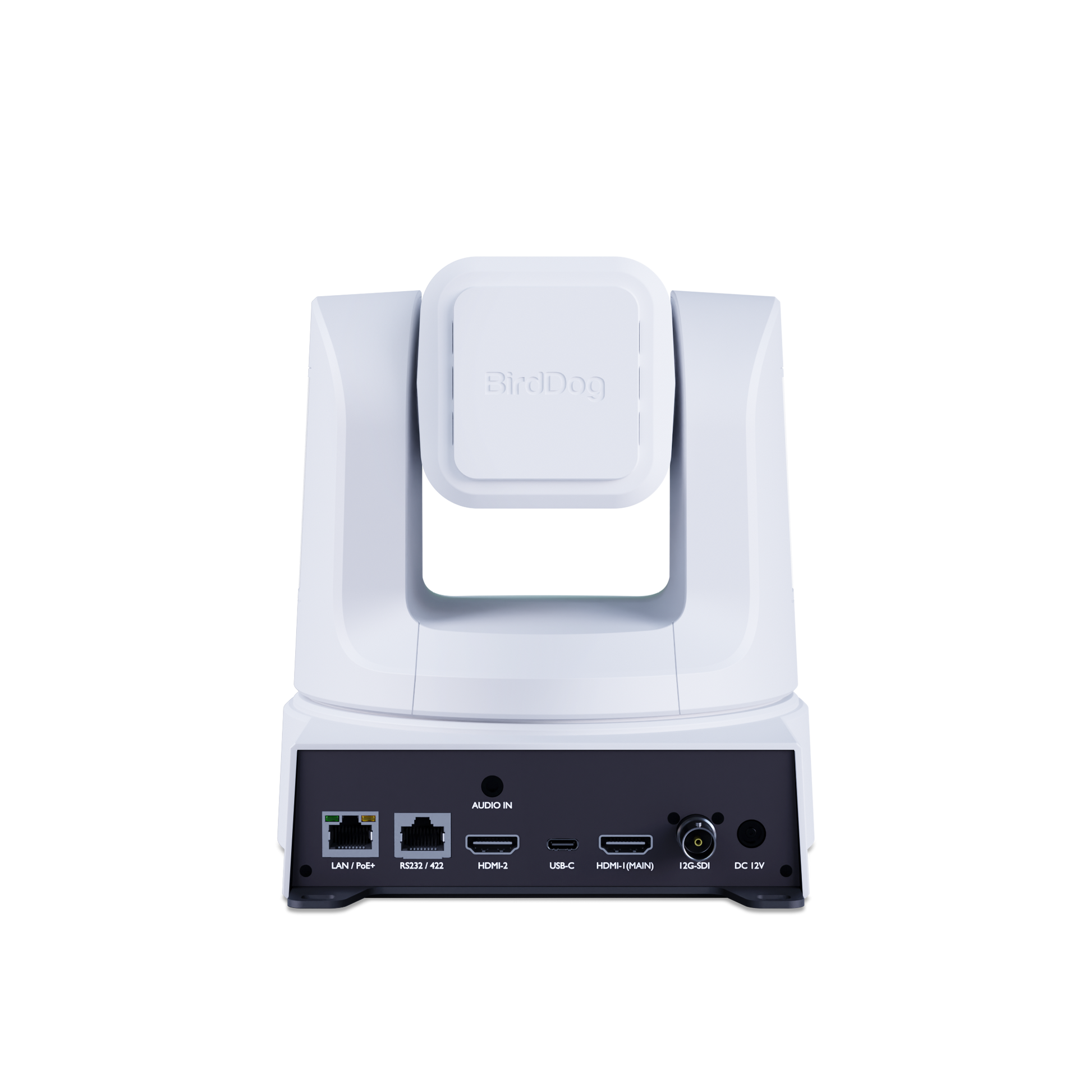

I/0 INTERFACE

• Video Output Interfaces: 12G-SDI, HDMI 2.0, HDMI 1.4, USB-C UVC 1.1, 1Gb Network
• Video Compression Formats: H.264, H.265
• Network Interfaces: 1GbE adaptive Ethernet port; PoE+ IEEE 802.3at
• Encoder Network Protocols: NDI®|HX2, NDI®|HX3, SRT, RTSP, RTMP*
• HDMI Decoder Network Protocols: NDI®|HX2, NDI®|HX3
• Decoder Supported Resolutions
  • HDMI 1 - 2160p30, 1080p60, 1080p30, 720p60
  • HDMI 2 - 1080p60, 1080p30, 720p60
• Control Interfaces: 1GbE Ethernet, RS232 (input & output), RS422, TYPE-C(UVC1.1)
• Control Protocols: VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI®
• Analogue Audio: 3.5mm Mic In / Line In (Stereo)
• Digital Audio: Embedded with Main and Secondary HDMI, 12G-SDI, Network Video, USB (UVC)

GENERAL

• Environmental Operation: Indoor
• Input Voltage: DC 12V, PoE+ IEEE 802.3at
• Input Current: 2.0A (Max)
• Power Consumption: 18W (Max)
• Working Temperature: 0ºC ~ +40ºC
• Working Humidity: 20% ~ 80%
• Dimension (W*H*D) mm: 185.7*171.9*200.90mm/ 271*275*245mm (before / after packing)
• Dimension (W*H*D) in: 7.31*6.76*7.90in/ 10.6*10.8*9.6in (before / after packing)
• Net and Gross Weight: 2.31kg/3.76kg (Net/Gross weight)

• 3x BirdDog X5 Ultra PTZ Cameras
  • IR Remote Controller
  • DC 12V Power Supply
  • Welcome Pack
  • USB-C Cable (1.8m)
• KBD Controller
• Limited 5-Year Manufacturer Warranty
