BirdDog 4K 12G SDI
$1,099.00$1,099.00
30
VideoGuys Part # (SKU): BD4KSDI
MFR Part # (MPN): BD4KSDI

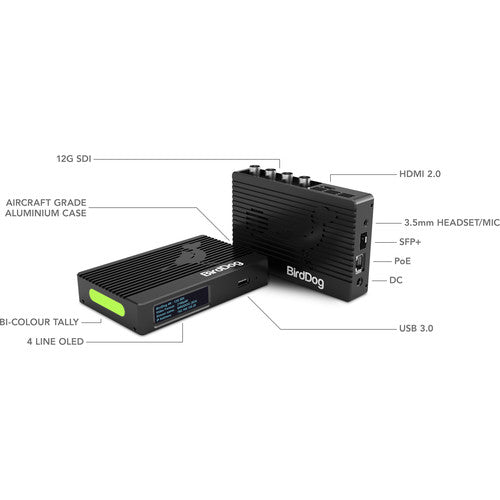

Following on from the award winning HD NDI® products, the 4K Family has been engineered from the ground up for real-world users.Built around BirdDog’s custom NDI® silicon chip and housed in an aircraft grade aluminium case, features include 12G SDI and HDMI 2.0 inputs and outputs, built-in cross converter, SFP+ port for 10GbE connectivity, active loop outs, audio intercom system, NDI® tally system, PoE, and compatibility with BirdDog’s Comms Pro and Central Pro and Central Pro apps.

  • Full Description
  • Specifications
  • What's Included
  • Demo Videos
  • Reviews
Following on from the award winning HD NDI® products, the 4K Family has been engineered from the ground up for real-world users.Built around BirdDog’s custom NDI® silicon chip and housed in an aircraft grade aluminium case, features include 12G SDI and HDMI 2.0 inputs and outputs, built-in cross converter, SFP+ port for 10GbE connectivity, active loop outs, audio intercom system, NDI® tally system, PoE, and compatibility with BirdDog’s Comms Pro and Central Pro and Central Pro apps.
Hardware

Internal Configuration (all models):
  • CPU: AMD Ryzen 5 5600X 6-core/12-thread 4.6GHz (max)
  • Motherboard Chipset: AMD X570
  • GPU: NVIDIA Quadro T400 (HD models) / T1000 (4K models)
  • Memory: 16GB DDR4-3200
  • System Drive: 250GB NVMe M.2
  • Storage Drive: 1TB SATA3
  • USB: USB 3.1 Gen 2 (1xUSB-C rear + 4xUSB-A rear),
    USB 3.1 Gen 1 (2xUSB-A front, 2xUSB-A rear)
  • Network: 2xRJ-45 IEEE 802.3ab Gigabit Ethernet
  • Audio: 2-ch Line In/Out, Mic In/Out + Front Line Out / Mic In +
  •  Ls/Rs/Lb/Rb/C/S
  • User Input: Microsoft Wireless Keyboard/Mouse
  • Accessories: 6’/183cm IEC C-14 3-pin cable (grounded plug
  •  determined by area of sale), Mini DisplayPort to
  •  DisplayPort adapter

Video Inputs and Outputs (by model)
Display Output –
  • Wirecast Gear 3 4K HDMI: 4x Mini DisplayPort 1.4 3840x2160 @ 60Hz maax + 1x 3G-SDI SMPTE 422M,  1920x1080 @ 60Hz max

Capture Input -
  • Wirecast Gear 3 4K HDMI: 4x HDMI 2.0b (non-HDCP) 3840x2160 @ 60Hz 4:4:4 max

Physical
  • Dimensions: 16.7” x 12” x 3.5” (42.4cm x 30.5cm x 8.9cm),   2RU x19” w/handles
  • Weight: 14.5-15.5 lb. (unit only)

Power
  • Input Voltage: 90VAC-264VAC RMS Single Phase 47Hz-63Hz
  • Input Current: 8A @ 115VAC 60Hz RMS, 4A @ 230VAC 50Hz RMS, Single Phase
  • Input Connection: IEC 60320 C14 3-pin
  • Operating Temperature/Humidity: 32 – 104 F @ 20-80% (operating), -4 – 185 F @ 10-90% (storage)

1x HDMI 2.0 Output


1x 12 G SDI Intput


1x 12 G SDI Output
