BirdDog O4 Outdoor Camera - White

Outdoor like never before. Built for the wild, ready for the world. Introducing the BirdDog O4 Outdoor Camera.

The BirdDog O4 Outdoor Camera is a purpose-built outdoor PTZ with IP66 sealing, –40 °C to +60 °C operation, 30× optical zoom (60× in HD), and a 500 m IR laser for true night vision. A 1/1.8" sensor captures crisp 4K60 video, while AI tracking, hidden cabling, and versatile connectivity with dual streaming keep O4 ready for any workflow.

O4 is the outdoor PTZ built for real-world deployments. Its die-cast, IP66-rated body runs from –40 °C to +60 °C and includes a heater and hydrophobic lens coatings to keep optics clear in rain, dust, or snow. Capture sharp, color-accurate 4K60 on a 1/1.8" sensor and frame the action from afar with 30× optical zoom (60× in HD). When light disappears, a precision 500 m IR laser and B/W night mode maintain visibility.

Installation is fast and tidy: all I/O sits inside a sealed undercarriage with strain relief and three weatherproof flanges; power with PoE++ or external DC. O4 streams Full NDI and NDI HX3 simultaneously, and can output NDI plus SRT/RTMP/RTSP at the same time. With 12G-SDI, HDMI, and SFP+ fiber, plus adjustable AI tracking profiles, O4 integrates into IP, hybrid, and baseband workflows with broadcast confidence.

Year-round reliability
IP66 sealing, extreme temps, heater, hydrophobic glass.

See more, day or night
30×/60× reach plus 500 m IR laser night vision.

Broadcast-quality images
1/1.8" sensor, 4K60, full color/gamma/WDR control.

Installer-friendly
Concealed undercarriage cabling, strain relief, PoE++.

Workflow freedom
Simultaneous Full NDI + HX3; NDI alongside SRT/RTMP/RTSP.

Flexible I/O
12G-SDI, HDMI, SFP+ fiber; RS-232/422; audio in; DC power.

Smarter tracking
Adjustable AI profiles for sports, events, and security.

BirdDog ecosystem
BirdUI, Central, Connect, KBD; NDI 6.2-ready.

Features:

• IP66 weatherproof housing with –40 °C to +60 °C operating range and built-in heater.
• Hydrophobic, smudge-resistant front glass for clear optics without wipers.
• 30× optical zoom (60× in HD) for long-range framing.
• 500 m infrared laser night vision with automatic B/W mode and IR cut filters.
• 1/1.8" CMOS sensor capturing 4K60 with wide dynamic range.
• Simultaneous Full NDI and NDI HX3 streaming.
• Dual streaming options: deliver NDI plus SRT/RTMP/RTSP concurrently.
• 12G-SDI, HDMI, and SFP+ (fiber) for IP, hybrid, and baseband installs.
• Sealed undercarriage cabling with three weatherproof flanges and strain relief; PoE++ or DC power.
• Adjustable AI autotracking (fast for sports, smooth for events) via BirdUI.

BirdDog O4 is a professional outdoor PTZ camera engineered to perform where others fail. Its die-cast, IP66-rated chassis operates from –40 °C to +60 °C, with a built-in heater to prevent condensation and hydrophobic, smudge-resistant lens coatings that keep the optics clear—no wipers required. The result is dependable, year-round operation in rain, dust, snow, or heat.

Image quality matches the toughness. A 1/1.8" sensor captures 4K60 with accurate color, flexible gamma, exposure, and WDR controls. A 30× optical zoom (up to 60× in HD) brings distant action close, while a 500 m IR laser and automatic black-and-white night mode deliver true visibility when light disappears.

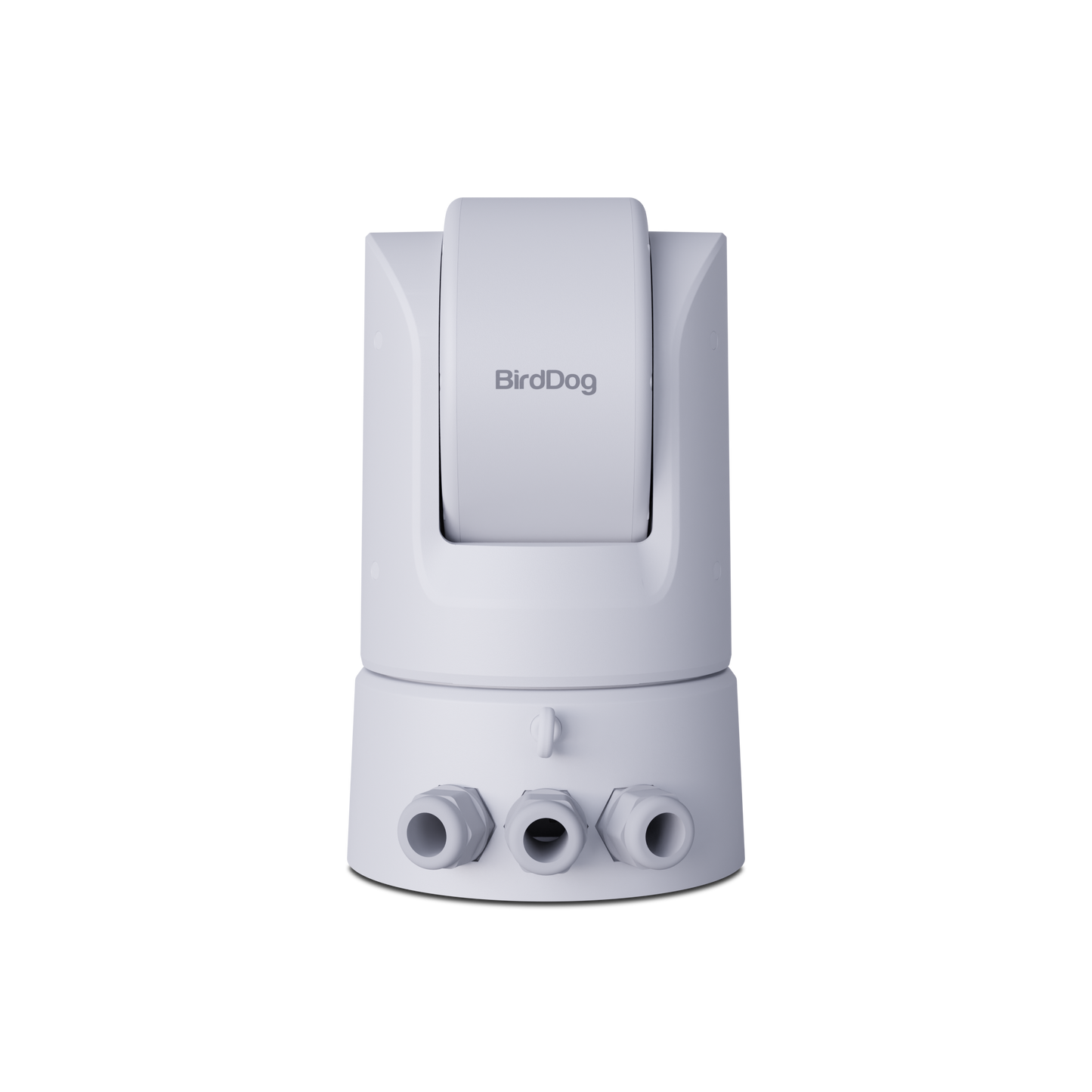

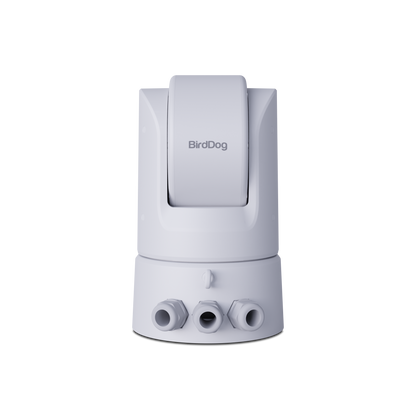

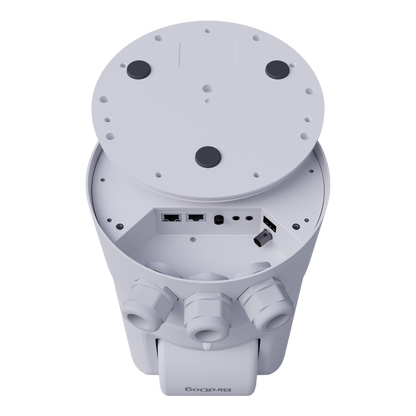

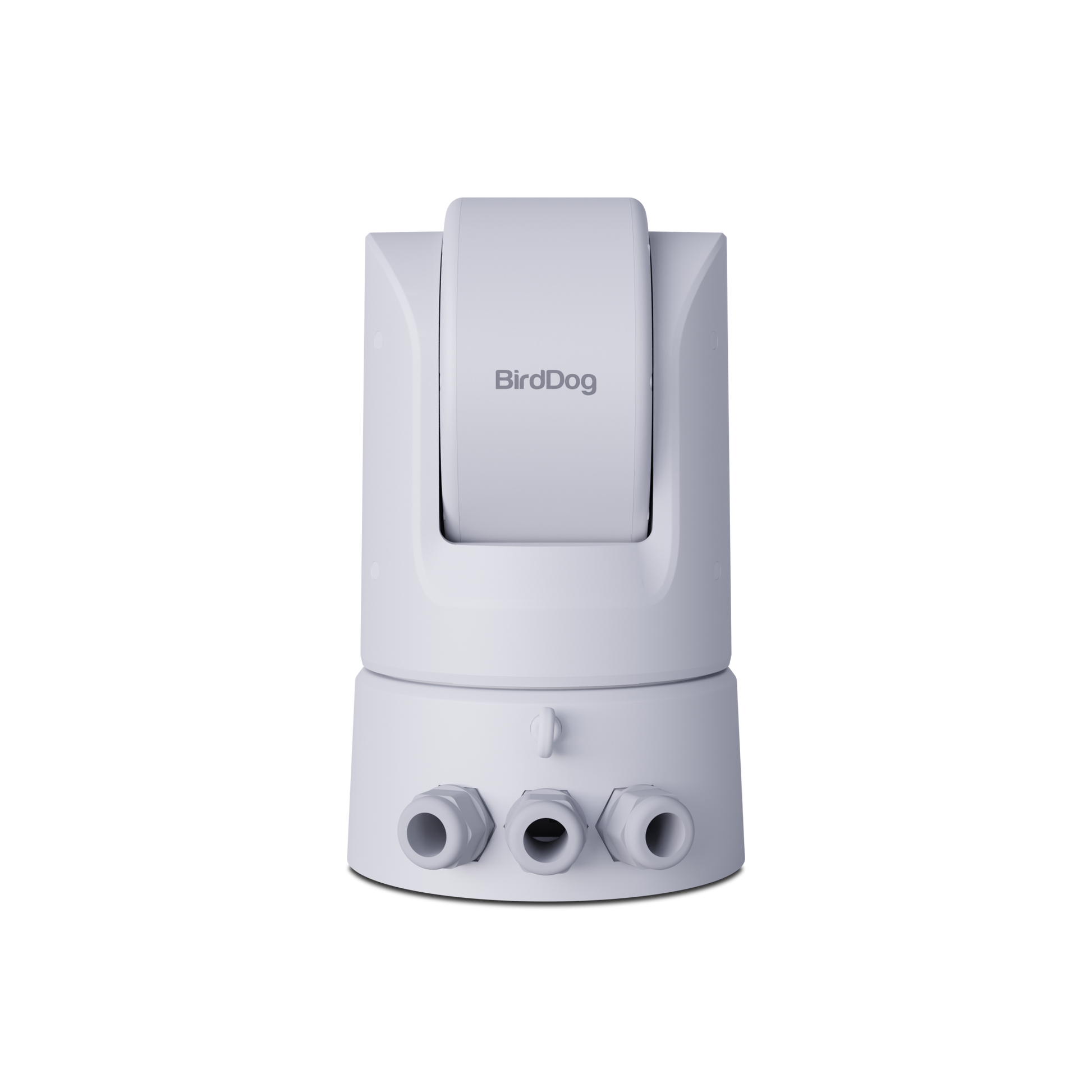

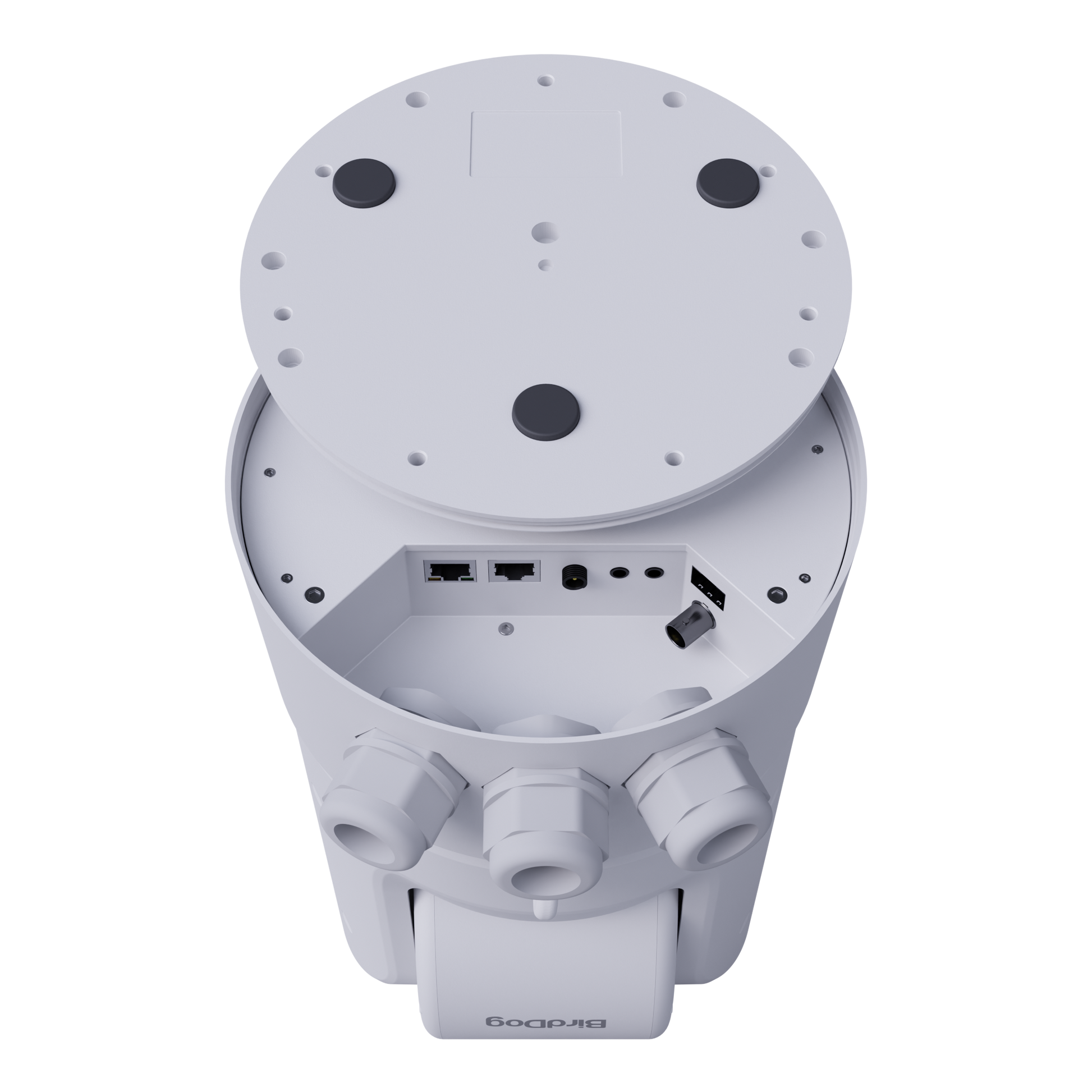

O4 is designed for clean installs. All connections are tucked inside a sealed undercarriage with built-in strain relief and three weatherproof flanges; power via PoE++ for single-cable simplicity or use external DC. Connectivity is uncompromised: 12G-SDI, HDMI, and SFP+ fiber cover production and infrastructure needs, while the streaming stack lets you run Full NDI and NDI HX3 at the same time and output NDI alongside SRT, RTMP, or RTSP for parallel deliverables.

An advanced AI tracking engine provides adjustable motion profiles—from fast and responsive for sports to smooth and graceful for events and worship—so subjects stay framed naturally. O4 fits seamlessly into the BirdDog ecosystem with BirdUI, Central, Connect, and Keyboard (KBD), and it is NDI 6.2-ready for future upgrades.

From stadiums and smart-city installs to perimeter monitoring, outdoor worship, and large-scale events, O4 combines all-weather durability with broadcast-grade vision and installer-friendly design. It’s outdoor production—redefined

IMAGING

• Imaging Sensor: Sony 1 / 1.8” CMOS – ULTRA HD
• Lens: f=6.9mm~215mm
• Optical Zoom: Optical 30x (4k) – 60x (HD), 8x Digital
• Video Format: "2160p @ 60/59.94/50/30/29.97/25fps
• 1080p @ 60/59.94/50/30/29.97/25fps
• 1080i @ 60,59.94,50fps
• 720p @ 30/29.97/25fps"
• Horizontal angle of view: 60°~2°
• Vertical angle of view: 34°~1.1°
• Diagonal angle of view: 67°~2.3°
• Aperture: f1.35~f4.6
• Focus: Auto (Global/Centre/Upper/Lower/Left/Right), Manual
• Exposure: Auto, Manual Shutter Priority, Iris Priority, Brightness Priority
• Exposure Metering: Average, Centre, Top, Bottom, Left, Right
• Backlight Compensation: Yes
• Exposure Compensation: Yes
• Flicker Reduction: Outdoor / 50Hz / 60Hz
• White Balance: Auto / One Push / Indoor / Outdoor / Manual / Color Temperature
• Digital Noise Reduction: 2D/3D Noise Reduction
• SNR: >50dB
• Effective Pixels: 8.4MP
• HDR: Supported, REC.2020 Color Space

MECHANICAL

• Pan/Tilt rotation: ±170°, -30° ~ +90°
• Pan Control Speed: 0.05-90°/sec
• Tilt Control Speed: 0.05-90°/sec
• Preset Number: 255 Presets
• IR Laser: Included, 500m illumination distance
• FreeD Support: Included, UDP, and Embedded in NDI Stream
• Integrated Heater: Included
• Glass Coating: High-strength Aerospace/Marine grade Hydrophobic, Anti-mildew, Anti-fouling coating.

AI FUNCTIONS

• AI Auto Tracking: Area Management, Framing Adjustment, Sensitivity Adjustment, Auto Framing, Stage
• Tracking, Zone Tracking
• AI Gesture Control: Supported

I/O INTERFACE

• Video Output Interfaces: 12G-SDI, RJ-45
• Video Compression Formats: h.264, h.265, NDI High Bandwidth
• Audio I/O: Stereo Unbalanced 1/4” TRS Input/Output
• Network Interface: SFP+ Fibre Optic, RJ45 1GbBaseT adaptive Ethernet port; PoE++
• Encoder Network Protocols: NDI|HX2, NDI|HX3, High Bandwidth NDI, RTSP, RTMP, SRT, Dante AV-H
• (unlocked via Dante Activator)
• Control Interfaces: Ethernet, Serial
• Control Protocols: NDI, VISCA-IP
• API Control: BirdDog RESTful API 2.0

GENERAL

• Input Voltage: DC 24V, PoE++
• Input Current: 1.2A
• Power Consumption: 40W Max.
• Operating Temperature: -40°C ~ +60°C
• IP Rating: IP66
• Dimensions (W*H*D): 200x330x226mm
• Weight: 7.6Kg
