Bond II SDI
Bond II SDIBond II SDI

DISCONTINUED PRODUCT

Unfortunately this product has been discontinued but I'm sure we had a new and better option.   Search above or contact us via email or chat.

VideoGuys Part # (SKU): BONIISDI
Bond II SDI
  • Full Description
  • Specifications
  • What's Included
  • Demo Videos
  • Reviews

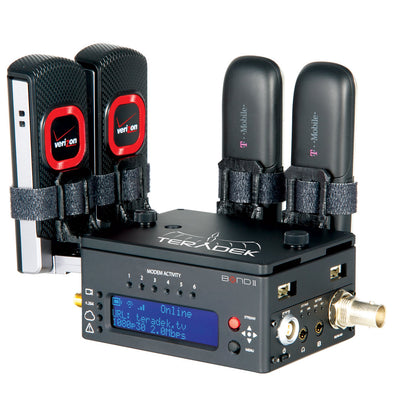

Bond II is an exciting addition to the award-winning Bond camera-top cellular mux family. Bond II was designed to function as an efficient and portable bonding solution that excels in time sensitive situations and challenging environments with minimal maneuverability. Its compact size, light weight, and low power consumption combined with its cost-effective price make Bond II an unbeatable value for broadcasters. Bond II comes with a built-in HD H.264 encoder, HD-SDI or HDMI input, 6 USB slots for 3G/4G/LTE modems, and requires fewer cables than the original Cube + Bond system. Additionally, Bond II offers a flexible new modem mounting option that ensures your cellular dongles are protected from aggressive movement.


The Teradek Bond line of cellular bonding solutions allows video professionals to broadcast 1080p HD video over aggregated bandwidth from several network interfaces, including 3G/4G/LTE, WiFi, BGAN, Ethernet (Ethernet bonding requires USB to Ethernet adapters), and Fiber. Bond devices utilize hardware-based high profile H.264 compression, resulting in very low power consumption and long run times. Each bonding solution offers a local monitoring capability on iOS devices, quick access to settings via an OLED display, and IFB for communication from the studio to the field. All Bond devices require a Sputnik server, which converts each bonded feed into a standard video format that can be sent to any streaming platform on the Web or to several H.264 decoders.


Sputnik Server & Dashboard GUI


Sputnik is Teradek's free software application between Bond and your streaming destination. Sputnik is designed to run on a Linux computer either in the cloud using Amazon EC2) or on a local server with a single, publicly addressable TCP port. The software recombines the packets from your cellular modems into a cohesive stream that can be sent to an H.264 decoder or viewed online.


Core™


Sputnik also integrates with Core (coming soon), a new cloud-based encoder fleet management system. From an intuitive Web GUI, users are provided with extensive control over many parameters of connected Teradek IP video devices. Core also offers a unique drag and drop workflow that allows you to direct video feeds from any encoder to any number of decoders in real time.



Key Features


» Six USB slots for 3G/4G/LTE modems, BGAN, Ethernet, WiFi


» Modem mounting system


» 250 Kbps to 10 Mbps


» HD-SDI, SD-SDI: BNC input


» Supports all standard resolutions and frame rates up to 1080p30.


» IFB support


List of Approved Modems


» AT&T: USBConnect Momentum 4G (Sierra Wireless Aircard 313U)
» T-Mobile: Jet 2.0 (Huawei e366)
» Telstra: BigPond Ultimate (Sierra Wireless Aircard 312U)
» Telstra: BigPond 4G (Sierra Wireless Aircard 313U)
» Verizon: Pantech UML290
» Vodafone : K3805-Z, K5005 (Huawei e398)

BOND II Technical Specs:


VIDEO INPUT for the BOND II SDI - HD-SDI, SD-SDI: BNC
{BONDIISDI.Link}


VIDEO INPUT for the BOND II HDMI -HDMI (BOND II HDMI)
{BONDIIHDMI.Link}


SUPPORTED RESOLUTIONS



  • 1080i 50/59.94/60
  • 1080p 23.98/24/25/30
  • 1080PsF 23.98/24/25
  • 720p 50/59.94/60
  • 576p (HDMI) / 576i (HD-SDI)
  • 480p (HDMI) / 480i (HD-SDI)

VIDEO CODEC



  • Compression Algorithm: Baseline, Main and High Profile H.264
  • Main and Baseline profiles
  • Bit Rate: 250 Kbps to 10 Mbps
  • Built-in Video Scaler and Deinterlacer

VIDEO STREAMING SUPPORT



  • Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP>
  • Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS (Sold separately)
  • RTMP (Adobe Flash Streaming)
  • HTTP Live Streaming
  • Point to Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP)

AUDIO



  • Audio Compression: AAC-LC, MPEG Layer 2
  • Embedded Audio Input
  • Analog Line or Mic in, adjustable gain
  • Headphone output, adjustable volume

PHYSICAL



  • Dimensions: 2.5"W x 3.5"D x 1.5"H
  • Weight: 12oz

INTERFACES



  • Feature-rich WebUI for configuration and control
  • OLED LCD Display with joystick Navigation buttons
  • On/Off and Reset Switch
  • Micro SD
  • Six Powered USB 2.0 host ports

NETWORK



  • Ethernet: 10/100BASE-T
  • WiFi: Dual Band 802.11 a/b/g/n MiMO
  • Bonded USB Modem support

POWER



  • 2 Pin Lemo Power input
  • Nominal Power Consumption: 3W + 2.5W (max) per USB device
  • Power Input: 6-28V DC
