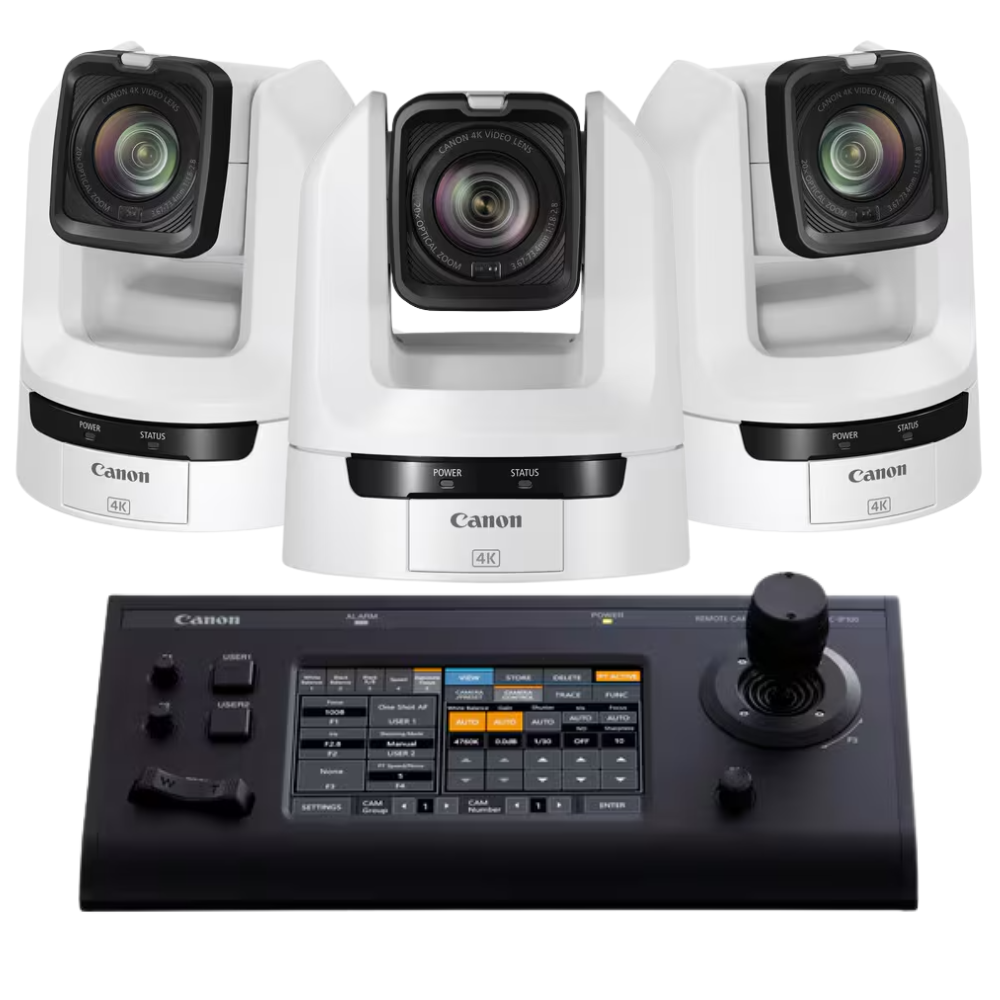

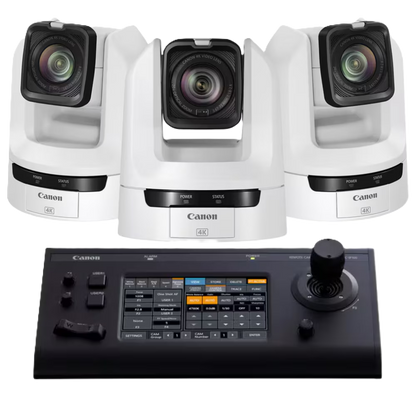

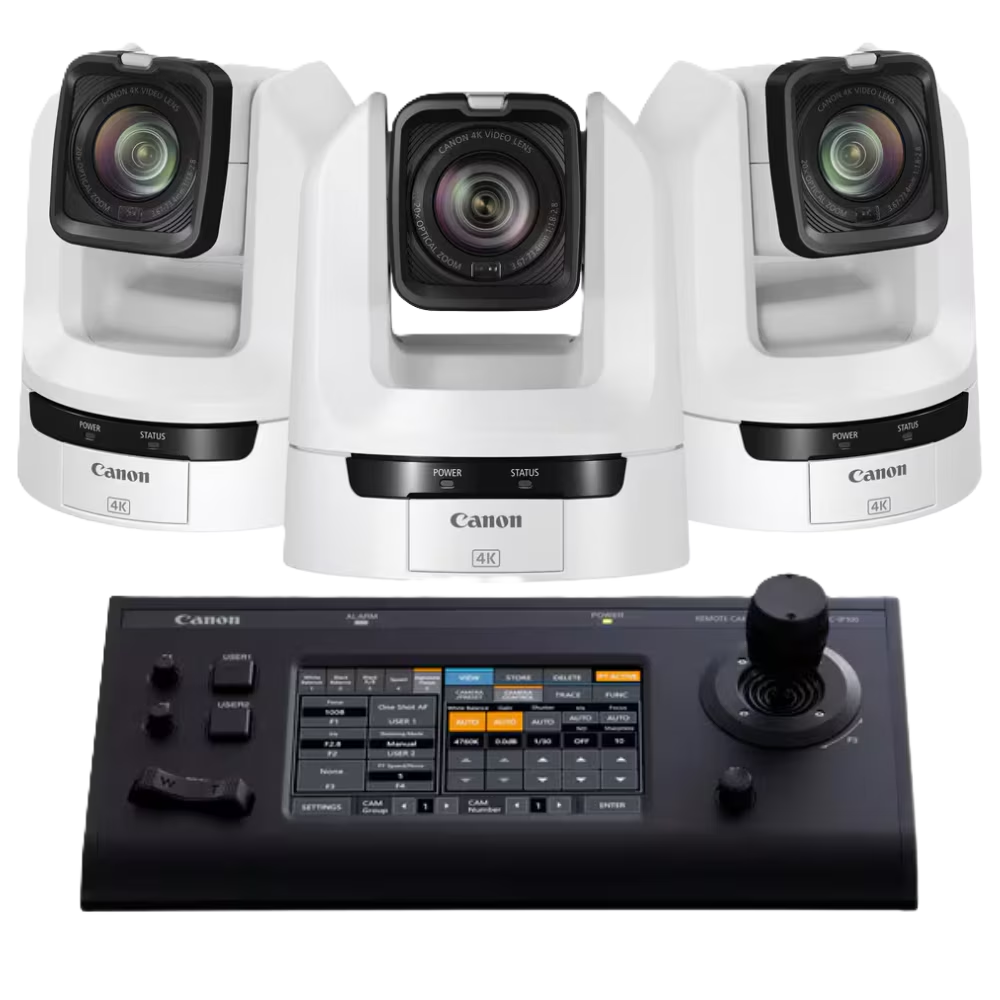

Canon 3x CR-N300 PTZ Cameras with RC-IP100 Controller Bundle (White)

Canon 3x CR-N300 4K PTZ Cameras with RC-IP100 Controller Bundle

Canon CR-N300 PTZ Camera Bundle

The Canon 3x CR-N300 PTZ Camera Bundle gives you three professional 4K PTZ cameras for multi-camera live production. Each camera combines 4K video, 20x optical zoom, NDI|HX2, SRT, and flexible video outputs. As a result, this bundle is ideal for live streaming, broadcast, education, houses of worship, sports, corporate video, events, and lecture capture.

• 3x Canon CR-N300 4K PTZ Cameras
• 4K UHD video up to 30p
• Full HD video up to 60p
• 20x optical zoom
• Optical Image Stabilization
• NDI|HX2 for IP video production
• SRT for reliable IP streaming
• Built-in Auto Tracking Lite
• Hybrid Auto Focus
• 3G-SDI, HDMI, USB, and IP outputs
• PoE+ support
• RTMP, RTMPS, RTSP, and RTP streaming
• FreeD support for AR and VR production
• Canon XC Protocol and Standard Protocol

Canon CR-N300 4K NDI|HX PTZ Camera

The Canon CR-N300 is a compact professional PTZ camera built for high-quality remote production. Its 1/2.3-inch CMOS sensor and DIGIC DV 6 image processor deliver detailed 4K video, while the 20x optical zoom provides flexible framing. Furthermore, Hybrid AF and optical image stabilization help operators capture sharp, steady video.

• 4K UHD video up to 30p
• 20x optical zoom
• 1/2.3-inch CMOS sensor
• Canon DIGIC DV 6 image processor
• Hybrid Auto Focus
• Optical Image Stabilization
• NDI|HX2
• SRT with adaptive bitrate
• Auto Tracking Lite
• 3G-SDI, HDMI, USB, IP video outputs
• PoE+ support
• RTMP, RTMPS, RTSP, and RTP
• FreeD for AR and VR production
• IP, serial, IR, Wi-Fi, and USB control

Canon RC-IP100 PTZ Controller

The Canon RC-IP100 PTZ Controller provides centralized control for compatible Canon PTZ cameras. It can control up to 100 cameras and features a 7-inch touchscreen, joystick, zoom lever, and customizable buttons. Therefore, it is an excellent solution for multi-camera productions that require fast and precise PTZ control.

• Controls up to 100 compatible Canon cameras
• 7-inch touchscreen
• Precise pan and tilt joystick
• Dedicated zoom lever
• Remote camera function control
• Picture setting control
• Four customizable buttons
• Precise PTZ movement
• Serial control for compatible Canon cameras
• Designed for live production, streaming, broadcast, education, and corporate video

Why Choose This Canon PTZ Bundle?

Together, the three Canon CR-N300 PTZ cameras and RC-IP100 controller provide a complete multi-camera production system. You get 4K video, 20x optical zoom, NDI|HX2 connectivity, IP streaming, and centralized camera control. Plus, PoE+ can simplify installation by carrying power, video, control, and tally over a single network connection.

Camera

• Image Sensor
  • Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
  • Total pixels: approx. 21.14 megapixels
  • Effective pixels: approx. 8.29 megapixels (3840 x 2160)
• Lens
  • f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture
  • 35mm equivalent focal length:
  • [4K UHD] approx. 29.3 (W) – 601 mm (T)
  • [Full HD] approx. 30.5 (W) – 627 mm (T)
• Zoom
  • Digital: 20x
  • Optical: 20x
• Lens Configuration: 12 elements in 10 groups (including 2 aspheric elements)
• Minimum Focusing Distance: 1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.) throughout the zoom range
• Angle of View
  • [4K UHD]
  • Horizontal: 65.6 (W) – 3.6° (T)
  • Vertical: 39.8° (W) – 2.0° (T)
  • [Full HD]
  • Horizontal: 63.5 (W) – 3.4° (T)
  • Vertical: 38.4° (W) – 1.9° (T)
• Shutter Speed: 1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
• Iris: Manual/Automatic aperture
• Gain: 0.0 dB – 36 dB
• White Balance
  • AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K – 15,000 K), Manual
  • *Color temperatures are given for reference purposes only.
• Focus: Focus mode: Manual, Continuous AF, Face AF, Tracking AF type: Hybrid AF, Contrast AF
• Gamma: Normal1 (Standard), Normal3 (BT.709)
• Image Stabilizer: Optical-shift
• Min. Subject Illumination: Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on)
• Pan and Tilt
  • Pan operation range: Horizontal ±170°
  • Pan operation speed: 0.2° – 300°/sec.
  • Tilt operation range: Vertical -30° – +100°
  • Tilt operation speed: 0.2° – 170°/sec.

Video Output Format

• Frame Frequency 59.94 Hz
  • 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• Frame Frequency 29.97 Hz
  • 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 1920 x 1080: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• Frame Frequency 50.00 Hz
  • 1920 x 1080: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
• Frame Frequency 25.00 Hz
  • 3840 x 2160: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  • 1920 x 1080: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
• Frame Frequency 23.98 Hz
  • 3840 x 2160: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
  • 1920 x 1080: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
  • 1280 x 720: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
  • 640 x 360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
• – JPEG has one fixed pattern depending on the frame frequency (format is fixed and cannot be selected)
  • Resolution: 1280 x 720
  • When frame frequency is 59.94/29.97 Hz: 14.99 fps
  • When frame frequency is 50.00/25.00 Hz: 12.50 fps
  • When frame frequency is 23.98 Hz: 11.99 fps
• SDI
  • 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
  • 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
  • *Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
  • *When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
• HDMI
  • 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
  • 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
  • 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
  • *Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
  • *When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
• IP
  • 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • *If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected.
  • *A frame rate that exceeds the frame frequency cannot be selected.
  • *JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720
  • When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps
• USB
  • Motion JPEG:
  • 1920 x 1080
  • 59.94 Hz: 12.00 fps, 5.00 fps
  • 50.00 Hz: 12.50 fps, 5.00 fps
  • 1280 x 720
  • 59.94 Hz: 12.00 fps, 5.00 fps
  • 50.00 Hz: 12.50 fps, 5.00 fps
  • 640 x 360
  • 59.94 Hz: 12.00 fps, 5.00 fps
  • 50.00 Hz: 12.50 fps, 5.00 fps
• Supported Video and Control Protocols: Protocol: XC Protocol, RTSP/RTP, NDI®HX2, SRT (Supports Adaptive Bitrate), FreeD (Supports up to 4 destinations), RTMP/RTMPS, Standard Protocol Communication (Serial), Standard Protocol Communication (IP)
• Number of Presets: Max. 100 (including home position)

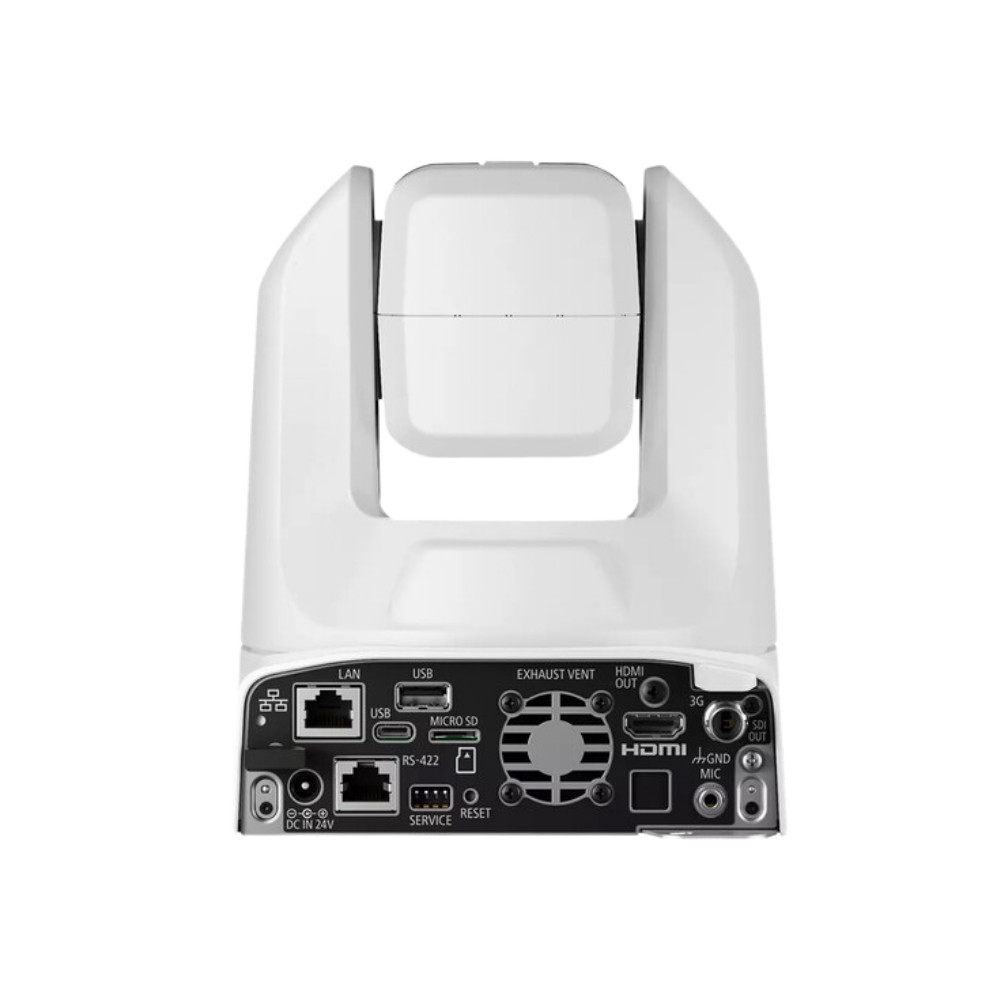

Interface

• Communication Control: LAN, Wi-Fi, Serial, IR
• Network Terminal: LAN x 1, RJ45, 1000Base-T
• 3G-SDI OUT Terminal: BNC jack (output only) x 1, 0.8 Vp-p/75, unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC)
• HDMI OUT Terminal: HDMI connector x 1, output only
• RS-422 Terminal: RJ45 connector x 1
• Mic Terminal
  • 3.5 mm stereo mini jack (unbalanced, plug-in power supported)
  • Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k or
  • more/Att.: 20 dB
  • Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k or more
  • Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k)
• USB Terminal
  • Type-A (USB 2.0) x 1 (future expansion)
  • Type-C (USB 3.0) x 1
• Media Slot: microSD card slot x 1 (future expansion, recording unavailable)

Other

• Operating Environment
  • Temperature: 0°C – +40°C (+32°F – +104°F)
  • Humidity: 10% – 90% (without condensation)
• Storage Environment
  • Temperature: 0°C – +40°C (+32°F – +104°F)
  • Humidity: 10% – 90% (without condensation)
• Power Supply
  • PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be used
  • External power source: 24 V DC (using included AC adaptor)
• Power Consumption
  • PoE+ Input: Approx. 16.2 W* max. (body only)
  • DC Input: Approx. 15.0 W max. (body only)
  • *Class 4 (25.5 W required) for power supply devices
• Dimensions (W x H x D): Approx. 154 x 178 x 164 mm (6.06 x 7.01 x 6.46 in.) (excluding protrusions)
• Weight: Approx. 2.2 kg (4.86 lb.) (body only)
• Supported Controllers
  • Hardware: RC-IP100, RC-IP1000
  • Software: Remote Camera Control Application
• Note Warning: This is a class A product. In a domestic environment this product may cause radio inference in which case the user may be required to take adequate measures.

• 3x CR-N300 PTZ Cameras
  • Mounting Plate with Screw
  • Safety Wire
  • Safety Wire with Screw
  • AC Adapter
  • AC Cable
  • Infrared Remote Controller with Battery
  • Installation Guide
  • Warranty: 3-Year Manufacturer Warranty
• 1x RC-IP100 Remote Camera Controller
  • AC Adapter
  • AC Cable
  • Printed Documents
  • Warranty: 1-Year Manufacturer Warranty
