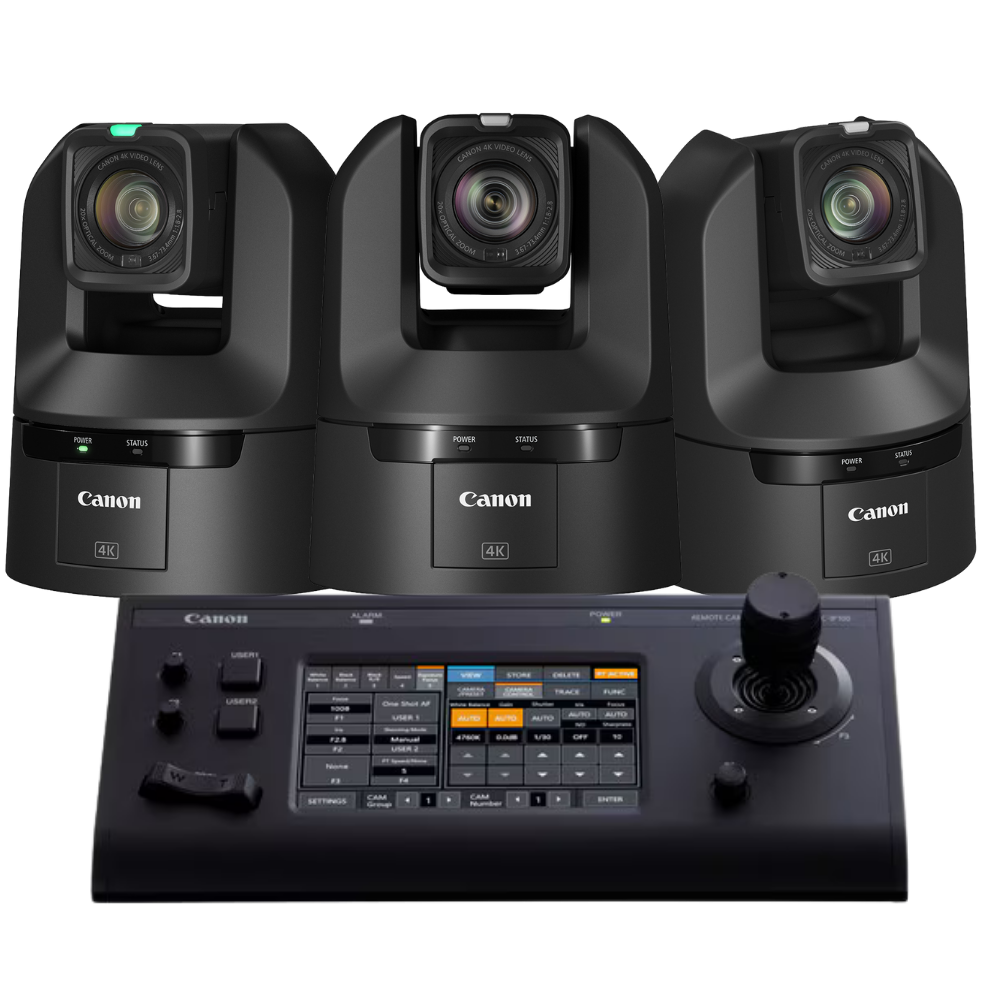

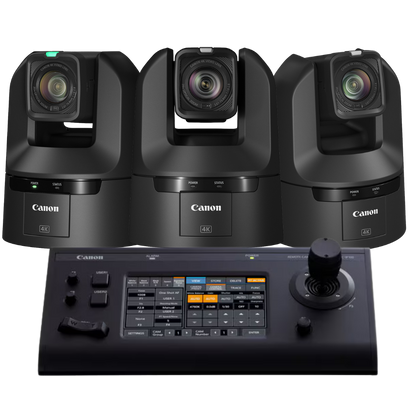

Canon 3x CR-N400 PTZ Cameras with RC-IP100 Controller Bundle (Black)

Canon 3x CR-N400 PTZ Cameras with $300 Savings on RC-IP100 Controller Bundle
The Canon 3x CR-N400 PTZ Cameras with RC-IP100 Controller Bundle is ideal for productions that need broadcast-level connectivity, consistent 4K image quality, and streamlined multi-camera control without a large crew. With three CR-N400 cameras, you can capture multiple angles in stunning 4K60p using 12G-SDI, HDMI, or IP, while benefiting from Canon’s renowned Color Science, smooth on-air PTZ movement, and built-in Auto Tracking Lite. The included RC-IP100 controller allows a single operator to precisely control pan, tilt, zoom, focus, and camera settings for all three cameras from one intuitive touchscreen interface, ensuring smooth transitions and consistent framing. Perfect for houses of worship, corporate studios, education, and live events, this bundle simplifies setup, reduces operating costs, and delivers a scalable, professional PTZ system ready to grow with your production needs.

Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical Zoom
The Canon CR-N400 4K PTZ Camera is a professional, broadcast-ready solution designed for high-end live production across houses of worship, education, corporate AV, events, and broadcast environments. Featuring a 1/2.3" CMOS sensor and DIGIC DV7 image processor, the CR-N400 delivers stunning 4K60p video with Canon’s renowned Color Science, supporting Wide DR, Canon Log 3, and HDR (HLG/PQ) for flexible post and live workflows. Its precision 20x optical zoom lens (40x Advanced Zoom in Full HD) with Optical Image Stabilization ensures sharp, steady images, while smooth pan and tilt movement and built-in Auto Tracking Lite enable confident on-air operation. With robust connectivity including 12G-SDI, 3G-SDI, HDMI, and IP, plus Genlock, dual XLR and 3.5mm audio inputs, built-in NDI® HX2 and SRT with adaptive bitrate, PoE++, FreeD support for AR/VR, and broad serial/IP control compatibility including Canon XC Protocol, the CR-N400 integrates easily into modern, multi-camera production workflows.

Canon RC-IP100 Touchscreen PTZ Joystick Controller
The Canon RC-IP100 Touchscreen PTZ Joystick Controller is a versatile and intuitive control solution designed for professional productions that require smooth, precise PTZ operation across multiple cameras. Capable of controlling up to 100 supported Canon PTZ cameras over IP (plus one compatible camera via serial using the NU protocol), the RC-IP100 allows operators to remotely adjust pan, tilt, zoom, and camera picture settings with confidence. A large 7-inch diagonal touchscreen provides clear visual feedback and easy menu navigation, while the integrated joystick, zoom lever, and four customizable buttons deliver responsive, on-air-ready control. With support for configuring and enabling add-on applications such as Auto Tracking and Auto Loop, the RC-IP100 pairs seamlessly with Canon PTZ cameras to create an efficient, reliable camera control setup for studios, live events, houses of worship, and streaming environments

Camera:

• Color Options :

  Satin Black / Titanium White

• Image Sensor : /2.3-inch, CMOS (single board)
• Total pixels: approx. 21.14 megapixels
  • 29.97/25.00/23.98 Hz effective pixels: approx. 8.29 megapixels (3840 x 2160)
  • 59.94/50.00 Hz effective pixels: approx. 7.88 megapixels (3744 x 2104)

• Lens:

  f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed iris diaphragm

  • 59.94/50 Hz 35mm equivalent focal length: approx. 30mm (W) – 616 mm (T)
  • 29.97/25.00/23.98 Hz 35mm equivalent focal length: approx. 29.3mm (W) – 601 mm (T)

• Zoom



  • Optical: 20x
  • Digital: 20x
  • Advanced Zoom (Full HD): 40x
• Lens Configuration: 10 groups of 12 lenses (two aspherical lenses used)
• Minimum Focusing Distance: 1 cm at wide end, 60 cm across entire zooming range
• Angle of View: 59.94/50.00 Hz Horizontal: 63.3 (W) – 3.5° (T) - Vertical: 38.9° (W) – 2.0° (T)
• 29.97/25.00/23.98 Hz Horizontal: 65.6 (W) – 3.6° (T) - Vertical: 39.8° (W) – 2.0° (T)
• Shutter Speed: 1/3 – 1/2000 sec. (specific values depend on the frame frequency)
• Iris: Manual/Automatic aperture
• Gain: 0.0 db - 36.0 db
• ND Filter: Built-in (1/8 at maximum, gradation ND), motor operated
• White Balance: AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K),
• color temperature setting (2,000 K – 15,000 K), Manual
• Focus mode:
  • Manual
  • Continuous AF
  • Face Detection & Tracking
  • Face only AF
  • Eye Detection.
• AF type: Hybrid AF, Contrast AF
• Gamma: BT.709 Wide DR, BT.709 Standard, Canon Log 3, Canon 709, HDR (PQ), HDR(HLG)
• Image Stabilizer: Optical
• Min. Subject Illumination:
  • Frame frequency 59.94/29.97 Hz:
  • Approx. 3 lux (at shutter speed 1/60 sec, frame rate 59.94P, gain 30.0 dB)
  • Approx. 1.5 (at shutter speed 1/30 sec, frame rate 59.94P, gain 30.0 dB)
  • Frame frequency 50.00/25.00 Hz:
  • Approx. 2.5 lux (at shutter speed 1/50 sec, frame rate 50.00P, gain 30 dB)
  • Approx. 1.3 lux (at shutter speed 1/25 sec, frame rate 50.00P, gain 21 dB)
  • *All of the above are when high sensitivity mode is set to On
• Pan and Tilt
  • Pan operation range: Horizontal ±170°
  • Pan operation speed: 0.1° – 100°/sec. (Up to 200°/sec. with presets)
  • Tilt operation range: Vertical -30° – +100°
  • Tilt operation speed: 0.1° – 100°/sec. (Up to 180°/sec. with presets
• 3G-SDI:
  • 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1280 x 720: 59.94p/50.00P (4:2:2 10bit)
• 12G-SDI:
  • 3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1280 x 720: 59.94p/50.00P (4:2:2 10bit)
  • 720 x 576: 50.00i (4:2:2 10bit)
  • 720 x 480: 59.94i (4:2:2 10bit)
• HDMI:
  • 3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1280 x 720: 59.94p/50.00P (4:2:2 10bit)
  • 720x576: 50.00P (4:2:2 10bit)
  • 720x480: 59.94P (4:2:2 10bit)
• IP:
  • 3840 x 2160: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)
  • 1920 x 1080: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)

Video Output Format

Supported Video and Control Protocols

• Protocol: XC Protocol, RTSP/RTP, NDI HX2, RTMP/RTMPS, Standard Communication (Serial),
• Standard Communication (IP), FreeD, SRT
• Number of Presets Max. 100 (including home position)

Interface

• Communication Control: LAN, Wi-Fi, Serial, IR, USB
• Network Terminal LAN x 1, RJ45, 1000Base-T
• 12G/3G-SDI OUT Terminal
  • BNC jack x1 12GSDI & x1 3G-SDI, 0.8 Vp-p/75 Ω
  • SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST
  • 272, SMPTE ST 299 compliant
  • Embedded audio, Time code (VITC/LTC)
• GEN-LOCK Terminal BNC jack x 1, 1.0 Vp-p/75 Ω
• Time Code Terminal BNC jack x 1, 1.3 Vp-p/50 Ω or less
• HDMI OUT Terminal HDMI connector x 1, output only
• RS-422 Terminal RJ45 connector x 1
• Audio Input 1 / Input 2 Terminals
  • INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced
  • Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/1 kΩ/Att.: 20 dB
  • Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 kΩ or more
  • Supply Voltage: 48 V DC (Bias resistance: 6.8 kΩ
• Mic Terminal
  • 3.5 mm stereo mini jack (unbalanced, plug-in power supported)
  • Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB
  • Sensitivity (LINE): -12 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more
  • Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
• Media Slot SD Card x1, future expansion

Other

• Operating Environment: Temperature: 0°C – +40°C (+32°F – +104°F)
• Humidity: 10% – 90% (without condensation)
• Storage Environment: Temperature: 0°C – +40°C (+32°F – +104°F)
• Humidity: 10% – 90% (without condensation)
• Power Supply PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant)
• External power source: 12 V DC Terminal

• Power Consumption:

  PoE++ Input: Approx. 34.4 W max. (body only)

• DC Input: Approx. 33.8 W max. (body only)
• Quietness: NC35 or lower
• Dimensions (W x H x D): Approx. 176 x 220 x 194 mm (6.93 x 8.66 x 7.64 in.) (excluding protrusions)
• Weight: Approx. 3.1 kg (6.8 lb.) (body only)
• Supported Controllers
  • Hardware: RC-IP100, RC-IP1000
  • Software: Remote Camera Control Application, Mulit-Camera Control Application, Multi-Camera

  • Management Application, Camera Search tool



• 3x Canon CR-N400 PTZ Cameras
  • IR Remote Control
  • Mounting Bracket with Screw
  • Safety Wire with Screw
  • Camera-to-Mount Safety Wire with Screw
  • IR Remote Controller
  • 2 x AAA Battery
  • AC Adapter
  • Power Cable
  • Warranty: Limited 1-Year Manufacturer Warranty
• 1x Canon RC-IP100 Touchscreen PTZ Joystick Controller
  • AC Adapter
  • Warranty: Limited 1-Year Manufacturer Warranty
