Canon 3x CR-N400 PTZ Cameras with RC-IP100 Controller Bundle (Black)

Canon CR-N400 4K PTZ Camera and RC-IP100 Controller Bundle

Why Choose the Canon CR-N400 PTZ Camera Bundle?

The Canon CR-N400 and RC-IP100 PTZ Camera Bundle combines a professional 4K PTZ camera with a dedicated hardware controller for a complete remote production solution. Together, they make it easier to capture, frame, and manage live video from a centralized position. The CR-N400 delivers 4K 60p video, 20x optical zoom, Hybrid Auto Focus, and flexible SDI, HDMI, and IP connectivity.

Meanwhile, the RC-IP100 provides precise control over pan, tilt, zoom, focus, and camera settings. Therefore, this bundle is an excellent choice for broadcast, live streaming, education, houses of worship, corporate events, sports, and multi-camera productions.

Key Bundle Benefits

• Complete 4K PTZ camera and controller solution
• Professional 4K 60p video production
• 20x optical zoom for flexible framing
• Dedicated hardware control for precise PTZ operation
• 12G-SDI, HDMI, NDI HX2, SRT, and IP connectivity
• Centralized control for multi-camera productions
• Ideal for broadcast, streaming, worship, education, sports, and corporate video

Canon CR-N400 4K PTZ Camera Features

The Canon CR-N400 delivers professional 4K video while providing the flexibility needed for modern live production. With its 20x optical zoom, Hybrid Auto Focus, Optical Image Stabilization, and Canon color science, the camera produces high-quality images while making remote operation easier. In addition, its extensive connectivity supports both traditional SDI production and modern IP workflows.

• 4K 60p video with 1/2.3-inch CMOS sensor
• 20x optical zoom with up to 40x Advanced Zoom in Full HD
• Hybrid Auto Focus with Face, Eye, and Head Detection
• Optical Image Stabilization for steady shots
• 12G-SDI, 3G-SDI, HDMI, USB, and IP video output
• Built-in NDI HX2 and SRT with adaptive bitrate support
• PoE++ for simplified network installation
• Auto Tracking Lite for automatic subject tracking
• Canon Log 3, Wide DR, HLG, PQ, EOS Standard, and Neutral image modes
• Genlock and Time Code for multi-camera production
• Dual XLR and 3.5mm audio inputs
• FreeD support for AR, VR, and virtual production
• Vertical and two-area crop functions
• RTMP/RTMPS and RTSP/RTP support

Canon RC-IP100 PTZ Camera Controller Features

The Canon RC-IP100 PTZ Controller provides centralized control for the CR-N400 and other compatible Canon PTZ cameras. With a 7-inch touchscreen, joystick, zoom lever, and customizable buttons, operators can quickly frame shots and adjust camera settings. Furthermore, the controller can manage up to 100 supported cameras, making it especially useful for larger multi-camera production systems.

• Controls up to 100 supported Canon cameras
• 7-inch touchscreen for camera monitoring and control
• Joystick for precise pan and tilt movement
• Zoom lever for smooth zoom operation
• Remote camera and picture setting control
• Four customizable buttons for faster operation
• Precise PTZ control for live productions
• Serial control for compatible Canon cameras
• Ideal for broadcast, streaming, education, worship, corporate, and event production

Camera

• Image Sensor : /2.3-inch, CMOS (single board)
• Total pixels: approx. 21.14 megapixels
  • 29.97/25.00/23.98 Hz effective pixels: approx. 8.29 megapixels (3840 x 2160)
  • 59.94/50.00 Hz effective pixels: approx. 7.88 megapixels (3744 x 2104)
• Lens:
  • f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed iris diaphragm
  • 59.94/50 Hz 35mm equivalent focal length: approx. 30mm (W) – 616 mm (T)
  • 29.97/25.00/23.98 Hz 35mm equivalent focal length: approx. 29.3mm (W) – 601 mm (T)
• Zoom
  • Optical: 20x
  • Digital: 20x
  • Advanced Zoom (Full HD): 40x
• Lens Configuration: 10 groups of 12 lenses (two aspherical lenses used)
• Minimum Focusing Distance: 1 cm at wide end, 60 cm across entire zooming range
• Angle of View: 59.94/50.00 Hz Horizontal: 63.3 (W) – 3.5° (T) - Vertical: 38.9° (W) – 2.0° (T)
• 29.97/25.00/23.98 Hz Horizontal: 65.6 (W) – 3.6° (T) - Vertical: 39.8° (W) – 2.0° (T)
• Shutter Speed: 1/3 – 1/2000 sec. (specific values depend on the frame frequency)
• Iris: Manual/Automatic aperture
• Gain: 0.0 db - 36.0 db
• ND Filter: Built-in (1/8 at maximum, gradation ND), motor operated
• White Balance: AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K),
• color temperature setting (2,000 K – 15,000 K), Manual
• Focus mode:
  • Manual
  • Continuous AF
  • Face Detection & Tracking
  • Face only AF
  • Eye Detection.
• AF type: Hybrid AF, Contrast AF
• Gamma: BT.709 Wide DR, BT.709 Standard, Canon Log 3, Canon 709, HDR (PQ), HDR(HLG)
• Image Stabilizer: Optical
• Min. Subject Illumination:
  • Frame frequency 59.94/29.97 Hz:
  • Approx. 3 lux (at shutter speed 1/60 sec, frame rate 59.94P, gain 30.0 dB)
  • Approx. 1.5 (at shutter speed 1/30 sec, frame rate 59.94P, gain 30.0 dB)
  • Frame frequency 50.00/25.00 Hz:
  • Approx. 2.5 lux (at shutter speed 1/50 sec, frame rate 50.00P, gain 30 dB)
  • Approx. 1.3 lux (at shutter speed 1/25 sec, frame rate 50.00P, gain 21 dB)
  • *All of the above are when high sensitivity mode is set to On
• Pan and Tilt
  • Pan operation range: Horizontal ±170°
  • Pan operation speed: 0.1° – 100°/sec. (Up to 200°/sec. with presets)
  • Tilt operation range: Vertical -30° – +100°
  • Tilt operation speed: 0.1° – 100°/sec. (Up to 180°/sec. with presets

Video Output Format

• 3G-SDI:
  • 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1280 x 720: 59.94p/50.00P (4:2:2 10bit)
• 12G-SDI:
  • 3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1280 x 720: 59.94p/50.00P (4:2:2 10bit)
  • 720 x 576: 50.00i (4:2:2 10bit)
  • 720 x 480: 59.94i (4:2:2 10bit)
• HDMI:
  • 3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1280 x 720: 59.94p/50.00P (4:2:2 10bit)
  • 720x576: 50.00P (4:2:2 10bit)
  • 720x480: 59.94P (4:2:2 10bit)
• IP:
  • 3840 x 2160: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)
  • 1920 x 1080: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)
• Supported Video and Control Protocols: Protocol: XC Protocol, RTSP/RTP, NDI HX2, RTMP/RTMPS, Standard Communication (Serial),  Standard Communication (IP), FreeD, SRT
• Number of Presets Max. 100 (including home position)

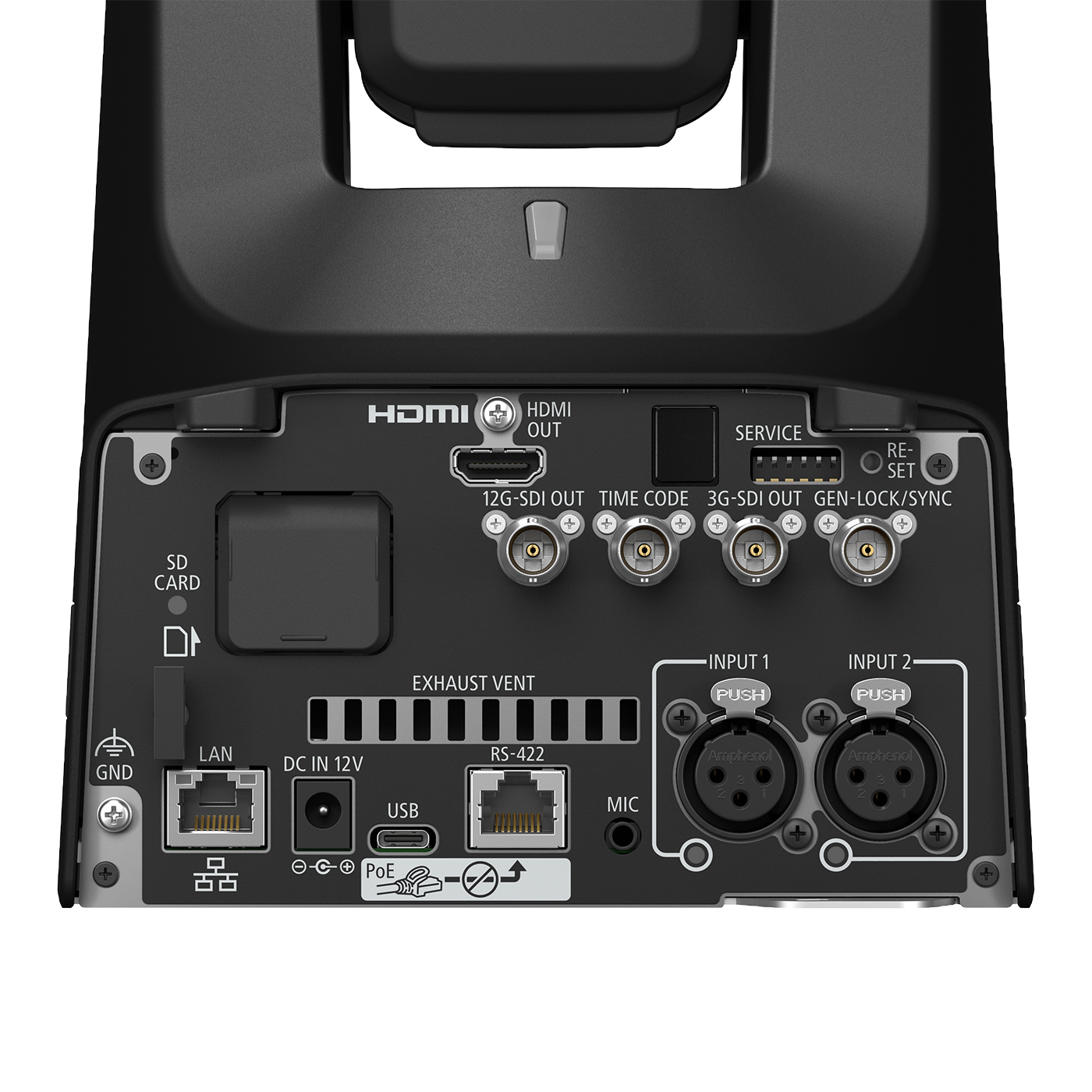

Interface

• Communication Control: LAN, Wi-Fi, Serial, IR, USB
• Network Terminal: LAN x 1, RJ45, 1000Base-T
• 12G/3G-SDI OUT Terminal
  • BNC jack x1 12GSDI & x1 3G-SDI, 0.8 Vp-p/75 Ω
  • SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST
  • 272, SMPTE ST 299 compliant
  • Embedded audio, Time code (VITC/LTC)
• GEN-LOCK Terminal BNC jack x 1, 1.0 Vp-p/75 Ω
• Time Code Terminal BNC jack x 1, 1.3 Vp-p/50 Ω or less
• HDMI OUT Terminal HDMI connector x 1, output only
• RS-422 Terminal RJ45 connector x 1
• Audio Input 1 / Input 2 Terminals
  • INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced
  • Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/1 kΩ/Att.: 20 dB
  • Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 kΩ or more
  • Supply Voltage: 48 V DC (Bias resistance: 6.8 kΩ
• Mic Terminal
  • 3.5 mm stereo mini jack (unbalanced, plug-in power supported)
  • Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB
  • Sensitivity (LINE): -12 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more
  • Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
• Media Slot: SD Card x1, future expansion

Other

• Operating Environment: Temperature: 0°C – +40°C (+32°F – +104°F)
• Humidity: 10% – 90% (without condensation)
• Storage Environment: Temperature: 0°C – +40°C (+32°F – +104°F)
• Humidity: 10% – 90% (without condensation)
• Power Supply PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant)
• External power source: 12 V DC Terminal
• Power Consumption:
  • PoE++ Input: Approx. 34.4 W max. (body only)
  • DC Input: Approx. 33.8 W max. (body only)
• Quietness: NC35 or lower
• Dimensions (W x H x D): Approx. 176 x 220 x 194 mm (6.93 x 8.66 x 7.64 in.) (excluding protrusions)
• Weight: Approx. 3.1 kg (6.8 lb.) (body only)
• Supported Controllers
  • Hardware: RC-IP100, RC-IP1000
  • Software: Remote Camera Control Application, Mulit-Camera Control Application, Multi-Camera
  • Management Application, Camera Search tool

• 3x Canon CR-N400 PTZ Cameras
  • IR Remote Control
  • Mounting Bracket with Screw
  • Safety Wire with Screw
  • Camera-to-Mount Safety Wire with Screw
  • IR Remote Controller
  • 2 x AAA Battery
  • AC Adapter
  • Power Cable
  • Warranty: Limited 1-Year Manufacturer Warranty
• 1x Canon RC-IP100 Touchscreen PTZ Joystick Controller
  • AC Adapter
  • Warranty: Limited 1-Year Manufacturer Warranty
