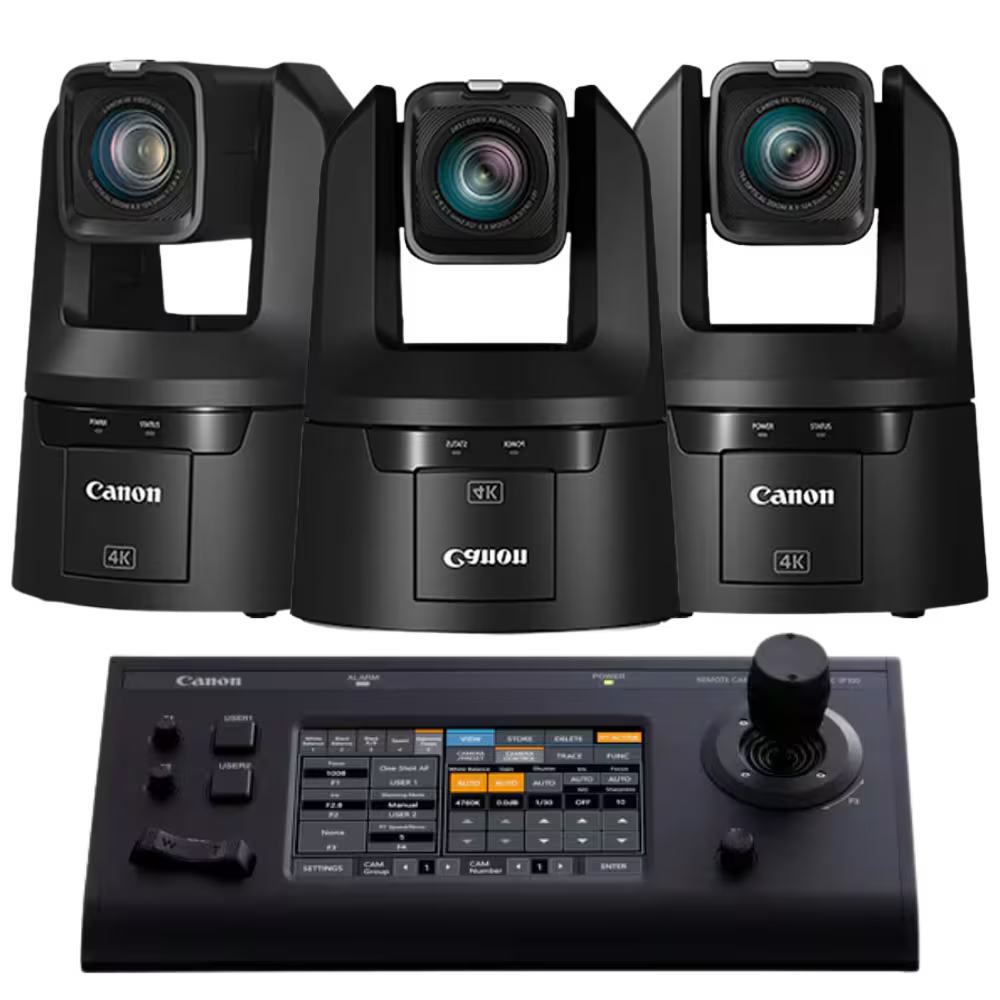

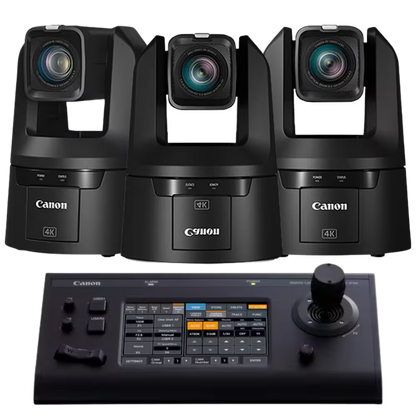

Canon 3x CR-N500 (BLACK) and 1x RC-IP100

Canon's CR-N500 PTZ camera produces outstanding image quality and is equipped with powerful features and functions to be utilized in many industries including House of Worship, Education, Broadcast, Corporate, Events and more.


• High Quality 4K 30P and FHD 60P Video Output
• Smooth & Responsive Pan and Tilt Control
• Virtually Seamless Integration into Canon Imaging Workflow
• Easy Integration into IP Streaming
• Various Interfaces Supported for Multiple Environments
• One Person Operation


The CR-N500 produces incredible 4K and HD image quality with the combination of a 1" CMOS sensor and DIGIC DV 6 image processor, along with a 15x optical zoom (20x digital) with one of the widest in class 73-degree angle-of-view. These core components provide the image-processing power and speed that enables 4K UHD video acquisition, image stabilization and precise Dual Pixel CMOS AF. On-air pan and tilt movement is possible thanks to the smooth and responsive pan and tilt mechanism equipped with the CR-N500.

The CR-N500 camera supports multiple professional interfaces, including single cable PoE+ connectivity, which allows you to use NDI |HX2 to stream audio and video, control (IP), tally, and power over a single cable. The camera supports other protocols, such as RTSP/RTP, as well as RTMP/RTMPS, to stream to social sites such as Facebook Live and YouTube. Even better, the CR-N500 can be controlled remotely by IP, Serial, IR or wirelessly via Wi-fi. The camera supports multiple control standards, including Canon's XC protocol as well as VISCA Protocol (serial and IP) for easy connectivity to a wide range of 3rd party hardware controllers.

Canon RC-IP100 PTZ Controller

Canon’s RC-IP100 controller provides control for up to 100** supported cameras*. Additionally, through the serial port, the RC-IP100 can control one compatible Canon camera via the NU protocol. The controller is equipped with a large 7” diagonal touch screen, zoom lever and joystick in order to pan, tilt, zoom and change camera picture settings with precise precision. The smooth responsiveness of the joystick allows operators to capture on-air movements with confidence. Pair this controller with a supported Canon PTZ camera to create the ideal camera/controller combination into your video production.

• Control up to 100 Canon Supported cameras
• Smooth PTZ movement and Precise Control for Professional Productions
• Adjust Pan, Tilt, Zoom and Change Camera Function Settings Remotely
• Equipped with 7” diagonal Touch Screen, Control and Zoom Lever and 4 Customizable Buttons


Camera

Zoom

• Digital: 20x
• Optical: 15x

Image Sensor

• Type 1.0 (1.0 in.) single-plate CMOS sensor
• Total pixels: approx. 13.40 megapixels
• Effective pixels: approx. 8.29 megapixels (3840 x 2160)

Lens

• f=8.3 – 124.5 mm, F/2.8 – 4.5, 15x optical zoom, 9-bladed iris diaphragm
• 35mm equivalent focal length: approx. 25.5 (W) – 382.5 mm (T)

Lens Configuration

• 18 elements in 14 groups (including 2 aspheric elements)

Minimum Focusing Distance

• 1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.) throughout the zoom range

Angle of View

• Horizontal: 73.0 (W) – 5.7° (T)
• Vertical: 45.2° (W) – 3.2° (T)

Shutter Speed

• 1/3 – 1/2000 sec. (specific values depend on the frame frequency and frame rate

Iris

• Manual/Automatic aperture

Gain

• -6.0 db 33.0 db

ND Filter

• Built-in (Off, 1/4, 1/16, 1/64), motor operated

White Balance

• AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K – 15,000 K), Manual
  *Color temperatures are given for reference purposes only.

Focus

• Focus mode: Manual, AF-boosted MF, Continuous AF, Face AF, Tracking
• AF type: Dual Pixel CMOS AF, Contrast AF

Gamma

• Normal1 (Standard), Normal2 (x4.0), Normal3 (BT.709), Normal4 (x5.0), Wide DR, Canon Log 3

Image Stabilizer

• Optical-shift

Min. Subject Illumination

• 3840 × 2160: Approx. 1.5 lux (shutter speed 1/30 sec., Frame Rate 29.97P, Gain 33.0 dB)
• 1920 ×1080: Approx. 3 lux (shutter speed 1/60 sec., Frame Rate 59.94P, Gain 33.0 dB)

Pan and Tilt

• Pan operation range: Horizontal ±170°
• Pan operation speed: 0.1° – 100°/sec.
• Tilt operation range: Vertical -30° – +90°
• Tilt operation speed: 0.1° – 100°/sec.

Video Output Format

SDI

• 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
  *Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
  *When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.

HDMI

• 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
• 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
• 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
  *Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
  *When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.

IP

• 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  *If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected.
  *A frame rate that exceeds the frame frequency cannot be selected.
  *JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected)
  Resolution: 1280 x 720
  When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps

Supported Video and Control Protocols

• Protocol: XC Protocol, RTSP/RTP, NDI®|HX2, RTMP/RTMPS, Standard (VISCA) Communication (Serial), Standard (VISCA) Communication (IP)

Number of Presets

• Max. 100 (including home position)

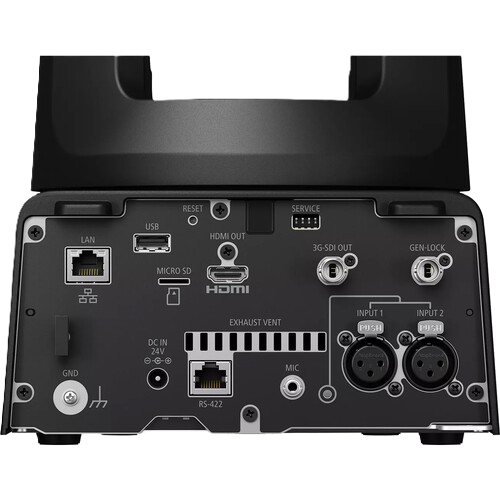

Interface

Communication Control

• LAN, Wi-Fi, Serial, IR

Network Terminal

• LAN x 1, RJ45, 1000Base-T

3G-SDI OUT Terminal

• BNC jack (output only) x 1, 0.8 Vp-p/75 , unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC)

GEN-LOCK Terminal

• BNC jack x 1, 1.0 Vp-p/75 , input only

HDMI OUT Terminal

• HDMI connector x 1, output only

RS-422 Terminal

• RJ45 connector x 1

Input 1 / Input 2 Terminals

• INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced
• Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 /Att.: 20 dB
• Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 k or more
• Supply Voltage: 48 V DC (Bias resistance: 6.8 k)

Mic Terminal

• 3.5 mm stereo mini jack (unbalanced, plug-in power supported)
• Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k or more/Att.: 20 dB
• Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k or more
• Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k)

USB Terminal

• Type-A (USB 2.0) x 1

Media Slot

• microSD card slot x 1 (future expansion, recording unavailable)

Other

Operating Environment

• Temperature: 0°C – +40°C (+32°F – +104°F)
• Humidity: 10% – 90% (without condensation)

Storage Environment

• Temperature: 0°C – +40°C (+32°F – +104°F)
• Humidity: 10% – 90% (without condensation)

Power Supply

• PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be used
• External power source: 24 V DC (using included AC adaptor)

Power Consumption

• PoE+ Input: Approx. 16.2 W* max. (body only)
• DC Input: Approx. 18.6 W max. (body only)
  *Class 4 (25.5 W required) for power supply devices

Dimensions (W x H x D)

• Approx. 200 x 269 x 208 mm (7.87 x 10.59 x 8.19 in.) (excluding protrusions)

Weight

• Approx. 4.1 kg (9.04 lb.) (body only)

Supported Controllers

• Hardware: RC-IP100
• Software: Remote Camera Control Application

• 3x Canon CR-N500
  • IR Remote Control
  • Remote Battery
  • Safety Wire
  • Safety Wire with Screw
  • Ceiling Plate
  • AC Adapter
  • Power Cable
  • Warranty: Limited 3-Year Manufacturer Warranty
• Canon RC-IP100 Touchscreen PTZ Joystick Controller
  • AC Adapter
  • Limited 1-Year Manufacturer Warranty
