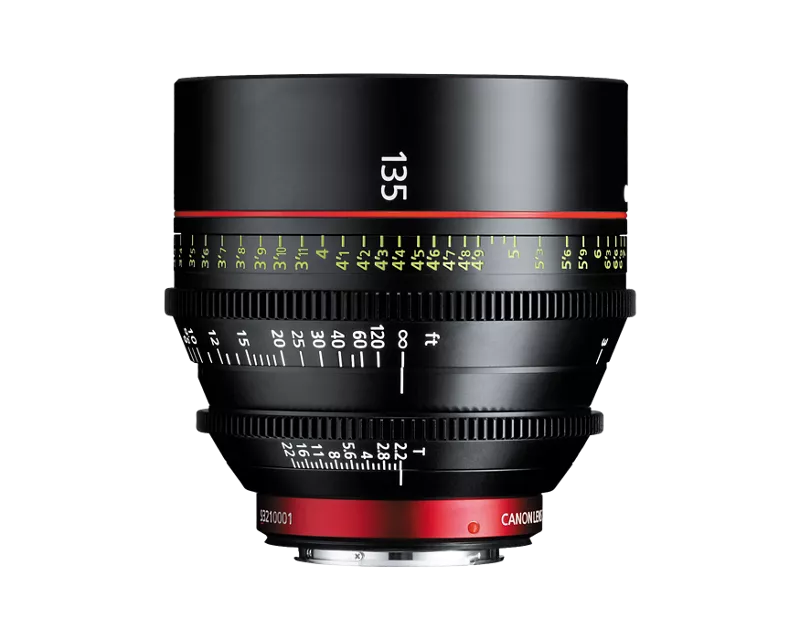

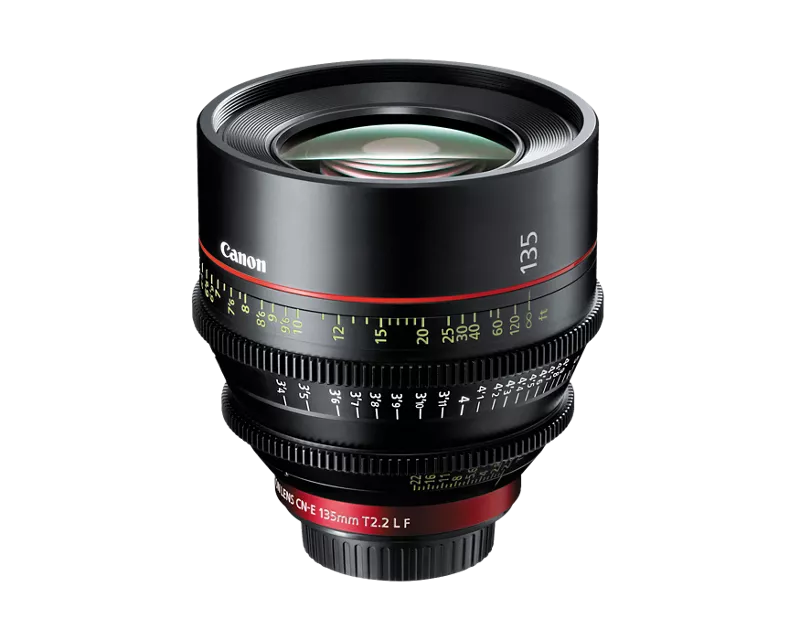

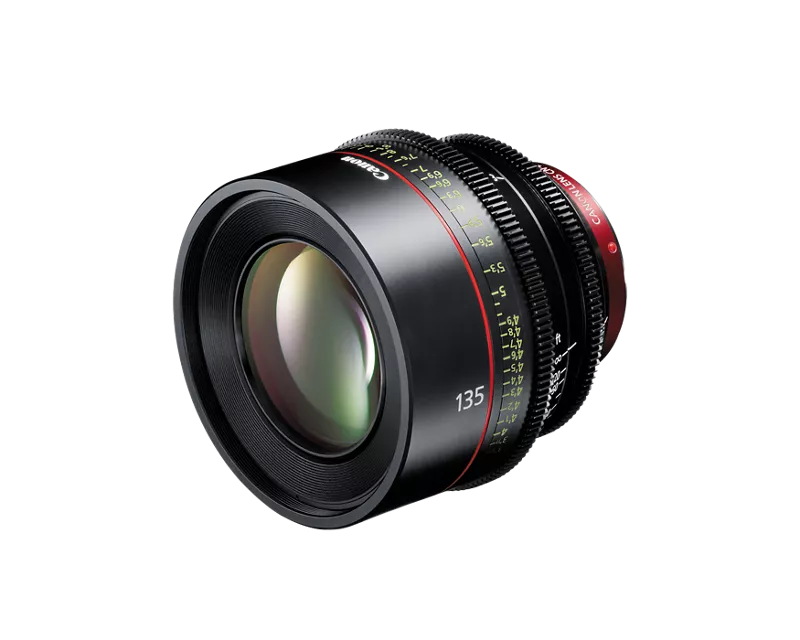

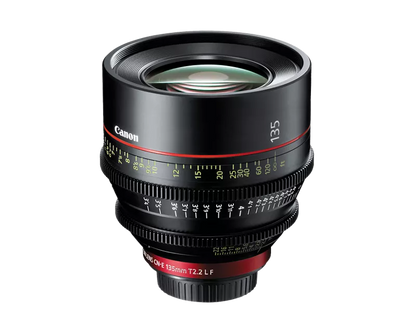

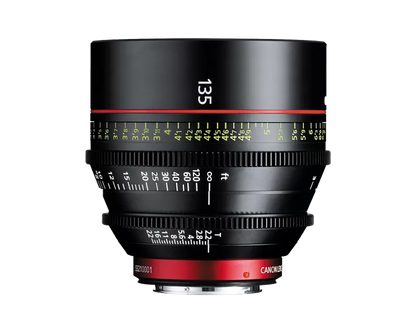

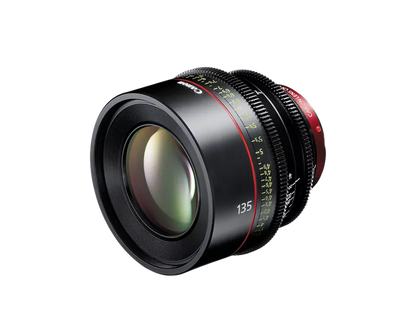

he Cinema prime CN-E 135mm T2.2 L F (EF mount) lens offers a compact, consistent lens design and proven Canon lens elements for performance and reliability in professional shooting environments.
Intended for the working professional, the Cinema prime CN-E 135mm T2.2 L F lens has markings on angled surfaces on both sides of the barrel, making it easy to read focus and aperture settings from behind or from either side of the camera. Focus markings can even be switched from standard labeling to metric. The control rings are engineered to maintain the proper amount of resistance with consistent operating torque.
Designed to fulfill contemporary 4K production standards, it features a full-frame imaging circle in a lightweight, compact design-this phenomenal lens is also perfect for any number of applications. It also features an 11-blade aperture diaphragm for beautiful background blur and innovative glass construction that counteracts barrel expansion and contraction to avoid temperature induced marking discrepancies.
- Outstanding Optical Performance to Support 4K Cameras
- Support for Full Frame Cameras
- 11-Blade Iris
- Outstanding Operability and Reliability
- Communication Functions with Cinema EOS Cameras
Cinema Prime Lenses
Canon's brilliant Cinema Prime lenses offer spectacular optical performance for demanding high-end productions. Featuring a compact and consistent lens design, these lenses offer consistent form factors and markings optimized for motion picture production. Sharing the same gear position, diameter and rotation angle, and front diameter-the lenses' compatibility with third-party accessories allows crews to easily change lenses without making adjustments to the rig setup. Perfect on the EOS C500, EOS C300, EOS C100 and EOS-1D C, these lenses are also compatible with all Canon EOS DSLRs.
Mount
- EF Mount
Filter Diameter
- 105mm
Focal Length
- 135mm
Max. Relative Aperture (T-Number)
- T2.2
Iris Blades
- 11
Angle of View
- Aspect Ratio 1.5:1, Dimensions 36.0x24.0mm
15.2°×10.2° - Aspect Ratio 1.78:1, Dimensions 24.6x13.8mm
10.4°×5.9°
M.O.D. (Minimum Object Distance)
- 1.0m / 3ft. 3in.
Object Dimensions at M.O.D
- Aspect Ratio 1.5:1, Dimensions 36.0x24.0mm
21.1x14.1cm - Aspect Ratio 1.78:1, Dimensions 24.6x13.8mm
14.4x8.1cm
Front Diameter
- 114mm
Approx. Size (WxHxL)
- 4.66x4.66x4.55 in. (118.4×118.4×115.6mm)
Approx. Weight
- 3.09 lbs (1.4kg)
