Canon 3x CR-N100 PTZ Cameras (Black) and 1x RC-IP100 Controller Bundle

Canon CR-N100 4K PTZ Camera 3-Pack with RC-IP100 PTZ Controller

Build a professional multi-camera video production system with this Canon CR-N100 PTZ camera bundle. It includes three Canon CR-N100 4K PTZ cameras and one Canon RC-IP100 PTZ controller, giving you the tools to control multiple PTZ cameras from a single location.

The Canon CR-N100 combines 4K video, 20x optical zoom, NDI|HX, SRT, HDMI, USB, and IP video output in a compact PTZ camera. In addition, the RC-IP100 provides precise pan, tilt, and zoom control from its 7-inch touchscreen and joystick.

As a result, this bundle is an excellent solution for live streaming, broadcast, houses of worship, education, corporate video, events, and other multi-camera productions.

Key Features

• 3 Canon CR-N100 4K PTZ cameras with 20x optical zoom
• 1 Canon RC-IP100 PTZ controller for centralized camera control
• 4K UHD video at up to 30 fps and Full HD video at up to 60 fps
• 20x optical zoom with optical image stabilization
• Built-in NDI|HX and SRT support for IP video production and streaming
• HDMI, IP, and USB video outputs
• PoE+ support for simplified network installation
• Hybrid autofocus with a 1/2.3-inch CMOS sensor
• 7-inch touchscreen, joystick, and zoom lever on the RC-IP100
• RC-IP100 can control up to 100 supported Canon cameras
• Smooth, precise pan, tilt, and zoom control
• Ideal for broadcast, live streaming, education, houses of worship, corporate video, and events

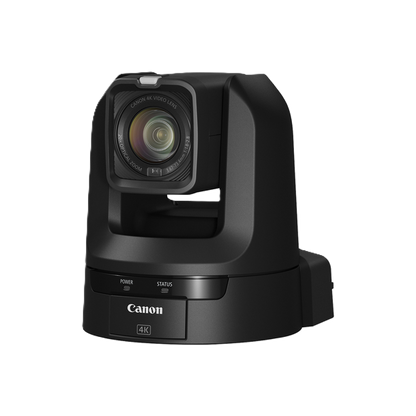

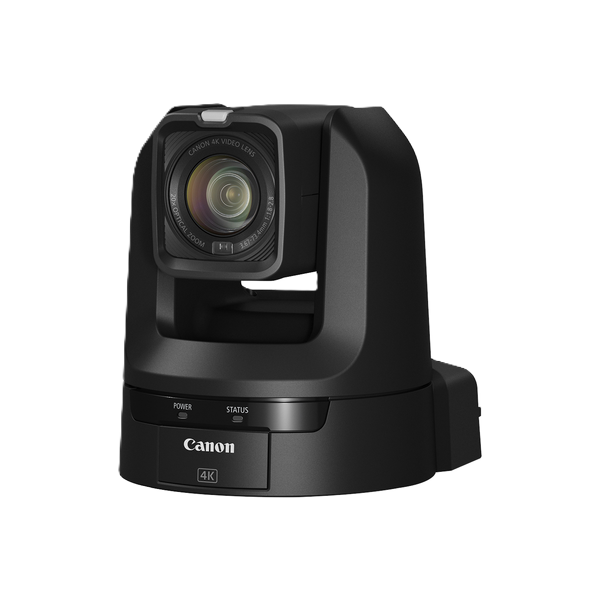

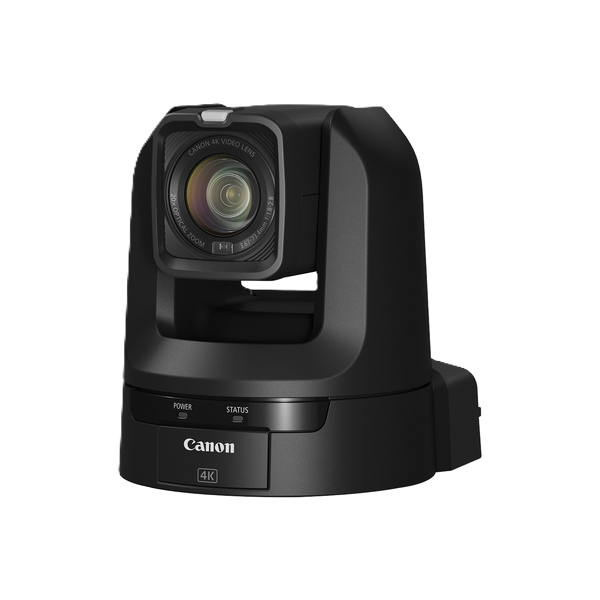

Canon CR-N100 4K PTZ Camera

The Canon CR-N100 is a compact 4K PTZ camera designed for professional video production. It features a 1/2.3-inch CMOS sensor and delivers 4K UHD video at 30 fps. Additionally, it can capture Full HD video at up to 60 fps.

For flexible framing, the CR-N100 includes a 20x optical zoom lens with optical image stabilization. Therefore, you can capture subjects from wide shots to close-ups without moving the camera.

The camera also supports NDI|HX and SRT, making it well suited for modern IP-based production and live streaming workflows. Furthermore, HDMI, IP, and USB video outputs make it easy to integrate the CR-N100 into a variety of production systems.

CR-N100 Features

• 1/2.3-inch CMOS sensor with Hybrid Auto Focus
• 4K UHD video at 30 fps
• Full HD video at up to 60 fps
• 20x optical zoom lens
• Optical image stabilization
• NDI|HX support
• SRT support
• HDMI, IP, and USB video output
• PoE+ support
• Canon XC Protocol and standard control support
• Built-in tally lamp
• Canon Webcam Driver support
• High-precision PTZ drive mechanism
• Add-on application support

Canon RC-IP100 PTZ Controller

The Canon RC-IP100 PTZ controller provides centralized control for compatible Canon PTZ cameras. It can control up to 100 supported cameras, making it especially useful for multi-camera production environments.

In addition, the RC-IP100 features a large 7-inch touchscreen, joystick, zoom lever, and customizable buttons. Operators can therefore adjust pan, tilt, zoom, and camera settings quickly and accurately.

The responsive controls make it easy to frame shots and follow on-air action. As a result, the RC-IP100 is a powerful control solution for professional live production, streaming, education, houses of worship, corporate video, and broadcast applications.

RC-IP100 Features

• Controls up to 100 supported Canon cameras
• 7-inch diagonal touchscreen
• Joystick for precise pan and tilt control
• Zoom lever for smooth zoom operation
• Remote camera function and picture setting control
• Four customizable buttons
• Precise PTZ movement for professional productions
• Serial control for compatible Canon cameras

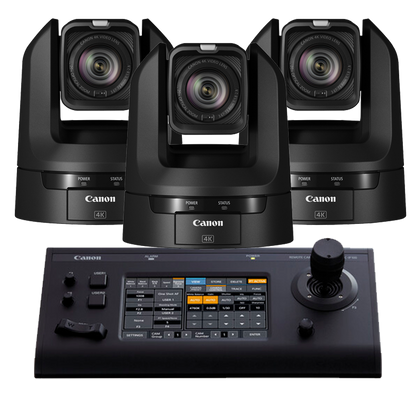

Complete Canon PTZ Camera Production Bundle

Together, the three Canon CR-N100 PTZ cameras and RC-IP100 controller create a flexible multi-camera production system. You can place the cameras in different positions around a production space and control them remotely from one location.

Whether you are producing a live stream, worship service, classroom lecture, corporate event, sports production, or broadcast, this Canon PTZ bundle provides professional image quality and efficient camera control.

Moreover, support for NDI|HX, SRT, HDMI, IP, USB, and PoE+ makes it easier to integrate the cameras into modern video production workflows.

Camera

• Image Sensor
  • Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
  • Total pixels: approx. 21.14 megapixels
  • Effective pixels: approx. 8.29 megapixels (3840 x 2160)
• Lens
  • f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture
  • 35mm equivalent focal length:
  • [4K UHD] approx. 29.3 (W) – 601 mm (T)
  • [Full HD] approx. 30.5 (W) – 627 mm (T)
• Zoom
  • Digital: 20x
  • Optical: 20x
• Lens Configuration: 12 elements in 10 groups (including 2 aspheric elements)
• Minimum Focusing Distance: 1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.) throughout the zoom range
• Angle of View
  • [4K UHD]
  • Horizontal: 65.6 (W) – 3.6° (T)
  • Vertical: 39.8° (W) – 2.0° (T)
  • [Full HD]
  • Horizontal: 63.5 (W) – 3.4° (T)
  • Vertical: 38.4° (W) – 1.9° (T)
• Shutter Speed: 1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
• Iris: Manual/Automatic aperture
• Gain: 0.0 dB – 36 dB
• White Balance
  • AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp:
  • 3,200 K*), color temperature setting (2,000 K – 15,000 K), Manual
  • *Color temperatures are given for reference purposes only
• Focus mode: Manual, Continuous AF, Face AF, Tracking AF type: Hybrid AF, Contrast AF
• Gamma: Normal1 (Standard), Normal3 (BT.709)
• Image Stabilizer: Optical-shift
• Min. Subject Illumination: Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on)
• Pan and Tilt
  • Pan operation range: Horizontal ±170°
  • Pan operation speed: 0.2° – 300°/sec.
  • Tilt operation range: Vertical -30° – +100°
  • Tilt operation speed: 0.2° – 180°/sec.

Video Output Format

• Frame Frequency 59.94 Hz
  • 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• Frame Frequency 29.97 Hz
  • 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 1920 x 1080: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• Frame Frequency 50.00 Hz
  • 1920 x 1080: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
• Frame Frequency 25.00 Hz
  • 3840 x 2160: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  • 1920 x 1080: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
• Frame Frequency 23.98 Hz
  • 3840 x 2160: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
  • 1920 x 1080: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
  • 1280 x 720: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
  • 640 x 360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
• – JPEG has one fixed pattern depending on the frame frequency (format is fixed and cannot be selected)
  • Resolution: 1280 x 720
  • When frame frequency is 59.94/29.97 Hz: 14.99 fps
  • When frame frequency is 50.00/25.00 Hz: 12.50 fps
  • When frame frequency is 23.98 Hz: 11.99 fps
  • When frame frequency is 23.98 Hz: 11.99 fps
• HDMI
  • 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
  • 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
  • 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
• IP
  • 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) *If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected.
  • *A frame rate that exceeds the frame frequency cannot be selected. *JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps
• Supported Video and Control Protocols: Protocol: XC Protocol, RTSP/RTP, NDI®HX2, SRT, RTMP/RTMPS, Standard Protocol Communication (Serial), Standard Protocol Communication (IP)
• Number of Presets: Max. 100 (including home position)

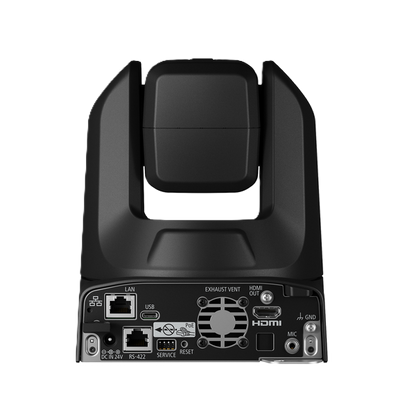

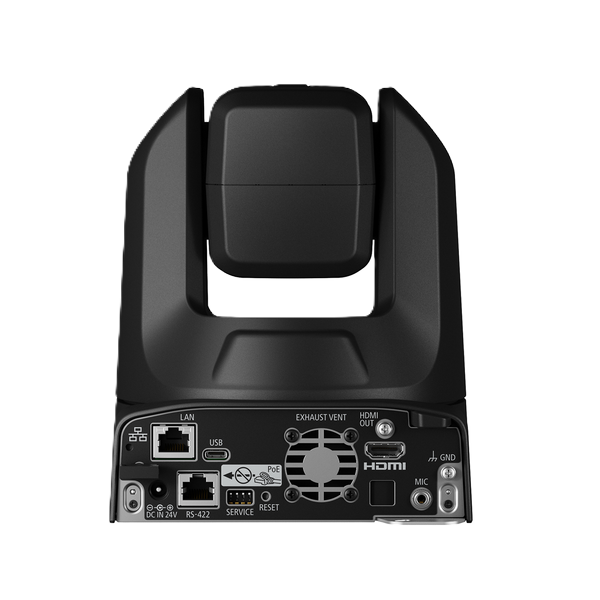

Interface

• Communication Control: LAN, Serial, IR
• Network Terminal: LAN x 1, RJ45, 1000Base-T
• HDMI OUT Terminal: HDMI connector x 1, output only
• RS-422 Terminal: RJ45 connector x 1
• Mic Terminal
  • 3.5 mm stereo mini jack (unbalanced, plug-in power supported)
  • Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k or
  • more/Att.: 20 dB
  • Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k or more
  • Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k)
• USB Terminal: Type-C (USB 3.0) x 1

Other

• Operating Environment
  • Temperature: 0°C – +40°C (+32°F – +104°F)
  • Humidity: 10% – 90% (without condensation)
• Power Supply
  • PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be used
  • External power source: 24 V DC (using included AC adaptor)
• Power Consumption
  • PoE+ Input: Approx. 13.9 W max. (body only)
  • DC Input: Approx. 13.3 W max. (body only)
• Dimensions (W x H x D): Approx. 154 x 178 x 164 mm (6.06 x 7.01 x 6.46 in. (excluding protrusions)
• Weight: Approx. 2.2 kg (4.86 lb.) (body only)
• Supported Controllers
  • Hardware: RC-IP100, RC-IP1000
  • Software: Remote Camera Control Application

• 3x CR-N100 PTZ Camera
  • Mounting Plate with Screw
  • Safety Wire
  • AC Adapter
  • AC Cable
  • Infrared Remote Controller with Battery
  • Installation Guide
  • Warranty Card
• 1x RC-IP100 Remote Camera Controller
  • AC Adapter
  • AC Cable
  • Printed Documents
